EduSahara™ Assignment
Name : Triangle Angle Properties
Chapter : Triangles
Grade : ICSE Grade VII
License : Non Commercial Use
Question 1
1.
Two angles of a triangle measure 56° and 50° respectively. Find the measure of the third angle of the triangle
  • (i)
    74°
  • (ii)
    76°
  • (iii)
    72°
  • (iv)
    75°
  • (v)
    73°
Question 2
2.
The angles of a triangle ABC are in the ratio 9 : 5 : 22. Find the measure of each angle of the triangle
  • (i)
    A
    =
    45°
    ,
    B
    =
    25°
    ,
    C
    =
    110°
  • (ii)
    A
    =
    43°
    ,
    B
    =
    25°
    ,
    C
    =
    112°
  • (iii)
    A
    =
    45°
    ,
    B
    =
    23°
    ,
    C
    =
    112°
  • (iv)
    A
    =
    47°
    ,
    B
    =
    25°
    ,
    C
    =
    108°
  • (v)
    A
    =
    43°
    ,
    B
    =
    27°
    ,
    C
    =
    110°
Question 3
3.

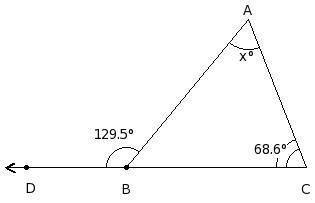

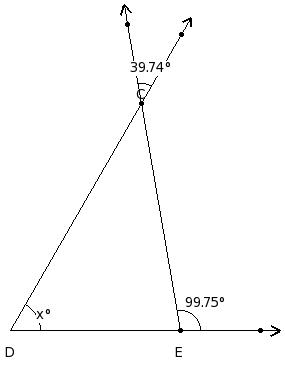

Find the unknown angle from the following figure
  • (i)
    x
    =
    57.76°
  • (ii)
    x
    =
    53.76°
  • (iii)
    x
    =
    56.76°
  • (iv)
    x
    =
    54.76°
  • (v)
    x
    =
    55.76°
Question 4
4.
In the given figure, △DEF in which side EF has been produced to G. If ∠FDE = x° , ∠DEF = (1a)° , ∠EFD = (3a)° and ∠DFG = (3a)°, find the values of a and x.
  • (i)
    a
    =
    29°
    ,
    x
    =
    59°
  • (ii)
    a
    =
    32°
    ,
    x
    =
    62°
  • (iii)
    a
    =
    30°
    ,
    x
    =
    60°
  • (iv)
    a
    =
    31°
    ,
    x
    =
    61°
  • (v)
    a
    =
    28°
    ,
    x
    =
    58°
Question 5
5.
Find the angles of the triangle
  • (i)
    B
    =
    58°
    ,
    C
    =
    47°
    ,
    D
    =
    75°
  • (ii)
    B
    =
    60°
    ,
    C
    =
    43°
    ,
    D
    =
    77°
  • (iii)
    B
    =
    62°
    ,
    C
    =
    45°
    ,
    D
    =
    73°
  • (iv)
    B
    =
    58°
    ,
    C
    =
    45°
    ,
    D
    =
    77°
  • (v)
    B
    =
    60°
    ,
    C
    =
    45°
    ,
    D
    =
    75°
Question 6
6.

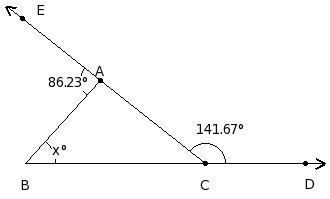

Calculate the value of x in the following figure
  • (i)
    x
    =
    45.97°
  • (ii)
    x
    =
    43.97°
  • (iii)
    x
    =
    42.97°
  • (iv)
    x
    =
    44.97°
  • (v)
    x
    =
    41.97°
Question 7
7.

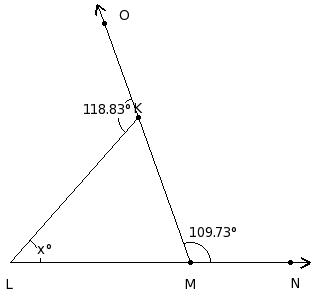

Calculate the value of x in the following figure
  • (i)
    x
    =
    81.05°
  • (ii)
    x
    =
    79.05°
  • (iii)
    x
    =
    80.05°
  • (iv)
    x
    =
    82.05°
  • (v)
    x
    =
    83.05°
Question 8
8.

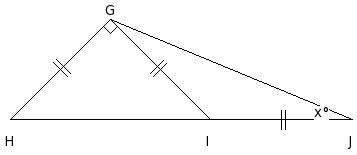

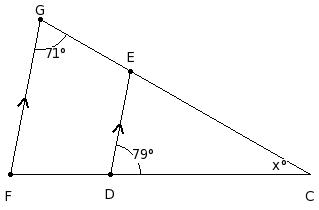

Find the unknown marked angle in the following figure
  • (i)
    x
    =
    37°
  • (ii)
    x
    =
    34°
  • (iii)
    x
    =
    36°
  • (iv)
    x
    =
    38°
  • (v)
    x
    =
    35°
Question 9
9.
    • Find the unknown angles in the following figure
  • (i)
    I
    =
    44°
    ,
    J
    =
    44°
  • (ii)
    I
    =
    43°
    ,
    J
    =
    43°
  • (iii)
    I
    =
    41°
    ,
    J
    =
    41°
  • (iv)
    I
    =
    45°
    ,
    J
    =
    45°
  • (v)
    I
    =
    42°
    ,
    J
    =
    42°
Question 10
10.
In the following figure, one side of a triangle has been produced. Find all the angles of the triangle
  • (i)
    F
    =
    52°
    ,
    G
    =
    47°
    ,
    H
    =
    81°
  • (ii)
    F
    =
    54°
    ,
    G
    =
    45°
    ,
    H
    =
    81°
  • (iii)
    F
    =
    56°
    ,
    G
    =
    45°
    ,
    H
    =
    79°
  • (iv)
    F
    =
    52°
    ,
    G
    =
    45°
    ,
    H
    =
    83°
  • (v)
    F
    =
    54°
    ,
    G
    =
    43°
    ,
    H
    =
    83°
Question 11
11.

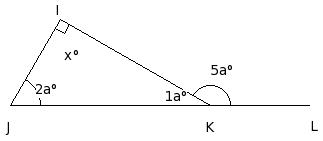

In the following figure, one side of a triangle has been produced. Find all the angles of the triangle.
  • (i)
    G
    =
    47°
    ,
    H
    =
    40°
    ,
    I
    =
    93°
  • (ii)
    G
    =
    43°
    ,
    H
    =
    40°
    ,
    I
    =
    97°
  • (iii)
    G
    =
    45°
    ,
    H
    =
    40°
    ,
    I
    =
    95°
  • (iv)
    G
    =
    45°
    ,
    H
    =
    38°
    ,
    I
    =
    97°
  • (v)
    G
    =
    43°
    ,
    H
    =
    42°
    ,
    I
    =
    95°
Question 12
12.

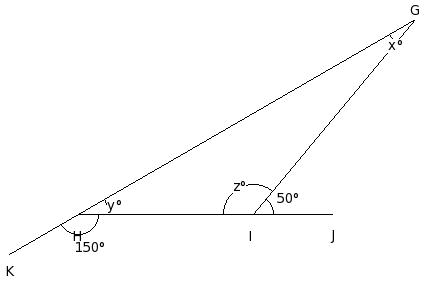

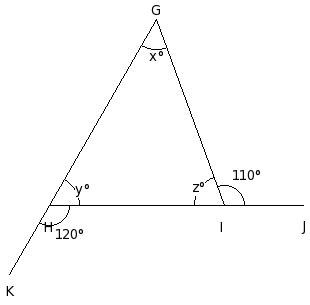

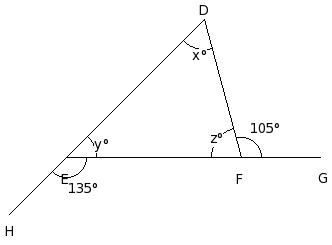

In the following figure, two sides of a triangle have been produced. Find all the angles of the triangle.
  • (i)
    x
    =
    58°
    ,
    y
    =
    45°
    ,
    z
    =
    77°
  • (ii)
    x
    =
    60°
    ,
    y
    =
    43°
    ,
    z
    =
    77°
  • (iii)
    x
    =
    62°
    ,
    y
    =
    45°
    ,
    z
    =
    73°
  • (iv)
    x
    =
    58°
    ,
    y
    =
    47°
    ,
    z
    =
    75°
  • (v)
    x
    =
    60°
    ,
    y
    =
    45°
    ,
    z
    =
    75°
Question 13
13.

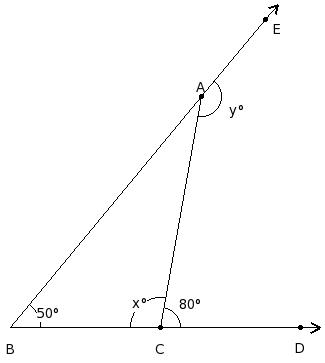

In the following figure, one side of a triangle has been produced. Find the values of x and y.
  • (i)
    x
    =
    45°
    ,
    y
    =
    110°
  • (ii)
    x
    =
    43°
    ,
    y
    =
    108°
  • (iii)
    x
    =
    47°
    ,
    y
    =
    112°
  • (iv)
    x
    =
    46°
    ,
    y
    =
    111°
  • (v)
    x
    =
    44°
    ,
    y
    =
    109°
Question 14
14.
Calculate the value of the lettered angle in the following figure
  • (i)
    x
    =
    60.17°
  • (ii)
    x
    =
    61.17°
  • (iii)
    x
    =
    59.17°
  • (iv)
    x
    =
    62.17°
  • (v)
    x
    =
    58.17°
Question 15
15.

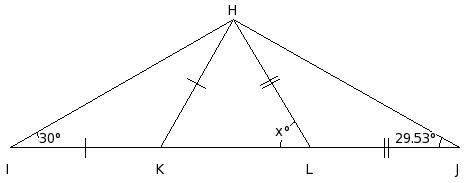

Calculate the value of the lettered angle in the following figure
  • (i)
    x
    =
    59.08°
  • (ii)
    x
    =
    60.08°
  • (iii)
    x
    =
    61.08°
  • (iv)
    x
    =
    58.08°
  • (v)
    x
    =
    62.08°
Question 16
16.
In the given triangle, ∠D = 87.36°. Find the measure of ∠E and ∠F
  • (i)
    ∠E = ∠F = 45.32°
  • (ii)
    ∠E = ∠F = 44.32°
  • (iii)
    ∠E = ∠F = 46.32°
  • (iv)
    ∠E = ∠F = 47.32°
  • (v)
    ∠E = ∠F = 48.32°
Question 17
17.

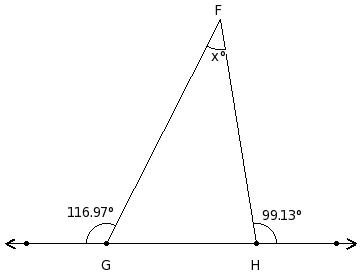

Find the unknown angle in the following figure
  • (i)
    x
    =
    62.13°
  • (ii)
    x
    =
    61.13°
  • (iii)
    x
    =
    60.13°
  • (iv)
    x
    =
    58.13°
  • (v)
    x
    =
    59.13°
Question 18
18.
Find the unknown angle in the following figure
  • (i)
    x
    =
    47°
  • (ii)
    x
    =
    45°
  • (iii)
    x
    =
    46°
  • (iv)
    x
    =
    44°
  • (v)
    x
    =
    43°
Question 19
19.
Find the unknown angle in the following figure
  • (i)
    x
    =
    137°
  • (ii)
    x
    =
    133°
  • (iii)
    x
    =
    136°
  • (iv)
    x
    =
    134°
  • (v)
    x
    =
    135°
Question 20
20.
In  △GHI, if ∠G = 69° and ∠H = 70°, find the measure of ∠I
  • (i)
    I
    =
    39°
  • (ii)
    I
    =
    42°
  • (iii)
    I
    =
    43°
  • (iv)
    I
    =
    41°
  • (v)
    I
    =
    40°
Question 21
21.
In  △IJK, if ∠I = 90° and ∠J = ∠K, find the measure of each of the equal angles of the triangle
  • (i)
    46°
  • (ii)
    47°
  • (iii)
    44°
  • (iv)
    45°
  • (v)
    43°
Question 22
22.
One angle of a triangle measures 60° and the other two angles are in the ratio 3 : 5. Find these angles.
  • (i)
    B
    =
    46°
    ,
    C
    =
    76°
  • (ii)
    B
    =
    44°
    ,
    C
    =
    74°
  • (iii)
    B
    =
    45°
    ,
    C
    =
    75°
  • (iv)
    B
    =
    47°
    ,
    C
    =
    77°
  • (v)
    B
    =
    43°
    ,
    C
    =
    73°
Question 23
23.
In a right-angled triangle, the two acute angles are in the ratio 13 : 5. Find these angles.
  • (i)
    A
    =
    65°
    ,
    C
    =
    25°
  • (ii)
    A
    =
    63°
    ,
    C
    =
    23°
  • (iii)
    A
    =
    67°
    ,
    C
    =
    27°
  • (iv)
    A
    =
    64°
    ,
    C
    =
    24°
  • (v)
    A
    =
    66°
    ,
    C
    =
    26°
Question 24
24.
One of the two equal angles of an isosceles triangle measures 48°. Find the measure of each angle of the triangle.
  • (i)
    A
    =
    48°
    ,
    B
    =
    46°
    ,
    C
    =
    86°
  • (ii)
    A
    =
    48°
    ,
    B
    =
    48°
    ,
    C
    =
    84°
  • (iii)
    A
    =
    50°
    ,
    B
    =
    48°
    ,
    C
    =
    82°
  • (iv)
    A
    =
    46°
    ,
    B
    =
    50°
    ,
    C
    =
    84°
  • (v)
    A
    =
    46°
    ,
    B
    =
    48°
    ,
    C
    =
    86°
Question 25
25.
Find the measure of each of the two equal angles of an isosceles right-angled triangle.
  • (i)
    45°
  • (ii)
    47°
  • (iii)
    44°
  • (iv)
    43°
  • (v)
    46°
Question 26
26.
If all the three angles of a triangle are of the same measure, find the measure of each of the angles.
  • (i)
    62°
  • (ii)
    59°
  • (iii)
    58°
  • (iv)
    60°
  • (v)
    61°
Question 27
27.
In a right-angled triangle if one of the acute angles is 37°, find the measure of the other acute angle.
  • (i)
    52°
  • (ii)
    51°
  • (iii)
    55°
  • (iv)
    54°
  • (v)
    53°
Question 28
28.
The vertical angle of an isosceles triangle is twice the sum of its base angles. Find each angle of the triangle.
  • (i)
    A
    =
    118°
    ,
    B
    =
    32°
    ,
    C
    =
    30°
  • (ii)
    A
    =
    122°
    ,
    B
    =
    30°
    ,
    C
    =
    28°
  • (iii)
    A
    =
    120°
    ,
    B
    =
    30°
    ,
    C
    =
    30°
  • (iv)
    A
    =
    118°
    ,
    B
    =
    30°
    ,
    C
    =
    32°
  • (v)
    A
    =
    120°
    ,
    B
    =
    28°
    ,
    C
    =
    32°
Question 29
29.
In an isosceles triangle, each base angle is four times its vertical angle. Find each angle of the triangle.
  • (i)
    A
    =
    20°
    ,
    B
    =
    80°
    ,
    C
    =
    80°
  • (ii)
    A
    =
    20°
    ,
    B
    =
    78°
    ,
    C
    =
    82°
  • (iii)
    A
    =
    18°
    ,
    B
    =
    80°
    ,
    C
    =
    82°
  • (iv)
    A
    =
    22°
    ,
    B
    =
    80°
    ,
    C
    =
    78°
  • (v)
    A
    =
    18°
    ,
    B
    =
    82°
    ,
    C
    =
    80°
Question 30
30.
The ratio between the base angle and the vertical angle of an isosceles triangle is 1 : 1. Find each angle of the triangle
  • (i)
    A
    =
    58°
    ,
    B
    =
    62°
    ,
    C
    =
    60°
  • (ii)
    A
    =
    60°
    ,
    B
    =
    58°
    ,
    C
    =
    62°
  • (iii)
    A
    =
    58°
    ,
    B
    =
    60°
    ,
    C
    =
    62°
  • (iv)
    A
    =
    60°
    ,
    B
    =
    60°
    ,
    C
    =
    60°
  • (v)
    A
    =
    62°
    ,
    B
    =
    60°
    ,
    C
    =
    58°
Question 31
31.

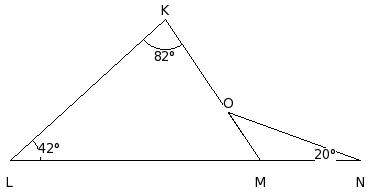

In the given figure, find ∠KLJ
  • (i)
    71°
  • (ii)
    70°
  • (iii)
    72°
  • (iv)
    69°
  • (v)
    73°
Question 32
32.
In the given figure, find ∠MKL
  • (i)
    130°
  • (ii)
    132°
  • (iii)
    131°
  • (iv)
    129°
  • (v)
    128°
Question 33
33.

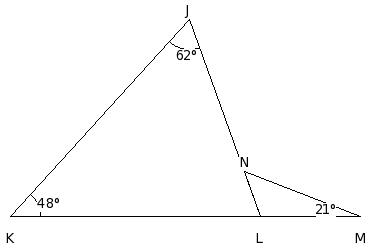

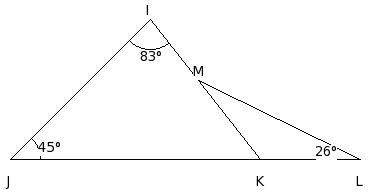

In the given figure, find ∠KLJ
  • (i)
    29°
  • (ii)
    28°
  • (iii)
    27°
  • (iv)
    30°
  • (v)
    31°
Question 34

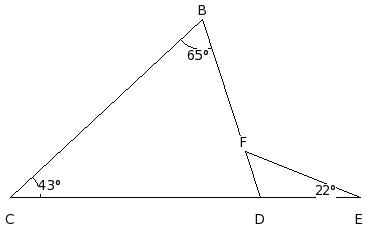

34.

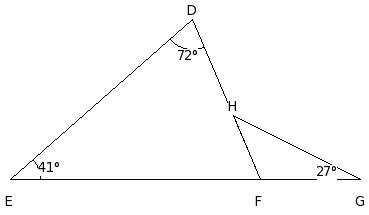

In the given figure, find ∠AED
  • (i)
    134°
  • (ii)
    135°
  • (iii)
    136°
  • (iv)
    138°
  • (v)
    137°
Question 35
35.
In the given figure , if JG ⟂ HI and ∠GHJ = 47.73°, find ∠JGH
  • (i)
    42.27°
  • (ii)
    41.27°
  • (iii)
    43.27°
  • (iv)
    40.27°
  • (v)
    44.27°
Question 36
36.
In the given figure , if JG ⟂ HI and ∠GHJ = 50.96°, find ∠IGJ
  • (i)
    23.94°
  • (ii)
    27.94°
  • (iii)
    25.94°
  • (iv)
    26.94°
  • (v)
    24.94°
Question 37
37.
In the given figure , if EB ⟂ CD and ∠BCE = 48.74°, find ∠EDB
  • (i)
    60.24°
  • (ii)
    61.24°
  • (iii)
    62.24°
  • (iv)
    64.24°
  • (v)
    63.24°
Question 38
38.
In below given figure, find ∠GJI
  • (i)
    126.20°
  • (ii)
    128.20°
  • (iii)
    127.20°
  • (iv)
    124.20°
  • (v)
    125.20°
Question 39
39.

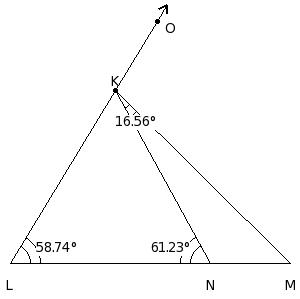

In below given figure, find ∠NKL
  • (i)
    72.16°
  • (ii)
    74.16°
  • (iii)
    75.16°
  • (iv)
    73.16°
  • (v)
    71.16°
Question 40
40.
In below given figure, find ∠GEI
  • (i)
    113.74°
  • (ii)
    112.74°
  • (iii)
    111.74°
  • (iv)
    115.74°
  • (v)
    114.74°
Question 41

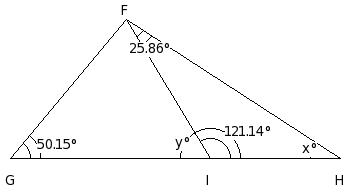

41.

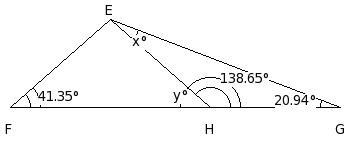

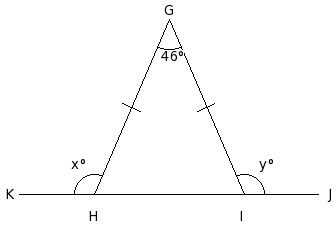

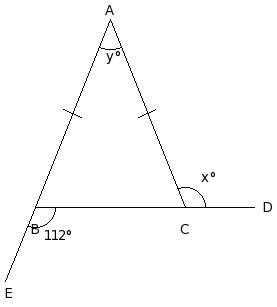

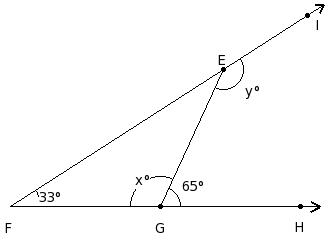

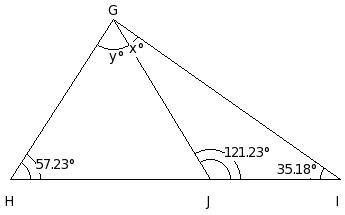

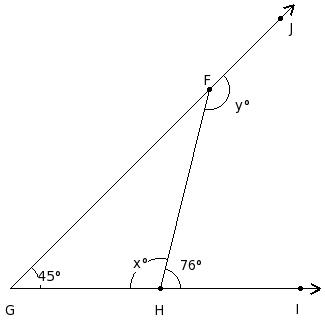

In the given figure, find the values of x and y.
  • (i)
    x
    =
    125.93°
    ,
    y
    =
    56.07°
  • (ii)
    x
    =
    126.93°
    ,
    y
    =
    57.07°
  • (iii)
    x
    =
    124.93°
    ,
    y
    =
    55.07°
  • (iv)
    x
    =
    122.93°
    ,
    y
    =
    53.07°
  • (v)
    x
    =
    123.93°
    ,
    y
    =
    54.07°
Question 42
42.
Each of the two equal angles of an isosceles triangle is half the third angle. Find the angles of the triangle
  • (i)
    X
    =
    43°
    ,
    Y
    =
    90°
    ,
    Z
    =
    47°
  • (ii)
    X
    =
    45°
    ,
    Y
    =
    88°
    ,
    Z
    =
    47°
  • (iii)
    X
    =
    43°
    ,
    Y
    =
    92°
    ,
    Z
    =
    45°
  • (iv)
    X
    =
    45°
    ,
    Y
    =
    90°
    ,
    Z
    =
    45°
  • (v)
    X
    =
    47°
    ,
    Y
    =
    90°
    ,
    Z
    =
    43°
Question 43

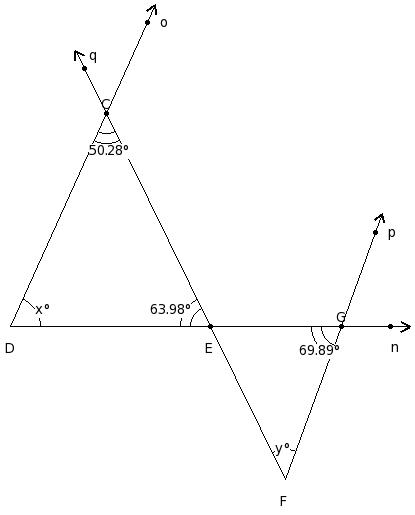

43.

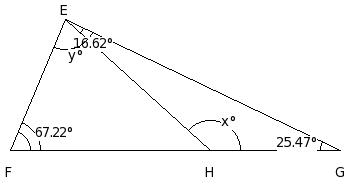

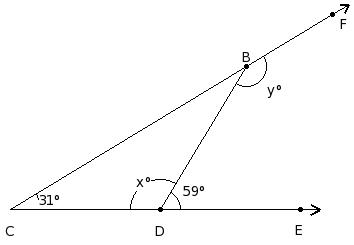

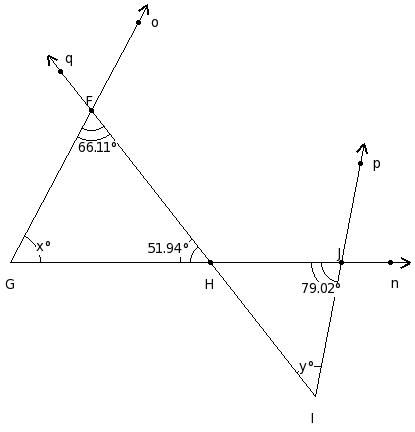

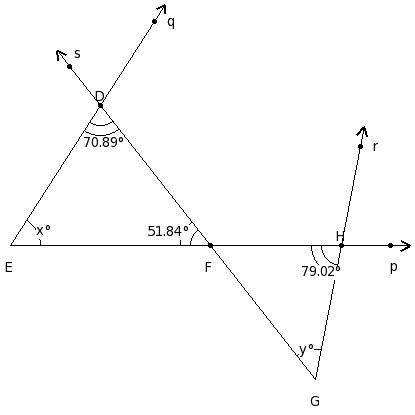

In the given figure, find the values of x and y
  • (i)
    x
    =
    54.07°
    ,
    y
    =
    47.25°
  • (ii)
    x
    =
    53.07°
    ,
    y
    =
    46.25°
  • (iii)
    x
    =
    55.07°
    ,
    y
    =
    48.25°
  • (iv)
    x
    =
    52.07°
    ,
    y
    =
    45.25°
  • (v)
    x
    =
    51.07°
    ,
    y
    =
    44.25°
Question 44
44.
In the given figure, NO ∥ PQ, ∠FCO = 56° and CD = EC. Find the measure of x.
  • (i)
    x
    =
    68°
  • (ii)
    x
    =
    69°
  • (iii)
    x
    =
    70°
  • (iv)
    x
    =
    67°
  • (v)
    x
    =
    66°
Question 45
45.

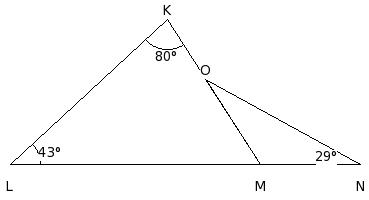

In the given figure, find the value of x.
  • (i)
    x
    =
    27°
  • (ii)
    x
    =
    23°
  • (iii)
    x
    =
    25°
  • (iv)
    x
    =
    26°
  • (v)
    x
    =
    24°
Question 46
46.
In the given figure, DE ∥ FG and DF = FH. Find the values of x,y and z.
  • (i)
    x
    =
    35°
    ,
    y
    =
    77°
    ,
    z
    =
    28°
  • (ii)
    x
    =
    35°
    ,
    y
    =
    79°
    ,
    z
    =
    26°
  • (iii)
    x
    =
    39°
    ,
    y
    =
    77°
    ,
    z
    =
    24°
  • (iv)
    x
    =
    37°
    ,
    y
    =
    75°
    ,
    z
    =
    28°
  • (v)
    x
    =
    37°
    ,
    y
    =
    77°
    ,
    z
    =
    26°
Question 47
47.

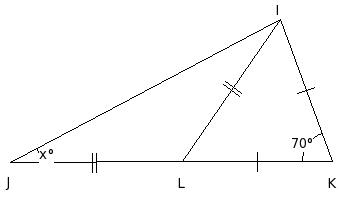

In the given figure, if KI = IL = JL. Find the value of x.
  • (i)
    x
    =
    77.5°
  • (ii)
    x
    =
    78.5°
  • (iii)
    x
    =
    76.5°
  • (iv)
    x
    =
    74.5°
  • (v)
    x
    =
    75.5°
Question 48
48.
In the given figure, if DB = DE = EC, find the value of x
  • (i)
    x
    =
    23°
  • (ii)
    x
    =
    26°
  • (iii)
    x
    =
    25°
  • (iv)
    x
    =
    24°
  • (v)
    x
    =
    22°
Question 49
49.
In the given figure, if IF = GI and FJ = JH , find the value of x.
  • (i)
    x
    =
    57.36°
  • (ii)
    x
    =
    54.36°
  • (iii)
    x
    =
    55.36°
  • (iv)
    x
    =
    58.36°
  • (v)
    x
    =
    56.36°
Question 50
50.
In the given figure, if CF = GC, find the values of x , y , z and t
  • (i)
    x =62.34°, y =24.24°, z =23.14° , t =121.17°
  • (ii)
    x =62.34°, y =26.24°, z =26.14° , t =122.17°
  • (iii)
    x =62.34°, y =26.24°, z =24.14° , t =120.17°
  • (iv)
    x =62.34°, y =28.24°, z =27.14° , t =121.17°
  • (v)
    x =62.34°, y =26.24°, z =25.14° , t =121.17°
Question 51
51.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    22°
  • (ii)
    x
    =
    23°
  • (iii)
    x
    =
    20°
  • (iv)
    x
    =
    19°
  • (v)
    x
    =
    21°
Question 52
52.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    70.69°
  • (ii)
    x
    =
    72.69°
  • (iii)
    x
    =
    73.69°
  • (iv)
    x
    =
    71.69°
  • (v)
    x
    =
    74.69°
Question 53
53.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    43.56°
  • (ii)
    x
    =
    41.56°
  • (iii)
    x
    =
    45.56°
  • (iv)
    x
    =
    42.56°
  • (v)
    x
    =
    44.56°
Question 54
54.
Find the unknown marked angles in the following figure
  • (i)
    x
    =
    103°
    ,
    y
    =
    28°
  • (ii)
    x
    =
    104°
    ,
    y
    =
    29°
  • (iii)
    x
    =
    107°
    ,
    y
    =
    32°
  • (iv)
    x
    =
    105°
    ,
    y
    =
    30°
  • (v)
    x
    =
    106°
    ,
    y
    =
    31°
Question 55
55.
Find the unknown marked angles in the following figure
  • (i)
    x
    =
    106°
    ,
    y
    =
    106°
  • (ii)
    x
    =
    104°
    ,
    y
    =
    104°
  • (iii)
    x
    =
    105°
    ,
    y
    =
    105°
  • (iv)
    x
    =
    103°
    ,
    y
    =
    103°
  • (v)
    x
    =
    107°
    ,
    y
    =
    107°
Question 56
56.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    139°
  • (ii)
    x
    =
    138°
  • (iii)
    x
    =
    137°
  • (iv)
    x
    =
    136°
  • (v)
    x
    =
    140°
Question 57
57.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    24.5°
  • (ii)
    x
    =
    22.5°
  • (iii)
    x
    =
    20.5°
  • (iv)
    x
    =
    23.5°
  • (v)
    x
    =
    21.5°
Question 58
58.
Find the unknown marked angles in the following figure
  • (i)
    x
    =
    120°
    ,
    y
    =
    150°
  • (ii)
    x
    =
    119°
    ,
    y
    =
    149°
  • (iii)
    x
    =
    117°
    ,
    y
    =
    147°
  • (iv)
    x
    =
    118°
    ,
    y
    =
    148°
  • (v)
    x
    =
    116°
    ,
    y
    =
    146°
Question 59
59.
In the following figure IJ ∥ LK, find the values of x and y.
  • (i)
    x
    =
    22°
    ,
    y
    =
    130°
  • (ii)
    x
    =
    23°
    ,
    y
    =
    131°
  • (iii)
    x
    =
    26°
    ,
    y
    =
    134°
  • (iv)
    x
    =
    25°
    ,
    y
    =
    133°
  • (v)
    x
    =
    24°
    ,
    y
    =
    132°
Question 60
60.
In the given figure, it is given that HG ∥ JI , ∠HJI = 41° and ∠HGF = 110°. Find the value of x.
  • (i)
    x
    =
    31°
  • (ii)
    x
    =
    30°
  • (iii)
    x
    =
    29°
  • (iv)
    x
    =
    27°
  • (v)
    x
    =
    28°
Question 61
61.
In the given two equilateral triangles, find ∠D + ∠F + ∠H + ∠E + ∠G + ∠I .
  • (i)
    360°
  • (ii)
    358°
  • (iii)
    359°
  • (iv)
    361°
  • (v)
    362°
    Assignment Key

  •  1) (i)
  •  2) (i)
  •  3) (v)
  •  4) (iii)
  •  5) (v)
  •  6) (ii)
  •  7) (i)
  •  8) (iii)
  •  9) (ii)
  •  10) (ii)
  •  11) (iii)
  •  12) (v)
  •  13) (i)
  •  14) (i)
  •  15) (ii)
  •  16) (iii)
  •  17) (iii)
  •  18) (ii)
  •  19) (v)
  •  20) (iv)
  •  21) (iv)
  •  22) (iii)
  •  23) (i)
  •  24) (ii)
  •  25) (i)
  •  26) (iv)
  •  27) (v)
  •  28) (iii)
  •  29) (i)
  •  30) (iv)
  •  31) (i)
  •  32) (i)
  •  33) (i)
  •  34) (iii)
  •  35) (i)
  •  36) (iii)
  •  37) (iii)
  •  38) (i)
  •  39) (iv)
  •  40) (i)
  •  41) (iii)
  •  42) (iv)
  •  43) (ii)
  •  44) (i)
  •  45) (iii)
  •  46) (v)
  •  47) (iii)
  •  48) (iv)
  •  49) (v)
  •  50) (v)
  •  51) (v)
  •  52) (ii)
  •  53) (i)
  •  54) (iv)
  •  55) (iii)
  •  56) (ii)
  •  57) (ii)
  •  58) (iv)
  •  59) (v)
  •  60) (iii)
  •  61) (i)
