EduSahara™ Assignment
Name : Perimeter and Area of Complex Shaped Figures
Chapter : Perimeter and Area
Grade : ICSE Grade VII
License : Non Commercial Use
Question
1
1.

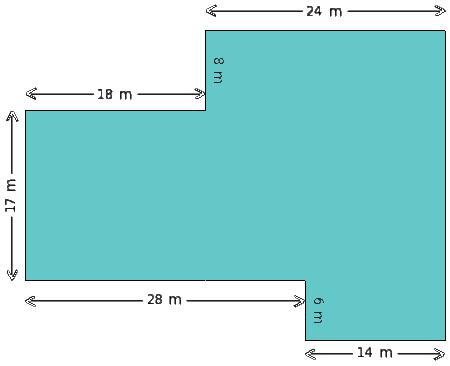

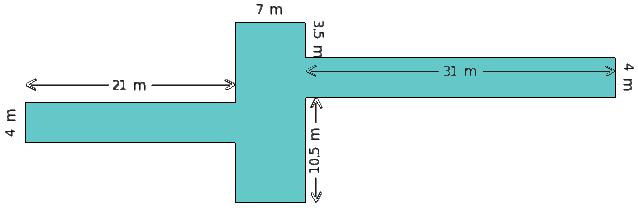

Find the area of the shaded region given below
(i)
347.00 sq.m
(ii)
352.00 sq.m
(iii)
338.00 sq.m
(iv)
355.00 sq.m
(v)
376.00 sq.m
Question
2
2.

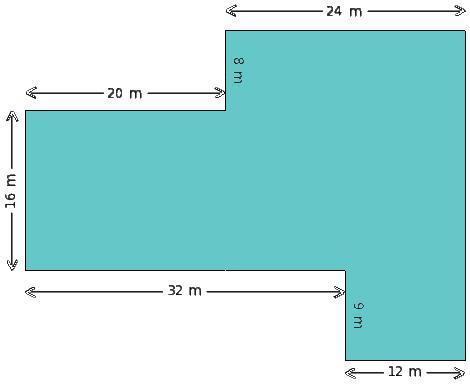

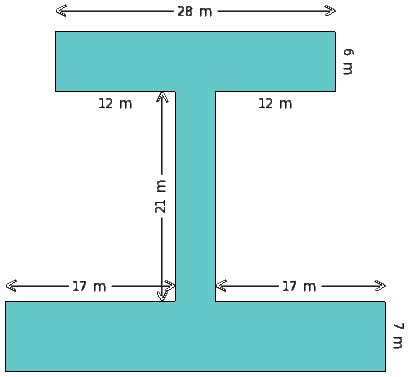

Find the perimeter of the shaded region given below
(i)
80.00 m
(ii)
85.00 m
(iii)
75.00 m
(iv)
77.00 m
(v)
83.00 m
Question
3
3.

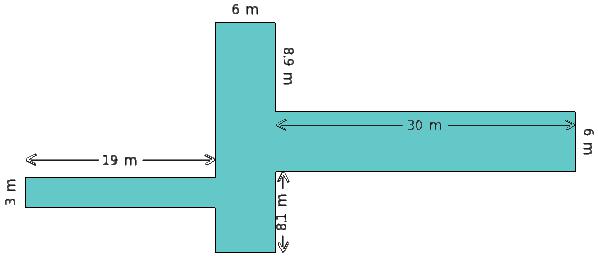

Find the area of the shaded region given below
(i)
959.00 sq.m
(ii)
929.00 sq.m
(iii)
941.00 sq.m
(iv)
950.00 sq.m
(v)
946.00 sq.m
Question
4
4.

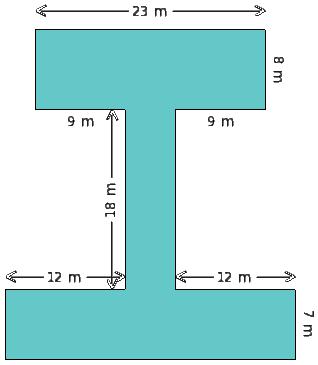

Find the perimeter of the shaded region given below
(i)
138.00 m
(ii)
162.00 m
(iii)
137.00 m
(iv)
150.00 m
(v)
164.00 m
Question
5
5.

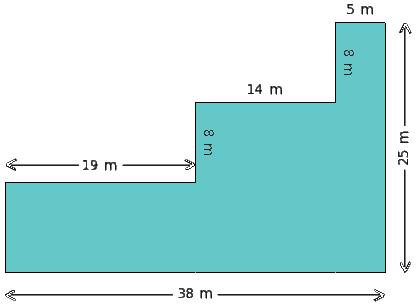

Find the area of the shaded region given below
(i)
480.00 sq.m
(ii)
453.00 sq.m
(iii)
462.00 sq.m
(iv)
487.00 sq.m
(v)
502.00 sq.m
Question
6
6.

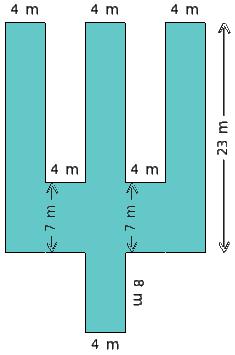

Find the perimeter of the shaded region given below
(i)
112.00 m
(ii)
124.00 m
(iii)
132.00 m
(iv)
107.00 m
(v)
139.00 m
Question
7
7.

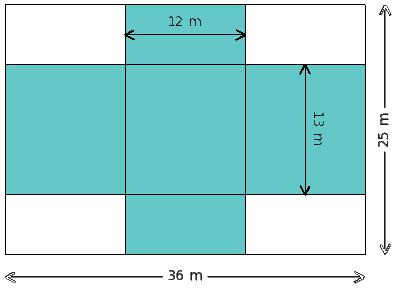

Find the area of the shaded region given below
(i)
354.00 sq.m
(ii)
335.00 sq.m
(iii)
352.00 sq.m
(iv)
378.00 sq.m
(v)
347.00 sq.m
Question
8
8.

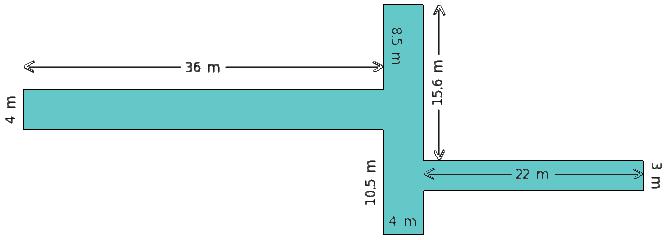

Find the perimeter of the shaded region given below
(i)
154.00 m
(ii)
149.00 m
(iii)
131.00 m
(iv)
172.00 m
Question
9
9.
Find the area of the shaded region given below
(i)
470.00 sq.m
(ii)
491.00 sq.m
(iii)
489.00 sq.m
(iv)
473.00 sq.m
(v)
450.00 sq.m
Question
10
10.
Find the perimeter of the shaded region given below
(i)
162.00 m
(ii)
203.00 m
(iii)
195.00 m
(iv)
174.00 m
(v)
180.00 m
Question
11
11.
Find the area of the shaded region given below
(i)
363.00 sq.m
(ii)
386.00 sq.m
(iii)
348.00 sq.m
(iv)
360.00 sq.m
(v)
346.00 sq.m
Question
12
12.
Find the perimeter of the shaded region given below
(i)
141.00 m
(ii)
156.00 m
(iii)
149.00 m
(iv)
144.00 m
(v)
130.00 m
Question
13
13.
Find the area of the shaded region given below
(i)
341.00 sq.m
(ii)
383.00 sq.m
(iii)
356.00 sq.m
(iv)
363.00 sq.m
(v)
344.00 sq.m
Question
14
14.
Find the perimeter of the shaded region given below
(i)
149.00 m
(ii)
117.00 m
(iii)
131.00 m
(iv)
156.00 m
(v)
144.00 m
Question
15
15.
Find the area of the shaded region given below
(i)
298.00 sq.m
(ii)
274.00 sq.m
(iii)
292.00 sq.m
(iv)
306.00 sq.m
Question
16
16.
Find the perimeter of the shaded region given below
(i)
149.00 m
(ii)
148.00 m
(iii)
166.00 m
(iv)
179.00 m
(v)
162.00 m
Question
17
17.
Find the area of the shaded region given below
(i)
409.00 sq.m
(ii)
416.00 sq.m
(iii)
401.00 sq.m
(iv)
434.00 sq.m
Question
18
18.
Find the perimeter of the shaded region given below
(i)
181.00 m
(ii)
156.00 m
(iii)
155.00 m
(iv)
180.00 m
(v)
168.00 m
Question
19
19.

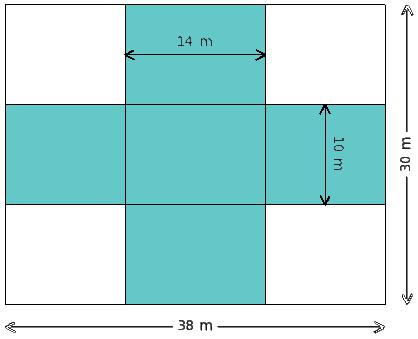

A rectangular field is 38 m by 30 m. It has two paths through its centre, running parallel to its sides.
The width of the longer and the shorter paths are 10 m and 14 m respectively.
Find the total expense involved in laying tiles on the paths at ₹15.1 per 1 sq.m and laying grass in the remaining portion at ₹17.1 per 1 sq.m.
(i)
₹18173.00
(ii)
₹18174.00
(iii)
₹18172.00
(iv)
₹18176.00
(v)
₹18175.00
Assignment Key
1) (ii)
2) (i)
3) (v)
4) (iv)
5) (i)
6) (ii)
7) (iii)
8) (i)
9) (iv)
10) (v)
11) (iv)
12) (iv)
13) (iii)
14) (v)
15) (iii)
16) (v)
17) (ii)
18) (v)
19) (ii)
