EduSahara™ Assignment
Name : Lines and Angles
Chapter : Basic Geometrical Ideas
Grade : CBSE Grade VI
License : Non Commercial Use
Question
1
1.
Which of the following figures represent a line?
(i)
fig 3
(ii)
fig 1
(iii)
fig 2
Question
2
2.
Which of the following figures represent a ray?
(i)
fig 1
(ii)
fig 2
(iii)
fig 3
Question
3
3.
Which of the following figures represent a line segment?
(i)
fig 2
(ii)
fig 3
(iii)
fig 1
Question
4
4.
Points lying on the same line are called
(i)
collinear points
(ii)
non-linear points
(iii)
concurrent points
(iv)
semi-linear points
(v)
linear points
Question
5
5.
Every simple closed curve divides a plane into how many sets of points?
(i)
3
(ii)
0
(iii)
2
(iv)
4
(v)
5
Question
6
6.

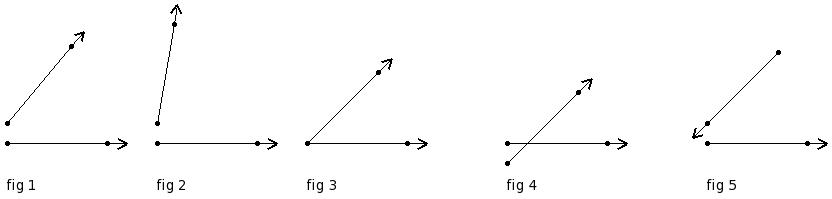

Which of the following figures represent an angle?
(i)
fig 3
(ii)
fig 4
(iii)
fig 1
(iv)
fig 2
(v)
fig 5
Question
7
7.

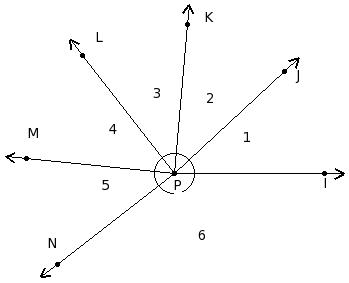

The name of angle 2 in the given figure is
(i)
∠JPK
(ii)
∠MPN
(iii)
∠LPM
(iv)
∠IPJ
(v)
∠KPL
Question
8
8.
Which of the following is the largest angle in the given figure?
(i)
∠GOH
(ii)
∠HOI
(iii)
∠GOI
(iv)
∠GOJ
(v)
∠HOJ
Question
9
9.
The name of the given angle is
(i)
∠XYO
(ii)
∠XOY
(iii)
∠YXO
(iv)
△XOY
(v)
∠XY
Question
10
10.
Identify the figure below
(i)
angle
(ii)
hexagon
(iii)
heptagon
(iv)
line
(v)
nonagon
Question
11
11.
Identify the figure below
(i)
hexagon
(ii)
heptagon
(iii)
nonagon
(iv)
angle
(v)
circle
Question
12
12.
Multiple lines drawn on a plane are called
(i)
concurrent lines
(ii)
perpendicular lines
(iii)
parallel lines
(iv)
coplanar lines
(v)
intersecting lines
Question
13
13.
Multiple lines which do not meet each other are called
(i)
parallel lines
(ii)
concurrent lines
(iii)
perpendicular lines
(iv)
coplanar lines
(v)
intersecting lines
Question
14
14.
Multiple lines which pass through the same point are called
(i)
perpendicular lines
(ii)
coplanar lines
(iii)
intersecting lines
(iv)
parallel lines
(v)
concurrent lines
Question
15
15.
A line that intersects two lines at two different points is called
(i)
concurrent lines
(ii)
transversal
(iii)
perpendicular lines
(iv)
parallel lines
(v)
coplanar lines
Question
16
16.
Two lines meeting at a point and making an angle of 90° at the meeting point are called
(i)
intersecting lines
(ii)
coplanar lines
(iii)
concurrent lines
(iv)
perpendicular lines
(v)
parallel lines
Question
17
17.
The following lines represent
(i)
coplanar lines
(ii)
perpendicular lines
(iii)
parallel lines
(iv)
concurrent lines
(v)
intersecting lines
Question
18
18.
The following lines represent
(i)
perpendicular lines
(ii)
parallel lines
(iii)
concurrent lines
(iv)
intersecting lines
(v)
coplanar lines
Question
19
19.
The following lines represent
(i)
parallel lines
(ii)
concurrent lines
(iii)
perpendicular lines
(iv)
coplanar lines
(v)
intersecting lines
Question
20
20.
The representation
⟷
IJ
indicates
(i)
line
(ii)
angle
(iii)
ray
(iv)
arc
(v)
line segment
Question
21
21.
The representation
GH
indicates
(i)
arc
(ii)
angle
(iii)
line
(iv)
ray
(v)
line segment
Question
22
22.
The representation
⟶
AB
indicates
(i)
ray
(ii)
line segment
(iii)
line
(iv)
arc
(v)
angle
Question
23
23.
In the figure below, if
LM
=
5.20 cm
and
MN
=
10.70 cm
,find
LN
= ?
(i)
13.90 cm
(ii)
17.90 cm
(iii)
14.90 cm
(iv)
15.90 cm
(v)
16.90 cm
Question
24
24.
In the given figure, write the points belonging to the angle
(i)
{H,E,I,F}
(ii)
{H,G,E,I,F}
(iii)
{K,L,J}
(iv)
{O,N,M}
(v)
{H,G,E,I,F,L,N}
Question
25
25.
In the given figure, write the points belonging to the interior of the angle
(i)
{Q,O,P}
(ii)
{M}
(iii)
{M,N,J,Q}
(iv)
{J,I,K,H,L}
(v)
{M,N}
Question
26
26.
In the given figure, write the points belonging to the exterior of the angle
(i)
{L,K,E,I}
(ii)
{L,K}
(iii)
{D,H,F,E,G}
(iv)
{J,I}
(v)
{L}
Question
27
27.
Which of the following are true?
a)
The length of a line segment cannot be determined
b)
Small letters are used to represent lines
c)
Capital letters are used to represent points
d)
A ray has an infinite number of points on it
e)
A line has an infinite number of points on it
(i)
{b,c,d,e}
(ii)
{a,b}
(iii)
{a,e,b}
(iv)
{a,d}
(v)
{a,c}
Question
28
28.
Which of the following are true?
a)
If a line cuts another line at more than one point, then one of the line is curved
b)
If two lines have infinite common points, then the two lines are concurrent
c)
Only one straight line can be drawn between any two points
d)
If two lines have no common point, then the lines are parallel
e)
A straight line meets another straight line at atmost one point
(i)
{b,a}
(ii)
{b,d}
(iii)
{b,c}
(iv)
{a,c,d,e}
(v)
{b,e,a}
Question
29
29.
Which of the following points are collinear?
a)
C
,
G
,
E
b)
D
,
G
,
E
c)
G
,
F
,
E
d)
E
,
G
,
F
e)
F
,
G
,
D
(i)
{d,b,a}
(ii)
{c,e,a}
(iii)
{b,a}
(iv)
{a,e}
(v)
{c,e}
Assignment Key
1) (iii)
2) (ii)
3) (ii)
4) (i)
5) (i)
6) (i)
7) (i)
8) (iv)
9) (ii)
10) (iv)
11) (iv)
12) (iv)
13) (i)
14) (v)
15) (ii)
16) (iv)
17) (iii)
18) (i)
19) (v)
20) (i)
21) (v)
22) (i)
23) (iv)
24) (ii)
25) (v)
26) (ii)
27) (i)
28) (iv)
29) (iv)
