EduSahara™ Assignment
Name : Angle Concepts
Chapter : Understanding Elementary Shapes
Grade : CBSE Grade VI
License : Non Commercial Use
Question
1
1.

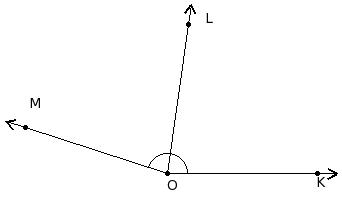

The following angle represents
(i)
acute angle
(ii)
complete angle
(iii)
reflex angle
(iv)
straight angle
(v)
right angle
Question
2
2.
The following angle represents
(i)
straight angle
(ii)
obtuse angle
(iii)
acute angle
(iv)
complete angle
(v)
right angle
Question
3
3.
The following angle represents
(i)
right angle
(ii)
obtuse angle
(iii)
zero angle
(iv)
complete angle
(v)
acute angle
Question
4
4.
The following angle represents
(i)
complete angle
(ii)
reflex angle
(iii)
straight angle
(iv)
right angle
(v)
zero angle
Question
5
5.
The following angle represents
(i)
obtuse angle
(ii)
straight angle
(iii)
zero angle
(iv)
reflex angle
(v)
complete angle
Question
6
6.
The following angle represents
(i)
acute angle
(ii)
right angle
(iii)
reflex angle
(iv)
zero angle
(v)
complete angle
Question
7
7.
The following angle represents
(i)
right angle
(ii)
obtuse angle
(iii)
reflex angle
(iv)
complete angle
(v)
acute angle
Question
8
8.
The following angle represents
(i)
straight angle
(ii)
obtuse angle
(iii)
complete angle
(iv)
acute angle
(v)
zero angle
Question
9
9.
The following angle represents
(i)
reflex angle
(ii)
complete angle
(iii)
right angle
(iv)
zero angle
(v)
obtuse angle
Question
10
10.
The following angle represents
(i)
right angle
(ii)
acute angle
(iii)
zero angle
(iv)
complete angle
(v)
reflex angle
Question
11
11.
The following angle represents
(i)
right angle
(ii)
straight angle
(iii)
reflex angle
(iv)
obtuse angle
(v)
zero angle
Question
12
12.
The following angle represents
(i)
zero angle
(ii)
complete angle
(iii)
obtuse angle
(iv)
reflex angle
(v)
right angle
Question
13
13.
The following angle represents
(i)
straight angle
(ii)
obtuse angle
(iii)
reflex angle
(iv)
acute angle
(v)
zero angle
Question
14
14.
The following angle represents
(i)
obtuse angle
(ii)
complete angle
(iii)
reflex angle
(iv)
right angle
(v)
acute angle
Question
15
15.
The complementary angle of
37°
is
(i)
58°
(ii)
63°
(iii)
53°
(iv)
68°
(v)
83°
Question
16
16.
The supplementary angle of
162°
is
(i)
33°
(ii)
18°
(iii)
28°
(iv)
48°
(v)
23°
Question
17
17.
Find the complementary angles pair in the following
(i)
93°,17°
(ii)
113°,27°
(iii)
73°,7°
(iv)
123°,37°
(v)
83°,7°
Question
18
18.
Find the supplementary angles pair in the following
(i)
12°,158°
(ii)
62°,188°
(iii)
32°,168°
(iv)
22°,158°
(v)
52°,178°
Question
19
19.

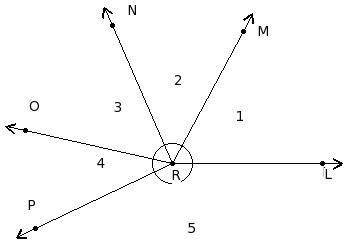

Which of the following are adjacent angles in the below figure?
(i)
∠ORP , ∠MRN
(ii)
∠LRM , ∠MRN
(iii)
∠NRO , ∠PRL
(iv)
∠MRN , ∠ORP
(v)
∠PRL , ∠MRN
Question
20
20.

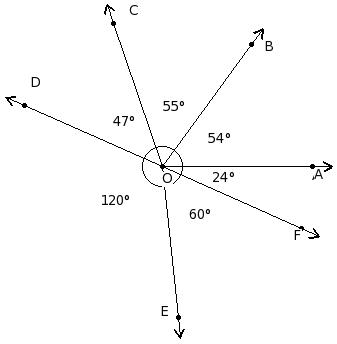

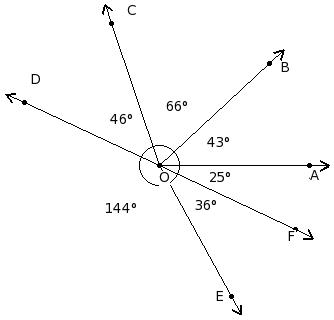

Which of the following angles form a linear pair?
(i)
(∠COD,∠DOE)
(ii)
(∠BOC,∠COD)
(iii)
(∠DOE,∠EOF)
(iv)
(∠AOB,∠BOC)
(v)
(∠EOF,∠FOA)
Question
21
21.
Which of the following are adjacent angles in the below figure?
(i)
∠OOP , ∠LOM
(ii)
∠LOM , ∠NOO
(iii)
∠KOL , ∠LOM
(iv)
∠NOO , ∠LOM
(v)
∠MOK , ∠OOP
Question
22
22.
Which of the following is an acute angle?
(i)
180°
(ii)
126°
(iii)
206°
(iv)
90°
(v)
89°
Question
23
23.
Which of the following is an obtuse angle?
(i)
264°
(ii)
144°
(iii)
90°
(iv)
360°
(v)
43°
Question
24
24.
Which of the following is a right angle?
(i)
0°
(ii)
90°
(iii)
193°
(iv)
180°
(v)
62°
Question
25
25.
Which of the following is a straight angle?
(i)
180°
(ii)
90°
(iii)
100°
(iv)
0°
(v)
360°
Question
26
26.
Which of the following is a complete angle?
(i)
166°
(ii)
0°
(iii)
360°
(iv)
180°
(v)
90°
Question
27
27.
Which of the following is a zero angle?
(i)
90°
(ii)
180°
(iii)
160°
(iv)
0°
(v)
39°
Question
28
28.
Which of the following is a reflex angle?
(i)
268°
(ii)
180°
(iii)
63°
(iv)
90°
(v)
360°
Assignment Key
1) (i)
2) (ii)
3) (i)
4) (iii)
5) (v)
6) (iv)
7) (iii)
8) (iv)
9) (v)
10) (i)
11) (ii)
12) (ii)
13) (v)
14) (iii)
15) (iii)
16) (ii)
17) (v)
18) (iv)
19) (ii)
20) (iii)
21) (iii)
22) (v)
23) (ii)
24) (ii)
25) (i)
26) (iii)
27) (iv)
28) (i)
