EduSahara™ Assignment
Name : Angle Value Problems
Chapter : Understanding Elementary Shapes
Grade : CBSE Grade VI
License : Non Commercial Use
Question
1
1.
State the angle between the two hands of the clock when the time is 4 A.M.
(i)
150°
(ii)
130°
(iii)
120°
(iv)
135°
(v)
125°
Question
2
2.
State the type of angle between the two hands of the clock when the time is 9 A.M.
(i)
reflex angle
(ii)
acute angle
(iii)
straight angle
(iv)
obtuse angle
(v)
right angle
Question
3
3.
What fraction of clockwise revolution does the hour hand of a clock covers, when it goes from 9 to 11?
(i)
1
8
(ii)
1
2
(iii)
1
6
(iv)
(
-1
6
)
(v)
1
4
Question
4
4.
Find the number of right angles covered by the hour hand of clock when it goes from 3 to 4
(i)
1
(ii)
3
(iii)
2
(iv)
0
(v)
4
Question
5
5.
Where will the hour hand of a clock stop,
if it starts from
7
and makes
5
6
of a revolution clockwise?
(i)
5
(ii)
6
(iii)
3
(iv)
7
(v)
4
Question
6
6.
Where will the hour hand of a clock stop, if it starts from 5 and turns through 4 right angles?
(i)
7
(ii)
4
(iii)
5
(iv)
3
(v)
6
Question
7
7.

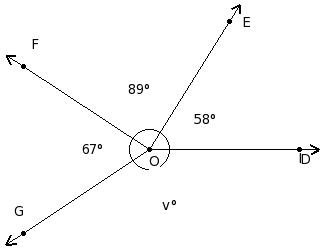

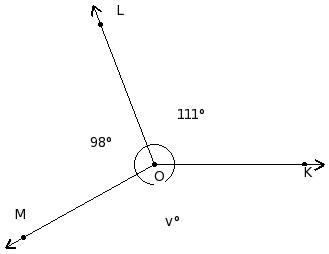

Find the value of 'v' in the following figure
(i)
166°
(ii)
156°
(iii)
151°
(iv)
181°
(v)
161°
Question
8
8.

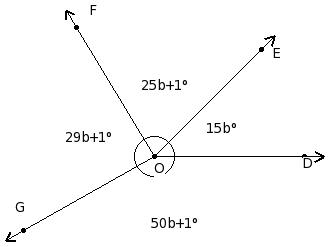

Find the value of 'b' in the following figure
(i)
6
(ii)
3
(iii)
2
(iv)
1
(v)
4
Question
9
9.
State the angle between the two hands of the clock when the time is 3 A.M.
(i)
120°
(ii)
95°
(iii)
105°
(iv)
90°
(v)
100°
Question
10
10.
State the type of angle between the two hands of the clock when the time is 1 A.M.
(i)
complete angle
(ii)
right angle
(iii)
acute angle
(iv)
straight angle
(v)
reflex angle
Question
11
11.
What fraction of clockwise revolution does the hour hand of a clock covers, when it goes from 8 to 3?
(i)
5
12
(ii)
7
12
(iii)
1
2
(iv)
7
10
(v)
3
4
Question
12
12.
Find the number of right angles covered by the hour hand of clock when it goes from 7 to 12
(i)
2
(ii)
3
(iii)
0
(iv)
4
(v)
1
Question
13
13.
Where will the hour hand of a clock stop,
if it starts from
3
and makes
5
6
of a revolution clockwise?
(i)
1
(ii)
0
(iii)
2
(iv)
(-1)
(v)
4
Question
14
14.
Where will the hour hand of a clock stop, if it starts from 11 and turns through 2 right angles?
(i)
3
(ii)
5
(iii)
4
(iv)
7
(v)
6
Question
15
15.

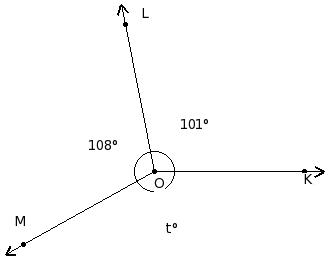

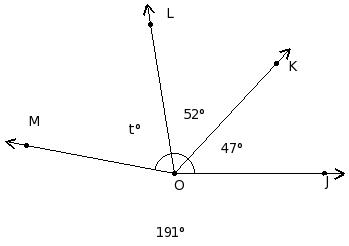

Find the value of 't' in the following figure
(i)
181°
(ii)
156°
(iii)
161°
(iv)
151°
(v)
166°
Question
16
16.

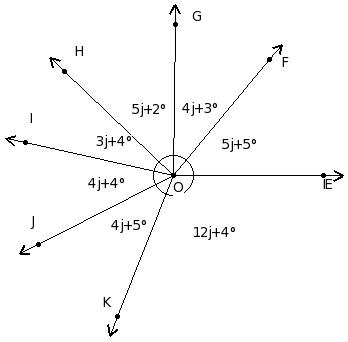

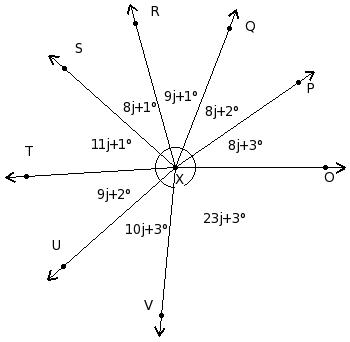

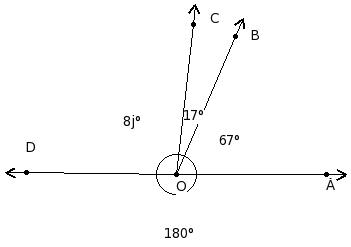

Find the value of 'j' in the following figure
(i)
5
(ii)
3
(iii)
4
(iv)
1
(v)
7
Question
17
17.

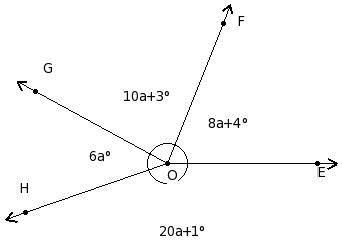

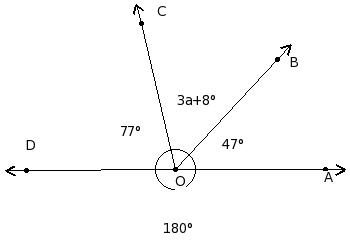

Find the value of a in the figure below
(i)
16
(ii)
17
(iii)
18
(iv)
15
(v)
13
Question
18
18.

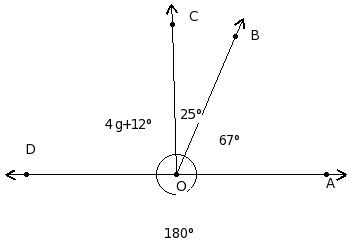

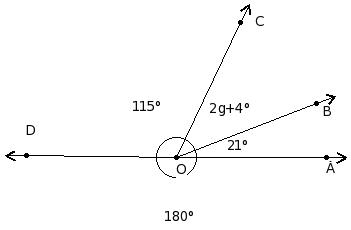

Find the value of g in the figure below
(i)
20
(ii)
18
(iii)
19
(iv)
17
(v)
22
Assignment Key
1) (iii)
2) (v)
3) (iii)
4) (iv)
5) (i)
6) (iii)
7) (iii)
8) (ii)
9) (iv)
10) (iii)
11) (ii)
12) (v)
13) (i)
14) (ii)
15) (iv)
16) (iii)
17) (i)
18) (iii)
