EduSahara™ Worksheet

EduSahara™ Assignment

Name : Angle Value Problems

Chapter : Angles

Grade : ICSE Grade VI

License : Non Commercial Use

Question 1

1.

Find the value of 'v' in the following figure

(i)

43°
(ii)

58°
(iii)

53°
(iv)

73°
(v)

48°

Question 2

2.

The complementary angle of
42°
is

(i)

48°
(ii)

53°
(iii)

78°
(iv)

58°
(v)

63°

Question 3

3.

The supplementary angle of
164°
is

(i)

16°
(ii)

46°
(iii)

31°
(iv)

26°
(v)

21°

Question 4

4.

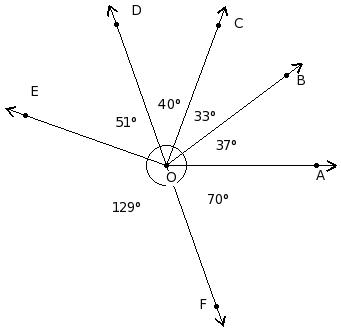

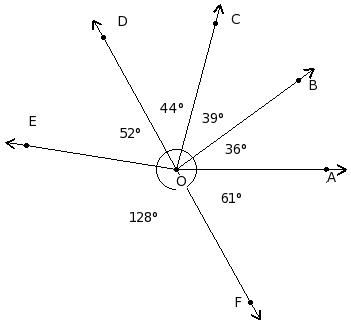

Which of the following angles form a linear pair?

(i)

(∠AOB,∠BOC)
(ii)

(∠DOE,∠EOF)
(iii)

(∠EOF,∠FOG)
(iv)

(∠FOG,∠GOA)
(v)

(∠BOC,∠COD)

Question 5

5.

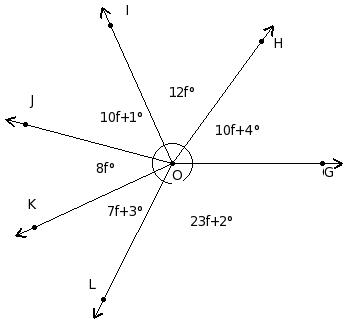

Find the value of 'f' in the following figure

(i)

3
(ii)

5
(iii)

8
(iv)

7
(v)

6

Question 6

6.

Which of the following is an acute angle?

(i)

180°
(ii)

90°
(iii)

258°
(iv)

81°
(v)

161°

Question 7

7.

Which of the following is an obtuse angle?

(i)

285°
(ii)

105°
(iii)

90°
(iv)

360°
(v)

180°

Question 8

8.

Which of the following is a right angle?

(i)

90°
(ii)

360°
(iii)

0°
(iv)

180°
(v)

324°

Question 9

9.

Which of the following is a straight angle?

(i)

180°
(ii)

90°
(iii)

0°
(iv)

160°
(v)

360°

Question 10

10.

Which of the following is a complete angle?

(i)

168°
(ii)

360°
(iii)

180°
(iv)

0°
(v)

339°

Question 11

11.

Which of the following is a zero angle?

(i)

90°
(ii)

0°
(iii)

52°
(iv)

180°
(v)

360°

Question 12

12.

Which of the following is a reflex angle?

(i)

0°
(ii)

293°
(iii)

360°
(iv)

40°
(v)

180°

Question 13

13.

Add
47 ° 28 ' 40 "
and
10 ° 43 ' 24 "

(i)

58 ° 12 ' 14 "
(ii)

58 ° 12 ' 4 "
(iii)

58 ° 22 ' 4 "
(iv)

43 ° 2 ' 4 "
(v)

68 ° 12 ' 4 "

Question 14

14.

Subtract
14 ° 39 ' 11 "
from
32 ° 30 ' 31 "

(i)

2 ° 41 ' 20 "
(ii)

27 ° 51 ' 20 "
(iii)

17 ° 51 ' 20 "
(iv)

18 ° 1 ' 20 "
(v)

17 ° 51 ' 30 "

Question 15

15.

Find the complementary angle of
56 ° 20 ' 36 "

(i)

33 ° 39 ' 34 "
(ii)

18 ° 29 ' 24 "
(iii)

33 ° 49 ' 24 "
(iv)

43 ° 39 ' 24 "
(v)

33 ° 39 ' 24 "

Question 16

16.

Find the supplementary angle of
35 ° 16 ' 28 "

(i)

144 ° 53 ' 32 "
(ii)

144 ° 43 ' 32 "
(iii)

129 ° 33 ' 32 "
(iv)

154 ° 43 ' 32 "
(v)

144 ° 43 ' 42 "

Question 17

17.

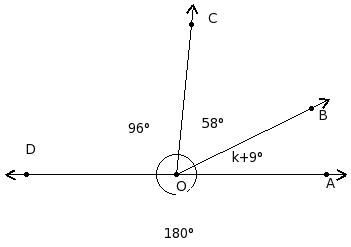

Find the value of k in the figure below

(i)

21
(ii)

19
(iii)

17
(iv)

20
(v)

18

Assignment Key
