EduSahara™ Assignment
Name : Areas of Complex Shapes
Chapter : Tangents and Secants to a Circle
Grade : SSC Grade X
License : Non Commercial Use
Question 1
1.

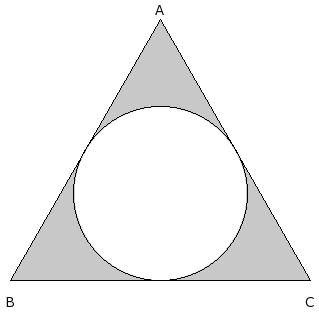

In the given figure, a circle is inscribed touching the sides of an equilateral triangle of side 27 cm. Find the area of the shaded region
  • (i)
    120.74 sq.cm
  • (ii)
    102.74 sq.cm
  • (iii)
    136.74 sq.cm
  • (iv)
    124.74 sq.cm
  • (v)
    141.74 sq.cm
Question 2
2.
In the given figure, the circle circumscribes a rectangle with sides 18.00 cm and 16.00 cm. Find the area of the remaining portion other than the rectangle
  • (i)
    165.71 sq.cm
  • (ii)
    191.71 sq.cm
  • (iii)
    142.71 sq.cm
  • (iv)
    167.71 sq.cm
  • (v)
    183.71 sq.cm
Question 3

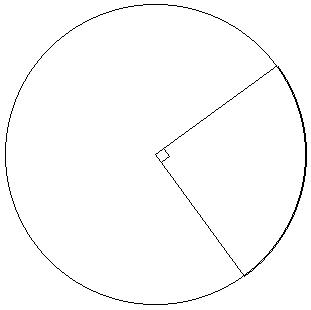

3.

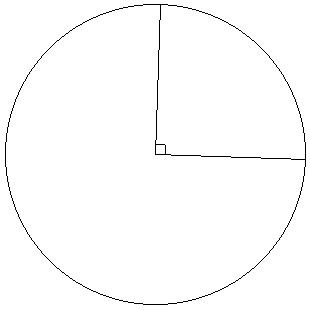

In the given figure, the radius of the circle is 14 cm. Find the area of the minor sector
  • (i)
    154.00 sq.cm
  • (ii)
    157.00 sq.cm
  • (iii)
    141.00 sq.cm
  • (iv)
    138.00 sq.cm
  • (v)
    179.00 sq.cm
Question 4
4.
In the given figure, the radius of the circle is 15 cm. Find the area of the major sector
  • (i)
    545.36 sq.cm
  • (ii)
    522.36 sq.cm
  • (iii)
    513.36 sq.cm
  • (iv)
    547.36 sq.cm
  • (v)
    530.36 sq.cm
Question 5
5.
In the given figure ,PQRS is the diameter of the circle of radius 3.00 cm and PQ = QR = RS. Find the area of the shaded region
  • (i)
    23.86 sq.cm
  • (ii)
    15.86 sq.cm
  • (iii)
    21.86 sq.cm
  • (iv)
    18.86 sq.cm
  • (v)
    13.86 sq.cm
Question 6
6.
In the given figure ,PQRS is the diameter of the circle of radius 4.50 cm and PQ = QR = RS. Find the perimeter of the shaded region
  • (i)
    31.29 cm
  • (ii)
    23.29 cm
  • (iii)
    28.29 cm
  • (iv)
    33.29 cm
  • (v)
    25.29 cm
Question 7
7.
In the given figure , ABCD is a trapezium. A quarter circle AEFD is removed from the trapezium. If AD = CD = 11 and EB = 4.3 , find the area of the remaining portion
  • (i)
    49.58 sq.cm
  • (ii)
    54.58 sq.cm
  • (iii)
    46.58 sq.cm
  • (iv)
    52.58 sq.cm
  • (v)
    44.58 sq.cm
Question 8
8.
In the given figure, ABCD is a square of side 17.00 cm . At the centre there is a circle with radius 4.25 cm and the same circle quadrants are at the four corners. Find the area of the shaded region.
  • (i)
    162.46 sq.cm
  • (ii)
    175.46 sq.cm
  • (iii)
    190.46 sq.cm
  • (iv)
    191.46 sq.cm
  • (v)
    163.46 sq.cm
Question 9
9.
In the given figure, ABCD is a square of side 19.00 cm . At the centre there is a circle with radius 4.75 cm and the same circle quadrants are at the four corners. Find the perimeter of the shaded region.
  • (i)
    92.71 cm
  • (ii)
    100.71 cm
  • (iii)
    97.71 cm
  • (iv)
    102.71 cm
  • (v)
    94.71 cm
Question 10
10.
In the given figure, ABCD is a square of side 15.00 cm and A, B, C, D are the centres of circular arcs, each of radius 7.50 cm. Find the area of the shaded region
  • (i)
    53.21 sq.cm
  • (ii)
    48.21 sq.cm
  • (iii)
    51.21 sq.cm
  • (iv)
    43.21 sq.cm
  • (v)
    45.21 sq.cm
Question 11
11.
In the given figure, ABCD is a square of side 8.00 cm and A, B, C, D are centres of circles which touch externally in pairs. Find the area of the shaded region
  • (i)
    214.86 sq.cm
  • (ii)
    238.86 sq.cm
  • (iii)
    219.86 sq.cm
  • (iv)
    192.86 sq.cm
  • (v)
    210.86 sq.cm
Question 12
12.
In the given figure, BC = 6 cm and AB = 10 cm. Find the area of the shaded region
  • (i)
    79.86 sq.cm
  • (ii)
    76.86 sq.cm
  • (iii)
    73.86 sq.cm
  • (iv)
    81.86 sq.cm
  • (v)
    71.86 sq.cm
Question 13
13.
In the given figure, BC = 6 cm and AB = 5 cm. Find the perimeter of the shaded region
  • (i)
    48.36 cm
  • (ii)
    40.36 cm
  • (iii)
    38.36 cm
  • (iv)
    46.36 cm
  • (v)
    43.36 cm
Question 14
14.

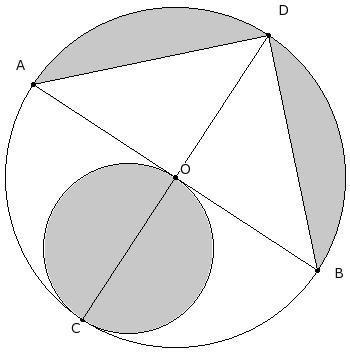

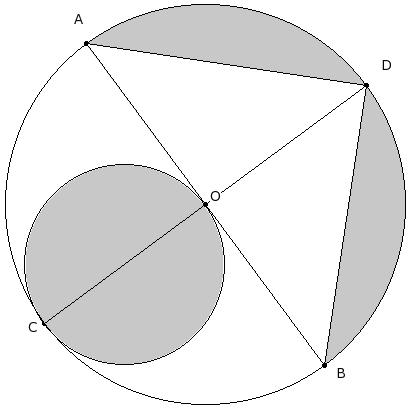

In the below figure, AB is the diameter of a circle with center O and OA = 12.00 cm . Find the area of the shaded region
  • (i)
    195.43 sq.cm
  • (ii)
    188.43 sq.cm
  • (iii)
    210.43 sq.cm
  • (iv)
    223.43 sq.cm
  • (v)
    182.43 sq.cm
Question 15

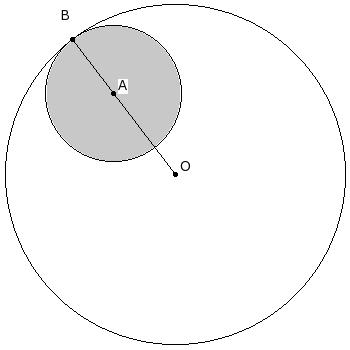

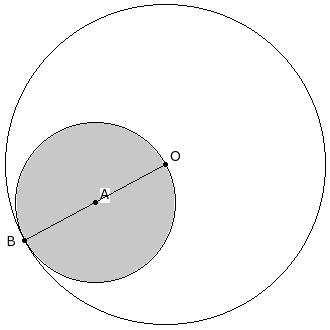

15.

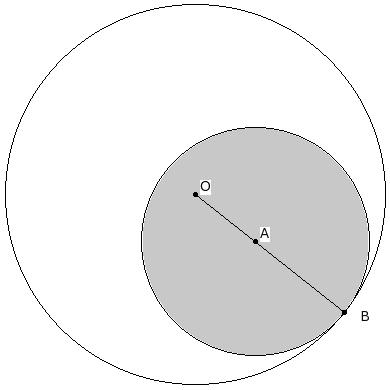

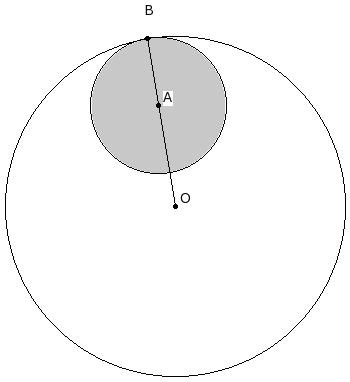

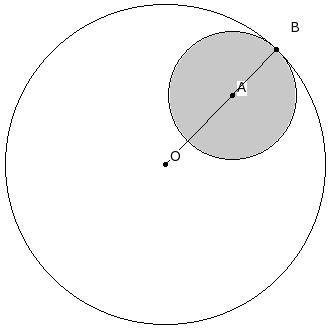

In the below figure, two circles with centers O and A touch internally at B. If OB = 17.00 cm and OA = 8.5 cm, find the area of the unshaded region
  • (i)
    681.21 sq.cm
  • (ii)
    687.21 sq.cm
  • (iii)
    656.21 sq.cm
  • (iv)
    695.21 sq.cm
  • (v)
    664.21 sq.cm
Question 16
16.
In the below figure, BPQA is a quadrant of a circle. AB = 17.00 cm and BC = 12 cm . Find the area of the shaded region
  • (i)
    112.07 sq.cm
  • (ii)
    130.07 sq.cm
  • (iii)
    119.07 sq.cm
  • (iv)
    148.07 sq.cm
  • (v)
    125.07 sq.cm
Question 17
17.
In the below figure, BCPA is a quadrant of a circle. BC = 15.00 cm and CQA is a semicircle with CA as the diameter. Find the area of the shaded region
  • (i)
    114.50 sq.cm
  • (ii)
    112.50 sq.cm
  • (iii)
    106.50 sq.cm
  • (iv)
    134.50 sq.cm
  • (v)
    86.50 sq.cm
Question 18
18.

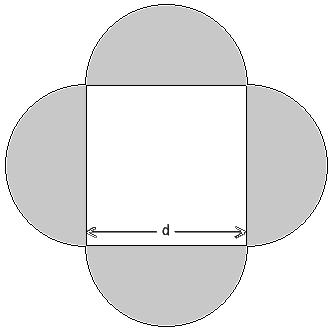

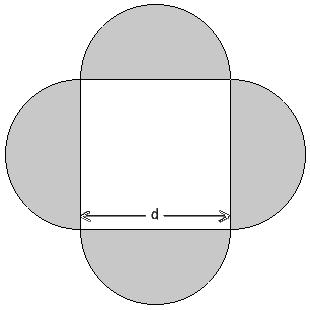

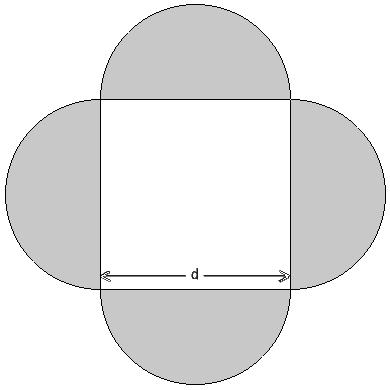

In the given figure, d = 16.00 cm is the diameter of the semi-circles. Find the area of the shaded region
  • (i)
    397.29 sq.cm
  • (ii)
    414.29 sq.cm
  • (iii)
    402.29 sq.cm
  • (iv)
    379.29 sq.cm
  • (v)
    418.29 sq.cm
Question 19
19.

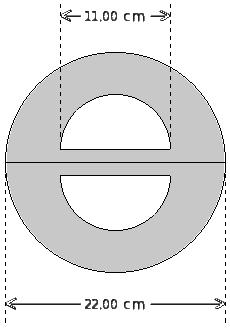

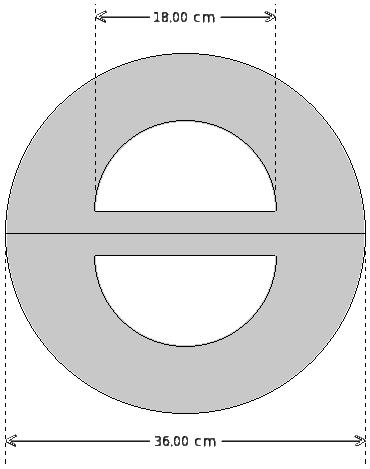

In the given figure, find the area of the shaded region
  • (i)
    760.71 sq.cm
  • (ii)
    776.71 sq.cm
  • (iii)
    741.71 sq.cm
  • (iv)
    763.71 sq.cm
  • (v)
    789.71 sq.cm
Question 20

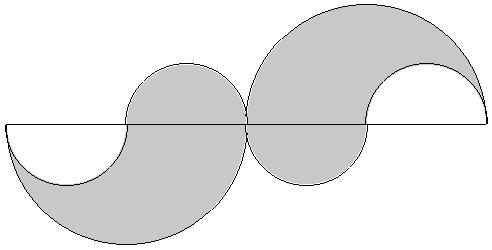

20.

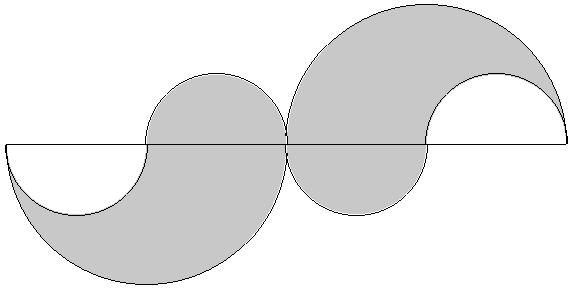

The given figure consists of four small semi-circles of equal radii and two big semi-circles of equal radii. The radius of each big semi-circle is 10.00 cm which is the same as the diameter of the small semi-circle. Find the area of the shaded region
  • (i)
    332.29 sq.cm
  • (ii)
    298.29 sq.cm
  • (iii)
    338.29 sq.cm
  • (iv)
    314.29 sq.cm
  • (v)
    296.29 sq.cm
Question 21

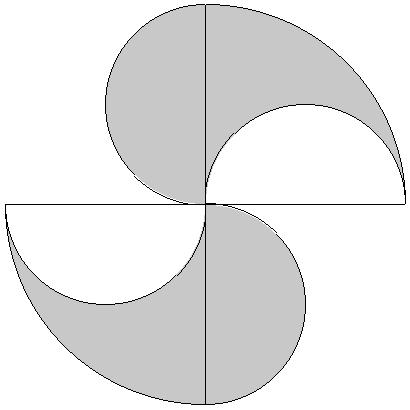

21.
The given figure consists of two quarter circles each of radius 14.00 cm and four semi-circles each of radius 7.00 cm. Find the area of the shaded region
  • (i)
    303.00 sq.cm
  • (ii)
    324.00 sq.cm
  • (iii)
    285.00 sq.cm
  • (iv)
    320.00 sq.cm
  • (v)
    308.00 sq.cm
Question 22

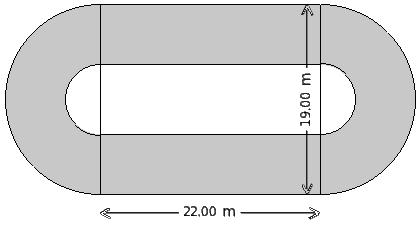

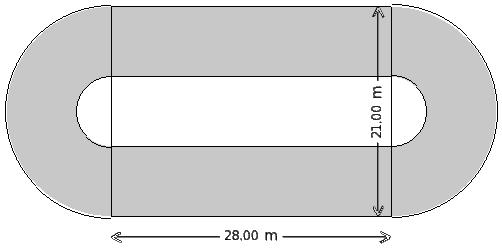

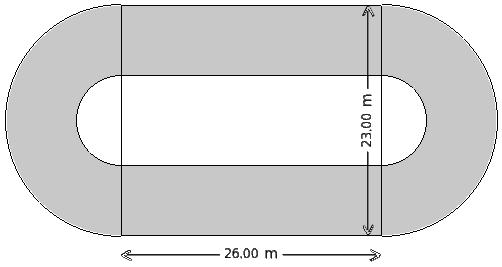

22.

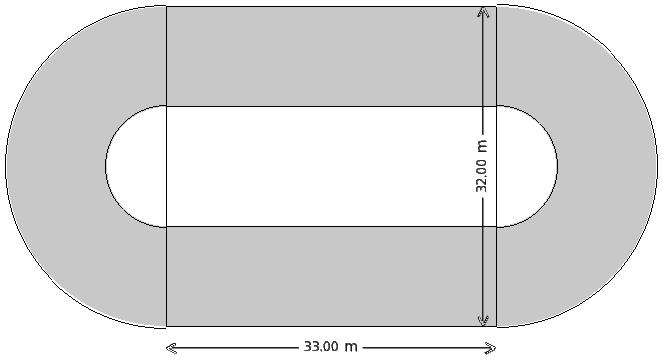

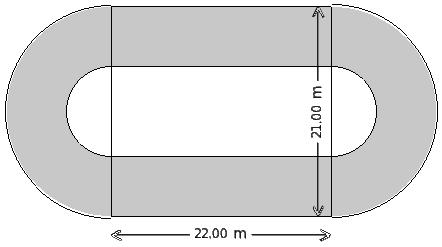

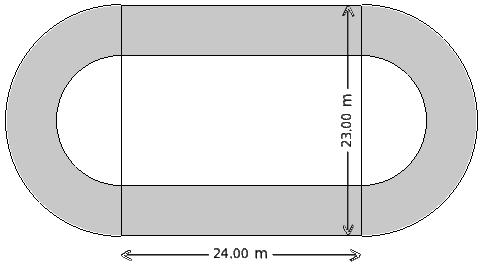

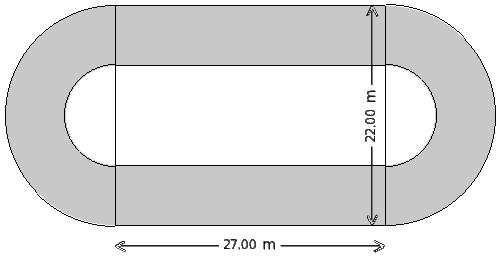

In the given figure, the width of the circular path is 7.00 m. Find the area of the shaded region
  • (i)
    840.00 sq.m
  • (ii)
    839.00 sq.m
  • (iii)
    822.00 sq.m
  • (iv)
    808.00 sq.m
  • (v)
    824.00 sq.m
Question 23
23.

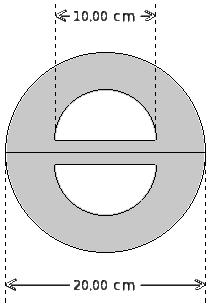

Find the area of the shaded region
  • (i)
    43.21 sq.cm
  • (ii)
    45.21 sq.cm
  • (iii)
    53.21 sq.cm
  • (iv)
    51.21 sq.cm
  • (v)
    48.21 sq.cm
Question 24
24.

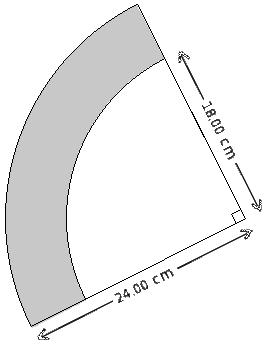

Find the area of the shaded region
  • (i)
    70.00 sq.cm
  • (ii)
    65.00 sq.cm
  • (iii)
    75.00 sq.cm
  • (iv)
    67.00 sq.cm
  • (v)
    73.00 sq.cm
Question 25

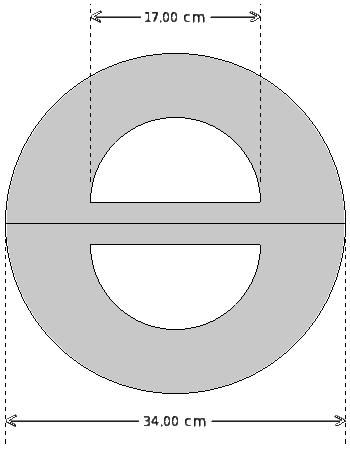

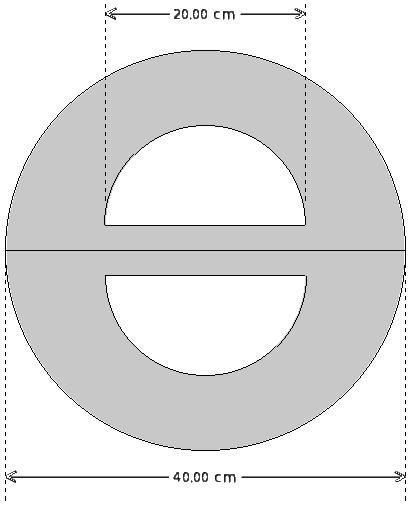

25.

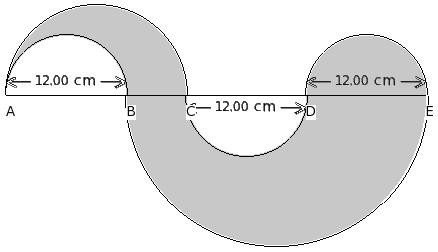

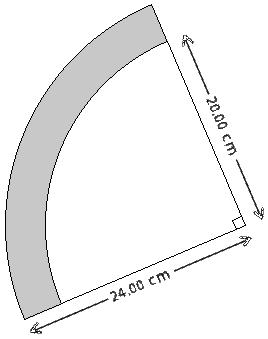

Find the area of the shaded region
  • (i)
    319.79 sq.cm
  • (ii)
    337.79 sq.cm
  • (iii)
    344.79 sq.cm
  • (iv)
    312.79 sq.cm
  • (v)
    293.79 sq.cm
Question 26
26.
In the given figure, BC = 7.00 cm. Find the area of the shaded region
  • (i)
    577.50 sq.cm
  • (ii)
    593.50 sq.cm
  • (iii)
    594.50 sq.cm
  • (iv)
    552.50 sq.cm
  • (v)
    559.50 sq.cm
Question 27

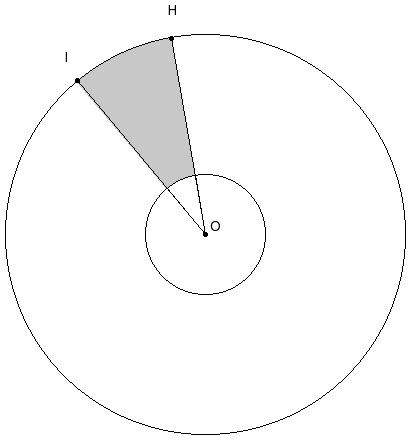

27.
In the given figure, arcs of two concentric circles of radii 11.00 cm and 3.30 cm are drawn with center O. If ∠HOI = 50°, find the area of the shaded region
  • (i)
    51.06 sq.cm
  • (ii)
    43.06 sq.cm
  • (iii)
    53.06 sq.cm
  • (iv)
    48.06 sq.cm
  • (v)
    45.06 sq.cm
Question 28

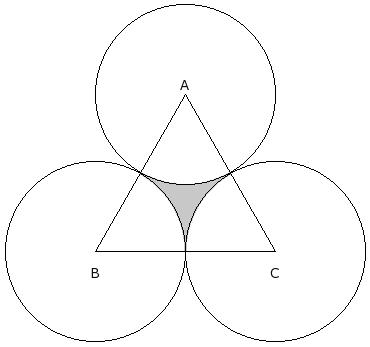

28.

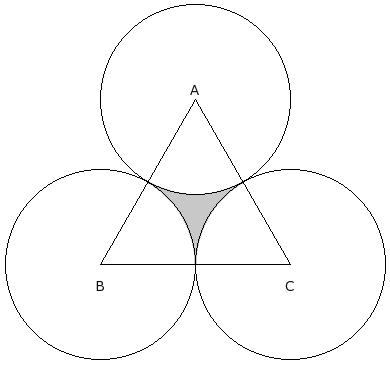

In the given figure △ABC is an equilateral triangle whose area is 62.35 sq.cm. With each vertex of the triangle as center, a circle is drawn with radius equal to half the length of the side of the triangle . Find the area of the shaded region
  • (i)
    3.78 sq.cm
  • (ii)
    7.78 sq.cm
  • (iii)
    5.78 sq.cm
  • (iv)
    4.78 sq.cm
  • (v)
    6.78 sq.cm
Question 29
29.
In the given figure, ABCD is a square with side 12.00 cm. Find the area of the shaded region
  • (i)
    79.29 sq.cm
  • (ii)
    87.29 sq.cm
  • (iii)
    82.29 sq.cm
  • (iv)
    85.29 sq.cm
  • (v)
    77.29 sq.cm
Question 30
30.
Find the area of the shaded region in the given figure common between the two quadrants of circles of radius 19.00 cm each
  • (i)
    192.29 sq.cm
  • (ii)
    206.29 sq.cm
  • (iii)
    183.29 sq.cm
  • (iv)
    208.29 sq.cm
  • (v)
    220.29 sq.cm
    Assignment Key

  •  1) (iv)
  •  2) (iv)
  •  3) (i)
  •  4) (v)
  •  5) (iv)
  •  6) (iii)
  •  7) (i)
  •  8) (ii)
  •  9) (iii)
  •  10) (ii)
  •  11) (i)
  •  12) (ii)
  •  13) (v)
  •  14) (i)
  •  15) (i)
  •  16) (v)
  •  17) (ii)
  •  18) (iii)
  •  19) (iv)
  •  20) (iv)
  •  21) (v)
  •  22) (v)
  •  23) (v)
  •  24) (i)
  •  25) (i)
  •  26) (i)
  •  27) (iv)
  •  28) (iii)
  •  29) (iii)
  •  30) (ii)
