EduSahara™ Assignment
Name : Quadrilateral Angle Properties
Chapter : Quadrilaterals
Grade : ICSE Grade VII
License : Non Commercial Use
Question 1
1.
In parallelogram ABCD, if ∠A = 56.54°, then find the value of ∠D
  • (i)
    123.46°
  • (ii)
    121.46°
  • (iii)
    122.46°
  • (iv)
    125.46°
  • (v)
    124.46°
Question 2
2.
If the opposite angles of a parallelogram are supplementary, the measure of each of its angles is
  • (i)
    90°
  • (ii)
    88°
  • (iii)
    89°
  • (iv)
    91°
  • (v)
    92°
Question 3
3.
The sum of the interior angles of a quadrilateral is
  • (i)
    270°
  • (ii)
    360°
  • (iii)
    180°
  • (iv)
    90°
Question 4
4.
If ABCD is an isosceles trapezium, ∠D =
  • (i)
    ∠B
  • (ii)
    90°
  • (iii)
    ∠C
  • (iv)
    ∠A
Question 5
5.
CDEF is a rhombus in which ∠C = 120° .



DF


is the diagonal. Then △CDE is
  • (i)
    a scalene triangle
  • (ii)
    an equilateral triangle
  • (iii)
    None of these
  • (iv)
    an isosceles triangle
  • (v)
    an obtuse angled triangle
Question 6
6.
FGHI is a rhombus in which ∠F = 80° .



GI


is the diagonal. Then △FGH is
  • (i)
    an obtuse angled triangle
  • (ii)
    an equilateral triangle
  • (iii)
    None of these
  • (iv)
    an isosceles triangle
  • (v)
    a scalene triangle
Question 7
7.
The angles of a quadrilateral CDEF are in the ratio 17 : 13 : 10 : 32. Find the measure of each angle of the quadrilateral.
  • (i)
    C
    =
    83°
    ,
    D
    =
    67°
    ,
    E
    =
    49°
    ,
    F
    =
    161°
  • (ii)
    C
    =
    87°
    ,
    D
    =
    64°
    ,
    E
    =
    48°
    ,
    F
    =
    161°
  • (iii)
    C
    =
    86°
    ,
    D
    =
    64°
    ,
    E
    =
    52°
    ,
    F
    =
    158°
  • (iv)
    C
    =
    85°
    ,
    D
    =
    65°
    ,
    E
    =
    50°
    ,
    F
    =
    160°
  • (v)
    C
    =
    84°
    ,
    D
    =
    63°
    ,
    E
    =
    51°
    ,
    F
    =
    162°
Question 8
8.
Two adjacent angles of a parallelogram DEFG are in the ratio 40 : 50. Find the measure of each of its angles.
  • (i)
    D
    =
    78°
    ,
    E
    =
    102°
    ,
    F
    =
    79°
    ,
    G
    =
    101°
  • (ii)
    D
    =
    81°
    ,
    E
    =
    99°
    ,
    F
    =
    82°
    ,
    G
    =
    98°
  • (iii)
    D
    =
    79°
    ,
    E
    =
    98°
    ,
    F
    =
    81°
    ,
    G
    =
    102°
  • (iv)
    D
    =
    82°
    ,
    E
    =
    99°
    ,
    F
    =
    78°
    ,
    G
    =
    101°
  • (v)
    D
    =
    80°
    ,
    E
    =
    100°
    ,
    F
    =
    80°
    ,
    G
    =
    100°
Question 9
9.
    • In the adjoining figure,
    • EFGH
    • is a parallelogram in which
    • ∠HEG = 13.68°
    • ,
    • ∠GEF = 16.21°
    • ,
    • ∠HIG = 71.5°
    • . Calculate
    • ∠EFH
  • (i)
    91.29°
  • (ii)
    93.29°
  • (iii)
    90.29°
  • (iv)
    92.29°
  • (v)
    94.29°
Question 10
10.
    • In the adjoining figure,
    • DEFG
    • is a parallelogram in which
    • ∠GDF = 26.96°
    • ,
    • ∠FDE = 51.49°
    • ,
    • ∠GHF = 59.67°
    • . Calculate
    • ∠FGE
  • (i)
    68.84°
  • (ii)
    70.84°
  • (iii)
    69.84°
  • (iv)
    66.84°
  • (v)
    67.84°
Question 11
11.

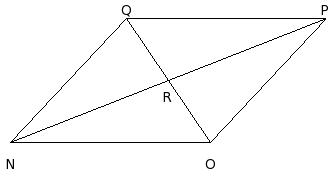

    • In the adjoining figure,
    • NOPQ
    • is a parallelogram in which
    • ∠QNP = 22.94°
    • ,
    • ∠PNO = 21.61°
    • ,
    • ∠QRP = 94.59°
    • . Calculate
    • ∠OPN
  • (i)
    21.94°
  • (ii)
    24.94°
  • (iii)
    22.94°
  • (iv)
    20.94°
  • (v)
    23.94°
Question 12
12.
    • In the adjoining figure,
    • BCDE
    • is a parallelogram in which
    • ∠EBD = 31.58°
    • ,
    • ∠DBC = 47.9°
    • ,
    • ∠EFD = 69.79°
    • . Calculate
    • ∠ECD
  • (i)
    37.21°
  • (ii)
    40.21°
  • (iii)
    36.21°
  • (iv)
    39.21°
  • (v)
    38.21°
Question 13
13.
    • In the adjoining figure,
    • GHIJ
    • is a rectangle.
    • If
    • ∠IGH = 41.43°
    • , find
    • ∠JKI
  • (i)
    96.14°
  • (ii)
    99.14°
  • (iii)
    97.14°
  • (iv)
    98.14°
  • (v)
    95.14°
Question 14
14.
Three angles of quadrilateral measure 124.92°, 71.89° and 83.47° respectively. Find the measure of the fourth angle
  • (i)
    80.72°
  • (ii)
    81.72°
  • (iii)
    78.72°
  • (iv)
    77.72°
  • (v)
    79.72°
Question 15
15.
Three angles of a quadrilateral are equal and the fourth angle measure 62.18°. What is the measure of each of the equal angles?
  • (i)
    100.27°
  • (ii)
    101.27°
  • (iii)
    97.27°
  • (iv)
    99.27°
  • (v)
    98.27°
Question 16
16.
Two angles of a quadrilateral are of measure 56.39° and 122.87° respectively and the other two angles are equal. Find the measure of each of the equal angles.
  • (i)
    91.37°
  • (ii)
    88.37°
  • (iii)
    90.37°
  • (iv)
    92.37°
  • (v)
    89.37°
Question 17
17.
A quadrilateral has three acute angles, each measuring 71°. What is the measure of its fourth angle?
  • (i)
    147.00°
  • (ii)
    149.00°
  • (iii)
    145.00°
  • (iv)
    146.00°
  • (v)
    148.00°
Question 18
18.
    • One angle of a parallelogram measures
    • E
    • =
    • 55.83°
    • .
    • Find the measure of each of its remaining angles.
  • (i)
    F
    =
    126.17°
    ,
    G
    =
    57.83°
    ,
    H
    =
    126.17°
  • (ii)
    F
    =
    123.17°
    ,
    G
    =
    54.83°
    ,
    H
    =
    123.17°
  • (iii)
    F
    =
    124.17°
    ,
    G
    =
    55.83°
    ,
    H
    =
    124.17°
  • (iv)
    F
    =
    125.17°
    ,
    G
    =
    56.83°
    ,
    H
    =
    125.17°
  • (v)
    F
    =
    122.17°
    ,
    G
    =
    53.83°
    ,
    H
    =
    122.17°
Question 19
19.
    • Two adjacent angles of a parallelogram are in the ratio
    • 7 : 13
    • .
    • Find the measure of each of its angles.
  • (i)
    A
    =
    63°
    ,
    B
    =
    117°
    ,
    C
    =
    63°
    ,
    D
    =
    117°
  • (ii)
    A
    =
    61°
    ,
    B
    =
    119°
    ,
    C
    =
    62°
    ,
    D
    =
    118°
  • (iii)
    A
    =
    64°
    ,
    B
    =
    116°
    ,
    C
    =
    65°
    ,
    D
    =
    115°
  • (iv)
    A
    =
    62°
    ,
    B
    =
    115°
    ,
    C
    =
    64°
    ,
    D
    =
    119°
  • (v)
    A
    =
    65°
    ,
    B
    =
    116°
    ,
    C
    =
    61°
    ,
    D
    =
    118°
Question 20
20.
    • In the figure given below,
    • CDEF
    • is a rectangle.
    • Find the values of x and y
  • (i)
    x
    =
    42.53°
    ,
    y
    =
    86.06°
  • (ii)
    x
    =
    44.53°
    ,
    y
    =
    88.06°
  • (iii)
    x
    =
    43.53°
    ,
    y
    =
    87.06°
  • (iv)
    x
    =
    45.53°
    ,
    y
    =
    89.06°
  • (v)
    x
    =
    41.53°
    ,
    y
    =
    85.06°
Question 21
21.
    • In the figure given below,
    • BCDE
    • is a rectangle.
    • Find the values of x and y
  • (i)
    x
    =
    62.19°
    ,
    y
    =
    29.81°
  • (ii)
    x
    =
    63.19°
    ,
    y
    =
    30.81°
  • (iii)
    x
    =
    60.19°
    ,
    y
    =
    27.81°
  • (iv)
    x
    =
    59.19°
    ,
    y
    =
    26.81°
  • (v)
    x
    =
    61.19°
    ,
    y
    =
    28.81°
Question 22
22.

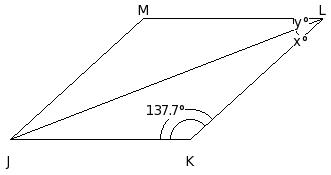

    • In the figure given below,
    • JKLM
    • is a rhombus.
    • Find the values of x and y
  • (i)
    x
    =
    64.24°
    ,
    y
    =
    64.24°
  • (ii)
    x
    =
    66.24°
    ,
    y
    =
    66.24°
  • (iii)
    x
    =
    63.24°
    ,
    y
    =
    63.24°
  • (iv)
    x
    =
    62.24°
    ,
    y
    =
    62.24°
  • (v)
    x
    =
    65.24°
    ,
    y
    =
    65.24°
Question 23
23.
    • In the figure given below,
    • EFGH
    • is a rhombus.
    • Find the values of x and y
  • (i)
    x
    =
    51.13°
    ,
    y
    =
    51.13°
  • (ii)
    x
    =
    52.13°
    ,
    y
    =
    52.13°
  • (iii)
    x
    =
    54.13°
    ,
    y
    =
    54.13°
  • (iv)
    x
    =
    55.13°
    ,
    y
    =
    55.13°
  • (v)
    x
    =
    53.13°
    ,
    y
    =
    53.13°
Question 24
24.
    • In the figure given below,
    • IJKL
    • is a rhombus.
    • Find the values of x and y
  • (i)
    x
    =
    54.43°
    ,
    y
    =
    31.57°
  • (ii)
    x
    =
    57.43°
    ,
    y
    =
    34.57°
  • (iii)
    x
    =
    58.43°
    ,
    y
    =
    35.57°
  • (iv)
    x
    =
    55.43°
    ,
    y
    =
    32.57°
  • (v)
    x
    =
    56.43°
    ,
    y
    =
    33.57°
Question 25
25.
One of the diagonals of a rhombus is equal to one of its sides. Find the angles of the rhombus
  • (i)
    O
    =
    61°
    ,
    P
    =
    119°
    ,
    Q
    =
    62°
    ,
    R
    =
    118°
  • (ii)
    O
    =
    58°
    ,
    P
    =
    122°
    ,
    Q
    =
    59°
    ,
    R
    =
    121°
  • (iii)
    O
    =
    62°
    ,
    P
    =
    119°
    ,
    Q
    =
    58°
    ,
    R
    =
    121°
  • (iv)
    O
    =
    59°
    ,
    P
    =
    118°
    ,
    Q
    =
    61°
    ,
    R
    =
    122°
  • (v)
    O
    =
    60°
    ,
    P
    =
    120°
    ,
    Q
    =
    60°
    ,
    R
    =
    120°
Question 26
26.
    • In the adjoining figure,
    • EFGH
    • is a trapezium in which
    •


      EF


      ∥



      GH


    • .
    • If
    •
    • x = 101.08°
    • and
    •
    • y = 122.76°
    • ,
    • find the measures of
    • ∠E
    • and
    • ∠F
    • .
  • (i)
    E
    =
    59.24°
    ,
    F
    =
    80.92°
  • (ii)
    E
    =
    57.24°
    ,
    F
    =
    78.92°
  • (iii)
    E
    =
    58.24°
    ,
    F
    =
    79.92°
  • (iv)
    E
    =
    56.24°
    ,
    F
    =
    77.92°
  • (v)
    E
    =
    55.24°
    ,
    F
    =
    76.92°
Question 27

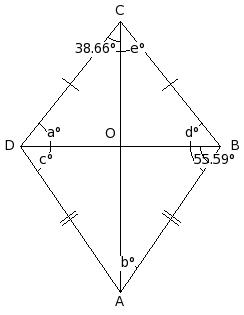

27.

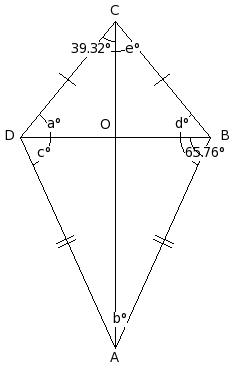

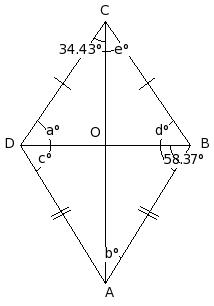

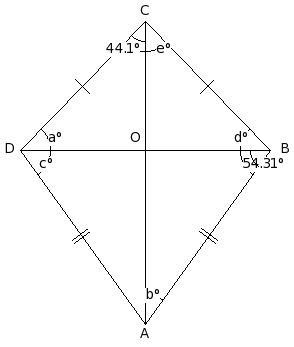

    • In the adjoining figure,
    • ABCD
    • is a kite in which
    • AB
    • =
    • DA
    • ,
    • BC
    • =
    • CD
    • and the diagonals
    •


      BD


    • and
    •


      AC


    • intersect at
    •
    • O
    • .
    • If ∠OCD = 34.63° and ∠ABO = 57.87°, find the measure of each of the angles marked a,b,c,d and e.
  • (i)
    a = 55.37° , b = 33.13° , c = 56.87° , d = 55.37° , e = 34.63°
  • (ii)
    a = 55.37° , b = 32.13° , c = 57.87° , d = 55.37° , e = 34.63°
  • (iii)
    a = 55.37° , b = 33.13° , c = 56.87° , d = 57.37° , e = 34.63°
  • (iv)
    a = 55.37° , b = 33.13° , c = 57.87° , d = 55.37° , e = 34.63°
  • (v)
    a = 55.37° , b = 33.13° , c = 56.87° , d = 57.37° , e = 32.63°
Question 28

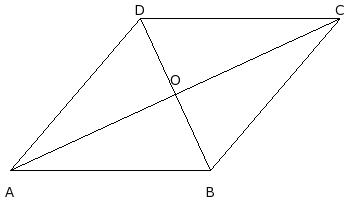

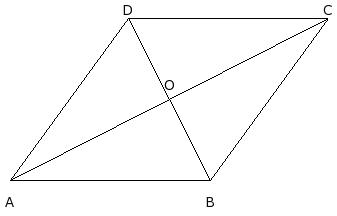

28.

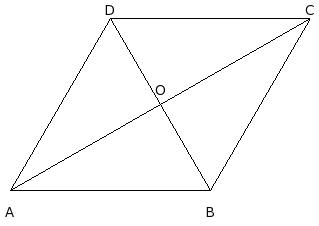

    • In the adjoining figure,
    • ABCD
    • is a rhombus whose diagonals intersect at
    • O
    • .
    • If
    • ∠OAB
    • :
    • ∠ABO
    • =
    • 7 : 8
    • ,
    • find the angles of
    • △OAB
    • .
  • (i)
    O
    =
    92°
    ,
    A
    =
    42°
    ,
    B
    =
    46°
  • (ii)
    O
    =
    90°
    ,
    A
    =
    40°
    ,
    B
    =
    50°
  • (iii)
    O
    =
    90°
    ,
    A
    =
    42°
    ,
    B
    =
    48°
  • (iv)
    O
    =
    88°
    ,
    A
    =
    44°
    ,
    B
    =
    48°
  • (v)
    O
    =
    88°
    ,
    A
    =
    42°
    ,
    B
    =
    50°
Question 29
29.
    • The measures of three angles of a quadrilateral are
    • 83.47°
    • ,
    • 112.08°
    • and
    • 66.87°
    • . Find the fourth angle
  • (i)
    102.58°
  • (ii)
    107.58°
  • (iii)
    112.58°
  • (iv)
    127.58°
  • (v)
    97.58°
Question 30
30.
Find the missing angle in the given quadrilateral
  • (i)
    114.7°
  • (ii)
    119.7°
  • (iii)
    144.7°
  • (iv)
    129.7°
  • (v)
    124.7°
Question 31
31.

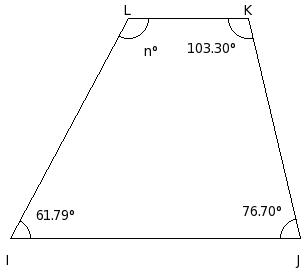

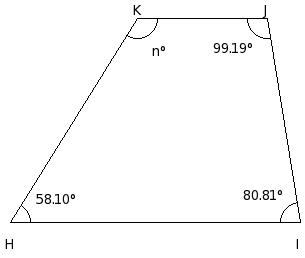

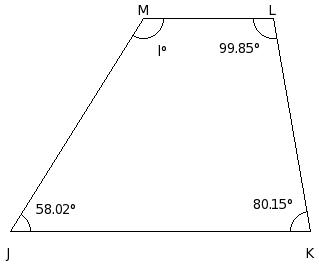

Find the missing angle in the given trapezium
  • (i)
    111.87°
  • (ii)
    126.87°
  • (iii)
    101.87°
  • (iv)
    106.87°
  • (v)
    96.87°
Question 32
32.

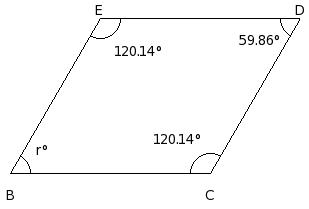

Find the missing angle in the given parallelogram
  • (i)
    139.04°
  • (ii)
    134.04°
  • (iii)
    144.04°
  • (iv)
    159.04°
  • (v)
    129.04°
Question 33
33.
Find the missing angle in the given rhombus
  • (i)
    83.49°
  • (ii)
    88.49°
  • (iii)
    113.49°
  • (iv)
    98.49°
  • (v)
    93.49°
Question 34
34.
    • In the adjoining figure,
    • IJKL
    • is a parallelogram and
    • MN
    • is such that
    •


      MN


      ∥



      IK


    • If
    • ∠ILM = 39.39°
    • and
    • ∠KLN = 34.79°
    • ,
    • find the measure of
    • ∠IJK
    • .
  • (i)
    104.81°
  • (ii)
    103.81°
  • (iii)
    107.81°
  • (iv)
    106.81°
  • (v)
    105.81°
Question 35
35.
In the adjoining figure, EFGH is a square. A line segment HJ cuts the side FG at J and the diagonal EG at I such that ∠HIG = 95.71° and ∠IJG = x°. Find the value of x .
  • (i)
    52.71°
  • (ii)
    48.71°
  • (iii)
    49.71°
  • (iv)
    50.71°
  • (v)
    51.71°
Question 36
36.
In the adjoining figure, PQRS is a rhombus and △TSR is an equilateral triangle. T and Q are on opposite sides of  RS. If ∠SPQ = 36.87°, find the values of  x  and  y .
  • (i)
    x
    =
    32°
    ,
    y
    =
    43.56°
  • (ii)
    x
    =
    31°
    ,
    y
    =
    42.56°
  • (iii)
    x
    =
    30°
    ,
    y
    =
    41.56°
  • (iv)
    x
    =
    29°
    ,
    y
    =
    40.56°
  • (v)
    x
    =
    28°
    ,
    y
    =
    39.56°
Question 37
37.
In the adjoining figure, equilateral  △RQS surmounts square  OPQR. If  QSP = x°, find the value of x.
  • (i)
    14°
  • (ii)
    16°
  • (iii)
    13°
  • (iv)
    15°
  • (v)
    17°
Question 38
38.
    • In the given figure,
    • GHIJ
    • is a rectangle whose diagonals intersect at
    • K
    • .
    • Diagonal
    • HJ
    • is produced to
    • T
    • and
    • ∠GJT =
    • 126.25°
    • . Find the angles of
    • △KGH
    • .
  • (i)
    K
    =
    109.5°
    ,
    G
    =
    36.25°
    ,
    H
    =
    34.25°
  • (ii)
    K
    =
    105.5°
    ,
    G
    =
    38.25°
    ,
    H
    =
    36.25°
  • (iii)
    K
    =
    107.5°
    ,
    G
    =
    34.25°
    ,
    H
    =
    38.25°
  • (iv)
    K
    =
    107.5°
    ,
    G
    =
    36.25°
    ,
    H
    =
    36.25°
  • (v)
    K
    =
    105.5°
    ,
    G
    =
    36.25°
    ,
    H
    =
    38.25°
Question 39
39.
    • In the given figure,
    • HIJK
    • is a kite whose diagonals intersect at
    • L
    • .
    • If
    • ∠KHI = 40.65°
    • and
    • ∠HIJ = 127.21°
    • , calculate
    • ∠LKH
    • and
    • ∠LJK
    • .
  • (i)
    x
    =
    71.67°
    ,
    y
    =
    34.47°
  • (ii)
    x
    =
    69.67°
    ,
    y
    =
    32.47°
  • (iii)
    x
    =
    70.67°
    ,
    y
    =
    33.47°
  • (iv)
    x
    =
    68.67°
    ,
    y
    =
    31.47°
  • (v)
    x
    =
    67.67°
    ,
    y
    =
    30.47°
Question 40
40.
    • △MKL
    • is an equilateral triangle in a square
    • IJKL
    • .
    • If
    • JL
    • and
    • MK
    • intersect at
    • N
    • ,
    • then find the value of x.
  • (i)
    76°
  • (ii)
    77°
  • (iii)
    75°
  • (iv)
    73°
  • (v)
    74°
Question 41
41.
    • In the adjoining figure,
    • N
    • is a point in the interior of
    • ∠PLQ
    • .
    • If
    •
    • NM
    • ⟂
    • LP
    • and
    • NO
    • ⟂
    • LQ
    • and
    • ∠PLQ = 58°
    • ,
    • find the measure of x .
  • (i)
    238°
  • (ii)
    237°
  • (iii)
    240°
  • (iv)
    236°
  • (v)
    239°
Question 42
42.
    • In the given figure, ABCD is a parallelogram. S is the mid-point of CD.
    • BS
    • bisects
    • ∠B
    • . If x =
    • 52°
    • , find angle 'y'.
  • (i)
    39°
  • (ii)
    36°
  • (iii)
    38°
  • (iv)
    37°
  • (v)
    40°
Question 43
43.
In the given figure, EFGH is a rhombus. Given x = 67°, find the value of 'y'.
  • (i)
    24°
  • (ii)
    25°
  • (iii)
    23°
  • (iv)
    21°
  • (v)
    22°
Question 44
44.
    • In the given figure, DEFG is a parallelogram. EG is the diagonal
    • such that
    •
    • DG = EG = EF
    • . Given
    • ∠D = 59°
    • , find
    • ∠GEF
  • (i)
    64°
  • (ii)
    63°
  • (iii)
    61°
  • (iv)
    62°
  • (v)
    60°
Question 45
45.
In the given figure, FGHI is a parallelogram. FO and HP are perpendicular to the diagonal GI. Given ∠PHI = 41°, find ∠IGF
  • (i)
    50°
  • (ii)
    49°
  • (iii)
    47°
  • (iv)
    51°
  • (v)
    48°
Question 46
46.
In the given figure, HIJK is a rhombus such that ∠I = 120°. Then △HIK is
  • (i)
    Right angled triangle
  • (ii)
    Isosceles triangle
  • (iii)
    Obtuse angled triangle
  • (iv)
    Equilateral triangle
Question 47
47.

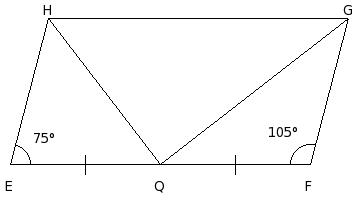

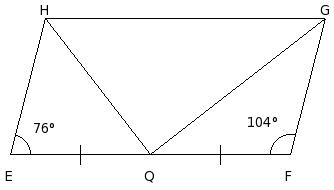

In the given figure, EFGH is a parallelogram such that Q is the mid-point of EF and  EF = 2HE. Find ∠HQG
  • (i)
    89°
  • (ii)
    92°
  • (iii)
    91°
  • (iv)
    88°
  • (v)
    90°
    Assignment Key

  •  1) (i)
  •  2) (i)
  •  3) (ii)
  •  4) (iii)
  •  5) (ii)
  •  6) (iv)
  •  7) (iv)
  •  8) (v)
  •  9) (iv)
  •  10) (i)
  •  11) (iii)
  •  12) (v)
  •  13) (iii)
  •  14) (v)
  •  15) (iv)
  •  16) (iii)
  •  17) (i)
  •  18) (iii)
  •  19) (i)
  •  20) (iii)
  •  21) (v)
  •  22) (i)
  •  23) (v)
  •  24) (v)
  •  25) (v)
  •  26) (ii)
  •  27) (ii)
  •  28) (iii)
  •  29) (v)
  •  30) (i)
  •  31) (v)
  •  32) (v)
  •  33) (i)
  •  34) (v)
  •  35) (iv)
  •  36) (iii)
  •  37) (iv)
  •  38) (iv)
  •  39) (ii)
  •  40) (iii)
  •  41) (i)
  •  42) (iii)
  •  43) (iii)
  •  44) (iv)
  •  45) (ii)
  •  46) (iv)
  •  47) (v)
