EduSahara™ Assignment
Name : Perimeter and Area of Complex Shaped Figures - 2
Chapter : Perimeter and Area of Plane Figures
Grade : ICSE Grade VIII
License : Non Commercial Use
Question 1
1.

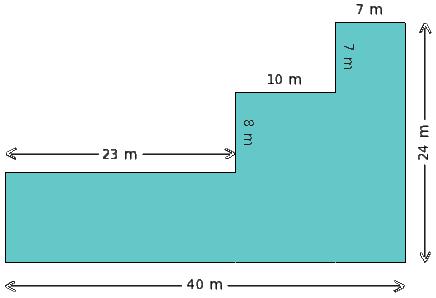

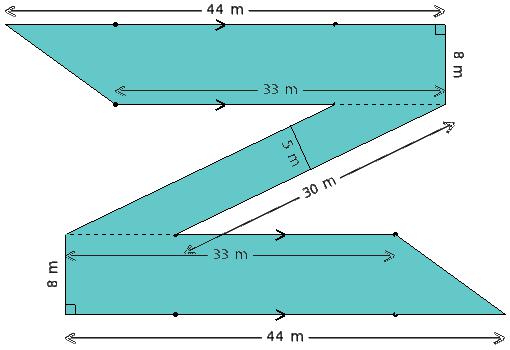

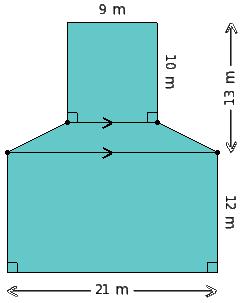

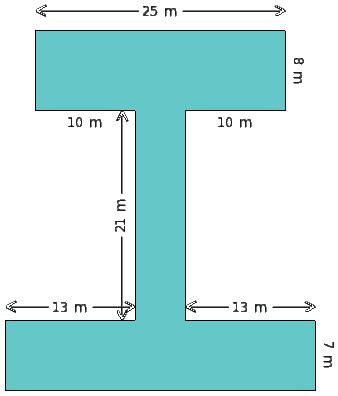

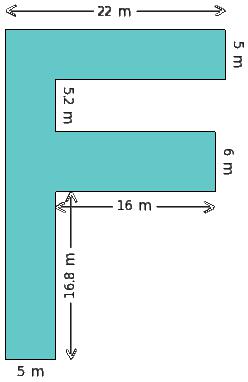

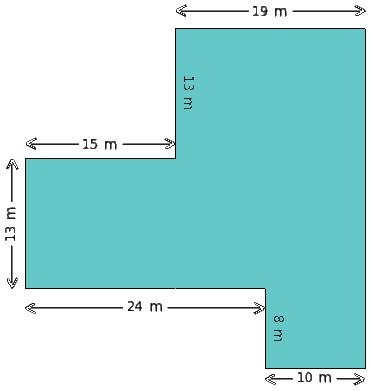

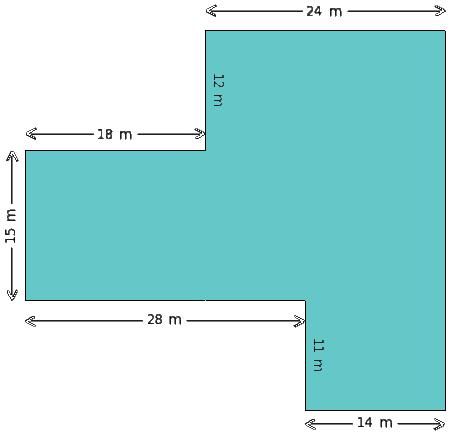

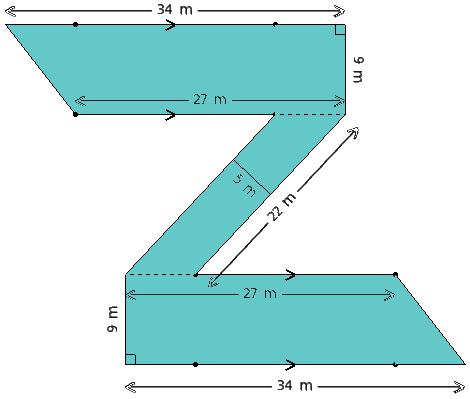

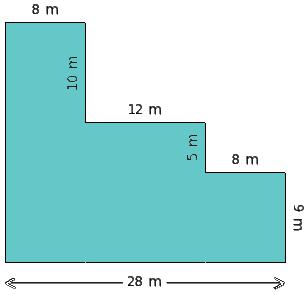

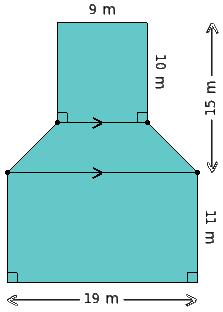

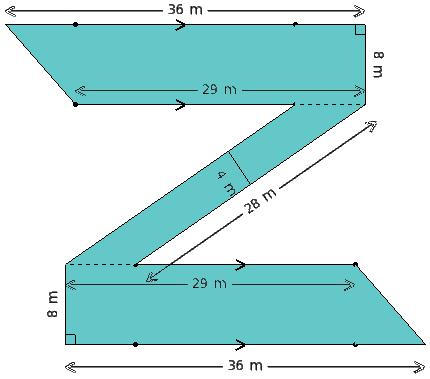

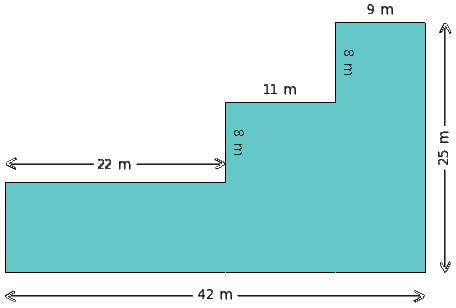

Find the area of the shaded region given below
  • (i)
    341.00 sq.m
  • (ii)
    354.00 sq.m
  • (iii)
    360.00 sq.m
  • (iv)
    382.00 sq.m
  • (v)
    338.00 sq.m
Question 2
2.

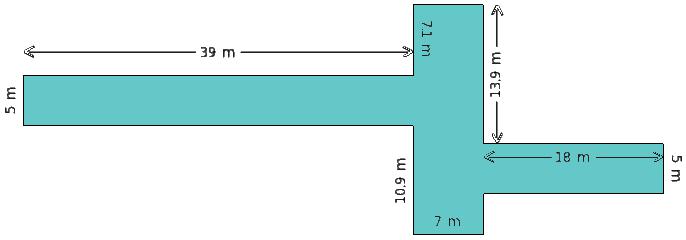

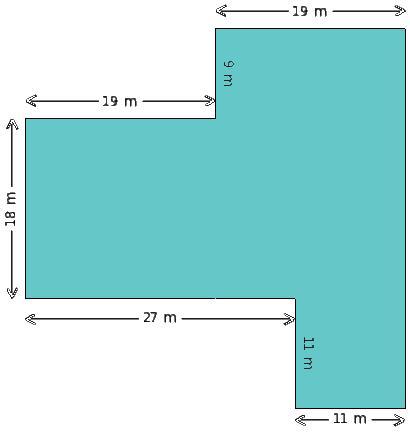

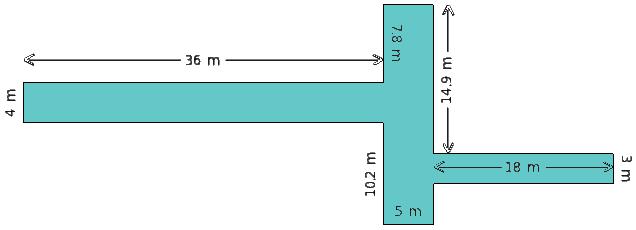

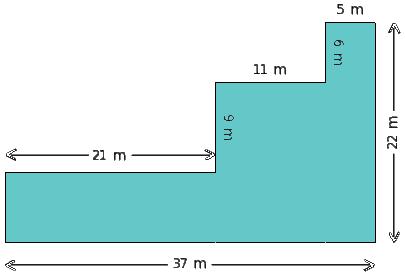

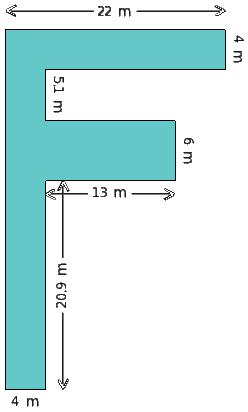

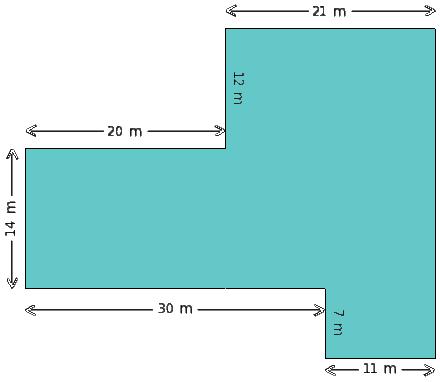

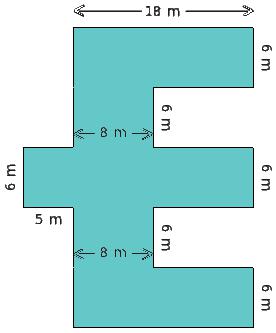

Find the perimeter of the shaded region given below
  • (i)
    93.00 m
  • (ii)
    103.00 m
  • (iii)
    98.00 m
  • (iv)
    95.00 m
  • (v)
    101.00 m
Question 3
3.

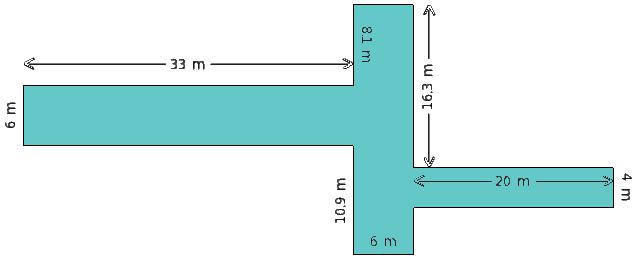

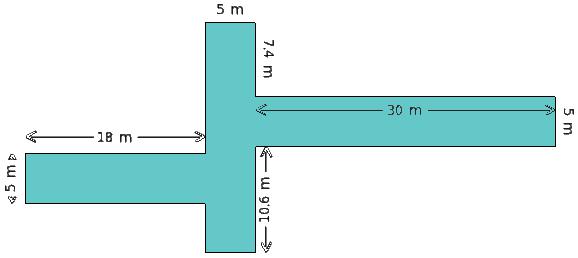

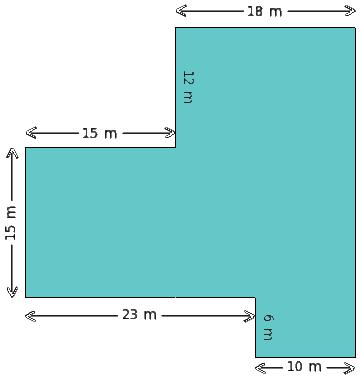

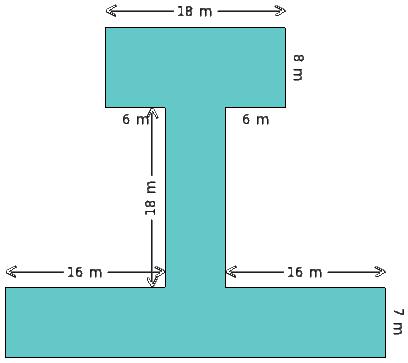

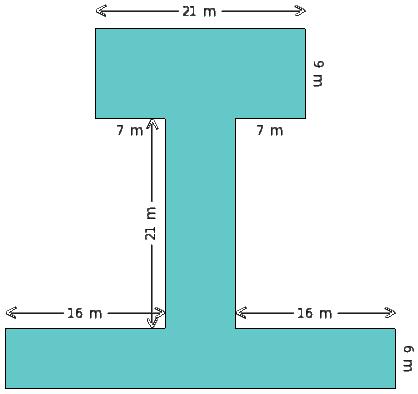

Find the area of the shaded region given below
  • (i)
    894.00 sq.m
  • (ii)
    858.00 sq.m
  • (iii)
    859.00 sq.m
  • (iv)
    899.00 sq.m
  • (v)
    876.00 sq.m
Question 4
4.

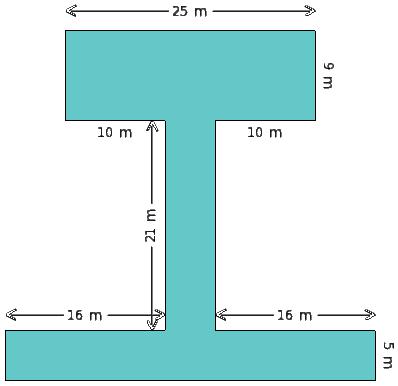

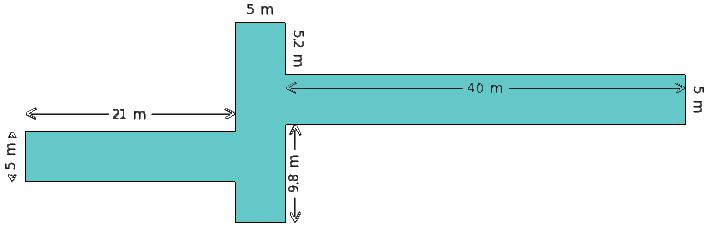

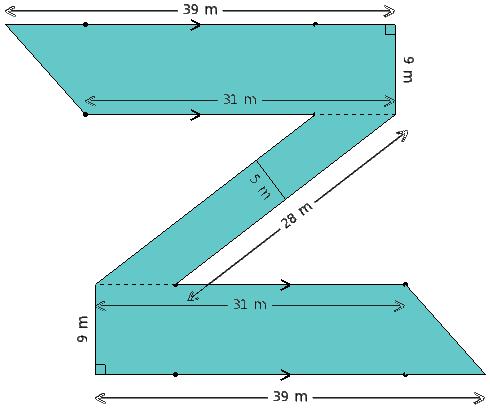

Find the perimeter of the shaded region given below
  • (i)
    165.00 m
  • (ii)
    145.00 m
  • (iii)
    138.00 m
  • (iv)
    123.00 m
  • (v)
    112.00 m
Question 5
5.

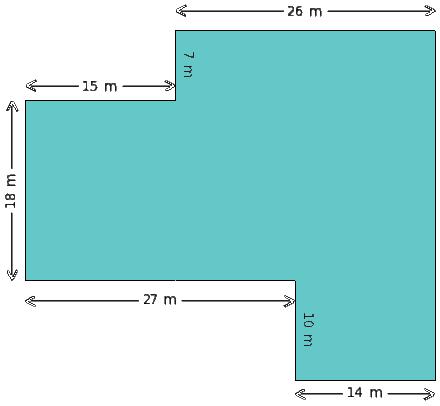

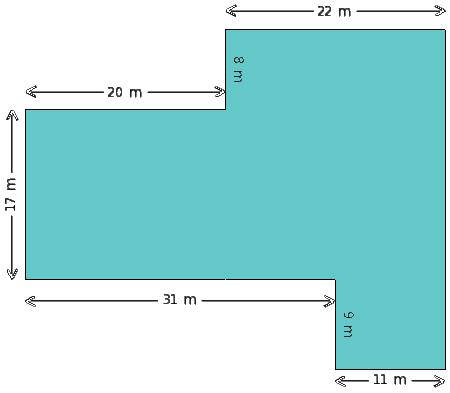

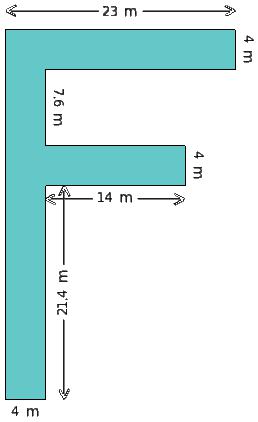

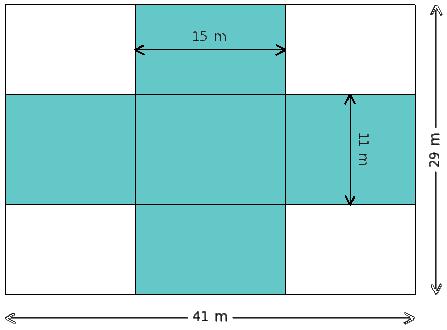

Find the area of the shaded region given below
  • (i)
    520.00 sq.m
  • (ii)
    482.00 sq.m
  • (iii)
    508.00 sq.m
  • (iv)
    495.00 sq.m
  • (v)
    483.00 sq.m
Question 6
6.

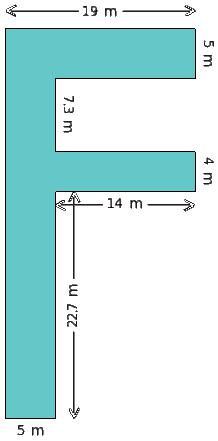

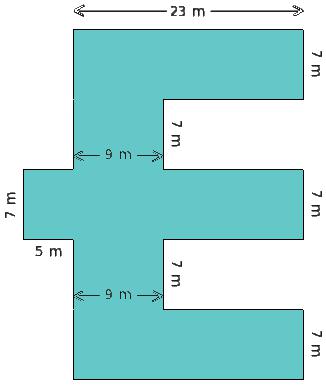

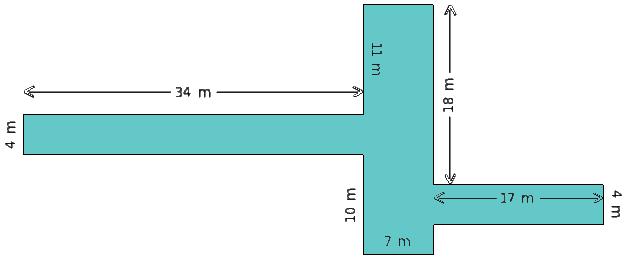

Find the perimeter of the shaded region given below
  • (i)
    128.00 m
  • (ii)
    154.00 m
  • (iii)
    100.00 m
  • (iv)
    134.00 m
  • (v)
    123.00 m
Question 7
7.

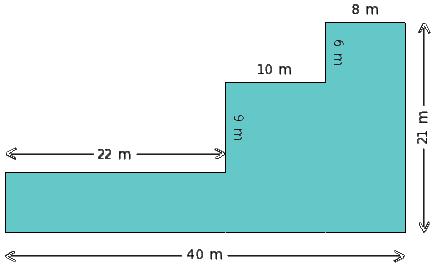

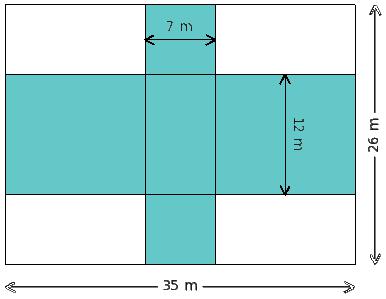

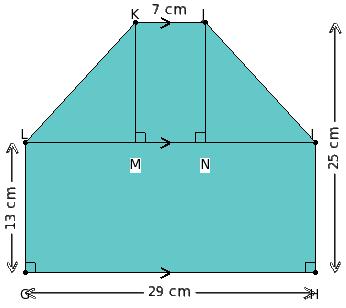

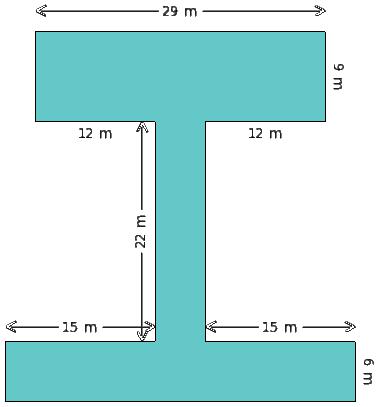

Find the area of the shaded region given below
  • (i)
    340.00 sq.m
  • (ii)
    373.00 sq.m
  • (iii)
    359.00 sq.m
  • (iv)
    365.00 sq.m
  • (v)
    391.00 sq.m
Question 8
8.

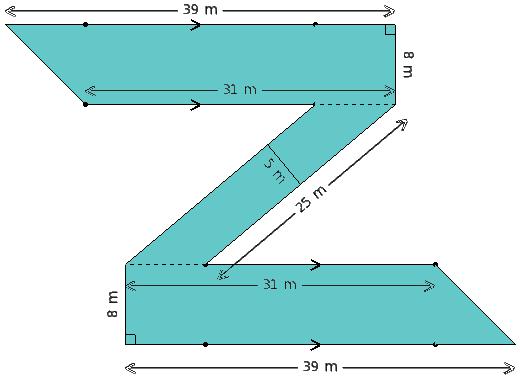

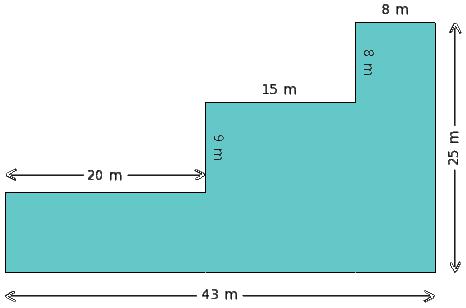

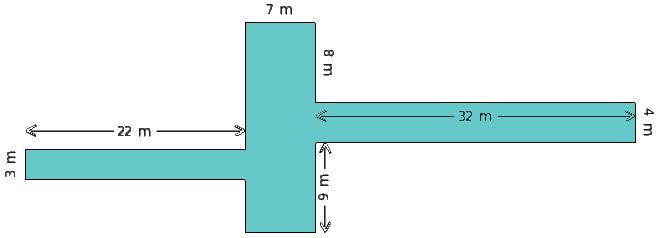

Find the perimeter of the shaded region given below
  • (i)
    164.00 m
  • (ii)
    162.00 m
  • (iii)
    146.00 m
  • (iv)
    181.00 m
  • (v)
    169.00 m
Question 9
9.

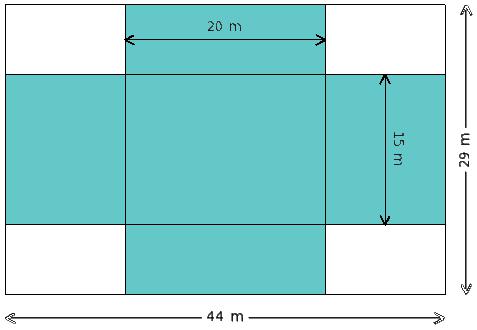

Find the area of the shaded region given below
  • (i)
    409.00 sq.m
  • (ii)
    412.00 sq.m
  • (iii)
    380.00 sq.m
  • (iv)
    395.00 sq.m
  • (v)
    367.00 sq.m
Question 10
10.
Find the perimeter of the shaded region given below
  • (i)
    161.00 m
  • (ii)
    172.00 m
  • (iii)
    166.00 m
  • (iv)
    193.00 m
  • (v)
    149.00 m
Question 11
11.
Find the area of the shaded region given below
  • (i)
    338.00 sq.m
  • (ii)
    323.00 sq.m
  • (iii)
    295.00 sq.m
  • (iv)
    329.00 sq.m
  • (v)
    310.00 sq.m
Question 12
12.
Find the perimeter of the shaded region given below
  • (i)
    149.00 m
  • (ii)
    118.00 m
  • (iii)
    160.00 m
  • (iv)
    136.00 m
  • (v)
    111.00 m
Question 13
13.
Find the area of the shaded region given below
  • (i)
    356.00 sq.m
  • (ii)
    327.00 sq.m
  • (iii)
    338.00 sq.m
  • (iv)
    347.00 sq.m
  • (v)
    340.00 sq.m
Question 14
14.
Find the perimeter of the shaded region given below
  • (i)
    152.00 m
  • (ii)
    150.00 m
  • (iii)
    177.00 m
  • (iv)
    164.00 m
Question 15
15.
Find the area of the shaded region given below
  • (i)
    495.00 sq.m
  • (ii)
    518.00 sq.m
  • (iii)
    510.00 sq.m
  • (iv)
    504.00 sq.m
  • (v)
    522.00 sq.m
Question 16
16.
Find the perimeter of the shaded region given below
  • (i)
    150.00 m
  • (ii)
    139.00 m
  • (iii)
    125.00 m
  • (iv)
    142.00 m
  • (v)
    156.00 m
Question 17
17.
Find the area of the shaded region given below
  • (i)
    412.00 sq.m
  • (ii)
    397.00 sq.m
  • (iii)
    414.00 sq.m
  • (iv)
    404.00 sq.m
  • (v)
    425.00 sq.m
Question 18
18.
Find the perimeter of the shaded region given below
  • (i)
    168.00 m
  • (ii)
    169.00 m
  • (iii)
    152.00 m
  • (iv)
    127.00 m
  • (v)
    134.00 m
Question 19
19.
    • A rectangular field is 43 m by 27 m. It has two paths through its centre, running parallel to its sides.
    • The width of the longer and the shorter paths are 7 m and 13 m respectively.
    • Find the total expense involved in laying tiles on the paths at ₹18.3 per 1 sq.m and laying grass in the remaining portion at ₹14.1 per 1 sq.m.
  • (i)
    ₹18725.30
  • (ii)
    ₹18727.30
  • (iii)
    ₹18726.30
  • (iv)
    ₹18724.30
  • (v)
    ₹18728.30
Question 20
20.
    • In the given figure, BCDE is a rectangle in which BC = 12 cm and EB = 26 cm.
    • Also, △RBC is a right angled triangle in which ∠CRB = 90° and RB = 6 cm
    • Find the area of the shaded region
  • (i)
    282.82 sq.cm
  • (ii)
    281.82 sq.cm
  • (iii)
    279.82 sq.cm
  • (iv)
    278.82 sq.cm
  • (v)
    280.82 sq.cm
Question 21
21.
    • In the given figure, CDEF is a rectangle in which CD = 13 cm and FC = 23 cm.
    • Also, △PCD and △QEF are the right angled triangles in which ∠DPC = ∠FQE = 90°, PC = 7 cm and QE = 9 cm.
    • Find the area of the shaded region
  • (i)
    220.45 sq.cm
  • (ii)
    216.45 sq.cm
  • (iii)
    217.45 sq.cm
  • (iv)
    219.45 sq.cm
  • (v)
    218.45 sq.cm
Question 22
22.

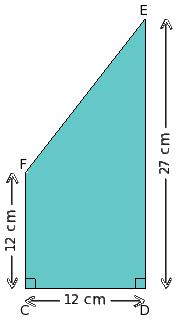

Find the area of shaded region in the adjoining figure, given that CD = 12 cm, DE = 27 cm, CF = 12 cm and ∠FCD = ∠CDE = 90°.
  • (i)
    236.00 sq.cm
  • (ii)
    233.00 sq.cm
  • (iii)
    235.00 sq.cm
  • (iv)
    234.00 sq.cm
  • (v)
    232.00 sq.cm
Question 23
23.
Find the area of shaded region in the adjoining figure, given that CD = 16 cm, DE = 23 cm, CF = 13 cm and ∠FCD = ∠CDE = 90°.
  • (i)
    286.00 sq.cm
  • (ii)
    289.00 sq.cm
  • (iii)
    288.00 sq.cm
  • (iv)
    287.00 sq.cm
  • (v)
    290.00 sq.cm
Question 24
24.
Find the area of the shaded region of the adjoining figure, given that ∠NIJ = ∠KJI = 90°, ML ∥ IJ ∥ NK, MO ⟂ NK, LP ⟂ NK, NO = PK, IJ = 27 cm, IN = 10 cm, ML = 7 cm and distance between IJ and ML is 19 cm
  • (i)
    423.00 sq.cm
  • (ii)
    421.00 sq.cm
  • (iii)
    424.00 sq.cm
  • (iv)
    422.00 sq.cm
  • (v)
    425.00 sq.cm
Question 25
25.
Find the area of the shaded region in the adjoining figure, given that DEFG is a square of side 20 cm, FH = 8 cm, ID = 12 cm and EJ = 11 cm
  • (i)
    190.00 sq.cm
  • (ii)
    187.00 sq.cm
  • (iii)
    188.00 sq.cm
  • (iv)
    189.00 sq.cm
  • (v)
    186.00 sq.cm
Question 26
26.

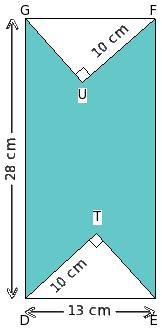

Find the area of the shaded region
  • (i)
    337.15 sq.cm
  • (ii)
    336.15 sq.cm
  • (iii)
    335.15 sq.cm
  • (iv)
    333.15 sq.cm
  • (v)
    334.15 sq.cm
Question 27
27.

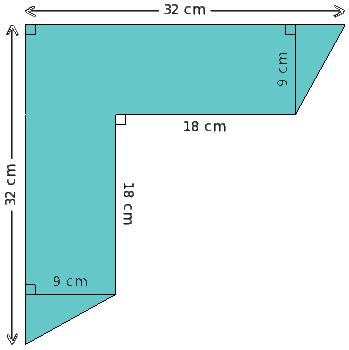

Find the area of the shaded region
  • (i)
    409.40 sq.cm
  • (ii)
    408.40 sq.cm
  • (iii)
    411.40 sq.cm
  • (iv)
    410.40 sq.cm
  • (v)
    412.40 sq.cm
Question 28
28.
Find the area of the shaded region
  • (i)
    144.00 sq.cm
  • (ii)
    145.00 sq.cm
  • (iii)
    141.00 sq.cm
  • (iv)
    143.00 sq.cm
  • (v)
    142.00 sq.cm
Question 29
29.
Find the area of the shaded region
  • (i)
    406.00 sq.cm
  • (ii)
    410.00 sq.cm
  • (iii)
    407.00 sq.cm
  • (iv)
    409.00 sq.cm
  • (v)
    408.00 sq.cm
Question 30
30.
Find the area of the shaded region
  • (i)
    259.00 sq.m
  • (ii)
    256.00 sq.m
  • (iii)
    260.00 sq.m
  • (iv)
    258.00 sq.m
  • (v)
    257.00 sq.m
Question 31
31.
Find the area of the shaded region
  • (i)
    700.00 sq.m
  • (ii)
    702.00 sq.m
  • (iii)
    699.00 sq.m
  • (iv)
    701.00 sq.m
  • (v)
    698.00 sq.m
    Assignment Key

  •  1) (ii)
  •  2) (iii)
  •  3) (v)
  •  4) (iii)
  •  5) (iv)
  •  6) (i)
  •  7) (iv)
  •  8) (i)
  •  9) (iv)
  •  10) (iii)
  •  11) (ii)
  •  12) (iv)
  •  13) (v)
  •  14) (iv)
  •  15) (iii)
  •  16) (iv)
  •  17) (i)
  •  18) (iii)
  •  19) (iii)
  •  20) (v)
  •  21) (v)
  •  22) (iv)
  •  23) (iii)
  •  24) (i)
  •  25) (iii)
  •  26) (iii)
  •  27) (iv)
  •  28) (iv)
  •  29) (v)
  •  30) (iv)
  •  31) (i)
