EduSahara™ Assignment
Name : Areas of Combinations of Plane Figures
Chapter : Area Related to Circles
Grade : CBSE Grade X
License : Non Commercial Use
Question 1
1.
In the given figure, a circle is inscribed touching the sides of an equilateral triangle of side 26 cm. Find the area of the shaded region
  • (i)
    112.67 sq.cm
  • (ii)
    129.67 sq.cm
  • (iii)
    115.67 sq.cm
  • (iv)
    120.67 sq.cm
  • (v)
    99.67 sq.cm
Question 2
2.
In the given figure, the circle circumscribes a rectangle with sides 14.00 cm and 12.00 cm. Find the area of the remaining portion other than the rectangle
  • (i)
    102.14 sq.cm
  • (ii)
    104.14 sq.cm
  • (iii)
    99.14 sq.cm
  • (iv)
    96.14 sq.cm
  • (v)
    94.14 sq.cm
Question 3
3.

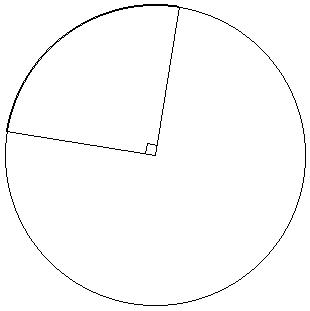

In the given figure, the radius of the circle is 10 cm. Find the area of the minor sector
  • (i)
    73.57 sq.cm
  • (ii)
    78.57 sq.cm
  • (iii)
    75.57 sq.cm
  • (iv)
    81.57 sq.cm
  • (v)
    83.57 sq.cm
Question 4
4.
In the given figure, the radius of the circle is 15 cm. Find the area of the major sector
  • (i)
    518.36 sq.cm
  • (ii)
    516.36 sq.cm
  • (iii)
    530.36 sq.cm
  • (iv)
    557.36 sq.cm
  • (v)
    546.36 sq.cm
Question 5
5.
In the given figure ,PQRS is the diameter of the circle of radius 1.50 cm and PQ = QR = RS. Find the area of the shaded region
  • (i)
    4.36 sq.cm
  • (ii)
    0.36 sq.cm
  • (iii)
    2.36 sq.cm
  • (iv)
    3.36 sq.cm
  • (v)
    1.36 sq.cm
Question 6
6.
In the given figure ,PQRS is the diameter of the circle of radius 9.00 cm and PQ = QR = RS. Find the perimeter of the shaded region
  • (i)
    61.57 cm
  • (ii)
    51.57 cm
  • (iii)
    56.57 cm
  • (iv)
    53.57 cm
  • (v)
    59.57 cm
Question 7
7.
In the given figure , ABCD is a trapezium. A quarter circle AEFD is removed from the trapezium. If AD = CD = 20 and EB = 3.8 , find the area of the remaining portion
  • (i)
    123.71 sq.cm
  • (ii)
    131.71 sq.cm
  • (iii)
    108.71 sq.cm
  • (iv)
    97.71 sq.cm
  • (v)
    136.71 sq.cm
Question 8
8.
In the given figure, ABCD is a square of side 20.00 cm . At the centre there is a circle with radius 5.00 cm and the same circle quadrants are at the four corners. Find the area of the shaded region.
  • (i)
    235.86 sq.cm
  • (ii)
    227.86 sq.cm
  • (iii)
    258.86 sq.cm
  • (iv)
    254.86 sq.cm
  • (v)
    242.86 sq.cm
Question 9
9.
In the given figure, ABCD is a square of side 10.00 cm . At the centre there is a circle with radius 2.50 cm and the same circle quadrants are at the four corners. Find the perimeter of the shaded region.
  • (i)
    48.43 cm
  • (ii)
    51.43 cm
  • (iii)
    54.43 cm
  • (iv)
    56.43 cm
  • (v)
    46.43 cm
Question 10
10.
In the given figure, ABCD is a square of side 10.00 cm and A, B, C, D are the centres of circular arcs, each of radius 5.00 cm. Find the area of the shaded region
  • (i)
    18.43 sq.cm
  • (ii)
    26.43 sq.cm
  • (iii)
    24.43 sq.cm
  • (iv)
    21.43 sq.cm
  • (v)
    16.43 sq.cm
Question 11
11.
In the given figure, ABCD is a square of side 5.00 cm and A, B, C, D are centres of circles which touch externally in pairs. Find the area of the shaded region
  • (i)
    80.93 sq.cm
  • (ii)
    83.93 sq.cm
  • (iii)
    78.93 sq.cm
  • (iv)
    86.93 sq.cm
  • (v)
    88.93 sq.cm
Question 12
12.
In the given figure, BC = 12 cm and AB = 7 cm. Find the area of the shaded region
  • (i)
    111.64 sq.cm
  • (ii)
    122.64 sq.cm
  • (iii)
    94.64 sq.cm
  • (iv)
    95.64 sq.cm
  • (v)
    109.64 sq.cm
Question 13
13.
In the given figure, BC = 6 cm and AB = 14 cm. Find the perimeter of the shaded region
  • (i)
    80.10 cm
  • (ii)
    83.10 cm
  • (iii)
    88.10 cm
  • (iv)
    86.10 cm
  • (v)
    78.10 cm
Question 14
14.

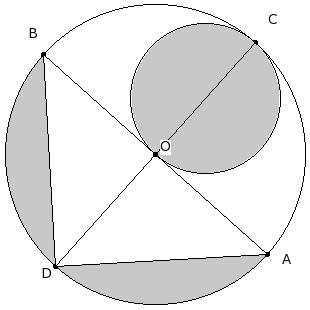

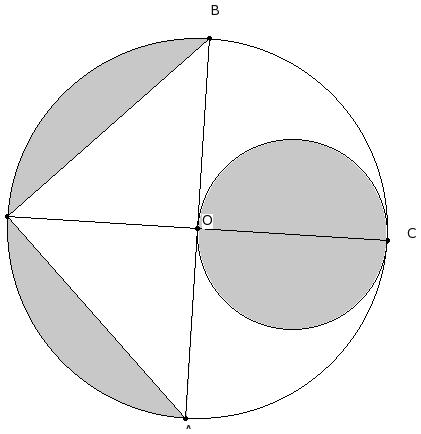

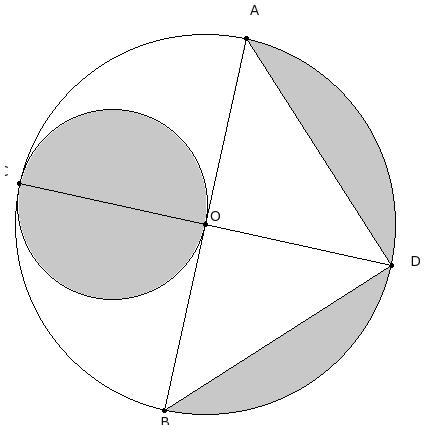

In the below figure, AB is the diameter of a circle with center O and OA = 13.00 cm . Find the area of the shaded region
  • (i)
    231.36 sq.cm
  • (ii)
    229.36 sq.cm
  • (iii)
    226.36 sq.cm
  • (iv)
    214.36 sq.cm
  • (v)
    247.36 sq.cm
Question 15
15.

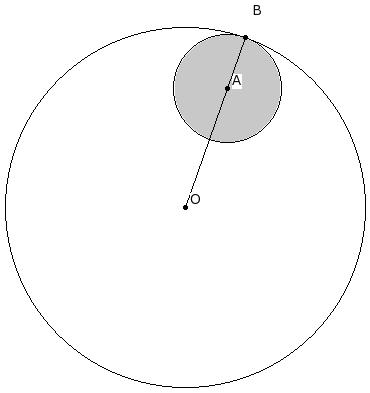

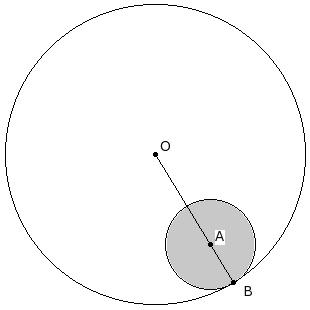

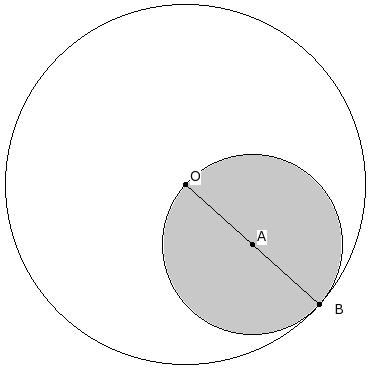

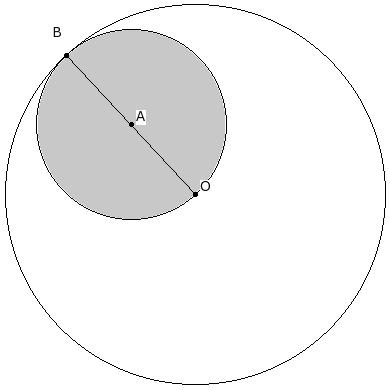

In the below figure, two circles with centers O and A touch internally at B. If OB = 18.00 cm and OA = 9 cm, find the area of the unshaded region
  • (i)
    763.71 sq.cm
  • (ii)
    768.71 sq.cm
  • (iii)
    749.71 sq.cm
  • (iv)
    740.71 sq.cm
  • (v)
    790.71 sq.cm
Question 16
16.
In the below figure, BPQA is a quadrant of a circle. AB = 19.00 cm and BC = 10 cm . Find the area of the shaded region
  • (i)
    188.64 sq.cm
  • (ii)
    160.64 sq.cm
  • (iii)
    174.64 sq.cm
  • (iv)
    205.64 sq.cm
  • (v)
    202.64 sq.cm
Question 17
17.
In the below figure, BCPA is a quadrant of a circle. BC = 10.00 cm and CQA is a semicircle with CA as the diameter. Find the area of the shaded region
  • (i)
    47.00 sq.cm
  • (ii)
    50.00 sq.cm
  • (iii)
    55.00 sq.cm
  • (iv)
    53.00 sq.cm
  • (v)
    45.00 sq.cm
Question 18
18.

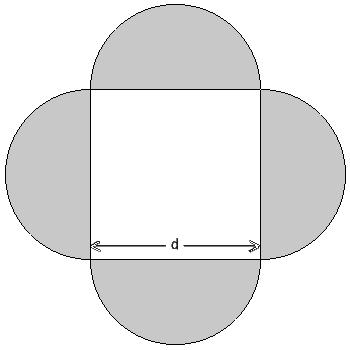

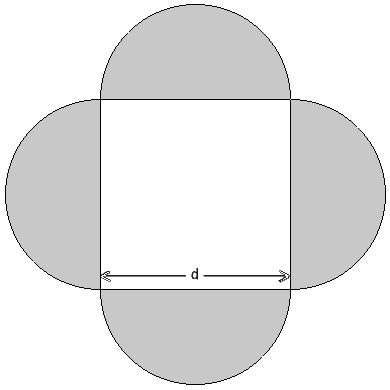

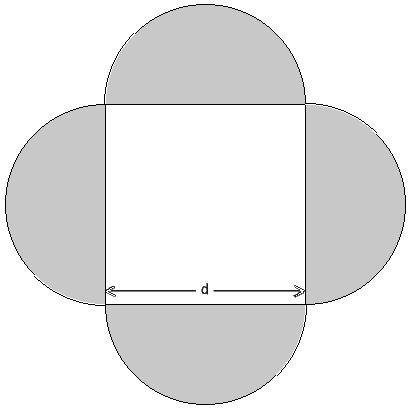

In the given figure, d = 12.00 cm is the diameter of the semi-circles. Find the area of the shaded region
  • (i)
    226.29 sq.cm
  • (ii)
    251.29 sq.cm
  • (iii)
    243.29 sq.cm
  • (iv)
    222.29 sq.cm
  • (v)
    214.29 sq.cm
Question 19
19.

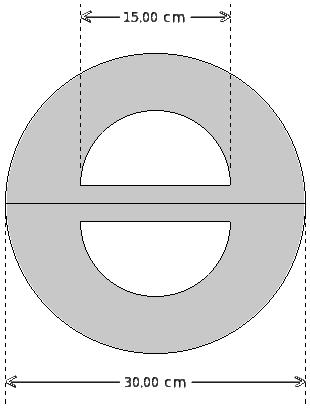

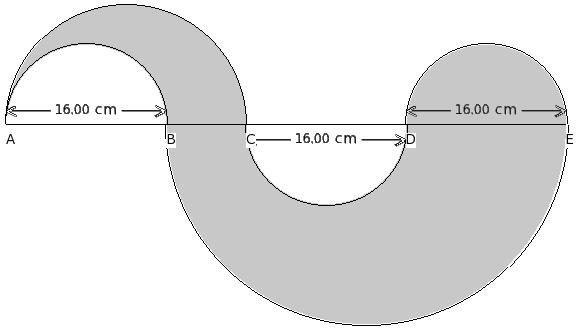

In the given figure, find the area of the shaded region
  • (i)
    381.36 sq.cm
  • (ii)
    398.36 sq.cm
  • (iii)
    410.36 sq.cm
  • (iv)
    414.36 sq.cm
Question 20
20.

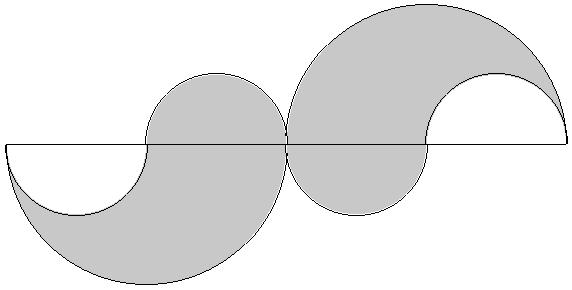

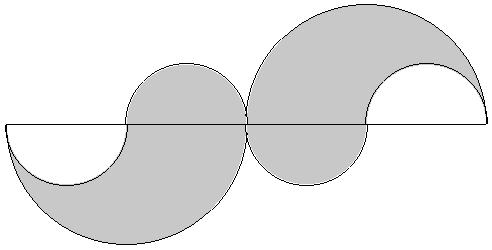

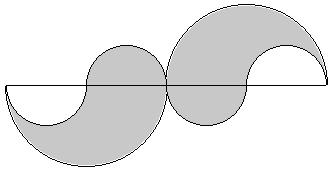

The given figure consists of four small semi-circles of equal radii and two big semi-circles of equal radii. The radius of each big semi-circle is 6.00 cm which is the same as the diameter of the small semi-circle. Find the area of the shaded region
  • (i)
    125.14 sq.cm
  • (ii)
    118.14 sq.cm
  • (iii)
    87.14 sq.cm
  • (iv)
    100.14 sq.cm
  • (v)
    113.14 sq.cm
Question 21
21.

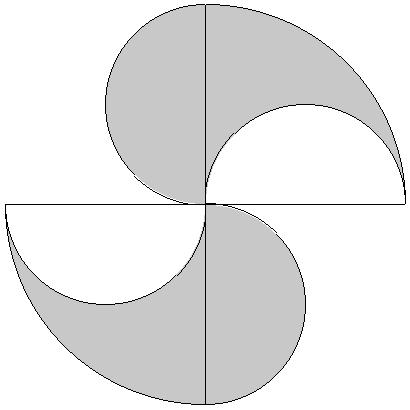

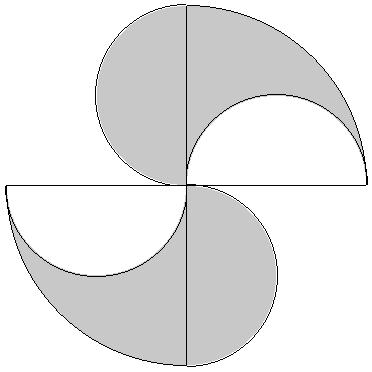

The given figure consists of two quarter circles each of radius 14.00 cm and four semi-circles each of radius 7.00 cm. Find the area of the shaded region
  • (i)
    326.00 sq.cm
  • (ii)
    312.00 sq.cm
  • (iii)
    291.00 sq.cm
  • (iv)
    283.00 sq.cm
  • (v)
    308.00 sq.cm
Question 22

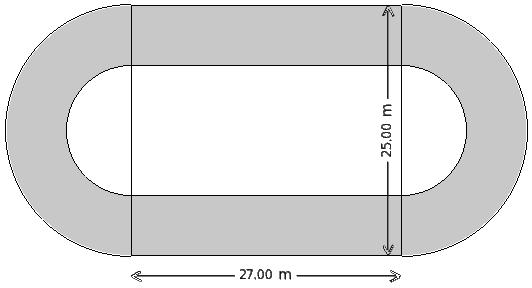

22.

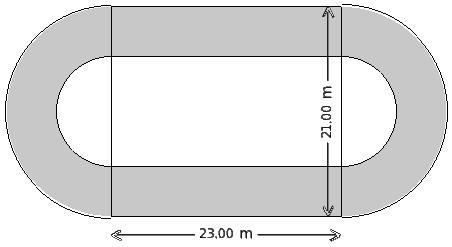

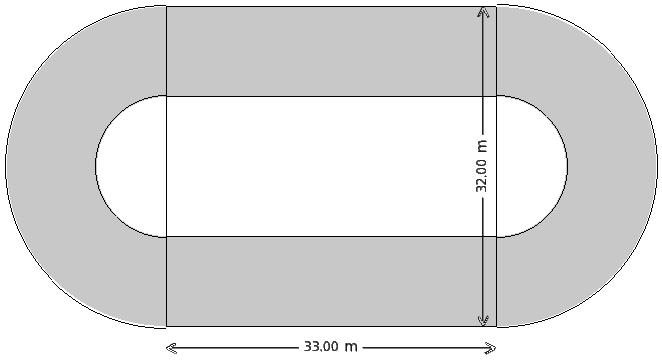

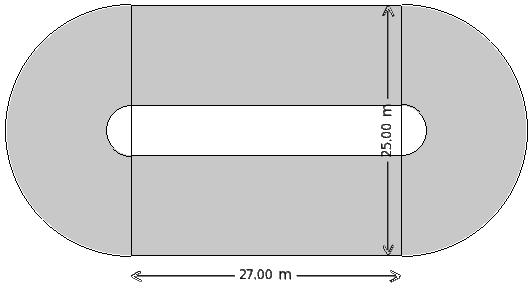

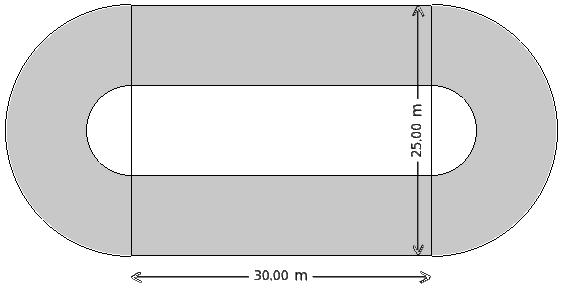

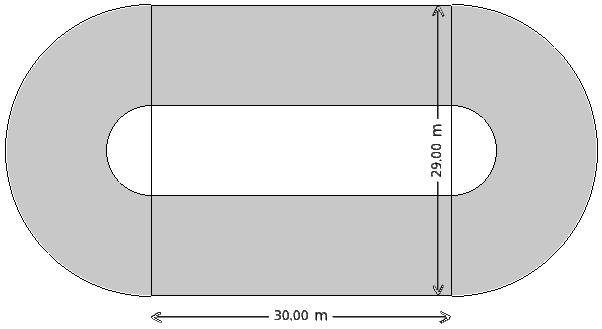

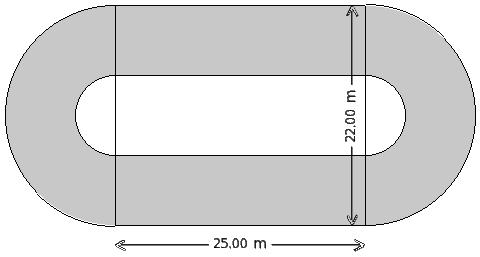

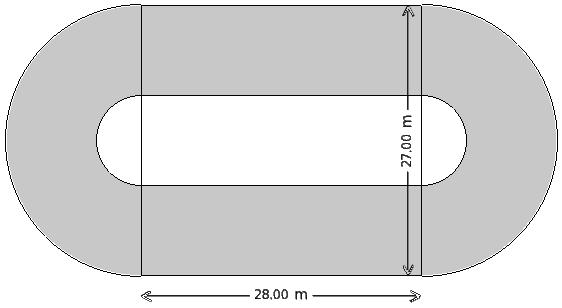

In the given figure, the width of the circular path is 9.00 m. Find the area of the shaded region
  • (i)
    999.14 sq.m
  • (ii)
    1219.14 sq.m
  • (iii)
    1129.14 sq.m
  • (iv)
    909.14 sq.m
  • (v)
    1049.14 sq.m
Question 23
23.

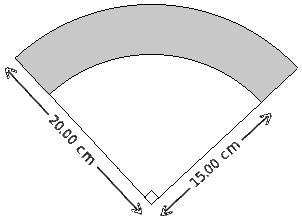

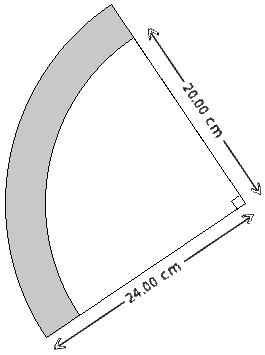

Find the area of the shaded region
  • (i)
    35.86 sq.cm
  • (ii)
    27.86 sq.cm
  • (iii)
    30.86 sq.cm
  • (iv)
    25.86 sq.cm
  • (v)
    33.86 sq.cm
Question 24
24.
Find the area of the shaded region
  • (i)
    63.93 sq.cm
  • (ii)
    58.93 sq.cm
  • (iii)
    61.93 sq.cm
  • (iv)
    55.93 sq.cm
  • (v)
    53.93 sq.cm
Question 25
25.

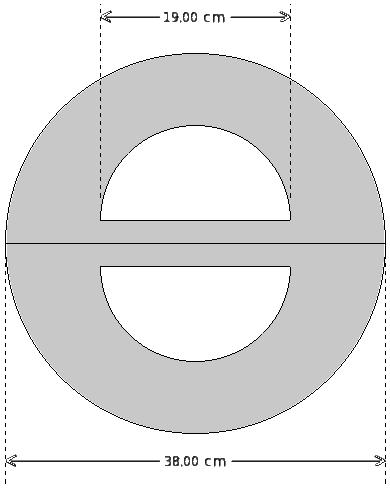

Find the area of the shaded region
  • (i)
    117.71 sq.cm
  • (ii)
    130.71 sq.cm
  • (iii)
    125.71 sq.cm
  • (iv)
    109.71 sq.cm
  • (v)
    153.71 sq.cm
Question 26
26.
In the given figure, BC = 9.00 cm. Find the area of the shaded region
  • (i)
    941.64 sq.cm
  • (ii)
    962.64 sq.cm
  • (iii)
    954.64 sq.cm
  • (iv)
    949.64 sq.cm
  • (v)
    970.64 sq.cm
Question 27
27.

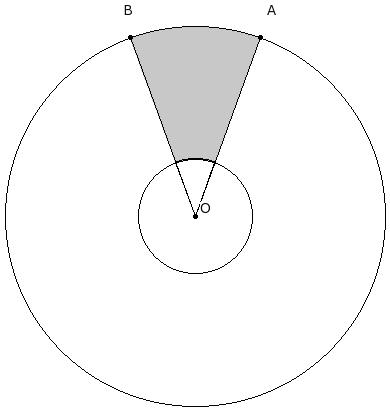

In the given figure, arcs of two concentric circles of radii 10.00 cm and 3.00 cm are drawn with center O. If ∠KOL = 80°, find the area of the shaded region
  • (i)
    66.56 sq.cm
  • (ii)
    68.56 sq.cm
  • (iii)
    60.56 sq.cm
  • (iv)
    58.56 sq.cm
  • (v)
    63.56 sq.cm
Question 28

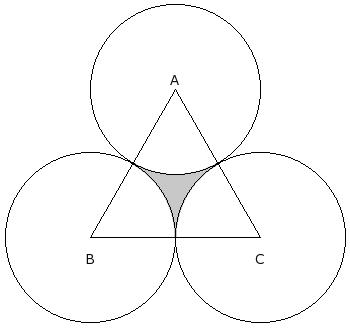

28.

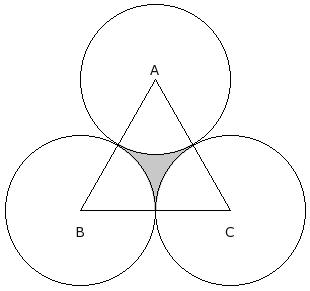

In the given figure △ABC is an equilateral triangle whose area is 173.21 sq.cm. With each vertex of the triangle as center, a circle is drawn with radius equal to half the length of the side of the triangle . Find the area of the shaded region
  • (i)
    21.06 sq.cm
  • (ii)
    11.06 sq.cm
  • (iii)
    19.06 sq.cm
  • (iv)
    16.06 sq.cm
  • (v)
    13.06 sq.cm
Question 29
29.
In the given figure, ABCD is a square with side 12.00 cm. Find the area of the shaded region
  • (i)
    85.29 sq.cm
  • (ii)
    79.29 sq.cm
  • (iii)
    77.29 sq.cm
  • (iv)
    87.29 sq.cm
  • (v)
    82.29 sq.cm
Question 30
30.
Find the area of the shaded region in the given figure common between the two quadrants of circles of radius 10.00 cm each
  • (i)
    62.14 sq.cm
  • (ii)
    54.14 sq.cm
  • (iii)
    52.14 sq.cm
  • (iv)
    57.14 sq.cm
  • (v)
    60.14 sq.cm
    Assignment Key

  •  1) (iii)
  •  2) (iii)
  •  3) (ii)
  •  4) (iii)
  •  5) (iii)
  •  6) (iii)
  •  7) (i)
  •  8) (v)
  •  9) (ii)
  •  10) (iv)
  •  11) (ii)
  •  12) (v)
  •  13) (ii)
  •  14) (ii)
  •  15) (i)
  •  16) (i)
  •  17) (ii)
  •  18) (i)
  •  19) (ii)
  •  20) (v)
  •  21) (v)
  •  22) (v)
  •  23) (iii)
  •  24) (ii)
  •  25) (iii)
  •  26) (iii)
  •  27) (v)
  •  28) (iv)
  •  29) (v)
  •  30) (iv)
