EduSahara™ Assignment
Name : Triangle Angle Properties
Chapter : Lines and Angles
Grade : SSC Grade IX
License : Non Commercial Use
Question 1
1.
In  △BCD, if ∠B = 57° and ∠C = 62°, find the measure of ∠D
  • (i)
    D
    =
    61°
  • (ii)
    D
    =
    62°
  • (iii)
    D
    =
    63°
  • (iv)
    D
    =
    60°
  • (v)
    D
    =
    59°
Question 2
2.
In  △IJK, if ∠I = 50° and ∠J = ∠K, find the measure of each of the equal angles of the triangle
  • (i)
    67°
  • (ii)
    63°
  • (iii)
    65°
  • (iv)
    64°
  • (v)
    66°
Question 3
3.
One angle of a triangle measures 60° and the other two angles are in the ratio 3 : 5. Find these angles.
  • (i)
    B
    =
    47°
    ,
    C
    =
    77°
  • (ii)
    B
    =
    44°
    ,
    C
    =
    74°
  • (iii)
    B
    =
    46°
    ,
    C
    =
    76°
  • (iv)
    B
    =
    43°
    ,
    C
    =
    73°
  • (v)
    B
    =
    45°
    ,
    C
    =
    75°
Question 4
4.
In a right-angled triangle, the two acute angles are in the ratio 1 : 2. Find these angles.
  • (i)
    A
    =
    28°
    ,
    C
    =
    58°
  • (ii)
    A
    =
    32°
    ,
    C
    =
    62°
  • (iii)
    A
    =
    30°
    ,
    C
    =
    60°
  • (iv)
    A
    =
    29°
    ,
    C
    =
    59°
  • (v)
    A
    =
    31°
    ,
    C
    =
    61°
Question 5
5.
One of the two equal angles of an isosceles triangle measures 48°. Find the measure of each angle of the triangle.
  • (i)
    A
    =
    48°
    ,
    B
    =
    48°
    ,
    C
    =
    84°
  • (ii)
    A
    =
    46°
    ,
    B
    =
    48°
    ,
    C
    =
    86°
  • (iii)
    A
    =
    48°
    ,
    B
    =
    46°
    ,
    C
    =
    86°
  • (iv)
    A
    =
    46°
    ,
    B
    =
    50°
    ,
    C
    =
    84°
  • (v)
    A
    =
    50°
    ,
    B
    =
    48°
    ,
    C
    =
    82°
Question 6
6.
Find the measure of each of the two equal angles of an isosceles right-angled triangle.
  • (i)
    44°
  • (ii)
    47°
  • (iii)
    43°
  • (iv)
    45°
  • (v)
    46°
Question 7
7.
If all the three angles of a triangle are of the same measure, find the measure of each of the angles.
  • (i)
    62°
  • (ii)
    59°
  • (iii)
    58°
  • (iv)
    61°
  • (v)
    60°
Question 8
8.
In a right-angled triangle if one of the acute angles is 59°, find the measure of the other acute angle.
  • (i)
    32°
  • (ii)
    30°
  • (iii)
    29°
  • (iv)
    31°
  • (v)
    33°
Question 9
9.
The vertical angle of an isosceles triangle is twice the sum of its base angles. Find each angle of the triangle.
  • (i)
    A
    =
    118°
    ,
    B
    =
    30°
    ,
    C
    =
    32°
  • (ii)
    A
    =
    120°
    ,
    B
    =
    28°
    ,
    C
    =
    32°
  • (iii)
    A
    =
    118°
    ,
    B
    =
    32°
    ,
    C
    =
    30°
  • (iv)
    A
    =
    122°
    ,
    B
    =
    30°
    ,
    C
    =
    28°
  • (v)
    A
    =
    120°
    ,
    B
    =
    30°
    ,
    C
    =
    30°
Question 10
10.
In an isosceles triangle, each base angle is four times its vertical angle. Find each angle of the triangle.
  • (i)
    A
    =
    18°
    ,
    B
    =
    80°
    ,
    C
    =
    82°
  • (ii)
    A
    =
    22°
    ,
    B
    =
    80°
    ,
    C
    =
    78°
  • (iii)
    A
    =
    20°
    ,
    B
    =
    80°
    ,
    C
    =
    80°
  • (iv)
    A
    =
    20°
    ,
    B
    =
    78°
    ,
    C
    =
    82°
  • (v)
    A
    =
    18°
    ,
    B
    =
    82°
    ,
    C
    =
    80°
Question 11
11.
The ratio between the base angle and the vertical angle of an isosceles triangle is 5 : 8. Find each angle of the triangle
  • (i)
    A
    =
    82°
    ,
    B
    =
    50°
    ,
    C
    =
    48°
  • (ii)
    A
    =
    80°
    ,
    B
    =
    48°
    ,
    C
    =
    52°
  • (iii)
    A
    =
    80°
    ,
    B
    =
    50°
    ,
    C
    =
    50°
  • (iv)
    A
    =
    78°
    ,
    B
    =
    52°
    ,
    C
    =
    50°
  • (v)
    A
    =
    78°
    ,
    B
    =
    50°
    ,
    C
    =
    52°
Question 12
12.

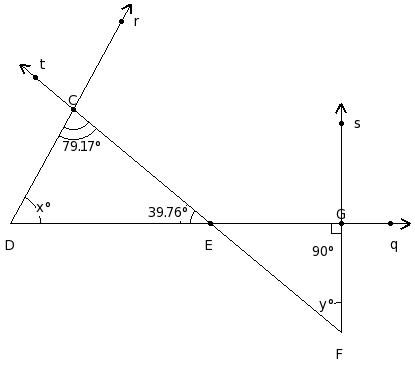

In the given figure, find the values of x and y.
  • (i)
    x
    =
    24.74°
    ,
    y
    =
    93.35°
  • (ii)
    x
    =
    23.74°
    ,
    y
    =
    92.35°
  • (iii)
    x
    =
    21.74°
    ,
    y
    =
    90.35°
  • (iv)
    x
    =
    25.74°
    ,
    y
    =
    94.35°
  • (v)
    x
    =
    22.74°
    ,
    y
    =
    91.35°
Question 13
13.
Each of the two equal angles of an isosceles triangle is half the third angle. Find the angles of the triangle
  • (i)
    X
    =
    45°
    ,
    Y
    =
    90°
    ,
    Z
    =
    45°
  • (ii)
    X
    =
    43°
    ,
    Y
    =
    90°
    ,
    Z
    =
    47°
  • (iii)
    X
    =
    45°
    ,
    Y
    =
    88°
    ,
    Z
    =
    47°
  • (iv)
    X
    =
    47°
    ,
    Y
    =
    90°
    ,
    Z
    =
    43°
  • (v)
    X
    =
    43°
    ,
    Y
    =
    92°
    ,
    Z
    =
    45°
Question 14
14.
    • In the given figure,
    • △CDE
    • is a triangle in which
    • ∠C
    • =
    • ∠D
    • =
    • ∠E
    • .
    • This bisectors of
    • ∠D
    • and
    • ∠E
    • intersect at
    • F
    • .
    • Find
    • ∠F
    • =
  • (i)
    122°
  • (ii)
    119°
  • (iii)
    120°
  • (iv)
    118°
  • (v)
    121°
Question 15
15.
    • In the given figure, △IJK is a triangle in which ∠J = 58.23° and ∠K = 54.1°.
    • If 'z' is the angle between the bisector of ∠J and ∠K, then find z.
  • (i)
    121.83°
  • (ii)
    125.83°
  • (iii)
    123.83°
  • (iv)
    124.83°
  • (v)
    122.83°
Question 16
16.
    • In the given figure, ∠K = 47.75° and ∠L = 68.25°.
    • Side LM is produced to N, so that ∠LMK  and ∠KMN form a linear pair.
    • If
    • ⟶
      MO
    • and
    • ⟶
      MP
    • are the bisectors of
    • ∠LMK
    • and
    • ∠KMN
    • , find x and y.
  • (i)
    x
    =
    32°
    ,
    y
    =
    58°
  • (ii)
    x
    =
    34°
    ,
    y
    =
    60°
  • (iii)
    x
    =
    31°
    ,
    y
    =
    57°
  • (iv)
    x
    =
    33°
    ,
    y
    =
    59°
  • (v)
    x
    =
    30°
    ,
    y
    =
    56°
Question 17
17.

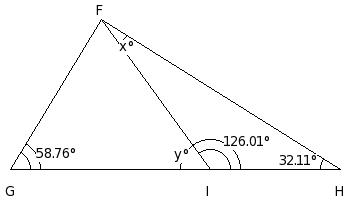

In the given figure, find the values of x and y
  • (i)
    x
    =
    50.69°
    ,
    y
    =
    47.14°
  • (ii)
    x
    =
    49.69°
    ,
    y
    =
    46.14°
  • (iii)
    x
    =
    48.69°
    ,
    y
    =
    45.14°
  • (iv)
    x
    =
    46.69°
    ,
    y
    =
    43.14°
  • (v)
    x
    =
    47.69°
    ,
    y
    =
    44.14°
Question 18
18.
In the given figure, △CDE in which ∠D = 55.39° and ∠E = 50.99°. CF and DE bisects each other. Find the value of z
  • (i)
    z
    =
    75.62°
  • (ii)
    z
    =
    72.62°
  • (iii)
    z
    =
    71.62°
  • (iv)
    z
    =
    74.62°
  • (v)
    z
    =
    73.62°
Question 19
19.
In the given figure, MN ∥ OP, ∠FCN = 65° and CD = EC. Find the measure of x.
  • (i)
    x
    =
    51°
  • (ii)
    x
    =
    49°
  • (iii)
    x
    =
    48°
  • (iv)
    x
    =
    52°
  • (v)
    x
    =
    50°
Question 20
20.
In the given figure, find the value of x.
  • (i)
    x
    =
    132°
  • (ii)
    x
    =
    134°
  • (iii)
    x
    =
    136°
  • (iv)
    x
    =
    135°
  • (v)
    x
    =
    133°
Question 21
21.
In the given figure, HI ∥ JK and HJ = JL. Find the values of x,y and z.
  • (i)
    x
    =
    30°
    ,
    y
    =
    58°
    ,
    z
    =
    62°
  • (ii)
    x
    =
    28°
    ,
    y
    =
    62°
    ,
    z
    =
    60°
  • (iii)
    x
    =
    32°
    ,
    y
    =
    60°
    ,
    z
    =
    58°
  • (iv)
    x
    =
    30°
    ,
    y
    =
    60°
    ,
    z
    =
    60°
  • (v)
    x
    =
    28°
    ,
    y
    =
    60°
    ,
    z
    =
    62°
Question 22
22.

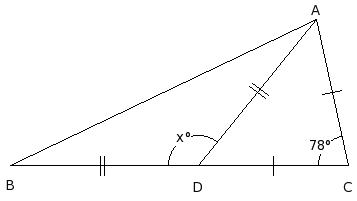

In the given figure, if CA = AD = BD. Find the value of x.
  • (i)
    x
    =
    79°
  • (ii)
    x
    =
    78°
  • (iii)
    x
    =
    80°
  • (iv)
    x
    =
    77°
  • (v)
    x
    =
    76°
Question 23
23.
In the given figure, if FD = FG = GE, find the value of x
  • (i)
    x
    =
    42°
  • (ii)
    x
    =
    39°
  • (iii)
    x
    =
    40°
  • (iv)
    x
    =
    41°
  • (v)
    x
    =
    38°
Question 24
24.
In the given figure, if FC = DF and CG = GE , find the value of x.
  • (i)
    x
    =
    61.06°
  • (ii)
    x
    =
    59.06°
  • (iii)
    x
    =
    60.06°
  • (iv)
    x
    =
    57.06°
  • (v)
    x
    =
    58.06°
Question 25
25.
In the given figure, if IL = MI, find the values of x , y , z and t
  • (i)
    x =65.32°, y =28.89°, z =27.58° , t =122.66°
  • (ii)
    x =65.32°, y =24.89°, z =23.58° , t =122.66°
  • (iii)
    x =65.32°, y =26.89°, z =24.58° , t =121.66°
  • (iv)
    x =65.32°, y =26.89°, z =25.58° , t =122.66°
  • (v)
    x =65.32°, y =26.89°, z =26.58° , t =123.66°
Question 26
26.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    23°
  • (ii)
    x
    =
    21°
  • (iii)
    x
    =
    22°
  • (iv)
    x
    =
    20°
  • (v)
    x
    =
    19°
Question 27
27.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    73.25°
  • (ii)
    x
    =
    74.25°
  • (iii)
    x
    =
    72.25°
  • (iv)
    x
    =
    71.25°
  • (v)
    x
    =
    75.25°
Question 28
28.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    68.86°
  • (ii)
    x
    =
    65.86°
  • (iii)
    x
    =
    66.86°
  • (iv)
    x
    =
    69.86°
  • (v)
    x
    =
    67.86°
Question 29
29.
Find the unknown marked angles in the following figure
  • (i)
    x
    =
    112°
    ,
    y
    =
    45°
  • (ii)
    x
    =
    114°
    ,
    y
    =
    47°
  • (iii)
    x
    =
    111°
    ,
    y
    =
    44°
  • (iv)
    x
    =
    115°
    ,
    y
    =
    48°
  • (v)
    x
    =
    113°
    ,
    y
    =
    46°
Question 30
30.

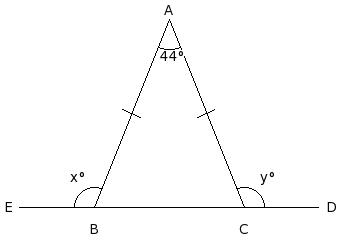

Find the unknown marked angles in the following figure
  • (i)
    x
    =
    111°
    ,
    y
    =
    111°
  • (ii)
    x
    =
    108°
    ,
    y
    =
    108°
  • (iii)
    x
    =
    109°
    ,
    y
    =
    109°
  • (iv)
    x
    =
    110°
    ,
    y
    =
    110°
  • (v)
    x
    =
    112°
    ,
    y
    =
    112°
Question 31
31.

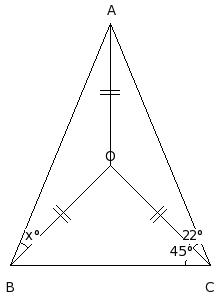

In the given figure, calculate the value of x.
  • (i)
    x
    =
    145°
  • (ii)
    x
    =
    143°
  • (iii)
    x
    =
    144°
  • (iv)
    x
    =
    142°
  • (v)
    x
    =
    146°
Question 32
32.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    24.5°
  • (ii)
    x
    =
    23.5°
  • (iii)
    x
    =
    22.5°
  • (iv)
    x
    =
    21.5°
  • (v)
    x
    =
    20.5°
Question 33
33.
Find the unknown marked angles in the following figure
  • (i)
    x
    =
    115°
    ,
    y
    =
    148°
  • (ii)
    x
    =
    112°
    ,
    y
    =
    145°
  • (iii)
    x
    =
    116°
    ,
    y
    =
    149°
  • (iv)
    x
    =
    114°
    ,
    y
    =
    147°
  • (v)
    x
    =
    113°
    ,
    y
    =
    146°
Question 34
34.
In the following figure AB ∥ DC, find the values of x and y.
  • (i)
    x
    =
    19°
    ,
    y
    =
    139°
  • (ii)
    x
    =
    22°
    ,
    y
    =
    142°
  • (iii)
    x
    =
    20°
    ,
    y
    =
    140°
  • (iv)
    x
    =
    18°
    ,
    y
    =
    138°
  • (v)
    x
    =
    21°
    ,
    y
    =
    141°
Question 35
35.
Find the unknown marked angles in the following figure
  • (i)
    x
    =
    91°
    ,
    y
    =
    116°
  • (ii)
    x
    =
    93°
    ,
    y
    =
    118°
  • (iii)
    x
    =
    92°
    ,
    y
    =
    117°
  • (iv)
    x
    =
    94°
    ,
    y
    =
    119°
  • (v)
    x
    =
    95°
    ,
    y
    =
    120°
Question 36
36.
In the given figure, it is given that DC ∥ FE , ∠DFE = 83° and ∠DCB = 70°. Find the value of x.
  • (i)
    x
    =
    28°
  • (ii)
    x
    =
    27°
  • (iii)
    x
    =
    25°
  • (iv)
    x
    =
    29°
  • (v)
    x
    =
    26°
Question 37
37.

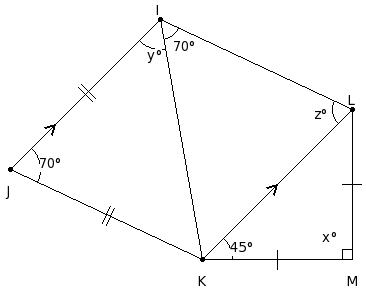

In the given figure, find the values of x ,y and z.
  • (i)
    x
    =
    37°
    ,
    y
    =
    35°
    ,
    z
    =
    68°
  • (ii)
    x
    =
    35°
    ,
    y
    =
    35°
    ,
    z
    =
    70°
  • (iii)
    x
    =
    33°
    ,
    y
    =
    37°
    ,
    z
    =
    70°
  • (iv)
    x
    =
    35°
    ,
    y
    =
    33°
    ,
    z
    =
    72°
  • (v)
    x
    =
    33°
    ,
    y
    =
    35°
    ,
    z
    =
    72°
Question 38
38.
Find the value of x in the given figure.
  • (i)
    x
    =
    23°
  • (ii)
    x
    =
    26°
  • (iii)
    x
    =
    27°
  • (iv)
    x
    =
    24°
  • (v)
    x
    =
    25°
Question 39
39.

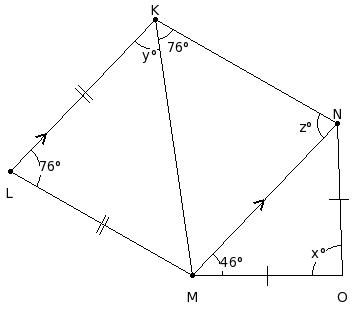

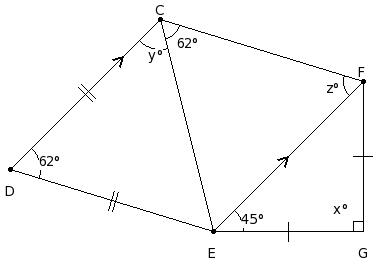

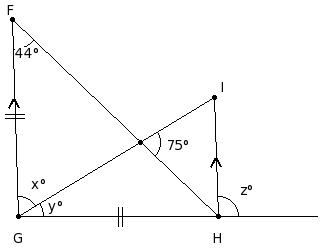

In the given figure, find the values of x ,y and z.
  • (i)
    x
    =
    84°
    ,
    y
    =
    52°
    ,
    z
    =
    76°
  • (ii)
    x
    =
    86°
    ,
    y
    =
    52°
    ,
    z
    =
    74°
  • (iii)
    x
    =
    82°
    ,
    y
    =
    54°
    ,
    z
    =
    76°
  • (iv)
    x
    =
    84°
    ,
    y
    =
    50°
    ,
    z
    =
    78°
  • (v)
    x
    =
    82°
    ,
    y
    =
    52°
    ,
    z
    =
    78°
    Assignment Key

  •  1) (i)
  •  2) (iii)
  •  3) (v)
  •  4) (iii)
  •  5) (i)
  •  6) (iv)
  •  7) (v)
  •  8) (iv)
  •  9) (v)
  •  10) (iii)
  •  11) (iii)
  •  12) (ii)
  •  13) (i)
  •  14) (iii)
  •  15) (iii)
  •  16) (i)
  •  17) (iii)
  •  18) (v)
  •  19) (v)
  •  20) (ii)
  •  21) (iv)
  •  22) (ii)
  •  23) (iii)
  •  24) (ii)
  •  25) (iv)
  •  26) (ii)
  •  27) (i)
  •  28) (v)
  •  29) (v)
  •  30) (iv)
  •  31) (iii)
  •  32) (iii)
  •  33) (iv)
  •  34) (iii)
  •  35) (ii)
  •  36) (ii)
  •  37) (ii)
  •  38) (v)
  •  39) (i)
