EduSahara™ Assignment
Name : Chord Properties of a Circle
Chapter : Circles
Grade : SSC Grade IX
License : Non Commercial Use
Question
1
1.
A chord that passes through the centre of the circle is called
(i)
chord
(ii)
major segment
(iii)
diameter
(iv)
segment
(v)
radius
Question
2
2.
A chord of a circle divides the whole circular region into two parts, each called a
(i)
semi-circle
(ii)
diameter
(iii)
segment
(iv)
major segment
(v)
centre
Question
3
3.
The segment of the circle containing the centre of the circle is called
(i)
major segment
(ii)
centre
(iii)
segment
(iv)
circumference
(v)
radius
Question
4
4.
Which of the following statements are true?
a)
Each radius of a circle is also a chord of the circle.
b)
Every circle has a unique centre.
c)
A circle consists of an infinite number of points.
d)
Every circle has a unique diameter.
e)
A line can meet a circle atmost at two points.
(i)
{b,c,e}
(ii)
{a,b}
(iii)
{a,b,c}
(iv)
{d,c}
(v)
{a,d,e}
Question
5
5.
Which of the following statements are true?
a)
Two semi-circles of a circle together make the whole circle.
b)
One and only one tangent can be drawn to a circle from a point outside it.
c)
An infinite number of diameters may be drawn for a circle.
d)
Every circle has a unique diameter.
e)
An infinite number of chords may be drawn for a circle.
(i)
{b,a,c}
(ii)
{b,d,e}
(iii)
{d,c}
(iv)
{b,a}
(v)
{a,c,e}
Question
6
6.
In the given triangle S is the circumcentre. If SD = 12.50 cm, find the circumference of the circumcircle
(i)
80.6 cm
(ii)
79.6 cm
(iii)
78.6 cm
(iv)
77.6 cm
(v)
76.6 cm
Question
7

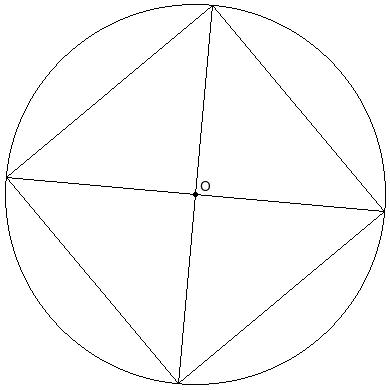

7.

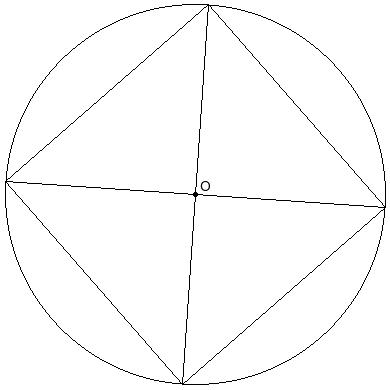

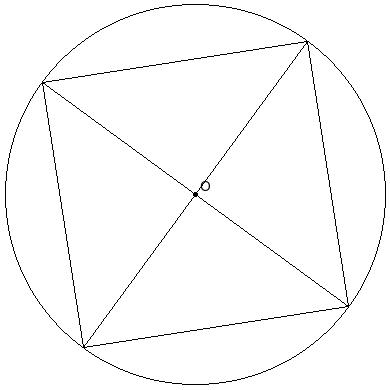

Find the side of the square in the following figure if the radius of the circle is 13.00 cm.
(i)
19.38 cm
(ii)
18.38 cm
(iii)
20.38 cm
(iv)
17.38 cm
(v)
16.38 cm
Question
8
8.
If a chord GH = 11 cm is drawn in a circle with radius OG = 10 cm, find its distance from the centre of the circle
(i)
9.35 cm
(ii)
8.35 cm
(iii)
7.35 cm
(iv)
6.35 cm
(v)
10.35 cm
Question
9

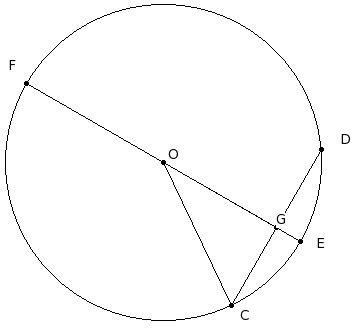

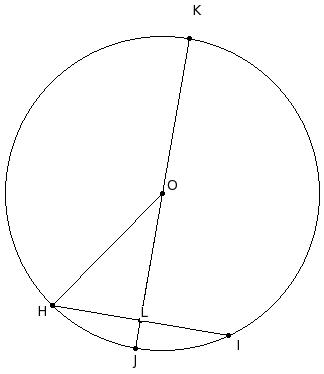

9.

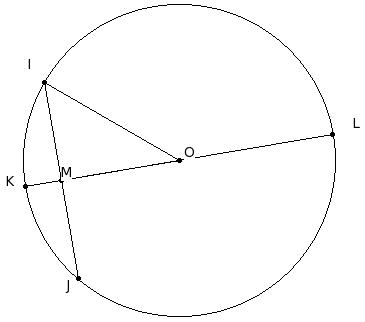

The diameter DE of a circle with centre 'O' is perpendicular to the chord BC. If BC = 18.00 cm and DF = 2.81 cm, find the radius of the circle.
(i)
15.81 cm
(ii)
17.81 cm
(iii)
13.81 cm
(iv)
16.81 cm
(v)
14.81 cm
Question
10

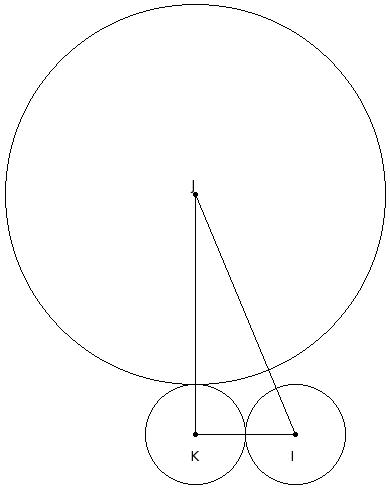

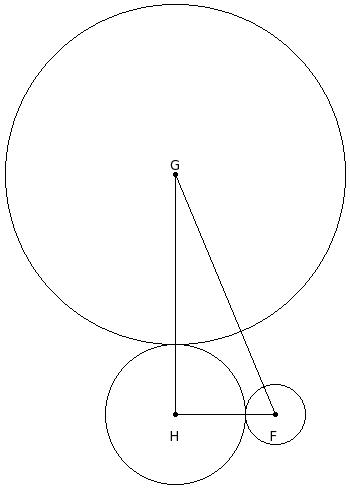

10.

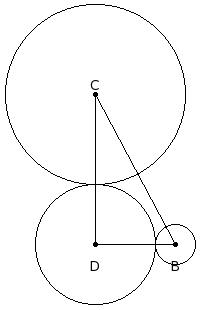

'D' and 'E' are centres of circles of radii 5 cm and 19 cm such that DE = 26 cm and 'F' is the centre of the circle of radius 'r' cm which touches the above circles externally. If ∠DFE = 90°, find 'r'
(i)
6 cm
(ii)
3 cm
(iii)
7 cm
(iv)
4 cm
(v)
5 cm
Question
11
11.
Which of the following statements are true?
a)
The radius is the shortest chord.
b)
Atmost one chord can be drawn on a circle with a certain length.
c)
A chord divides a circle into two sectors.
d)
A chord divides a circle into two segments.
e)
The diameter is the longest chord.
(i)
{d,e}
(ii)
{b,e,d}
(iii)
{c,a,d}
(iv)
{a,d}
(v)
{b,e}
Question
12
12.
Which of the following statements are true?
a)
Equal length chords are equidistant from the centre of the circle.
b)
The longest chord of the circle passes through the centre of the circle.
c)
Equal length chords subtend equal angles at the centre of the circle.
d)
The farther the chord is from the centre, the larger the angle it subtends at the centre.
e)
No two chords bisects each other.
(i)
{d,e,c}
(ii)
{a,b,c}
(iii)
{d,a,b}
(iv)
{e,b}
(v)
{d,a}
Question
13
13.
Which of the following statements are true?
a)
A circle divides the plane on which it lies into three parts.
b)
The diameter divides the circle into two unequal parts.
c)
A sector is the area enclosed by two radii and a chord.
d)
The area enclosed by a chord and its minor arc is called minor segment.
e)
The area enclosed by a chord and its major arc is called major segment.
(i)
{a,d,e}
(ii)
{b,a,d}
(iii)
{b,a}
(iv)
{c,d}
(v)
{b,c,e}
Question
14
14.
Which of the following statements are true?
a)
The diameter divides the circle into two unequal parts.
b)
A sector is the area enclosed by two radii and a chord.
c)
The longest of all chords of a circle is called diameter.
d)
Two chords bisect each other.
e)
The midpoint of any diameter of a circle is its centre.
(i)
{b,e,c}
(ii)
{b,e}
(iii)
{d,a,c}
(iv)
{c,e}
(v)
{a,c}
Question
15
15.
Which of the following statements are true?
a)
A secant and a chord are same.
b)
A diameter is a limiting case of a chord.
c)
A tangent is the limiting case of a secant.
d)
A radius is a limiting case of a diameter.
e)
A secant has two end points.
(i)
{e,a,b}
(ii)
{b,c}
(iii)
{d,c,b}
(iv)
{d,c}
(v)
{a,b}
Question
16
16.
GH , IJ , KL , MN are chords of a circle with GH = 6 cm , IJ = 4 cm , KL = 5.9 cm and MN = 6.05 cm. The chord farthest from the centre of the circle is
(i)
GH = 6 cm
(ii)
IJ = 4 cm
(iii)
MN = 6.05 cm
(iv)
KL = 5.9 cm
Question
17

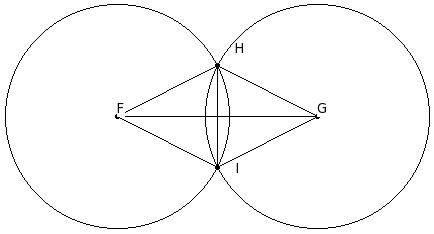

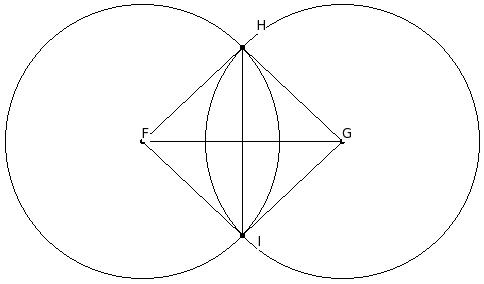

17.

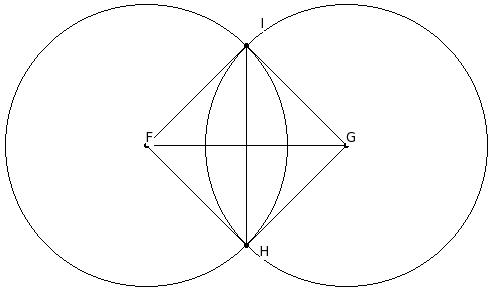

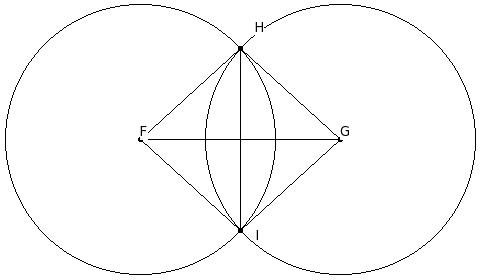

In the given figure, F and G are centres of two circles with equal radii intersecting at H and I. If FG = 20 cm and HI = 18 cm, find the radii of the circles
(i)
11.45 cm
(ii)
12.45 cm
(iii)
14.45 cm
(iv)
15.45 cm
(v)
13.45 cm
Question
18
18.

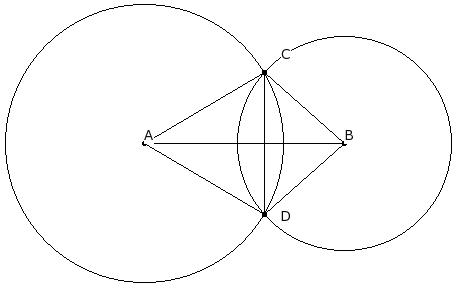

In the given figure, two circles of radii AC = 18 cm & BC = 11.1 cm intersect at C & D. The distance between the centres AB = 20 cm, find the length of CD
(i)
17.84 cm
(ii)
20.84 cm
(iii)
21.84 cm
(iv)
18.84 cm
(v)
19.84 cm
Question
19
19.
In the given figure, O is the centre of the circle. H is a point on chord FG such that FH = HG. Find ∠OHF
(i)
105°
(ii)
95°
(iii)
90°
(iv)
120°
(v)
100°
Question
20
20.
AB is a line segment and D is its mid-point. Three semi-circles are drawn with AD , DB and AB as diameters. C , E and D respectively are the centres of these semi-circles. A new circle is drawn touching these three semi-circles. Find its radius, given AC = 5 cm
(i)
3.33 cm
(ii)
1.33 cm
(iii)
4.33 cm
(iv)
5.33 cm
(v)
2.33 cm
Question
21

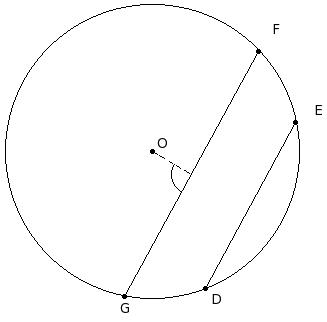

21.
In the given figure, DE ∥ FG. Length of chords DE = 16 cm and FG = 22 cm.
If the distance between the chords is
4 cm
,
find the radius of the circle
(i)
12.14 cm
(ii)
14.14 cm
(iii)
11.14 cm
(iv)
10.14 cm
(v)
13.14 cm
Question
22

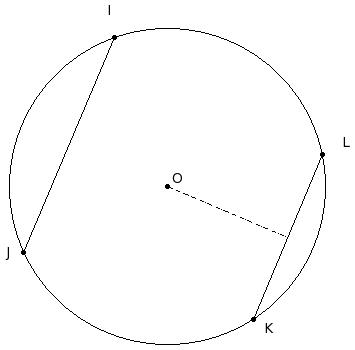

22.
In the given figure, IJ ∥ KL. Length of chords IJ = 18 cm and KL = 25 cm.
If the distance between the chords is
15 cm
,
find the radius of the circle
(i)
13.46 cm
(ii)
11.46 cm
(iii)
15.46 cm
(iv)
14.46 cm
(v)
12.46 cm
Question
23
23.
In the given figure, △GHI is inscribed in a circle. If GH = GI = 17 cm and HI = 20 cm, find the radius of the circle
(i)
12.51 cm
(ii)
10.51 cm
(iii)
11.51 cm
(iv)
8.51 cm
(v)
9.51 cm
Question
24
24.
In the given figure, △DEF is an isosceles such that DE = DF. Given DO = 11 cm, DE = DF = 19 cm, find EF
(i)
20.16 cm
(ii)
17.16 cm
(iii)
19.16 cm
(iv)
18.16 cm
(v)
21.16 cm
Question
25

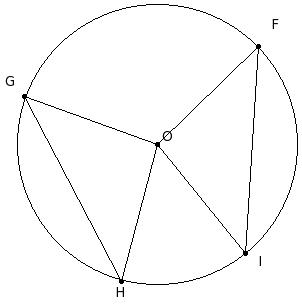

25.

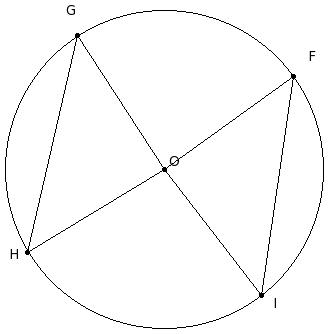

In the given figure, FI & GH are two chords of equal length. Given ∠IFO = 41.5°, find ∠HOG
(i)
107°
(ii)
102°
(iii)
112°
(iv)
127°
(v)
97°
Question
26
26.
In the given figure, △DEF is equilateral. Given DO = 12 cm, find DE
(i)
19.78 cm
(ii)
21.78 cm
(iii)
20.78 cm
(iv)
22.78 cm
(v)
18.78 cm
Question
27
27.
Two concentric circles are of radii 24 cm and 13 cm. Find the length of the chord of the outer circle that touches the inner circle
(i)
38.35 cm
(ii)
42.35 cm
(iii)
41.35 cm
(iv)
39.35 cm
(v)
40.35 cm
Assignment Key
1) (iii)
2) (iii)
3) (i)
4) (i)
5) (v)
6) (iii)
7) (ii)
8) (ii)
9) (i)
10) (v)
11) (i)
12) (ii)
13) (i)
14) (iv)
15) (ii)
16) (ii)
17) (v)
18) (v)
19) (iii)
20) (i)
21) (i)
22) (i)
23) (ii)
24) (iii)
25) (v)
26) (iii)
27) (v)
