EduSahara™ Assignment
Name : Triangle Angle Properties
Chapter : Lines and Angles
Grade : CBSE Grade IX
License : Non Commercial Use
Question 1
1.
Sum of the interior angles in a triangle is
  • (i)
    180°
  • (ii)
    190°
  • (iii)
    210°
  • (iv)
    185°
  • (v)
    195°
Question 2
2.
Two angles of a triangle measure 63° and 64° respectively. Find the measure of the third angle of the triangle
  • (i)
    54°
  • (ii)
    52°
  • (iii)
    51°
  • (iv)
    55°
  • (v)
    53°
Question 3
3.
The angles of a triangle ABC are in the ratio 11 : 15 : 19. Find the measure of each angle of the triangle
  • (i)
    A
    =
    44°
    ,
    B
    =
    58°
    ,
    C
    =
    78°
  • (ii)
    A
    =
    44°
    ,
    B
    =
    60°
    ,
    C
    =
    76°
  • (iii)
    A
    =
    42°
    ,
    B
    =
    62°
    ,
    C
    =
    76°
  • (iv)
    A
    =
    46°
    ,
    B
    =
    60°
    ,
    C
    =
    74°
  • (v)
    A
    =
    42°
    ,
    B
    =
    60°
    ,
    C
    =
    78°
Question 4
4.

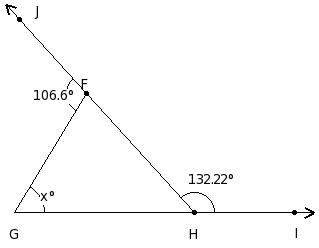

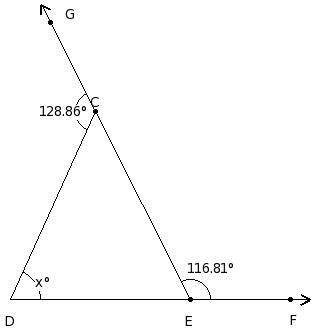

Find the unknown angle from the following figure
  • (i)
    x
    =
    53.73°
  • (ii)
    x
    =
    51.73°
  • (iii)
    x
    =
    50.73°
  • (iv)
    x
    =
    49.73°
  • (v)
    x
    =
    52.73°
Question 5

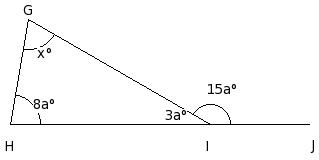

5.

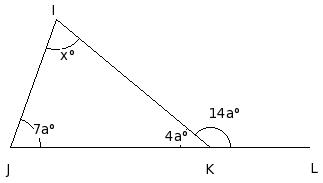

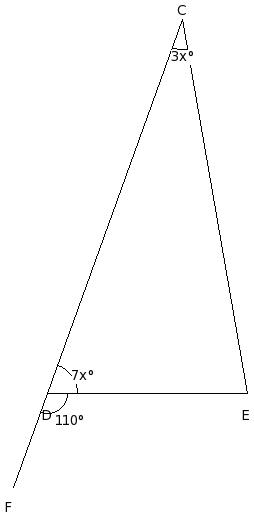

In the given figure, △CDE in which side DE has been produced to F. If ∠ECD = x° , ∠CDE = (1/3a)° , ∠DEC = (2/3a)° and ∠CEF = (5/6a)°, find the values of a and x.
  • (i)
    a
    =
    121°
    ,
    x
    =
    61°
  • (ii)
    a
    =
    118°
    ,
    x
    =
    58°
  • (iii)
    a
    =
    122°
    ,
    x
    =
    62°
  • (iv)
    a
    =
    120°
    ,
    x
    =
    60°
  • (v)
    a
    =
    119°
    ,
    x
    =
    59°
Question 6
6.

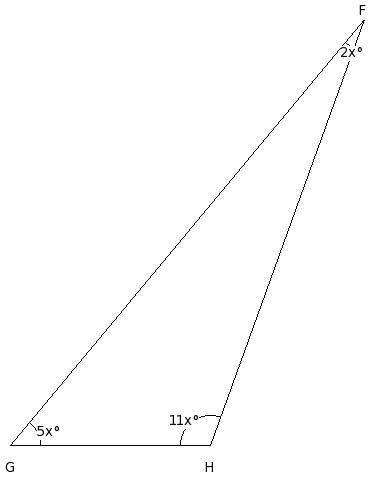

Find the angles of the triangle
  • (i)
    C
    =
    32°
    ,
    D
    =
    25°
    ,
    E
    =
    123°
  • (ii)
    C
    =
    28°
    ,
    D
    =
    25°
    ,
    E
    =
    127°
  • (iii)
    C
    =
    28°
    ,
    D
    =
    27°
    ,
    E
    =
    125°
  • (iv)
    C
    =
    30°
    ,
    D
    =
    25°
    ,
    E
    =
    125°
  • (v)
    C
    =
    30°
    ,
    D
    =
    23°
    ,
    E
    =
    127°
Question 7
7.

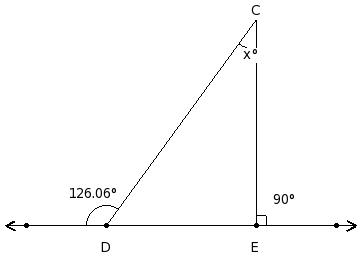

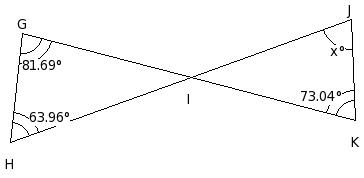

Calculate the value of x in the following figure
  • (i)
    x
    =
    67.41°
  • (ii)
    x
    =
    68.41°
  • (iii)
    x
    =
    66.41°
  • (iv)
    x
    =
    64.41°
  • (v)
    x
    =
    65.41°
Question 8
8.

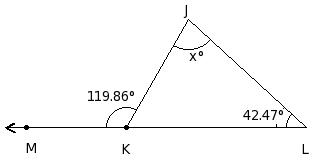

Find the unknown marked angle in the following figure
  • (i)
    x
    =
    42.27°
  • (ii)
    x
    =
    40.27°
  • (iii)
    x
    =
    44.27°
  • (iv)
    x
    =
    43.27°
  • (v)
    x
    =
    41.27°
Question 9
9.
    • Find the unknown angles in the following figure
  • (i)
    J
    =
    45°
    ,
    K
    =
    45°
  • (ii)
    J
    =
    46°
    ,
    K
    =
    46°
  • (iii)
    J
    =
    44°
    ,
    K
    =
    44°
  • (iv)
    J
    =
    42°
    ,
    K
    =
    42°
  • (v)
    J
    =
    43°
    ,
    K
    =
    43°
Question 10
10.
In the following figure, one side of a triangle has been produced. Find all the angles of the triangle
  • (i)
    G
    =
    45°
    ,
    H
    =
    54°
    ,
    I
    =
    81°
  • (ii)
    G
    =
    47°
    ,
    H
    =
    54°
    ,
    I
    =
    79°
  • (iii)
    G
    =
    43°
    ,
    H
    =
    54°
    ,
    I
    =
    83°
  • (iv)
    G
    =
    43°
    ,
    H
    =
    56°
    ,
    I
    =
    81°
  • (v)
    G
    =
    45°
    ,
    H
    =
    52°
    ,
    I
    =
    83°
Question 11
11.
In the following figure, one side of a triangle has been produced. Find all the angles of the triangle.
  • (i)
    F
    =
    43°
    ,
    G
    =
    56°
    ,
    H
    =
    81°
  • (ii)
    F
    =
    47°
    ,
    G
    =
    54°
    ,
    H
    =
    79°
  • (iii)
    F
    =
    45°
    ,
    G
    =
    52°
    ,
    H
    =
    83°
  • (iv)
    F
    =
    45°
    ,
    G
    =
    54°
    ,
    H
    =
    81°
  • (v)
    F
    =
    43°
    ,
    G
    =
    54°
    ,
    H
    =
    83°
Question 12

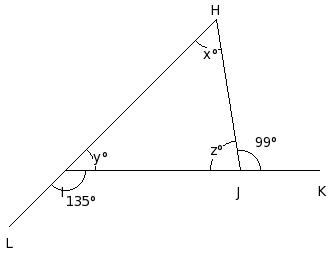

12.

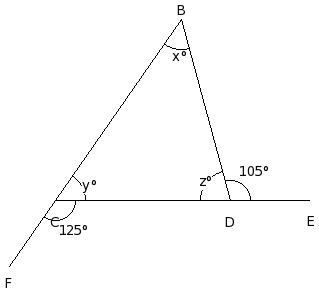

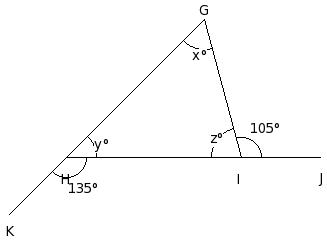

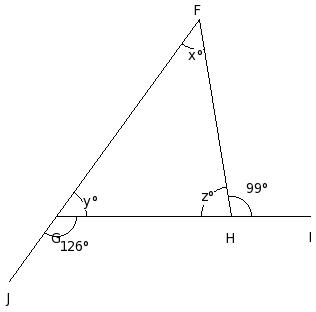

In the following figure, two sides of a triangle have been produced. Find all the angles of the triangle.
  • (i)
    x
    =
    62°
    ,
    y
    =
    45°
    ,
    z
    =
    73°
  • (ii)
    x
    =
    60°
    ,
    y
    =
    45°
    ,
    z
    =
    75°
  • (iii)
    x
    =
    60°
    ,
    y
    =
    43°
    ,
    z
    =
    77°
  • (iv)
    x
    =
    58°
    ,
    y
    =
    45°
    ,
    z
    =
    77°
  • (v)
    x
    =
    58°
    ,
    y
    =
    47°
    ,
    z
    =
    75°
Question 13

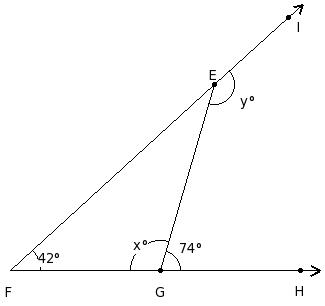

13.
In the following figure, one side of a triangle has been produced. Find the values of x and y.
  • (i)
    x
    =
    62°
    ,
    y
    =
    77°
  • (ii)
    x
    =
    59°
    ,
    y
    =
    74°
  • (iii)
    x
    =
    58°
    ,
    y
    =
    73°
  • (iv)
    x
    =
    60°
    ,
    y
    =
    75°
  • (v)
    x
    =
    61°
    ,
    y
    =
    76°
Question 14
14.

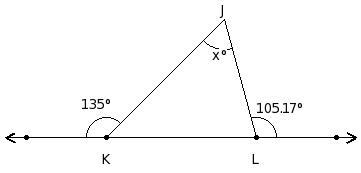

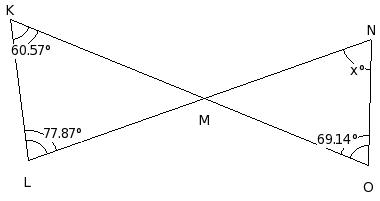

Calculate the value of the lettered angle in the following figure
  • (i)
    x
    =
    62.17°
  • (ii)
    x
    =
    60.17°
  • (iii)
    x
    =
    61.17°
  • (iv)
    x
    =
    58.17°
  • (v)
    x
    =
    59.17°
Question 15
15.
Calculate the value of the lettered angle in the following figure
  • (i)
    x
    =
    45°
  • (ii)
    x
    =
    44°
  • (iii)
    x
    =
    47°
  • (iv)
    x
    =
    46°
  • (v)
    x
    =
    43°
Question 16
16.
In  △IJK, if ∠I = 53° and ∠J = 66°, find the measure of ∠K
  • (i)
    K
    =
    63°
  • (ii)
    K
    =
    59°
  • (iii)
    K
    =
    60°
  • (iv)
    K
    =
    61°
  • (v)
    K
    =
    62°
Question 17
17.
In  △FGH, if ∠F = 30° and ∠G = ∠H, find the measure of each of the equal angles of the triangle
  • (i)
    76°
  • (ii)
    77°
  • (iii)
    73°
  • (iv)
    74°
  • (v)
    75°
Question 18
18.
One angle of a triangle measures 54° and the other two angles are in the ratio 5 : 9. Find these angles.
  • (i)
    B
    =
    43°
    ,
    C
    =
    79°
  • (ii)
    B
    =
    44°
    ,
    C
    =
    80°
  • (iii)
    B
    =
    46°
    ,
    C
    =
    82°
  • (iv)
    B
    =
    45°
    ,
    C
    =
    81°
  • (v)
    B
    =
    47°
    ,
    C
    =
    83°
Question 19
19.
In a right-angled triangle, the two acute angles are in the ratio 2 : 7. Find these angles.
  • (i)
    A
    =
    20°
    ,
    C
    =
    70°
  • (ii)
    A
    =
    18°
    ,
    C
    =
    68°
  • (iii)
    A
    =
    22°
    ,
    C
    =
    72°
  • (iv)
    A
    =
    21°
    ,
    C
    =
    71°
  • (v)
    A
    =
    19°
    ,
    C
    =
    69°
Question 20
20.
One of the two equal angles of an isosceles triangle measures 60°. Find the measure of each angle of the triangle.
  • (i)
    A
    =
    62°
    ,
    B
    =
    60°
    ,
    C
    =
    58°
  • (ii)
    A
    =
    60°
    ,
    B
    =
    60°
    ,
    C
    =
    60°
  • (iii)
    A
    =
    60°
    ,
    B
    =
    58°
    ,
    C
    =
    62°
  • (iv)
    A
    =
    58°
    ,
    B
    =
    60°
    ,
    C
    =
    62°
  • (v)
    A
    =
    58°
    ,
    B
    =
    62°
    ,
    C
    =
    60°
Question 21
21.
If all the three angles of a triangle are of the same measure, find the measure of each of the angles.
  • (i)
    59°
  • (ii)
    62°
  • (iii)
    61°
  • (iv)
    58°
  • (v)
    60°
Question 22
22.
In a right-angled triangle if one of the acute angles is 34°, find the measure of the other acute angle.
  • (i)
    54°
  • (ii)
    57°
  • (iii)
    56°
  • (iv)
    55°
  • (v)
    58°
Question 23
23.
In the given figure, find ∠LMK
  • (i)
    60°
  • (ii)
    62°
  • (iii)
    59°
  • (iv)
    61°
  • (v)
    58°
Question 24
24.
In the given figure, find ∠LJK
  • (i)
    121°
  • (ii)
    119°
  • (iii)
    118°
  • (iv)
    117°
  • (v)
    120°
Question 25
25.
In the given figure, find ∠IJH
  • (i)
    49°
  • (ii)
    51°
  • (iii)
    47°
  • (iv)
    50°
  • (v)
    48°
Question 26
26.

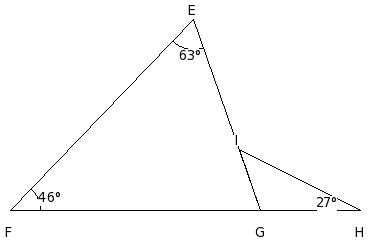

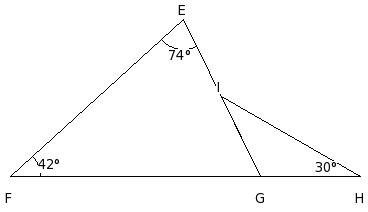

In the given figure, find ∠EIH
  • (i)
    141°
  • (ii)
    140°
  • (iii)
    138°
  • (iv)
    137°
  • (v)
    139°
Question 27
27.
In the given figure , if FC ⟂ DE and ∠CDF = 58.83°, find ∠FCD
  • (i)
    33.17°
  • (ii)
    30.17°
  • (iii)
    29.17°
  • (iv)
    32.17°
  • (v)
    31.17°
Question 28
28.
In the given figure , if DA ⟂ BC and ∠ABD = 50.96°, find ∠CAD
  • (i)
    25.94°
  • (ii)
    24.94°
  • (iii)
    23.94°
  • (iv)
    27.94°
  • (v)
    26.94°
Question 29
29.
In the given figure , if EB ⟂ CD and ∠BCE = 43.63°, find ∠EDB
  • (i)
    57.82°
  • (ii)
    59.82°
  • (iii)
    56.82°
  • (iv)
    58.82°
  • (v)
    55.82°
Question 30
30.
In below given figure, find ∠JML
  • (i)
    129.96°
  • (ii)
    126.96°
  • (iii)
    127.96°
  • (iv)
    130.96°
  • (v)
    128.96°
Question 31
31.
In below given figure, find ∠IFG
  • (i)
    71.22°
  • (ii)
    69.22°
  • (iii)
    68.22°
  • (iv)
    72.22°
  • (v)
    70.22°
Question 32
32.
In below given figure, find ∠FDH
  • (i)
    113.59°
  • (ii)
    116.59°
  • (iii)
    115.59°
  • (iv)
    117.59°
  • (v)
    114.59°
Question 33
33.

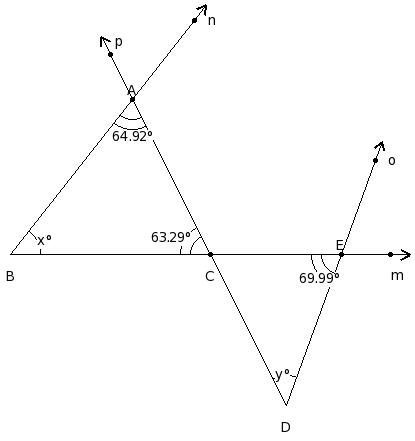

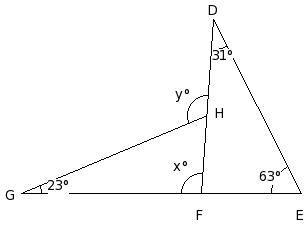

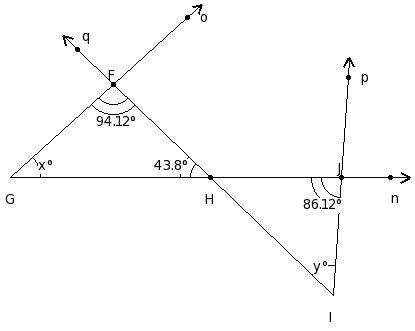

In the given figure, find the values of x and y.
  • (i)
    x
    =
    24.83°
    ,
    y
    =
    66.8°
  • (ii)
    x
    =
    23.83°
    ,
    y
    =
    65.8°
  • (iii)
    x
    =
    27.83°
    ,
    y
    =
    69.8°
  • (iv)
    x
    =
    26.83°
    ,
    y
    =
    68.8°
  • (v)
    x
    =
    25.83°
    ,
    y
    =
    67.8°
Question 34
34.
    • In the given figure,
    • △GHI
    • is a triangle in which
    • ∠G
    • =
    • ∠H
    • =
    • ∠I
    • .
    • This bisectors of
    • ∠H
    • and
    • ∠I
    • intersect at
    • J
    • .
    • Find
    • ∠J
    • =
  • (i)
    121°
  • (ii)
    122°
  • (iii)
    120°
  • (iv)
    119°
  • (v)
    118°
Question 35
35.
    • In the given figure, △FGH is a triangle in which ∠G = 55.13° and ∠H = 65.08°.
    • If 'z' is the angle between the bisector of ∠G and ∠H, then find z.
  • (i)
    118.90°
  • (ii)
    119.90°
  • (iii)
    117.90°
  • (iv)
    121.90°
  • (v)
    120.90°
Question 36
36.
    • In the given figure, ∠H = 62.95° and ∠I = 58.24°.
    • Side IJ is produced to K, so that ∠IJH  and ∠HJK form a linear pair.
    • If
    • ⟶
      JL
    • and
    • ⟶
      JM
    • are the bisectors of
    • ∠IJH
    • and
    • ∠HJK
    • , find x and y.
  • (i)
    x
    =
    28.41°
    ,
    y
    =
    59.59°
  • (ii)
    x
    =
    30.41°
    ,
    y
    =
    61.59°
  • (iii)
    x
    =
    27.41°
    ,
    y
    =
    58.59°
  • (iv)
    x
    =
    31.41°
    ,
    y
    =
    62.59°
  • (v)
    x
    =
    29.41°
    ,
    y
    =
    60.59°
Question 37
37.

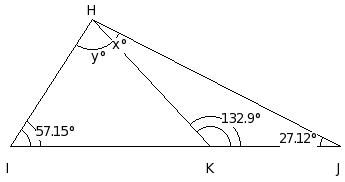

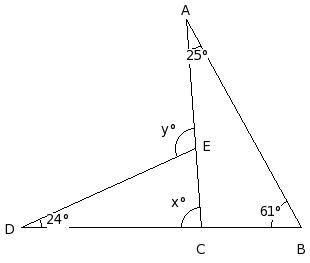

In the given figure, find the values of x and y
  • (i)
    x
    =
    63.95°
    ,
    y
    =
    51.04°
  • (ii)
    x
    =
    62.95°
    ,
    y
    =
    50.04°
  • (iii)
    x
    =
    61.95°
    ,
    y
    =
    49.04°
  • (iv)
    x
    =
    60.95°
    ,
    y
    =
    48.04°
  • (v)
    x
    =
    59.95°
    ,
    y
    =
    47.04°
Question 38
38.

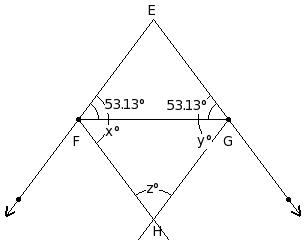

In the given figure, △EFG in which ∠F = 61.25° and ∠G = 63.75°. EH and FG bisects each other. Find the value of z
  • (i)
    z
    =
    53°
  • (ii)
    z
    =
    56°
  • (iii)
    z
    =
    54°
  • (iv)
    z
    =
    55°
  • (v)
    z
    =
    57°
Question 39
39.

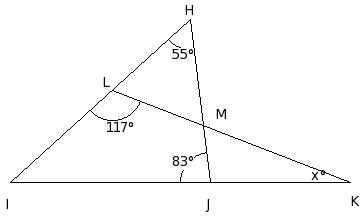

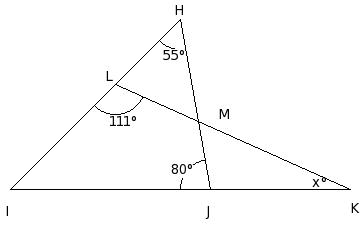

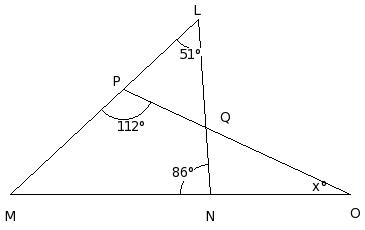

In the given figure, calculate the value of x.
  • (i)
    x
    =
    19°
  • (ii)
    x
    =
    20°
  • (iii)
    x
    =
    22°
  • (iv)
    x
    =
    21°
  • (v)
    x
    =
    18°
Question 40
40.

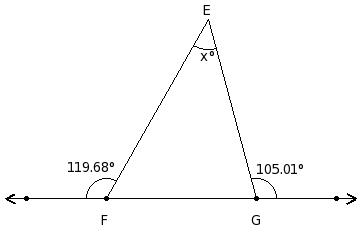

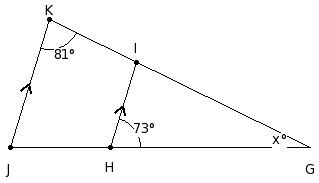

In the given figure, calculate the value of x.
  • (i)
    x
    =
    70.76°
  • (ii)
    x
    =
    73.76°
  • (iii)
    x
    =
    74.76°
  • (iv)
    x
    =
    71.76°
  • (v)
    x
    =
    72.76°
Question 41
41.
In the given figure, calculate the value of x.
  • (i)
    x
    =
    68.02°
  • (ii)
    x
    =
    72.02°
  • (iii)
    x
    =
    71.02°
  • (iv)
    x
    =
    70.02°
  • (v)
    x
    =
    69.02°
Question 42
42.

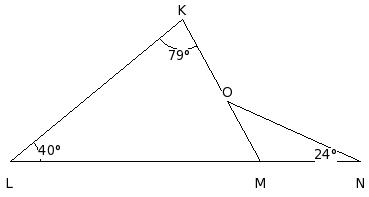

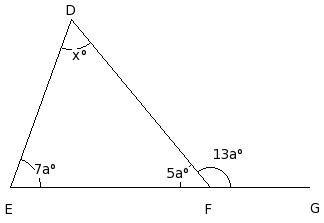

In the given figure, calculate the value of x.
  • (i)
    x
    =
    149°
  • (ii)
    x
    =
    146°
  • (iii)
    x
    =
    147°
  • (iv)
    x
    =
    148°
  • (v)
    x
    =
    150°
Question 43
43.

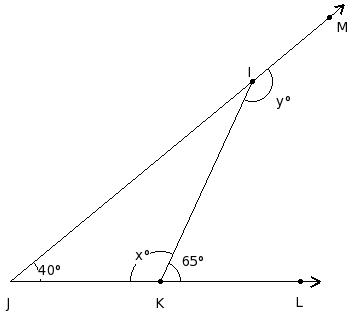

Find the unknown marked angles in the following figure
  • (i)
    x
    =
    100°
    ,
    y
    =
    145°
  • (ii)
    x
    =
    99°
    ,
    y
    =
    144°
  • (iii)
    x
    =
    101°
    ,
    y
    =
    146°
  • (iv)
    x
    =
    98°
    ,
    y
    =
    143°
  • (v)
    x
    =
    102°
    ,
    y
    =
    147°
Question 44
44.

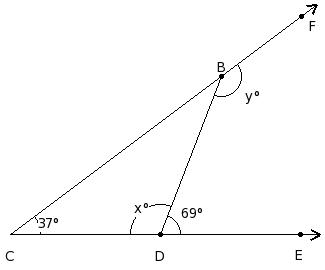

Find the unknown marked angles in the following figure
  • (i)
    x
    =
    88°
    ,
    y
    =
    113°
  • (ii)
    x
    =
    86°
    ,
    y
    =
    111°
  • (iii)
    x
    =
    89°
    ,
    y
    =
    114°
  • (iv)
    x
    =
    87°
    ,
    y
    =
    112°
  • (v)
    x
    =
    90°
    ,
    y
    =
    115°
Question 45
45.
In the given figure, it is given that ML ∥ ON , ∠MON = 80° and ∠MLK = 70°. Find the value of x.
  • (i)
    x
    =
    29°
  • (ii)
    x
    =
    28°
  • (iii)
    x
    =
    31°
  • (iv)
    x
    =
    32°
  • (v)
    x
    =
    30°
    Assignment Key

  •  1) (i)
  •  2) (v)
  •  3) (ii)
  •  4) (ii)
  •  5) (iv)
  •  6) (iv)
  •  7) (iii)
  •  8) (i)
  •  9) (iii)
  •  10) (i)
  •  11) (iv)
  •  12) (ii)
  •  13) (iv)
  •  14) (ii)
  •  15) (i)
  •  16) (iv)
  •  17) (v)
  •  18) (iv)
  •  19) (i)
  •  20) (ii)
  •  21) (v)
  •  22) (iii)
  •  23) (i)
  •  24) (ii)
  •  25) (i)
  •  26) (v)
  •  27) (v)
  •  28) (i)
  •  29) (i)
  •  30) (v)
  •  31) (v)
  •  32) (iii)
  •  33) (v)
  •  34) (iii)
  •  35) (ii)
  •  36) (v)
  •  37) (iii)
  •  38) (iv)
  •  39) (ii)
  •  40) (v)
  •  41) (iv)
  •  42) (iv)
  •  43) (i)
  •  44) (i)
  •  45) (v)
