EduSahara™ Assignment
Name : Angle Properties of Circles
Chapter : Circles
Grade : CBSE Grade IX
License : Non Commercial Use
Question
1
1.
O is the centre of the circle.
If
∠O
=
72°
,
find
∠H
(i)
144°
(ii)
149°
(iii)
154°
(iv)
174°
(v)
159°
Question
2
2.

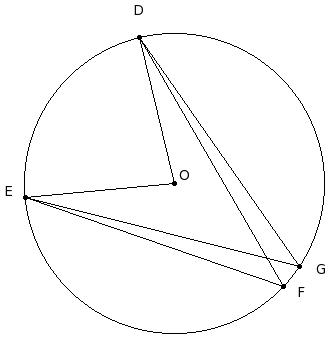

O is the centre of the circle. If ∠EOG = 107°, find ∠D
(i)
63.5°
(ii)
58.5°
(iii)
68.5°
(iv)
83.5°
(v)
53.5°
Question
3
3.

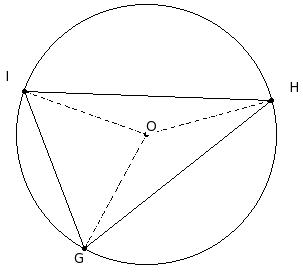

O is the centre of the circle. If ∠HOG = 129° and ∠IOG = 101°, find ∠HGI
(i)
70°
(ii)
65°
(iii)
75°
(iv)
95°
(v)
80°
Question
4
4.
Find the missing angle in the following figure?
(i)
57°
(ii)
62°
(iii)
82°
(iv)
67°
(v)
52°
Question
5
5.

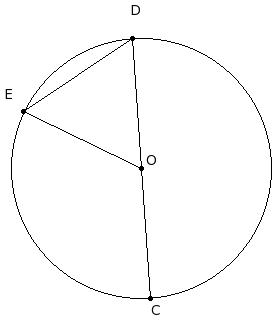

O is the centre of the circle and OE = DE. Find ∠DOE
(i)
60°
(ii)
65°
(iii)
90°
(iv)
75°
(v)
70°
Question
6
6.

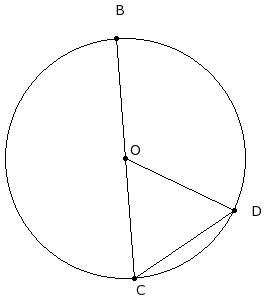

O is the centre of the circle and OD = CD. Find ∠DOB
(i)
120°
(ii)
135°
(iii)
130°
(iv)
125°
(v)
150°
Question
7
7.
O is the centre of the circle and OG = FG. Find reflex ∠GOE
(i)
255°
(ii)
270°
(iii)
245°
(iv)
250°
(v)
240°
Question
8
8.
O is the centre of the circle.
If
∠G
+
∠HOI = 123°
,
find
∠HOI
(i)
97°
(ii)
82°
(iii)
92°
(iv)
87°
(v)
112°
Question
9
9.
O is the centre of the circle. If ∠HJI = 38° and ∠JHK = 34°, find v°, w°
(i)
66°, 62°
(ii)
86°, 72°
(iii)
52°, 56°
(iv)
56°, 52°
(v)
46°, 52°
Question
10
10.

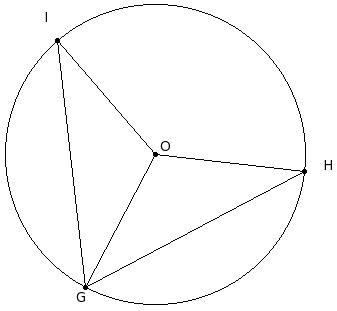

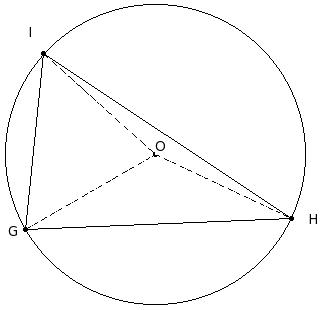

O is the centre of the circle. If ∠GOH = 97°, find the angle ∠I
(i)
63.5°
(ii)
48.5°
(iii)
78.5°
(iv)
53.5°
(v)
58.5°
Question
11
11.
Two circles touch internally. G is the centre of the bigger circle and lies on the smaller circle. If ∠DEF = 41°, find ∠D
(i)
54°
(ii)
64°
(iii)
49°
(iv)
59°
(v)
79°
Question
12
12.

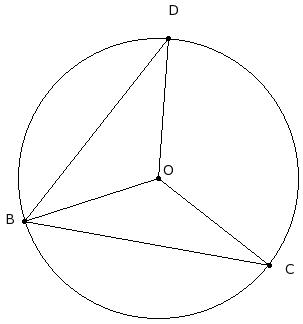

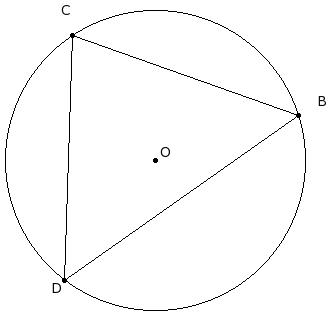

△BCD is inscribed in a circle with centre O. If ∠BOC = 106° and ∠COD = 110°, find ∠DBC
(i)
85°
(ii)
70°
(iii)
60°
(iv)
65°
(v)
55°
Question
13
13.

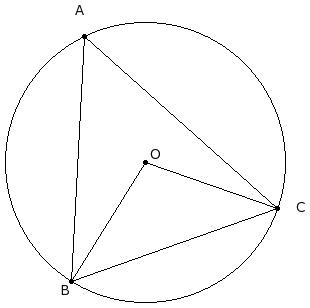

△ABC is inscribed in a circle with centre O. If ∠AOB = 124° and ∠BOC = 161°, find ∠ABC
(i)
47.5°
(ii)
67.5°
(iii)
52.5°
(iv)
37.5°
(v)
42.5°
Question
14
14.

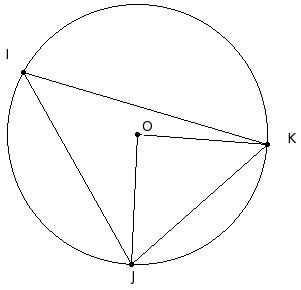

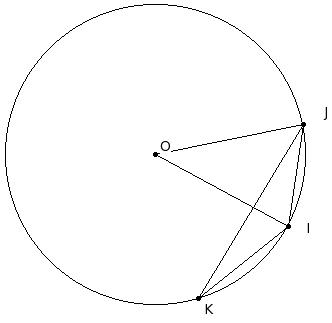

△IJK is inscribed in a circle with centre O. If ∠IOJ = 112° and ∠JOK = 128°, find ∠JKI
(i)
86°
(ii)
61°
(iii)
66°
(iv)
56°
(v)
71°
Question
15
15.

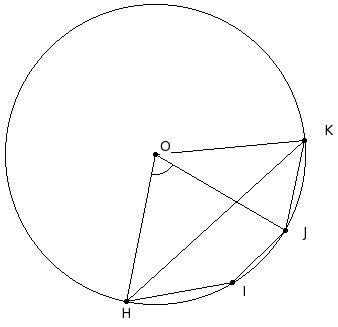

O is the centre of the circle. If ∠HIJ = 116.5°, find ∠JOK
(i)
83°
(ii)
53°
(iii)
63°
(iv)
58°
(v)
68°
Question
16
16.
In the given figure, O is the centre of the circle. If ∠ILJ = 51° and ∠OIL = 30°, find ∠KJL
(i)
150°
(ii)
130°
(iii)
120°
(iv)
135°
(v)
125°
Question
17
17.
In the given figure, O is the centre of the circle and DE is a diameter. If ∠EOG = 106°, find ∠DFG
(i)
37°
(ii)
47°
(iii)
67°
(iv)
52°
(v)
42°
Question
18
18.
In the given figure, O is the centre of the circle and JL is a diameter. If ∠KIJ = 63°, find ∠KJL
(i)
57°
(ii)
42°
(iii)
32°
(iv)
37°
(v)
27°
Question
19
19.
In the given figure, O is the centre of the circle and EG is a diameter. If ∠DOG = 115° and ∠OGF = 61°, find ∠EFD + ∠FEG
(i)
61.5°
(ii)
76.5°
(iii)
91.5°
(iv)
71.5°
(v)
66.5°
Question
20
20.
In the given figure, O is the centre of the circle and HJ is a diameter. If ∠GIH = 20° and ∠HGI = 62°, find ∠JHI + ∠GIJ
(i)
113°
(ii)
103°
(iii)
128°
(iv)
98°
(v)
108°
Question
21
21.
In the given figure, O is the centre of the circle. If ∠CBD = 59° and ∠BDE = 24°, find ∠DFE
(i)
107°
(ii)
102°
(iii)
97°
(iv)
112°
(v)
127°
Question
22
22.
O is the centre of the circle. If Arc AC = 2 Arc CD and ∠AOC = 84°, find ∠ADC
(i)
42°
(ii)
57°
(iii)
47°
(iv)
52°
(v)
72°
Question
23
23.
O is the centre of the circle. If Arc DF = 2 Arc FG and ∠DOF = 76°, find ∠GDF
(i)
19°
(ii)
24°
(iii)
34°
(iv)
29°
(v)
49°
Question
24
24.
O is the centre of the circle. If Arc DF = 2 Arc FG and ∠DOF = 91°, find ∠DEF
(i)
144.5°
(ii)
134.5°
(iii)
139.5°
(iv)
149.5°
(v)
164.5°
Question
25
25.
In the given figure, a pentagon is inscribed in a circle with centre O. Given JK = KL = LM and ∠JKL = 118°. Find ∠LOM
(i)
77°
(ii)
67°
(iii)
72°
(iv)
92°
(v)
62°
Question
26
26.
In the given figure, FG is a side of regular 9-sided polygon and FH is a side of regular 5-sided polygon inscribed in a circle with centre O. Find ∠FOG
(i)
55°
(ii)
45°
(iii)
70°
(iv)
50°
(v)
40°
Question
27
27.

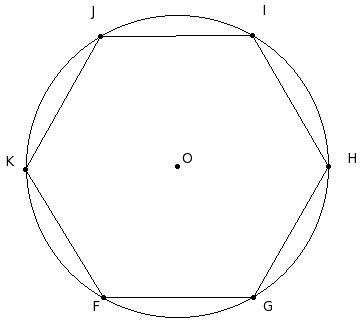

In the given figure, HI is a side of regular 6-sided polygon and HJ is a side of regular 9-sided polygon inscribed in a circle with centre O. Find ∠HJI
(i)
40°
(ii)
35°
(iii)
45°
(iv)
30°
(v)
60°
Question
28
28.
In the given figure, EF is a side of regular 5-sided polygon and EG is a side of regular 6-sided polygon inscribed in a circle with centre O. Find ∠EFG
(i)
60°
(ii)
40°
(iii)
45°
(iv)
30°
(v)
35°
Question
29
29.

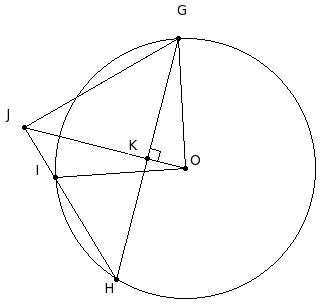

In the given figure, O is the centre of the circle, and OK ⟂ GH. If ∠GHI = 43.5°, find ∠GOI
(i)
87°
(ii)
102°
(iii)
117°
(iv)
97°
(v)
92°
Question
30
30.
In the given figure, O is the centre of the circle, and OH ⟂ DE. If ∠DEF = 39.5°, find ∠OGF
(i)
60.5°
(ii)
65.5°
(iii)
50.5°
(iv)
55.5°
(v)
80.5°
Question
31
31.
In the given figure, O is the centre of the circle. If ∠KIJ = 66.92° and ∠IJK = 80.15°, find the angle ∠ILJ
(i)
37.93°
(ii)
62.93°
(iii)
32.93°
(iv)
42.93°
(v)
47.93°
Question
32
32.
Which of the following statements are true?
a)
Equal length chords are equidistant from the centre of the circle.
b)
Equal length chords subtend equal angles at the centre of the circle.
c)
The longest chord of the circle passes through the centre of the circle.
d)
No two chords bisects each other.
e)
The farther the chord is from the centre, the larger the angle it subtends at the centre.
(i)
{d,e,c}
(ii)
{a,b,c}
(iii)
{d,a}
(iv)
{d,a,b}
(v)
{e,b}
Question
33
33.
Which of the following statements are true?
a)
Angles subtended by equal length arcs in two circles are equal.
b)
Angles in the same segment are equal.
c)
Angles in the opposite segments are complementary.
d)
Angles in the opposite segments are supplementary.
(i)
{a,c,b}
(ii)
{a,d,b}
(iii)
{a,b}
(iv)
{b,d}
(v)
{c,d}
Question
34
34.
The point of intersection of the angular bisectors of a triangle is
(i)
incentre
(ii)
excentre
(iii)
centroid
(iv)
circumcentre
(v)
orthocentre
Question
35
35.
If an arc subtends an angle of x° in its alternate segment, then the angle is subtends at the centre is
(i)
4x°
(ii)
x°
2
(iii)
x°
(iv)
2x°
Question
36
36.
An arc subtends 90° in its alternate segment. The arc is
(i)
semi-circle
(ii)
major arc
(iii)
quadrant
(iv)
major segment
(v)
minor arc
Question
37
37.
An arc subtends 166° in its alternate segment. The arc is
(i)
quadrant
(ii)
major arc
(iii)
major segment
(iv)
minor segment
(v)
semi-circle
Question
38
38.
An arc subtends 32° in its alternate segment. The arc is
(i)
quadrant
(ii)
minor arc
(iii)
major segment
(iv)
major arc
(v)
minor segment
Question
39
39.
An arc subtends 39° in its alternate segment. Its corresponding major arc subtends what angle in its (major arc) alternate segment?
(i)
141°
(ii)
151°
(iii)
171°
(iv)
156°
(v)
146°
Question
40
40.
An arc subtends 61° in its alternate segment. The angle made by its corresponding major arc at the centre is
(i)
238°
(ii)
253°
(iii)
243°
(iv)
248°
(v)
268°
Question
41
41.
The angle subtended by the semicircle at the centre is
(i)
180°
(ii)
210°
(iii)
195°
(iv)
190°
(v)
185°
Question
42
42.
The angle subtended by the diameter at any point on the circle is
(i)
90°
(ii)
120°
(iii)
95°
(iv)
100°
(v)
105°
Question
43
43.
Angle subtended by the major arc at the centre is
(i)
zero angle
(ii)
complete angle
(iii)
right angle
(iv)
reflex angle
(v)
straight angle
Question
44
44.
Angle subtended in the major segment is
(i)
acute angle
(ii)
obtuse angle
(iii)
reflex angle
(iv)
right angle
(v)
zero angle
Question
45
45.
If the radius of the circumcircle is half the length of a side of the triangle, then the triangle is
(i)
acute angled triangle
(ii)
obtuse angled triangle
(iii)
equilateral triangle
(iv)
right angle triangle
Question
46
46.

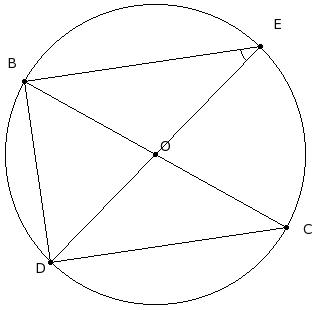

In the given figure, BC & DE are diameters of the circle. If ∠BCD = 55° find, ∠COD
(i)
80°
(ii)
85°
(iii)
75°
(iv)
70°
(v)
100°
Question
47
47.

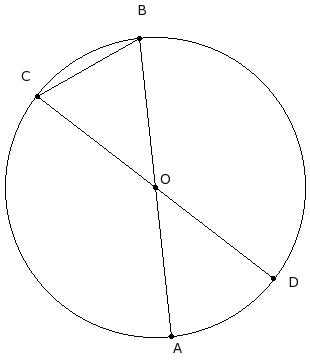

In the given figure, AB & CD are diameters of the circle. If ∠ADC = 51°, find ∠OCB
(i)
61°
(ii)
56°
(iii)
51°
(iv)
81°
(v)
66°
Question
48
48.
In the given figure AC & BC are equal length chords of the circle. Find ∠CAB
(i)
75°
(ii)
60°
(iii)
55°
(iv)
45°
(v)
50°
Question
49
49.
In the given figure, CD is a diameter of the circle with centre O. If ∠DCE = 43.13° and DE = DF, find ∠FEC
(i)
76.87°
(ii)
61.87°
(iii)
46.87°
(iv)
56.87°
(v)
51.87°
Question
50
50.

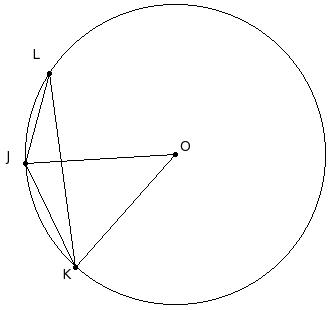

In the given figure, O is the centre of the circle. If ∠OJL = 52.5°, find ∠K
(i)
152.5°
(ii)
147.5°
(iii)
172.5°
(iv)
157.5°
(v)
142.5°
Question
51
51.

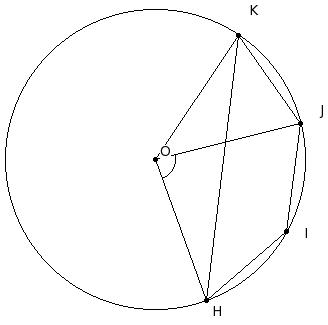

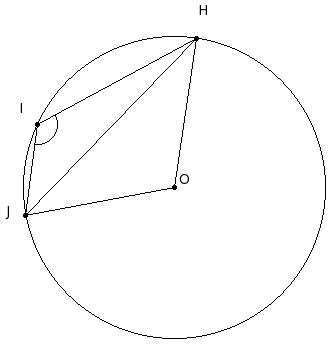

In the given figure, O is the centre of the circle. If ∠HIJ = 116°, find ∠OHJ
(i)
26°
(ii)
56°
(iii)
31°
(iv)
41°
(v)
36°
Question
52
52.
In the given figure, O is the centre of the circle and HJ is the tangent at I. If ∠IJK = 33°,∠JIK = 36°, find ∠LIK
(i)
85°
(ii)
105°
(iii)
80°
(iv)
75°
(v)
90°
Question
53
53.

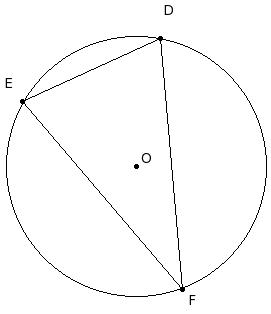

O is the centre of the circle. If ∠EFD = 49°, find the angle ∠OED
(i)
46°
(ii)
51°
(iii)
56°
(iv)
41°
(v)
71°
Question
54
54.
DE is the perpendicular bisector of side BC of △ABC. Given ∠ABC = 68° and ∠DAC = 36° , find ∠ACB
(i)
40°
(ii)
50°
(iii)
70°
(iv)
45°
(v)
55°
Question
55
55.

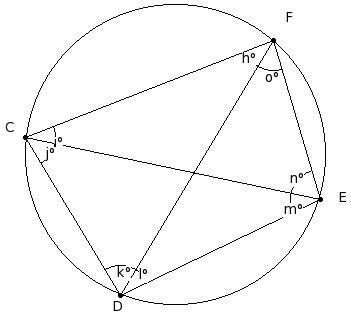

In the given figure, △FCD is a scalene triangle. EC bisects ∠FCD. Similarly DE bisects ∠CDF. Given ∠DFC = 100°, find ∠DEC
(i)
150°
(ii)
145°
(iii)
140°
(iv)
170°
(v)
155°
Question
56
56.
In the given figure, △FBC is a scalene triangle. DB & EB trisect ∠FBC. Similarly CD & CE trisect ∠BCF. Given ∠CFB = 30°, find ∠CDB
(i)
130°
(ii)
160°
(iii)
135°
(iv)
140°
(v)
145°
Question
57
57.
In the given figure, △GCD is a scalene triangle. EC & FC trisect ∠GCD. Similarly DE & DF trisect ∠CDG. Given ∠DGC = 51°, find ∠DFC
(i)
99°
(ii)
94°
(iii)
104°
(iv)
124°
(v)
109°
Question
58
58.
In the given figure, FG , GH , HI and IJ are chords and FI , GJ are diameters passing through the centre O. If ∠FOG = 69°. Find ∠GHI
(i)
154.5°
(ii)
129.5°
(iii)
134.5°
(iv)
124.5°
(v)
139.5°
Question
59
59.
In the given figure, EFGHIJ is a regular hexagon inscribed in a circle with centre O. Which of the following are true?
a)
∠EGF = 60°
b)
∠FOH = 120°
c)
∠JHG = 90°
d)
∠EOJ = 60°
e)
∠FIG = 30°
(i)
{b,c,d,e}
(ii)
{a,c}
(iii)
{a,d}
(iv)
{a,e,b}
(v)
{a,b}
Question
60
60.

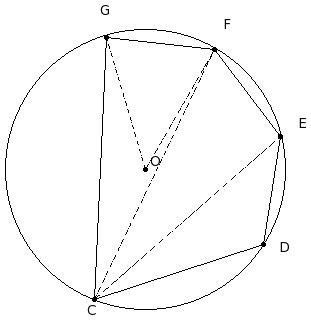

In the given figure, CDEFG is a regular pentagon . Find ∠CGE
(i)
102°
(ii)
82°
(iii)
87°
(iv)
72°
(v)
77°
Question
61
61.
Which of the following statements are true?
a)
Angle subtended by the major arc at the centre is acute.
b)
Angle subtended by the major arc in its alternate segment is obtuse.
c)
If two chords are equal, then they are equidistant from the centre of the circle.
d)
The angle subtended in a semicircle is a right angle.
e)
Angle subtended in the major segment is obtuse.
(i)
{b,c,d}
(ii)
{e,c}
(iii)
{a,b}
(iv)
{a,b,c}
(v)
{a,e,d}
Question
62
62.
In triangle JKL, if a circle is drawn with KL as diameter and if it passes through J it is a
(i)
right angle triangle
(ii)
obtuse angled triangle
(iii)
acute angled triangle
(iv)
equilateral triangle
Question
63
63.

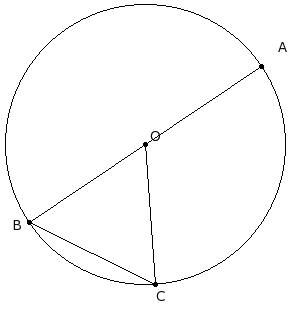

In the given figure, which of the following are true?
a)
∠A
+
∠OBC = 90°
b)
∠A
+
∠OCB = 90°
c)
∠A
+
∠BOC = 180°
d)
∠A
+
∠OBC
+
∠OCB
=
2
∠A
e)
∠A
+
∠OBC = 120°
(i)
{d,b,a}
(ii)
{e,c,a}
(iii)
{c,a}
(iv)
{d,b}
(v)
{a,b}
Question
64
64.
In the given figure, the bisectors of ∠G , ∠H & ∠I of △GHI meet the circumcircle at J , K & L. If ∠G = 57°, find ∠J
(i)
76.5°
(ii)
66.5°
(iii)
61.5°
(iv)
71.5°
(v)
91.5°
Question
65
65.
In the given figure, which of the following angle pairs are equal?
(i)
{(v,o),(t,p),(q,u),(s,r)}
(ii)
{(u,q),(p,r),(v,t),(s,o)}
(iii)
{(v,s),(t,q),(o,p),(r,u)}
(iv)
{(o,t),(p,s),(q,v),(r,u)}
(v)
{(t,s),(p,o),(q,r),(v,u)}
Assignment Key
1) (i)
2) (v)
3) (ii)
4) (v)
5) (i)
6) (i)
7) (v)
8) (ii)
9) (iii)
10) (ii)
11) (iii)
12) (v)
13) (iv)
14) (iv)
15) (ii)
16) (iii)
17) (i)
18) (v)
19) (i)
20) (iv)
21) (iii)
22) (i)
23) (i)
24) (ii)
25) (v)
26) (v)
27) (iv)
28) (iv)
29) (i)
30) (iii)
31) (iii)
32) (ii)
33) (iv)
34) (i)
35) (iv)
36) (i)
37) (ii)
38) (ii)
39) (i)
40) (i)
41) (i)
42) (i)
43) (iv)
44) (i)
45) (iv)
46) (iv)
47) (iii)
48) (iv)
49) (iii)
50) (v)
51) (i)
52) (iv)
53) (iv)
54) (i)
55) (iii)
56) (i)
57) (ii)
58) (iv)
59) (i)
60) (iv)
61) (i)
62) (i)
63) (v)
64) (iii)
65) (iv)
