EduSahara™ Assignment
Name : Areas of Combinations of Plane Figures
Chapter : Area of Plane Figures
Grade : SSC Grade VIII
License : Non Commercial Use
Question 1
1.

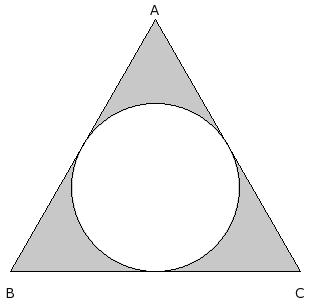

In the given figure, a circle is inscribed touching the sides of an equilateral triangle of side 27 cm. Find the area of the shaded region
  • (i)
    129.74 sq.cm
  • (ii)
    124.74 sq.cm
  • (iii)
    136.74 sq.cm
  • (iv)
    110.74 sq.cm
  • (v)
    98.74 sq.cm
Question 2
2.
In the given figure, the circle circumscribes a rectangle with sides 11.00 cm and 10.00 cm. Find the area of the remaining portion other than the rectangle
  • (i)
    63.64 sq.cm
  • (ii)
    68.64 sq.cm
  • (iii)
    58.64 sq.cm
  • (iv)
    66.64 sq.cm
  • (v)
    60.64 sq.cm
Question 3
3.
In the given figure, the radius of the circle is 6 cm. Find the area of the minor sector
  • (i)
    25.29 sq.cm
  • (ii)
    28.29 sq.cm
  • (iii)
    31.29 sq.cm
  • (iv)
    23.29 sq.cm
  • (v)
    33.28 sq.cm
Question 4
4.

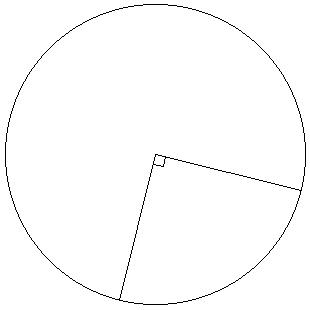

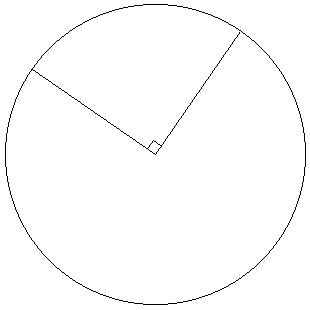

In the given figure, the radius of the circle is 5 cm. Find the area of the major sector
  • (i)
    55.93 sq.cm
  • (ii)
    63.93 sq.cm
  • (iii)
    61.93 sq.cm
  • (iv)
    58.93 sq.cm
  • (v)
    53.93 sq.cm
Question 5
5.
In the given figure ,PQRS is the diameter of the circle of radius 4.50 cm and PQ = QR = RS. Find the area of the shaded region
  • (i)
    37.43 sq.cm
  • (ii)
    39.43 sq.cm
  • (iii)
    42.43 sq.cm
  • (iv)
    45.43 sq.cm
  • (v)
    47.43 sq.cm
Question 6
6.
In the given figure ,PQRS is the diameter of the circle of radius 3.00 cm and PQ = QR = RS. Find the perimeter of the shaded region
  • (i)
    23.86 cm
  • (ii)
    13.86 cm
  • (iii)
    15.86 cm
  • (iv)
    21.86 cm
  • (v)
    18.86 cm
Question 7
7.
In the given figure , ABCD is a trapezium. A quarter circle AEFD is removed from the trapezium. If AD = CD = 16 and EB = 3.8 , find the area of the remaining portion
  • (i)
    80.26 sq.cm
  • (ii)
    85.26 sq.cm
  • (iii)
    90.26 sq.cm
  • (iv)
    88.26 sq.cm
  • (v)
    82.26 sq.cm
Question 8
8.
In the given figure, ABCD is a square of side 18.00 cm . At the centre there is a circle with radius 4.50 cm and the same circle quadrants are at the four corners. Find the area of the shaded region.
  • (i)
    179.71 sq.cm
  • (ii)
    220.71 sq.cm
  • (iii)
    196.71 sq.cm
  • (iv)
    178.71 sq.cm
  • (v)
    211.71 sq.cm
Question 9
9.
In the given figure, ABCD is a square of side 17.00 cm . At the centre there is a circle with radius 4.25 cm and the same circle quadrants are at the four corners. Find the perimeter of the shaded region.
  • (i)
    92.43 cm
  • (ii)
    87.43 cm
  • (iii)
    90.43 cm
  • (iv)
    84.43 cm
  • (v)
    82.43 cm
Question 10
10.
In the given figure, ABCD is a square of side 16.00 cm and A, B, C, D are the centres of circular arcs, each of radius 8.00 cm. Find the area of the shaded region
  • (i)
    54.86 sq.cm
  • (ii)
    59.86 sq.cm
  • (iii)
    57.86 sq.cm
  • (iv)
    49.86 sq.cm
  • (v)
    51.86 sq.cm
Question 11
11.
In the given figure, ABCD is a square of side 5.00 cm and A, B, C, D are centres of circles which touch externally in pairs. Find the area of the shaded region
  • (i)
    88.93 sq.cm
  • (ii)
    83.93 sq.cm
  • (iii)
    86.93 sq.cm
  • (iv)
    80.93 sq.cm
  • (v)
    78.93 sq.cm
Question 12
12.
In the given figure, BC = 13 cm and AB = 11 cm. Find the area of the shaded region
  • (i)
    130.36 sq.cm
  • (ii)
    141.36 sq.cm
  • (iii)
    159.36 sq.cm
  • (iv)
    156.36 sq.cm
  • (v)
    184.36 sq.cm
Question 13
13.
In the given figure, BC = 9 cm and AB = 14 cm. Find the perimeter of the shaded region
  • (i)
    86.95 cm
  • (ii)
    91.95 cm
  • (iii)
    96.95 cm
  • (iv)
    94.95 cm
  • (v)
    88.95 cm
Question 14
14.

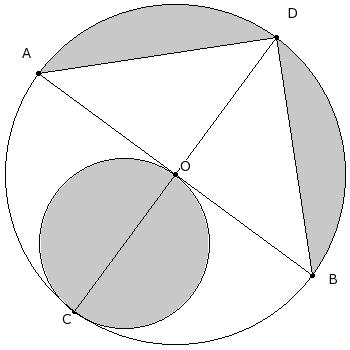

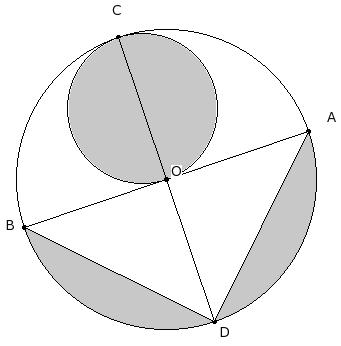

In the below figure, AB is the diameter of a circle with center O and OA = 13.00 cm . Find the area of the shaded region
  • (i)
    251.36 sq.cm
  • (ii)
    215.36 sq.cm
  • (iii)
    217.36 sq.cm
  • (iv)
    229.36 sq.cm
  • (v)
    236.36 sq.cm
Question 15
15.

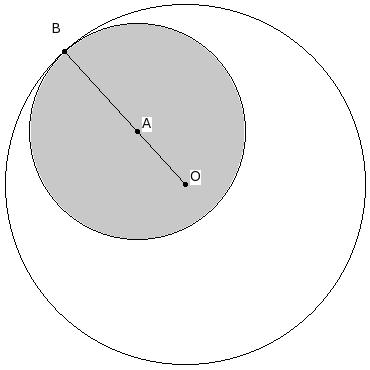

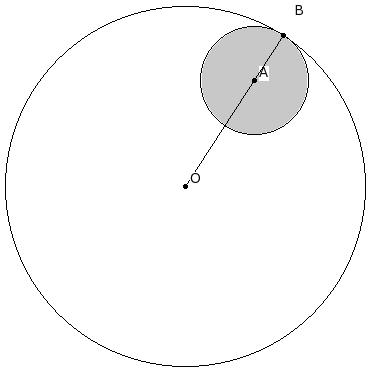

In the below figure, two circles with centers O and A touch internally at B. If OB = 18.00 cm and OA = 12.6 cm, find the area of the unshaded region
  • (i)
    909.64 sq.cm
  • (ii)
    912.64 sq.cm
  • (iii)
    950.64 sq.cm
  • (iv)
    933.64 sq.cm
  • (v)
    926.64 sq.cm
Question 16
16.
In the below figure, BPQA is a quadrant of a circle. AB = 20.00 cm and BC = 17 cm . Find the area of the shaded region
  • (i)
    156.28 sq.cm
  • (ii)
    138.28 sq.cm
  • (iii)
    119.28 sq.cm
  • (iv)
    144.28 sq.cm
  • (v)
    148.28 sq.cm
Question 17
17.
In the below figure, BCPA is a quadrant of a circle. BC = 18.00 cm and CQA is a semicircle with CA as the diameter. Find the area of the shaded region
  • (i)
    162.00 sq.cm
  • (ii)
    175.00 sq.cm
  • (iii)
    180.00 sq.cm
  • (iv)
    154.00 sq.cm
  • (v)
    145.00 sq.cm
Question 18
18.
In the given figure, the triangle inside the square is an isosceles triangle. Find the area of the shaded region
  • (i)
    176.00 sq.cm
  • (ii)
    192.00 sq.cm
  • (iii)
    200.00 sq.cm
  • (iv)
    213.00 sq.cm
Question 19
19.

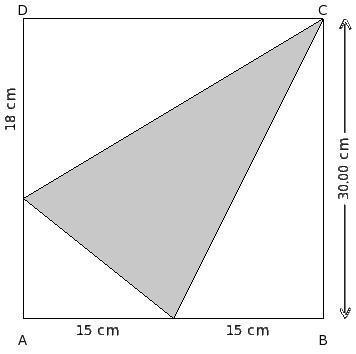

In the given figure, find the area of the shaded region
  • (i)
    96.00 sq.cm
  • (ii)
    128.00 sq.cm
  • (iii)
    122.00 sq.cm
  • (iv)
    90.00 sq.cm
  • (v)
    114.00 sq.cm
Question 20
20.

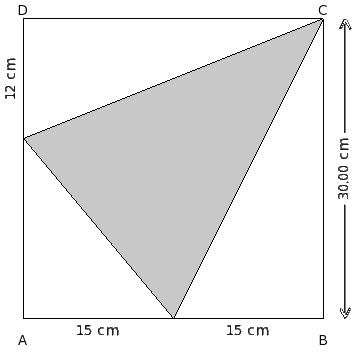

In the given figure, find the area of the shaded region
  • (i)
    387.00 sq.cm
  • (ii)
    343.00 sq.cm
  • (iii)
    346.00 sq.cm
  • (iv)
    360.00 sq.cm
  • (v)
    368.00 sq.cm
Question 21
21.

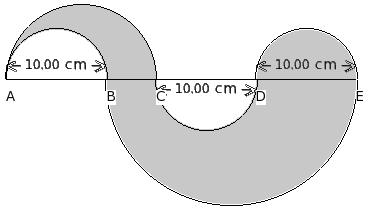

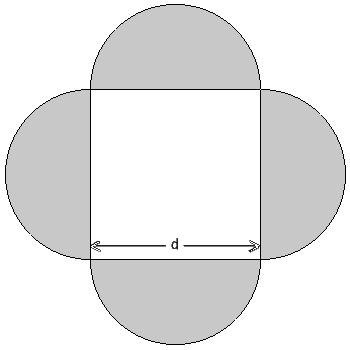

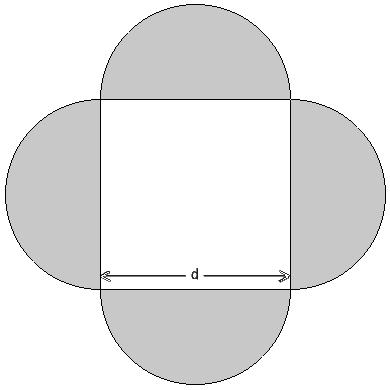

In the given figure, d = 10.00 cm is the diameter of the semi-circles. Find the area of the shaded region
  • (i)
    144.14 sq.cm
  • (ii)
    157.14 sq.cm
  • (iii)
    170.14 sq.cm
  • (iv)
    142.14 sq.cm
  • (v)
    173.14 sq.cm
Question 22
22.

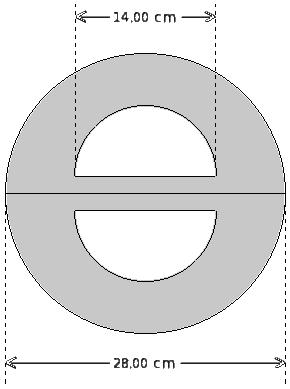

In the given figure, find the area of the shaded region
  • (i)
    323.43 sq.cm
  • (ii)
    339.43 sq.cm
  • (iii)
    335.43 sq.cm
  • (iv)
    351.43 sq.cm
  • (v)
    352.43 sq.cm
Question 23
23.

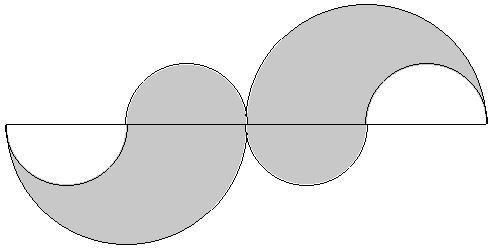

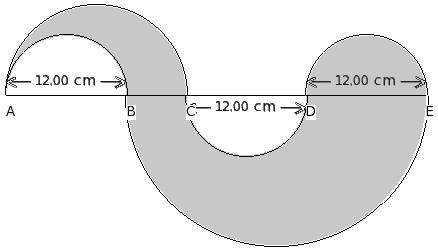

The given figure consists of four small semi-circles of equal radii and two big semi-circles of equal radii. The radius of each big semi-circle is 12.00 cm which is the same as the diameter of the small semi-circle. Find the area of the shaded region
  • (i)
    452.57 sq.cm
  • (ii)
    474.57 sq.cm
  • (iii)
    426.57 sq.cm
  • (iv)
    439.57 sq.cm
  • (v)
    470.57 sq.cm
Question 24
24.

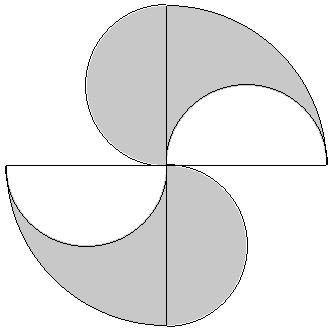

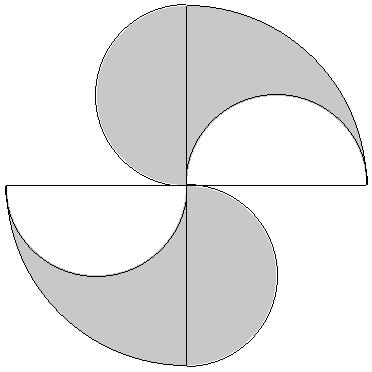

The given figure consists of two quarter circles each of radius 10.00 cm and four semi-circles each of radius 5.00 cm. Find the area of the shaded region
  • (i)
    157.14 sq.cm
  • (ii)
    164.14 sq.cm
  • (iii)
    170.14 sq.cm
  • (iv)
    141.14 sq.cm
  • (v)
    145.14 sq.cm
Question 25
25.

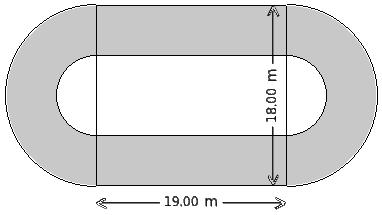

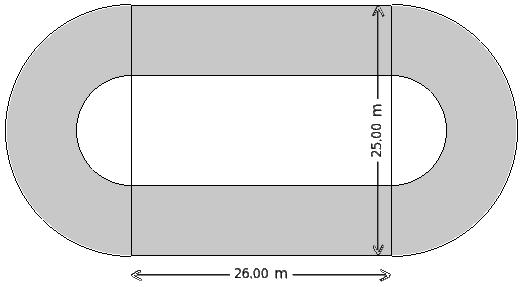

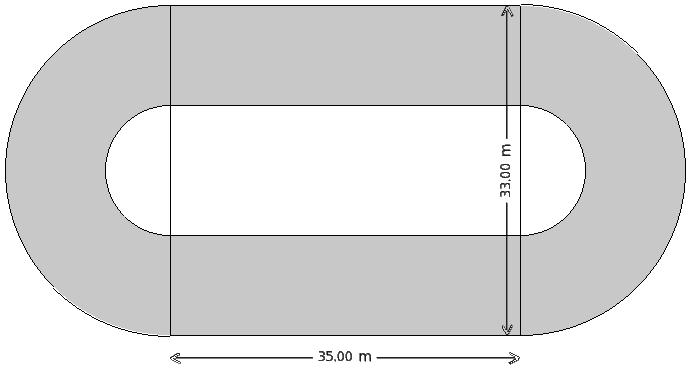

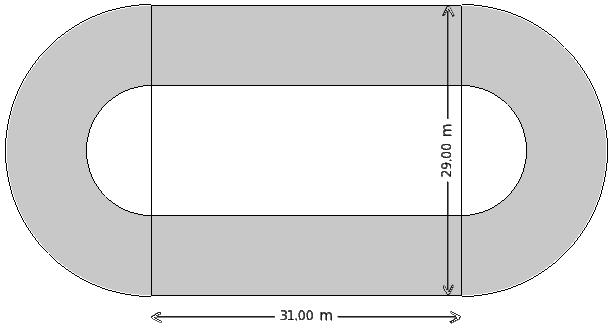

In the given figure, the width of the circular path is 10.00 m. Find the area of the shaded region
  • (i)
    1285.71 sq.m
  • (ii)
    1195.71 sq.m
  • (iii)
    915.71 sq.m
  • (iv)
    1005.71 sq.m
  • (v)
    1165.71 sq.m
Question 26
26.
Find the area of the shaded region
  • (i)
    53.21 sq.cm
  • (ii)
    45.21 sq.cm
  • (iii)
    48.21 sq.cm
  • (iv)
    43.21 sq.cm
  • (v)
    51.21 sq.cm
Question 27
27.
Find the area of the shaded region
  • (i)
    75.86 sq.cm
  • (ii)
    65.86 sq.cm
  • (iii)
    70.86 sq.cm
  • (iv)
    73.86 sq.cm
  • (v)
    67.86 sq.cm
Question 28
28.
Find the area of the shaded region
  • (i)
    182.93 sq.cm
  • (ii)
    168.93 sq.cm
  • (iii)
    146.93 sq.cm
  • (iv)
    165.93 sq.cm
Question 29
29.
In the given figure, BC = 6.00 cm. Find the area of the shaded region
  • (i)
    437.29 sq.cm
  • (ii)
    411.29 sq.cm
  • (iii)
    412.29 sq.cm
  • (iv)
    449.29 sq.cm
  • (v)
    424.29 sq.cm
Question 30
30.
In the given figure, arcs of two concentric circles of radii 12.00 cm and 3.60 cm are drawn with center O. If ∠BOC = 50°, find the area of the shaded region
  • (i)
    52.20 sq.cm
  • (ii)
    54.20 sq.cm
  • (iii)
    62.20 sq.cm
  • (iv)
    57.20 sq.cm
  • (v)
    60.20 sq.cm
Question 31
31.

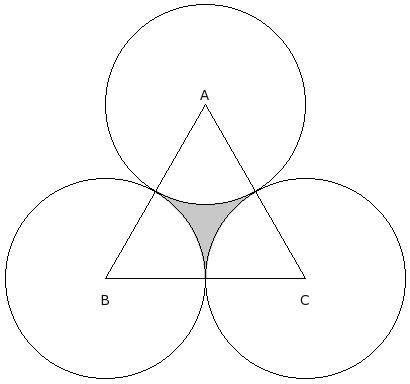

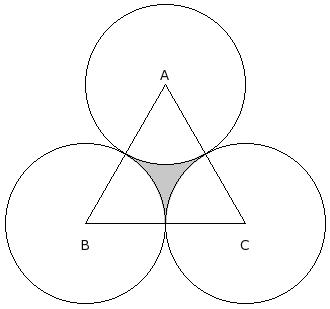

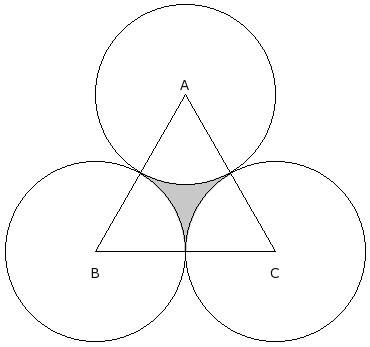

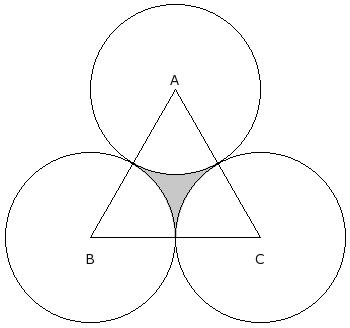

In the given figure △ABC is an equilateral triangle whose area is 173.21 sq.cm. With each vertex of the triangle as center, a circle is drawn with radius equal to half the length of the side of the triangle . Find the area of the shaded region
  • (i)
    11.06 sq.cm
  • (ii)
    13.06 sq.cm
  • (iii)
    16.06 sq.cm
  • (iv)
    19.06 sq.cm
  • (v)
    21.06 sq.cm
Question 32
32.
In the given figure, ABCD is a square with side 20.00 cm. Find the area of the shaded region
  • (i)
    210.57 sq.cm
  • (ii)
    213.57 sq.cm
  • (iii)
    246.57 sq.cm
  • (iv)
    228.57 sq.cm
  • (v)
    234.57 sq.cm
Question 33
33.
Find the area of the shaded region in the given figure common between the two quadrants of circles of radius 14.00 cm each
  • (i)
    119.00 sq.cm
  • (ii)
    112.00 sq.cm
  • (iii)
    126.00 sq.cm
  • (iv)
    94.00 sq.cm
    Assignment Key

  •  1) (ii)
  •  2) (i)
  •  3) (ii)
  •  4) (iv)
  •  5) (iii)
  •  6) (v)
  •  7) (ii)
  •  8) (iii)
  •  9) (ii)
  •  10) (i)
  •  11) (ii)
  •  12) (iv)
  •  13) (ii)
  •  14) (iv)
  •  15) (v)
  •  16) (iv)
  •  17) (i)
  •  18) (iii)
  •  19) (v)
  •  20) (iv)
  •  21) (ii)
  •  22) (ii)
  •  23) (i)
  •  24) (i)
  •  25) (v)
  •  26) (iii)
  •  27) (iii)
  •  28) (ii)
  •  29) (v)
  •  30) (iv)
  •  31) (iii)
  •  32) (iv)
  •  33) (ii)
