EduSahara™ Assignment
Name : 3-D Views
Chapter : Visualising 3-D in 2-D
Grade : SSC Grade VIII
License : Non Commercial Use
Question
1
1.

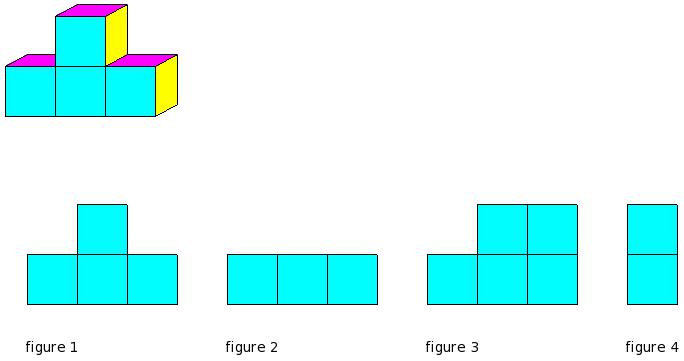

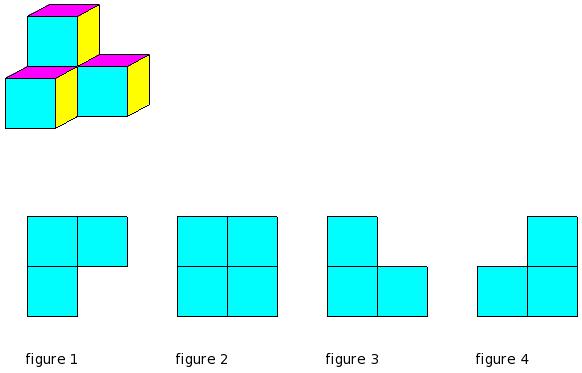

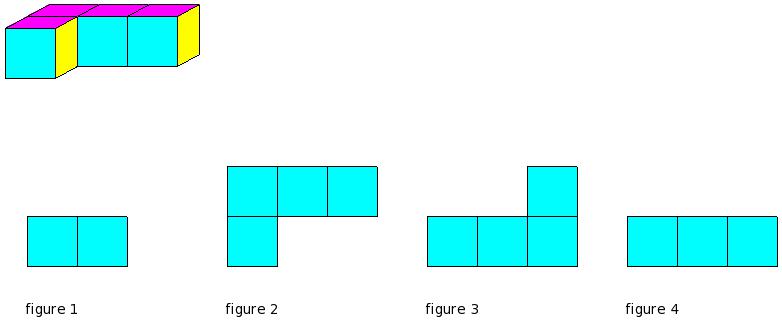

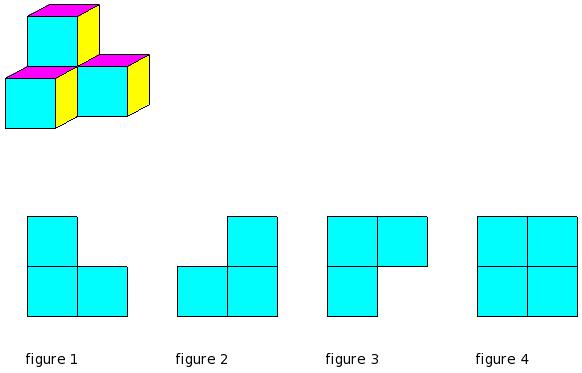

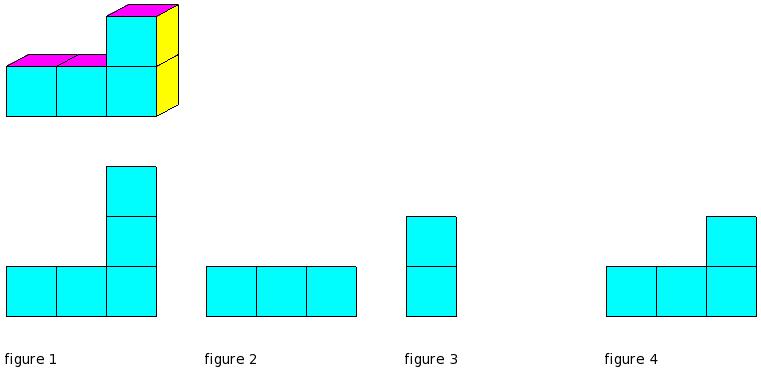

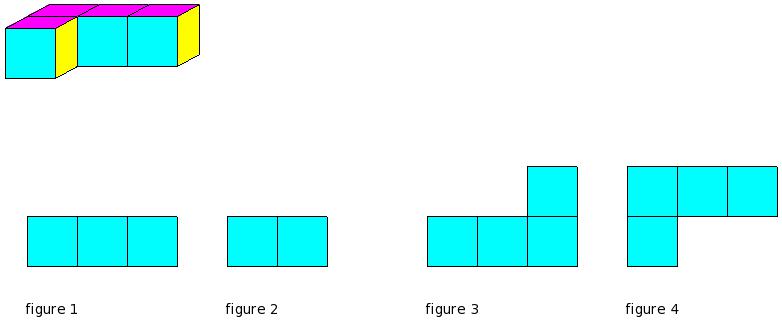

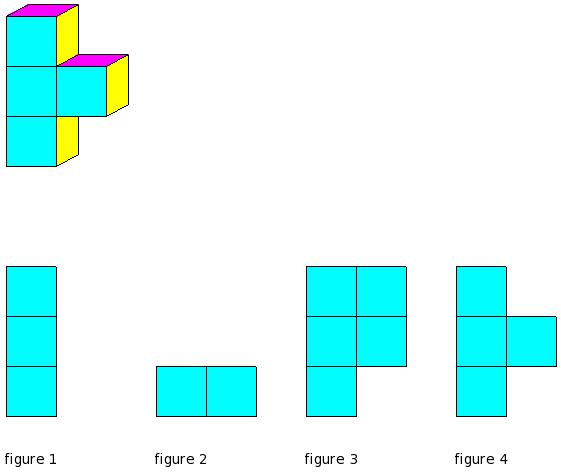

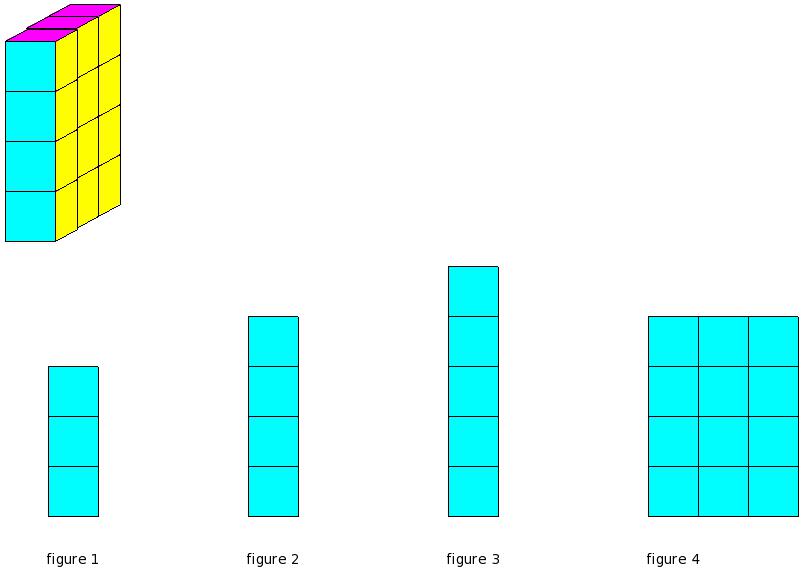

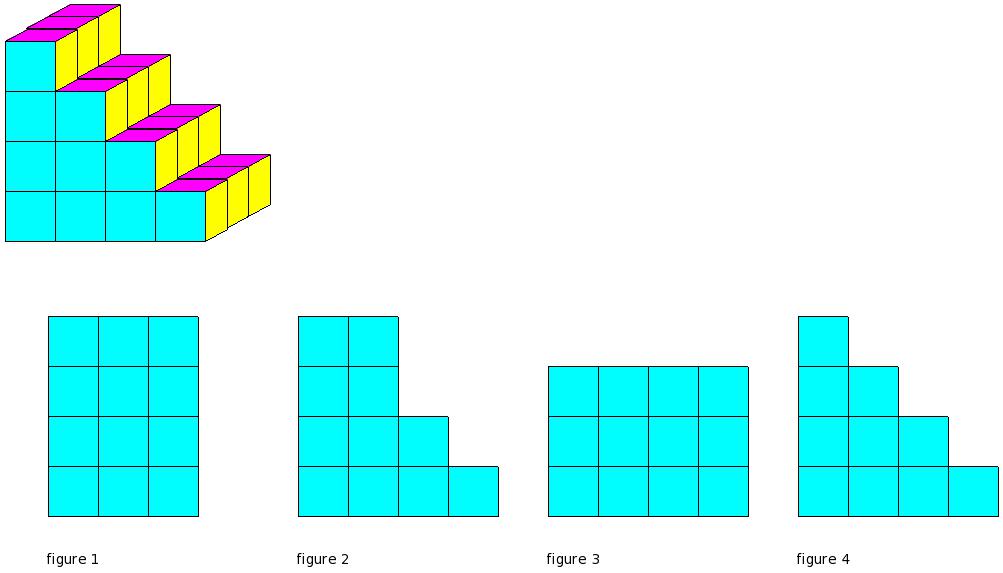

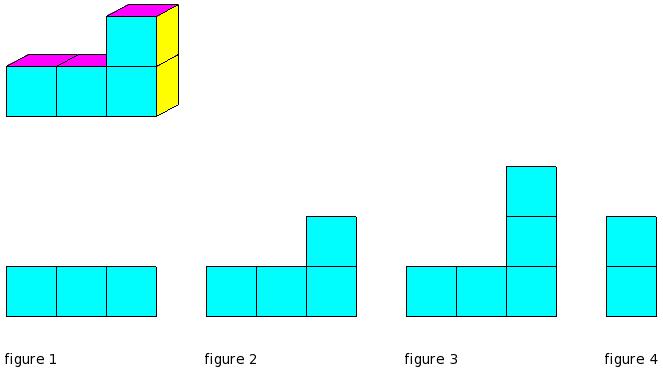

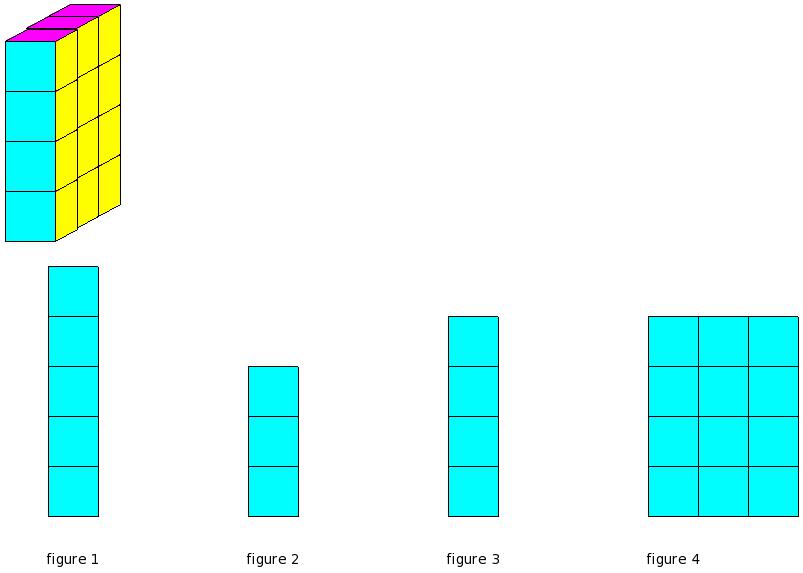

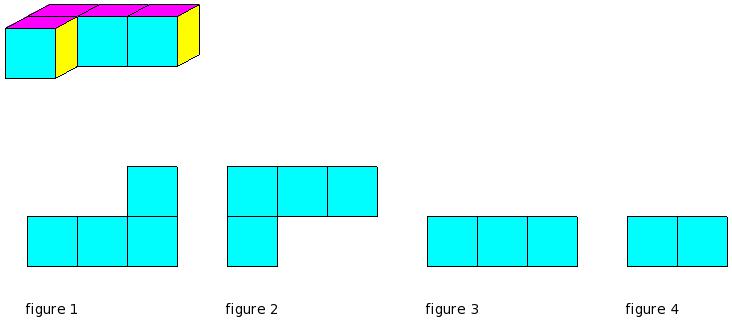

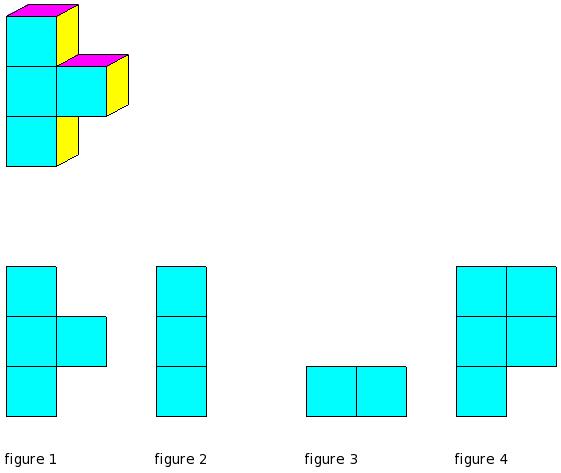

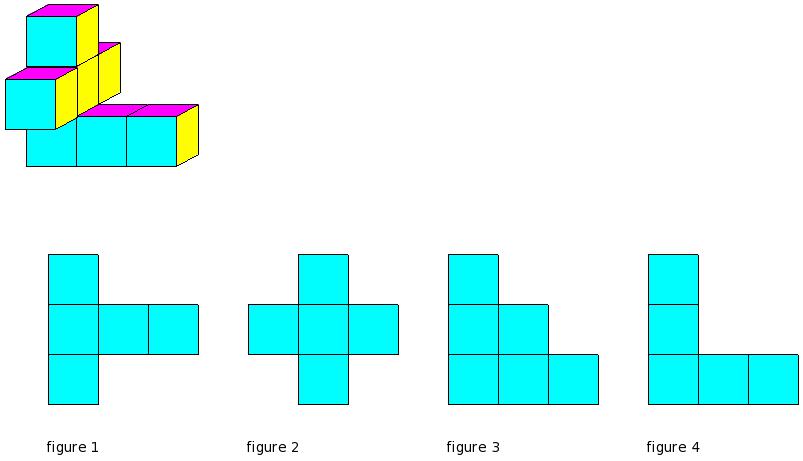

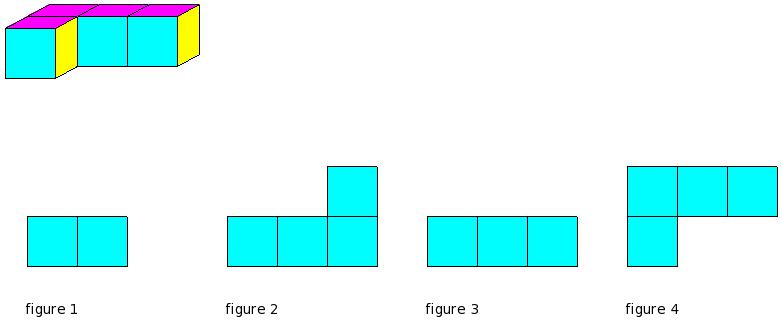

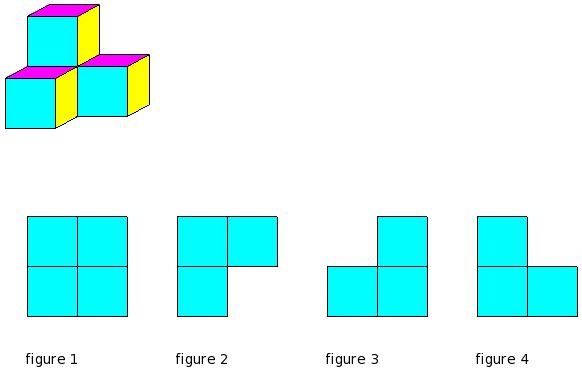

Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 2
(iv)
figure 4
Question
2
2.

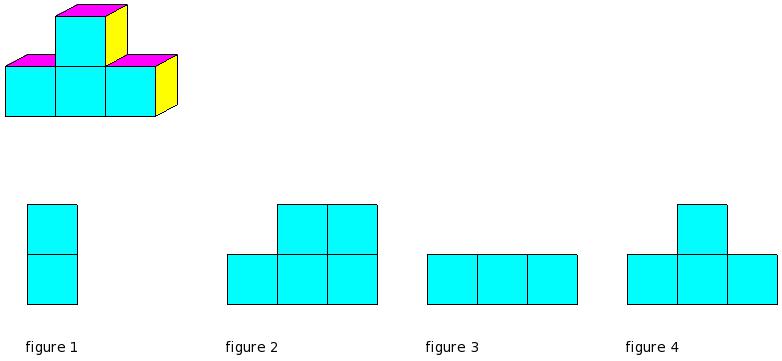

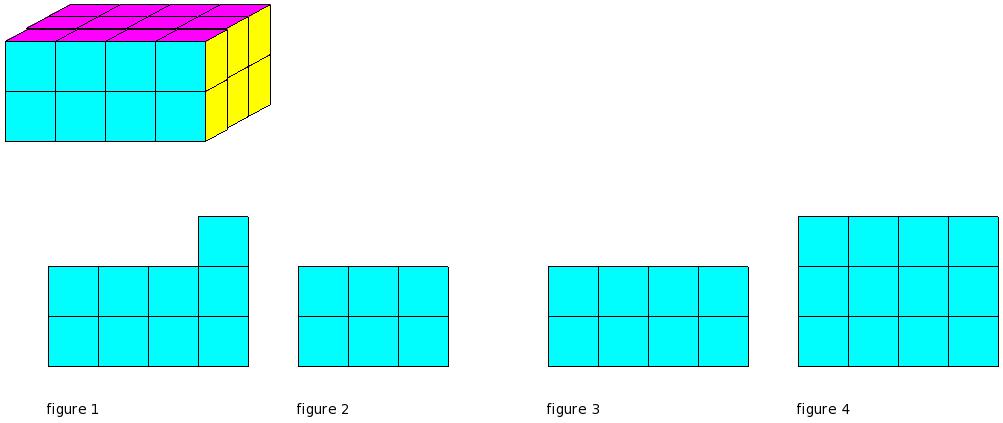

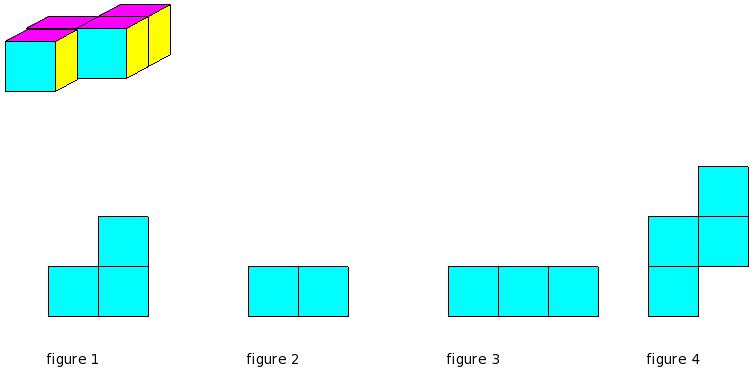

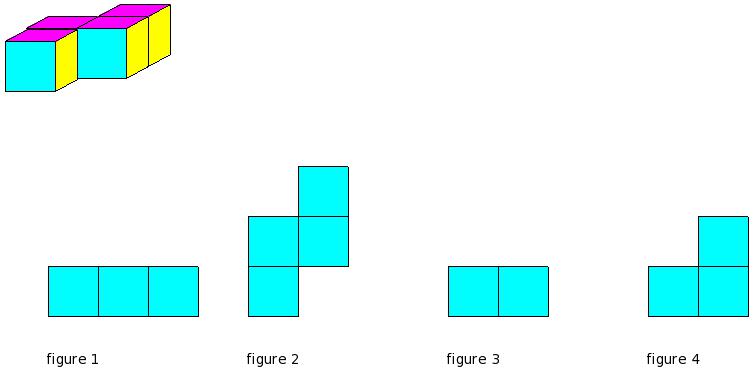

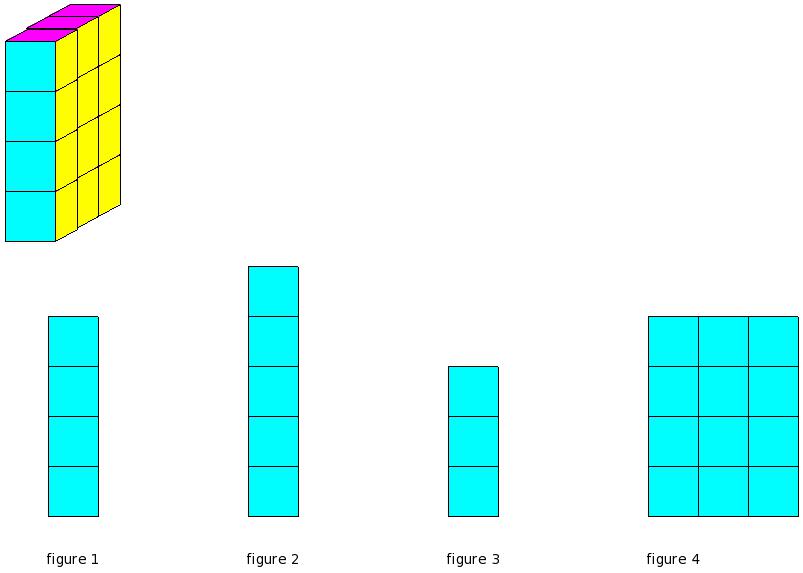

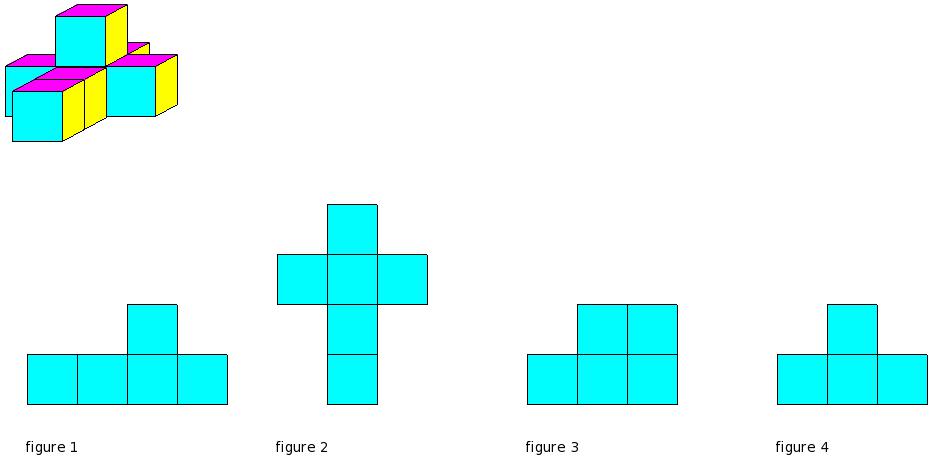

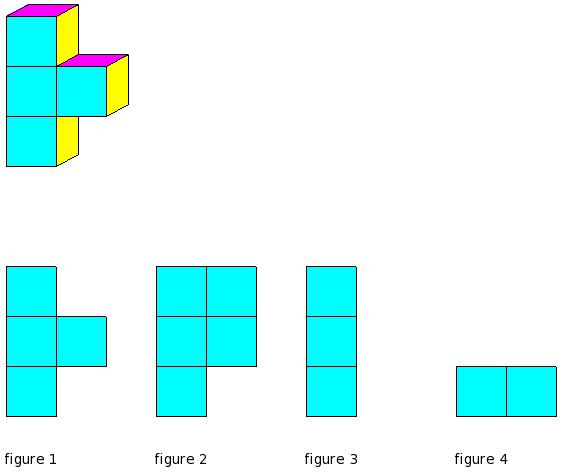

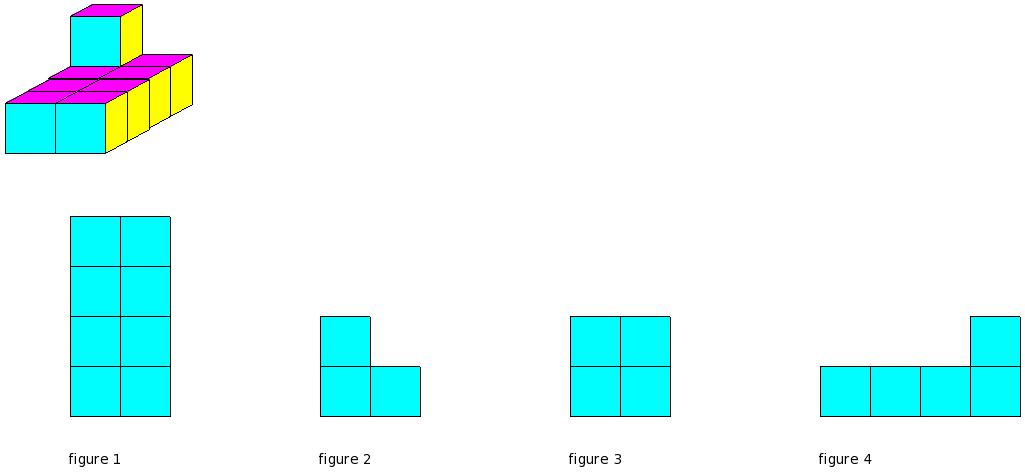

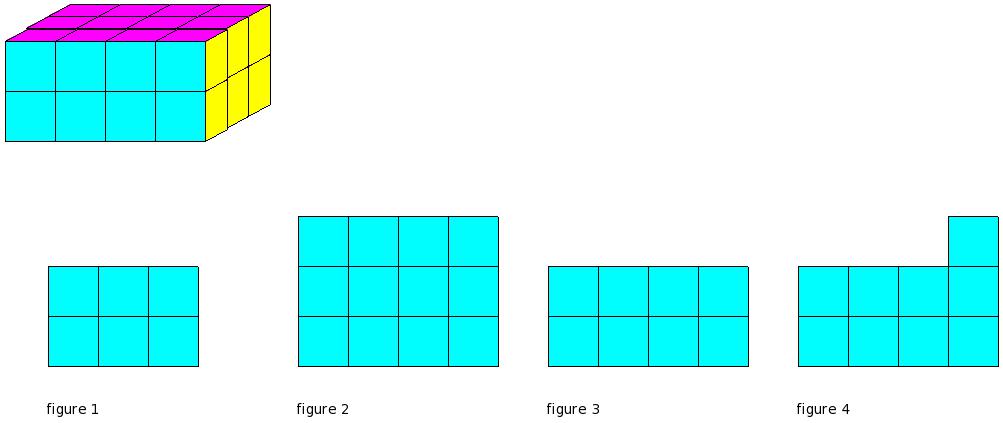

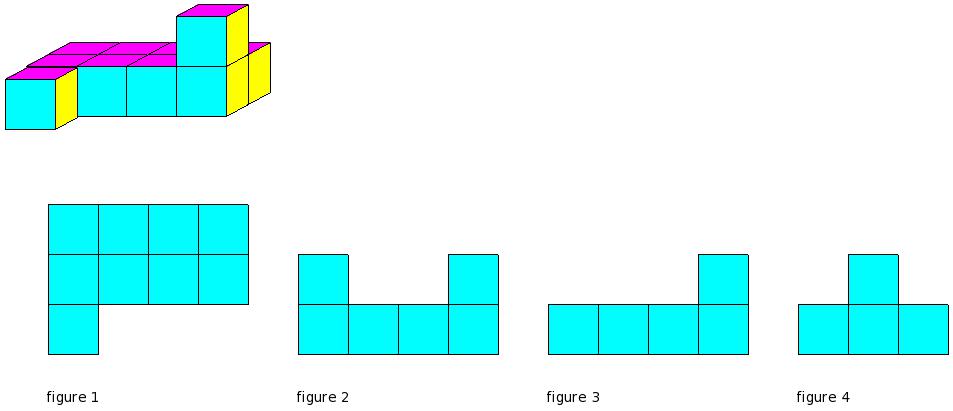

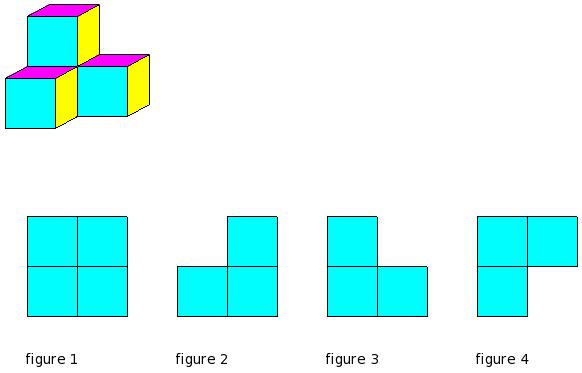

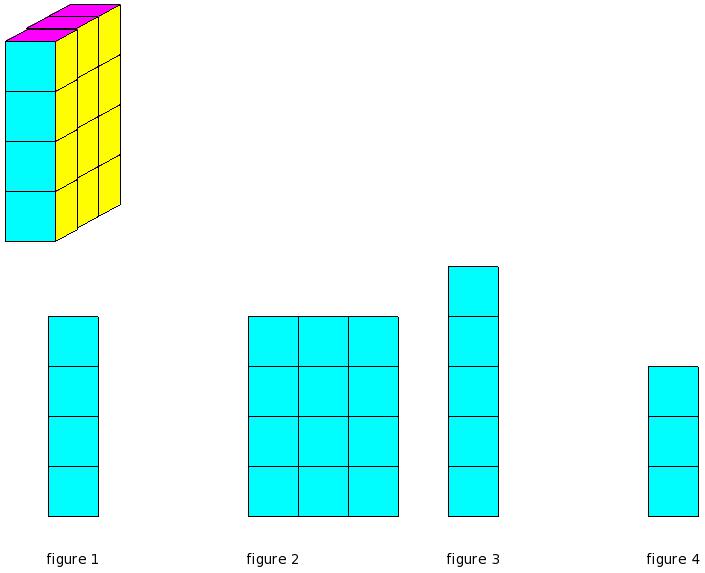

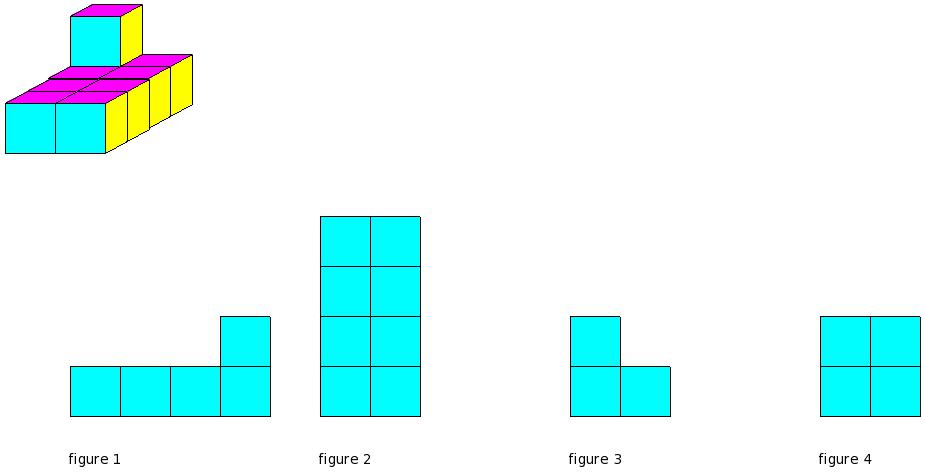

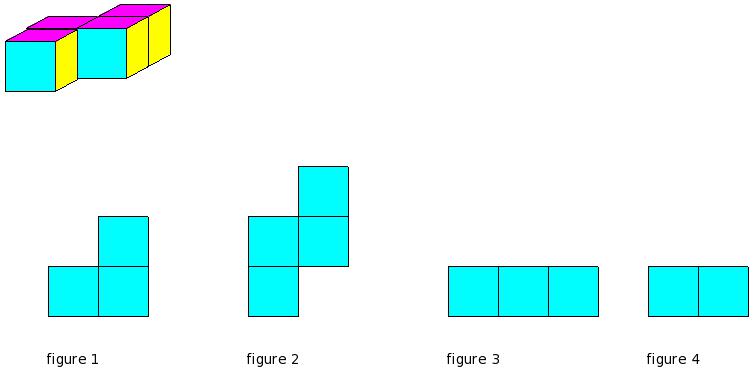

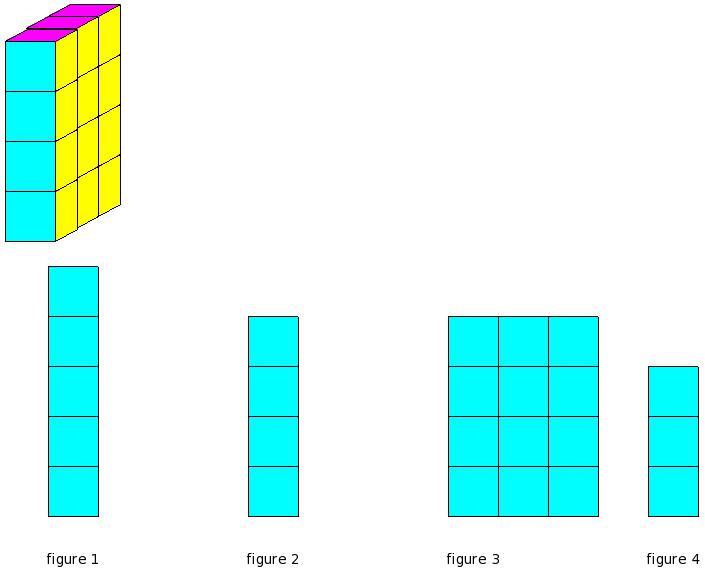

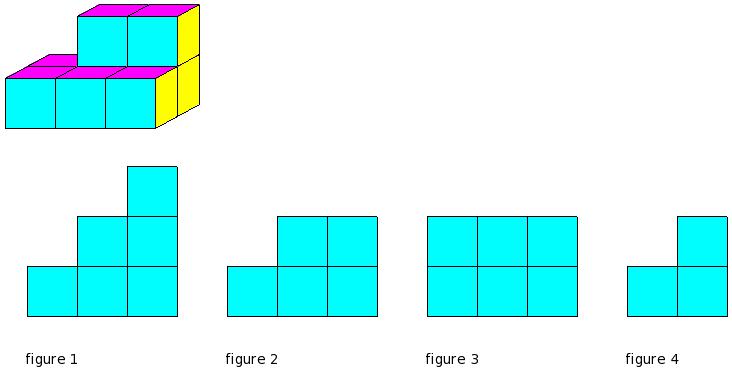

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 3
(iv)
figure 2
Question
3
3.

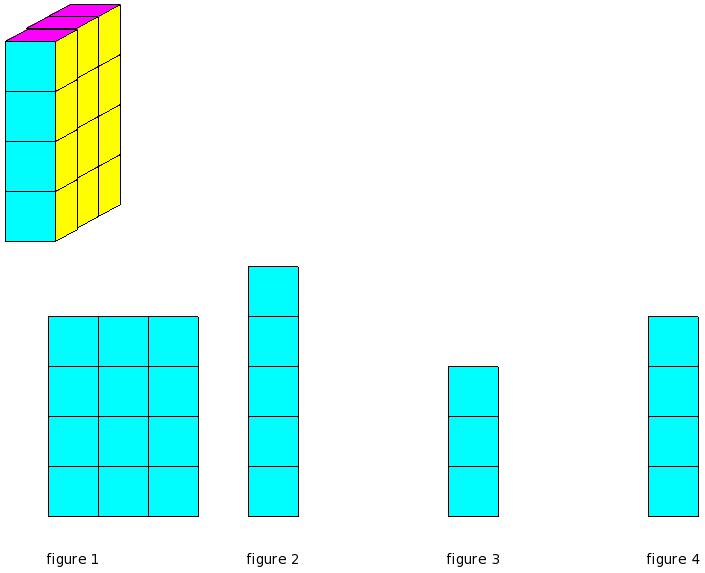

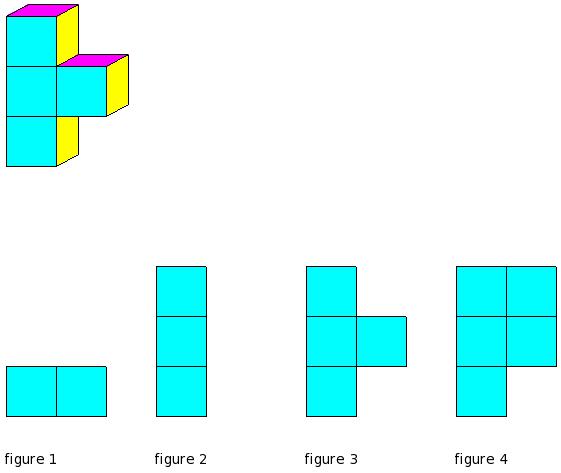

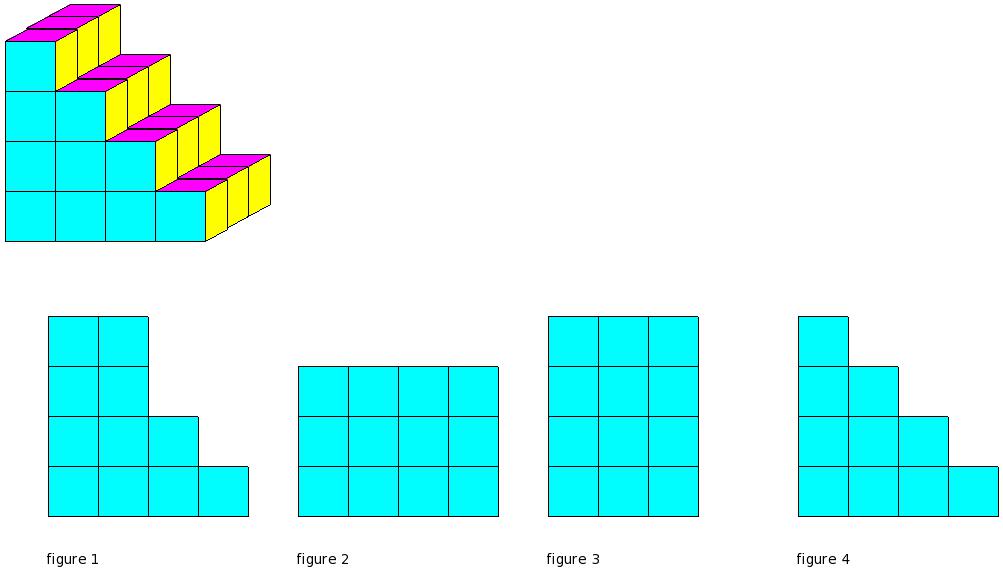

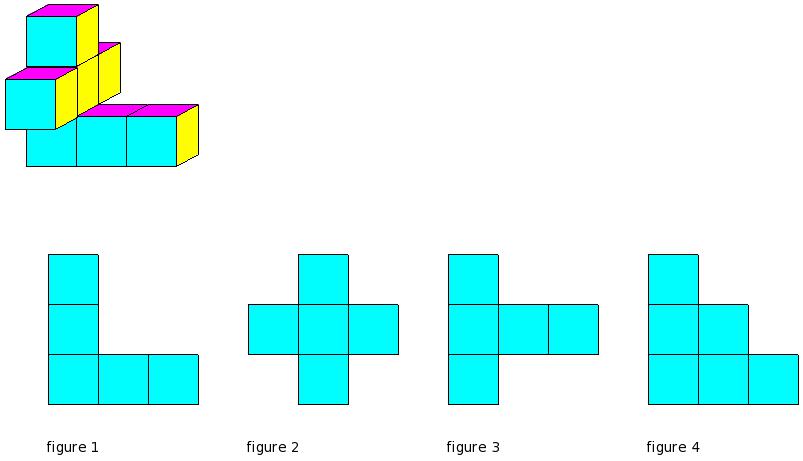

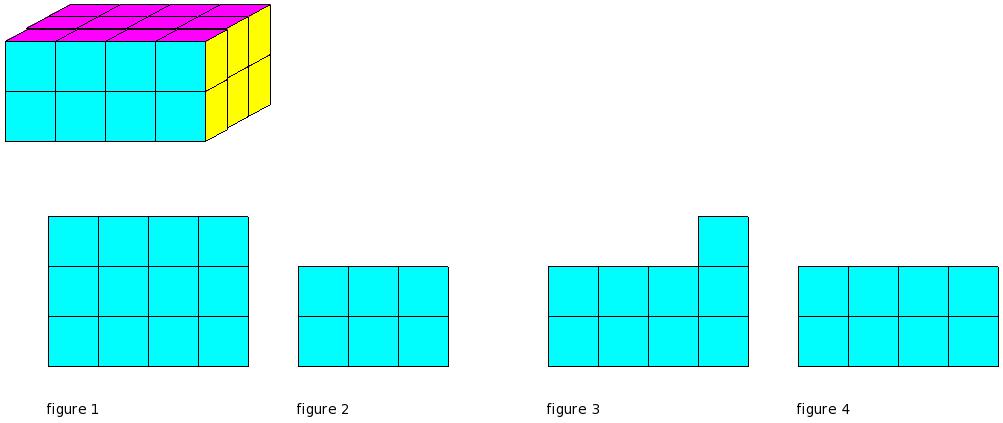

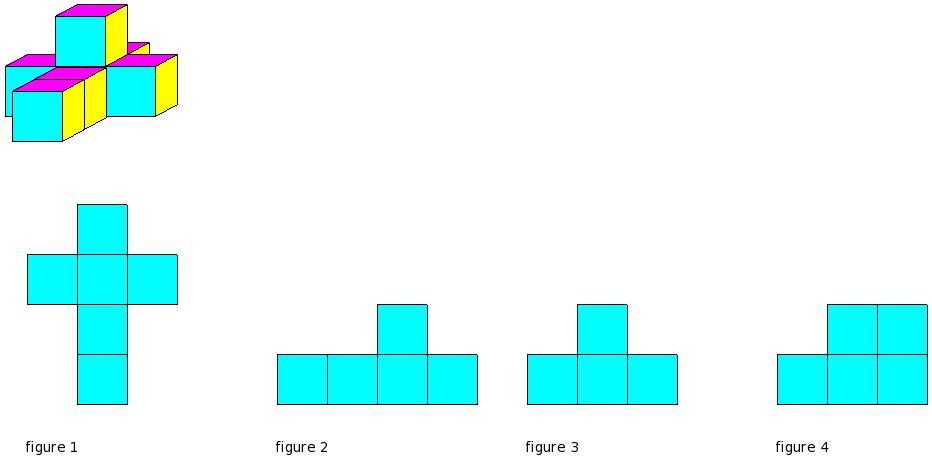

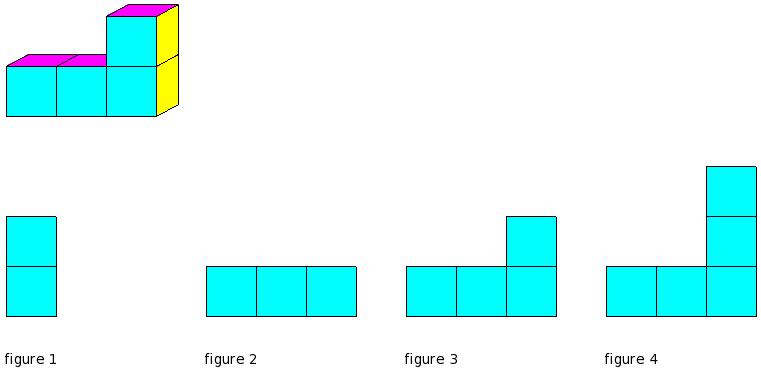

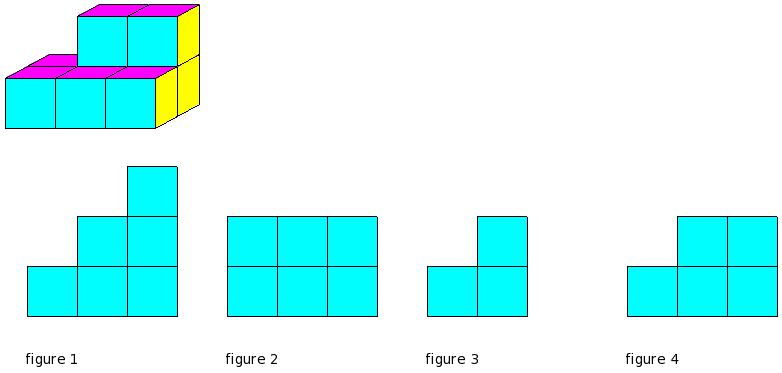

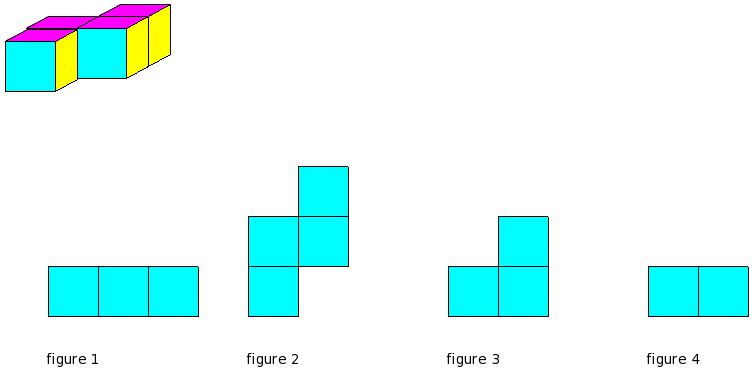

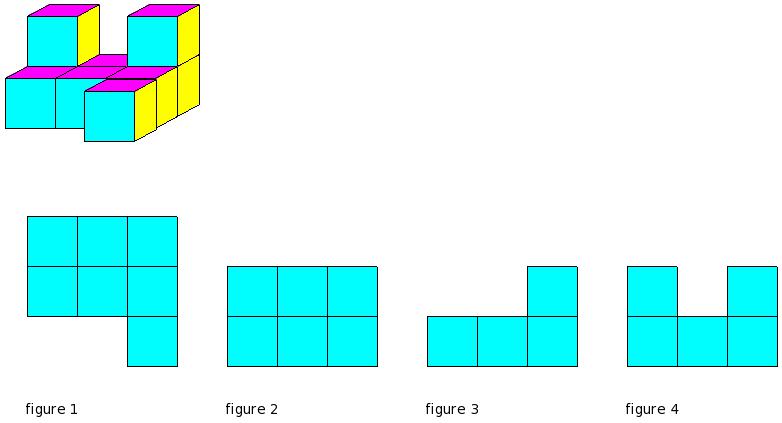

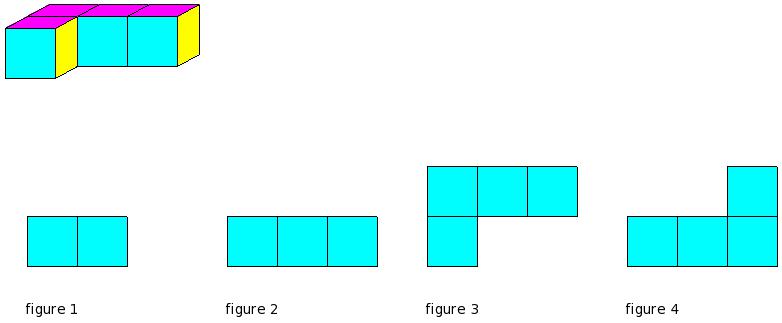

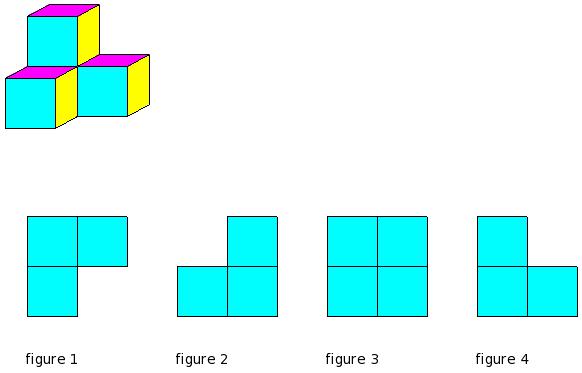

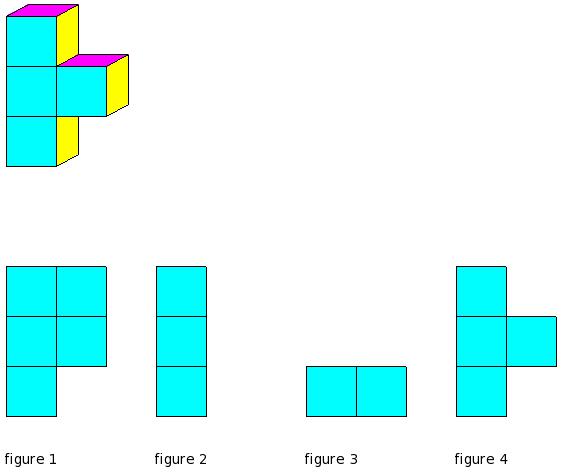

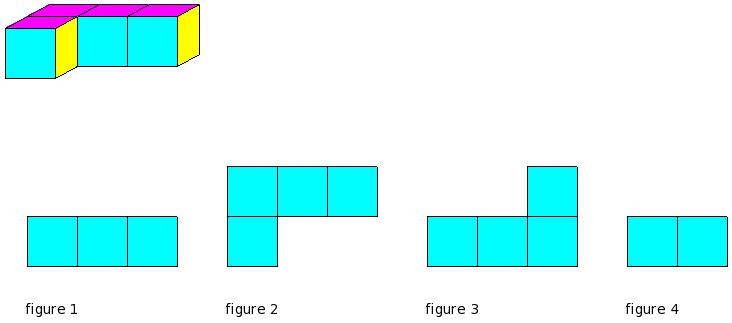

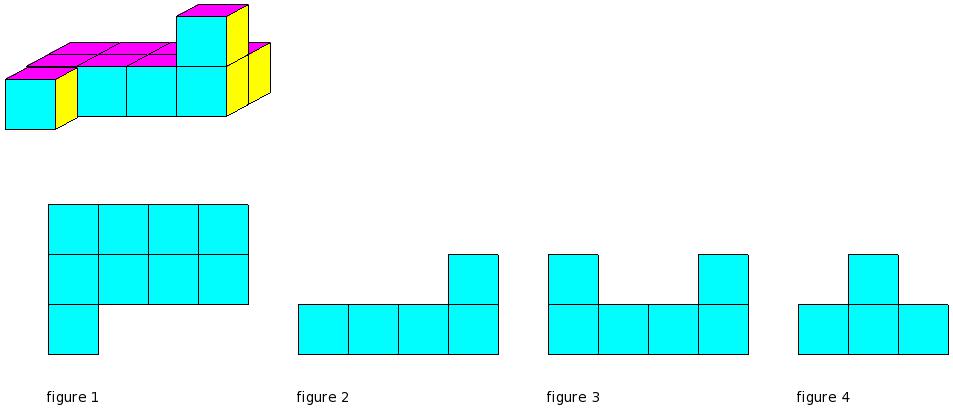

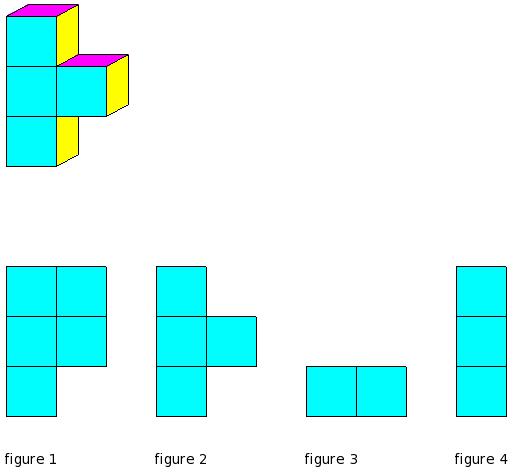

Which of the figures represent the front view of the given 3-D figure?
(i)
figure 2
(ii)
figure 1
(iii)
figure 4
(iv)
figure 3
Question
4
4.

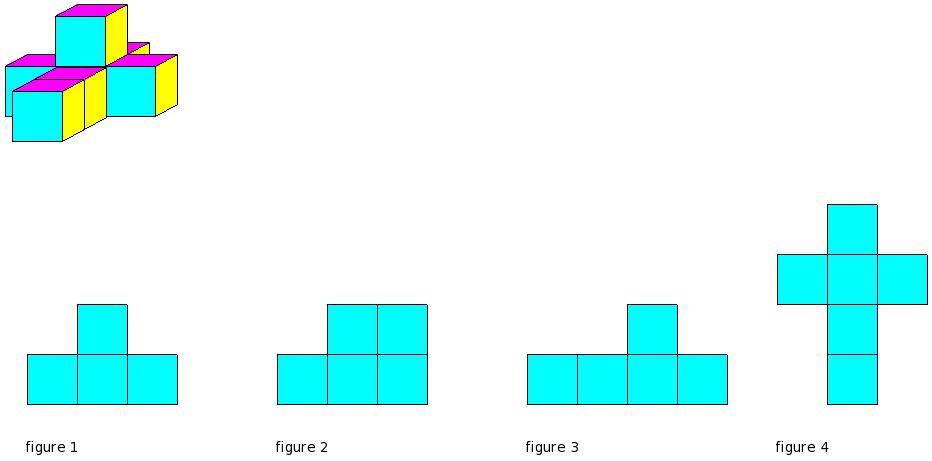

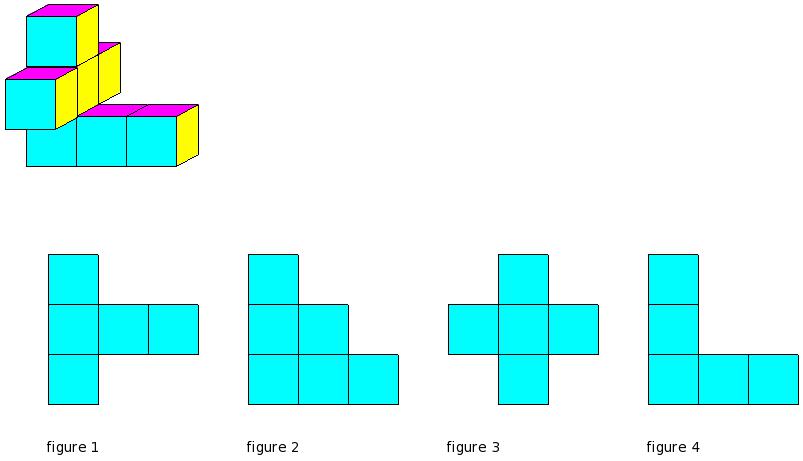

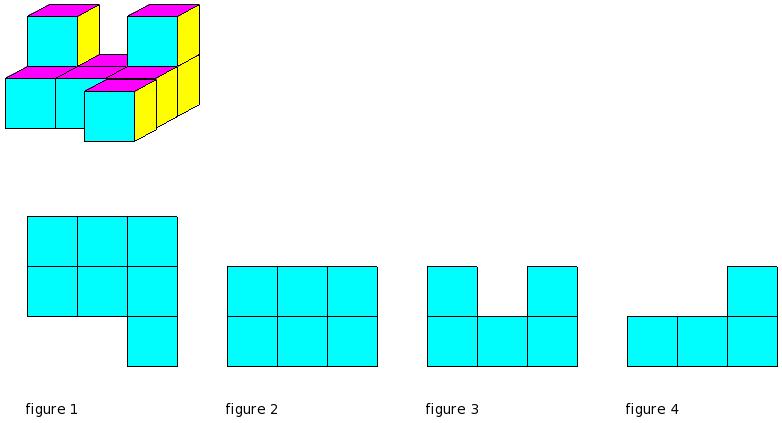

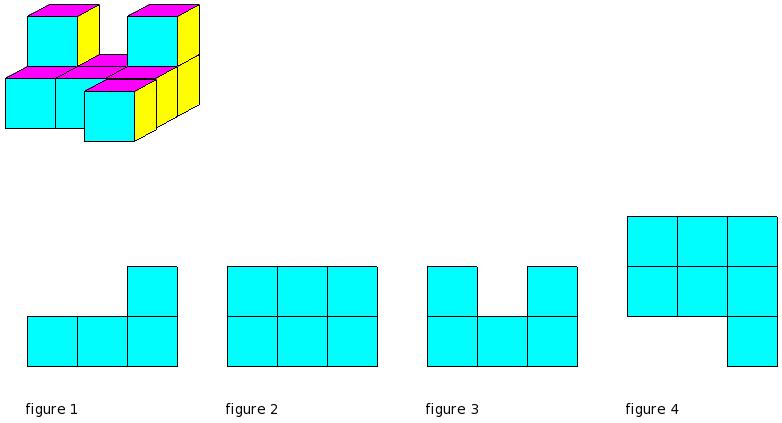

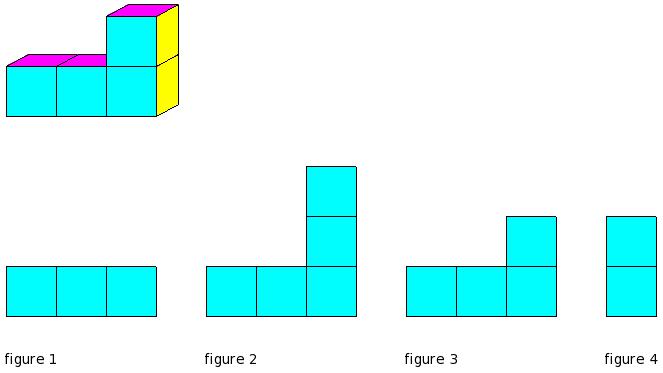

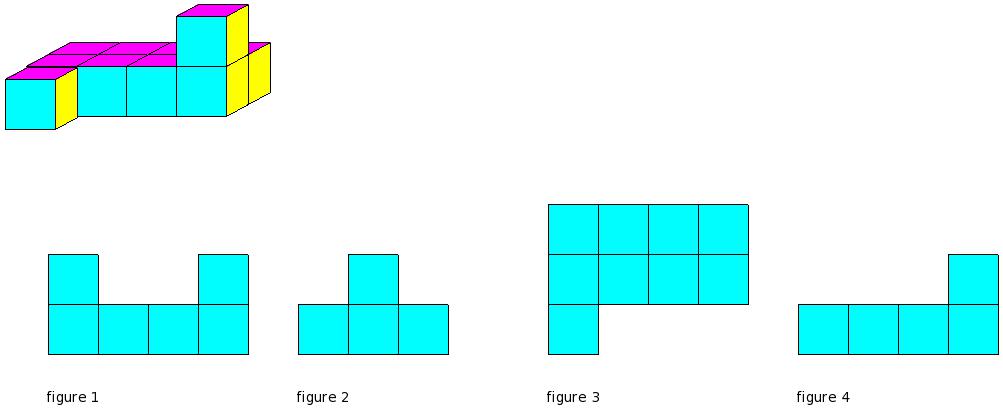

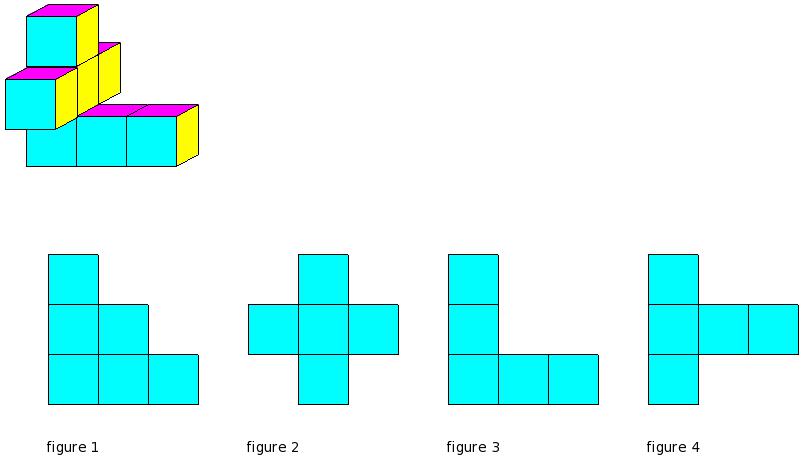

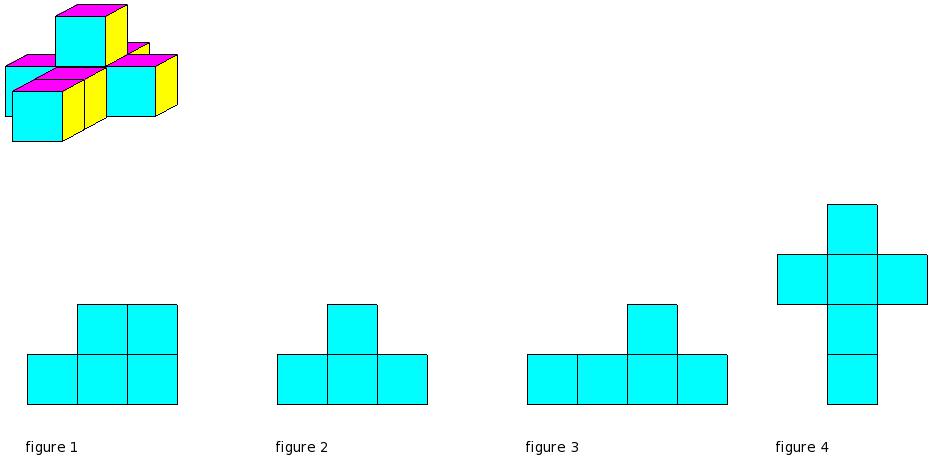

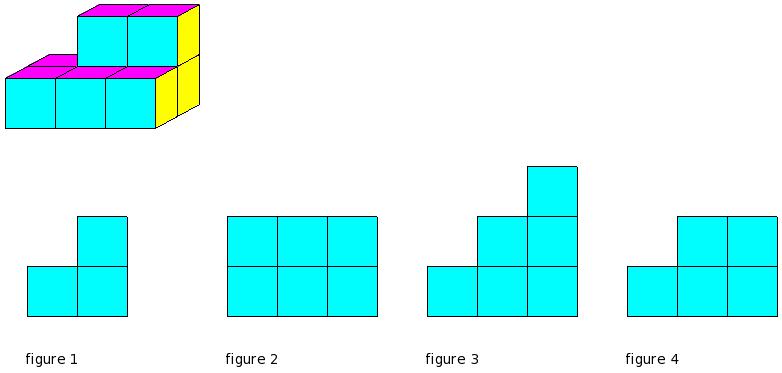

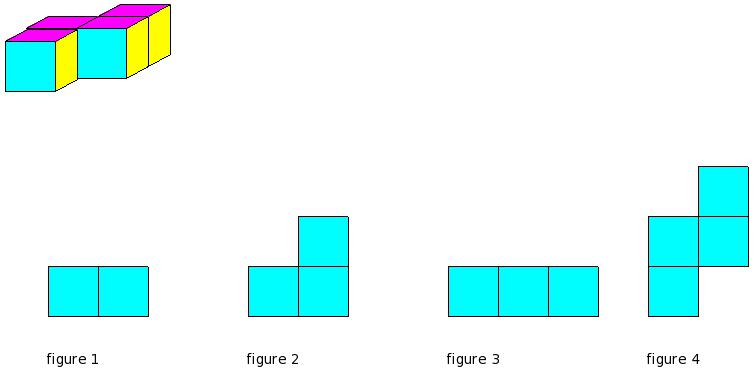

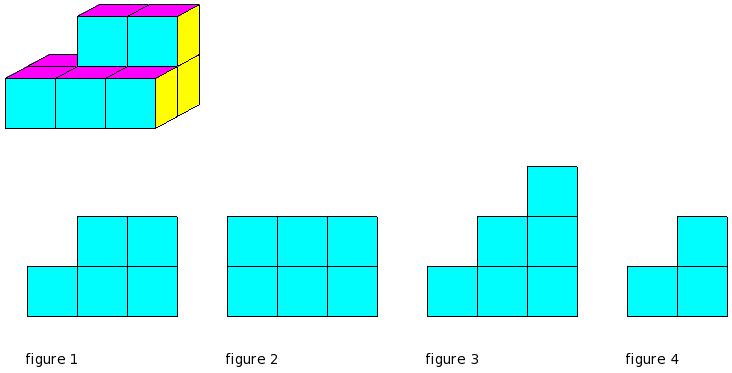

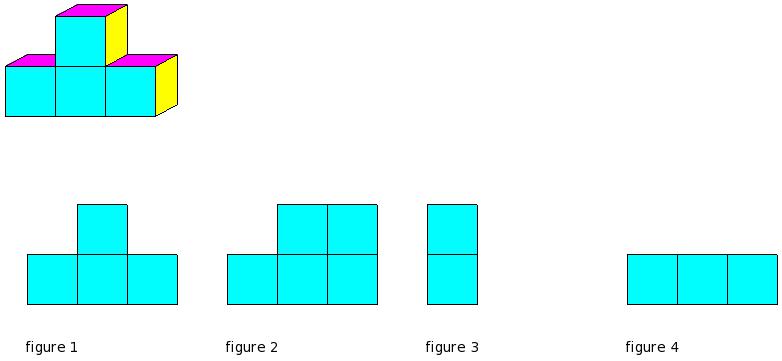

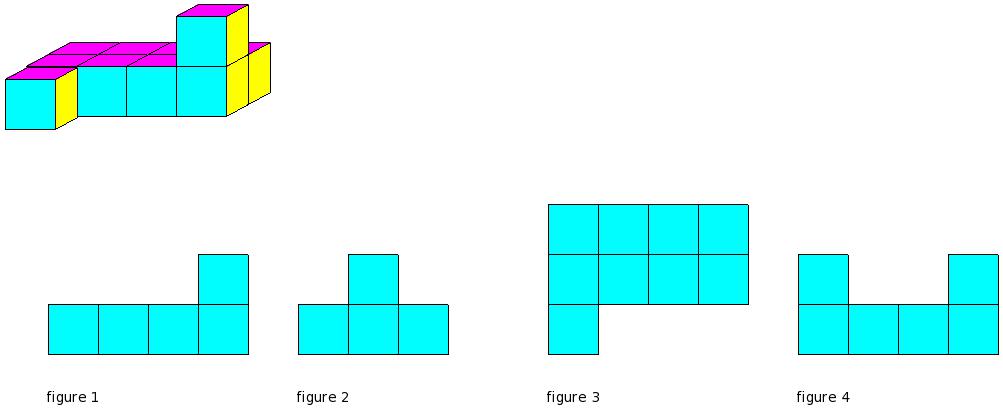

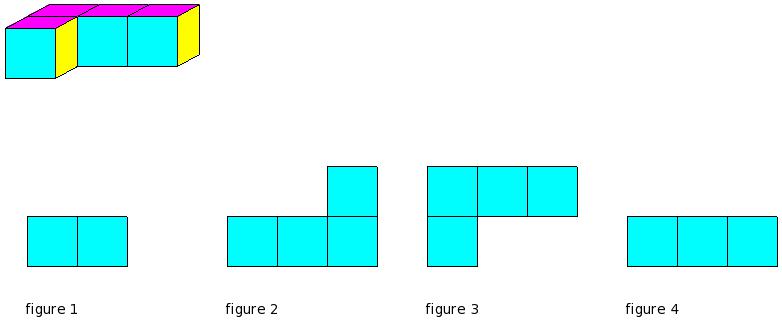

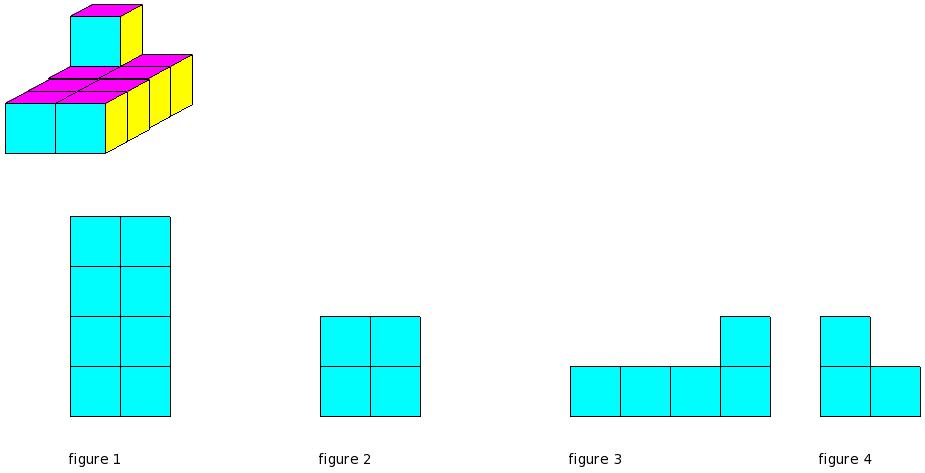

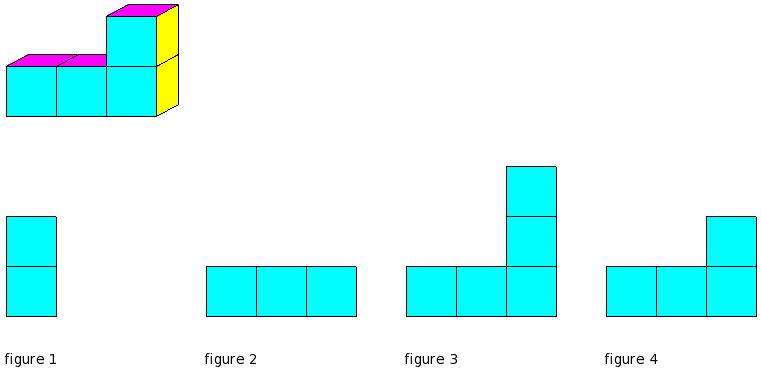

Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 2
(iv)
figure 4
Question
5
5.

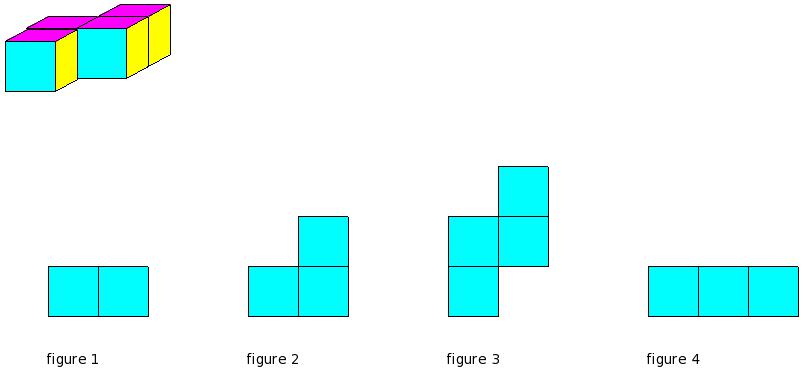

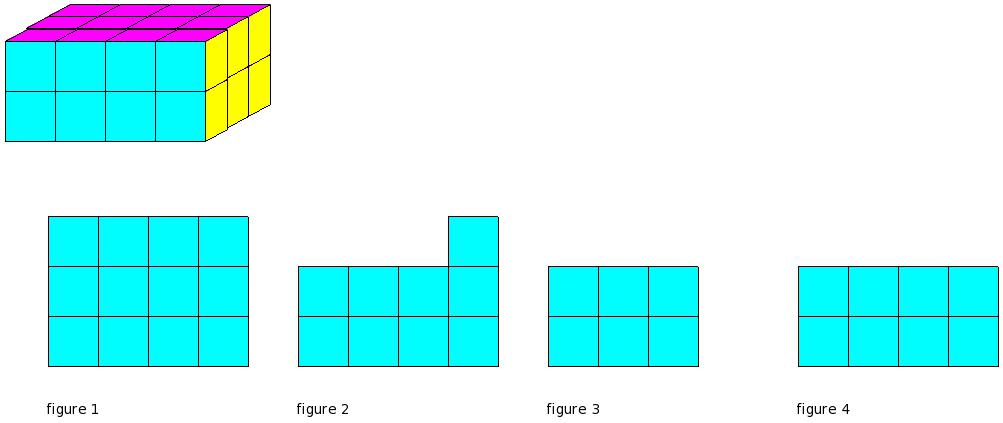

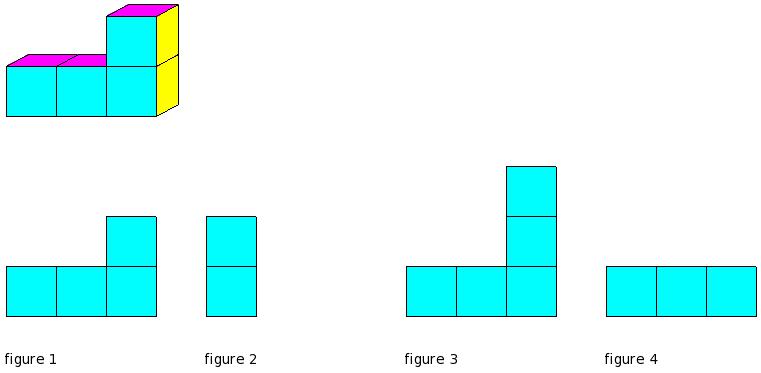

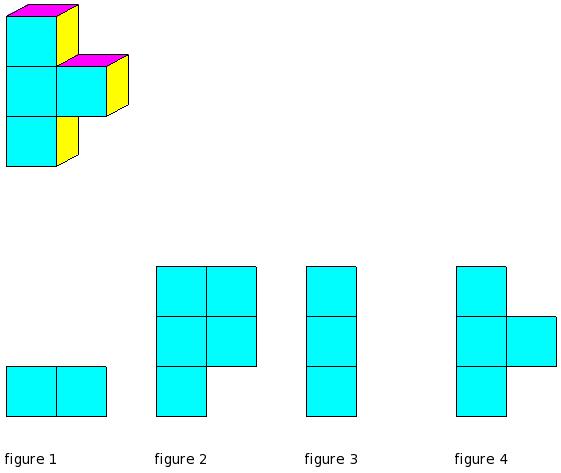

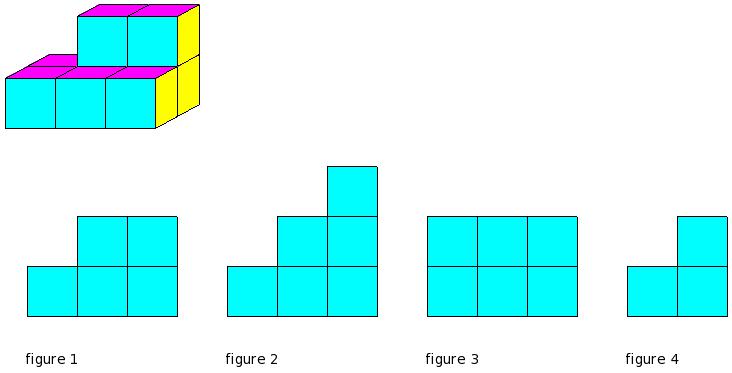

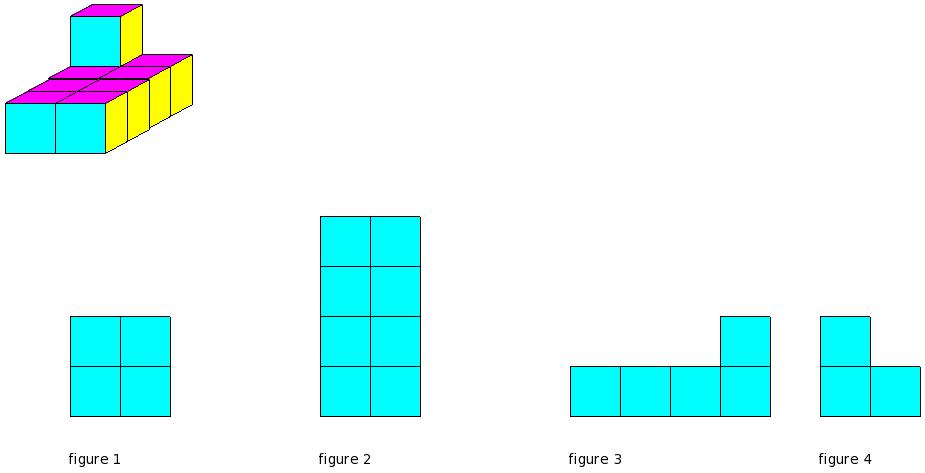

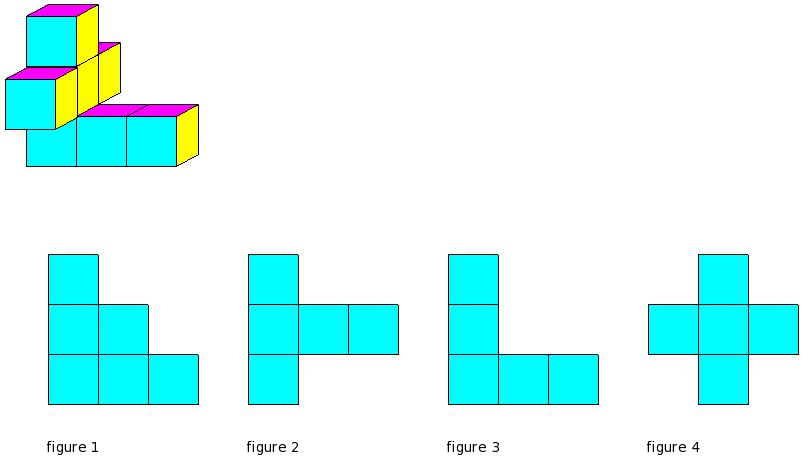

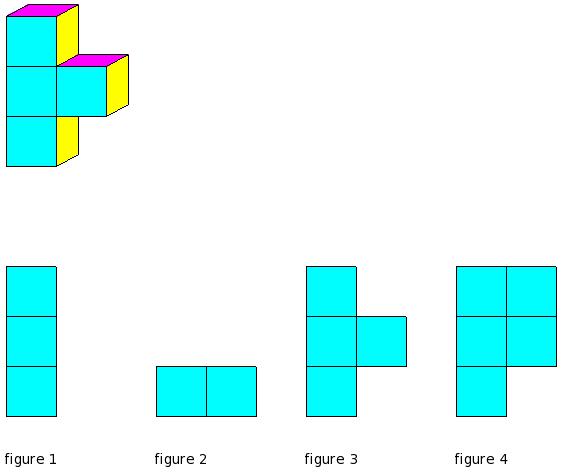

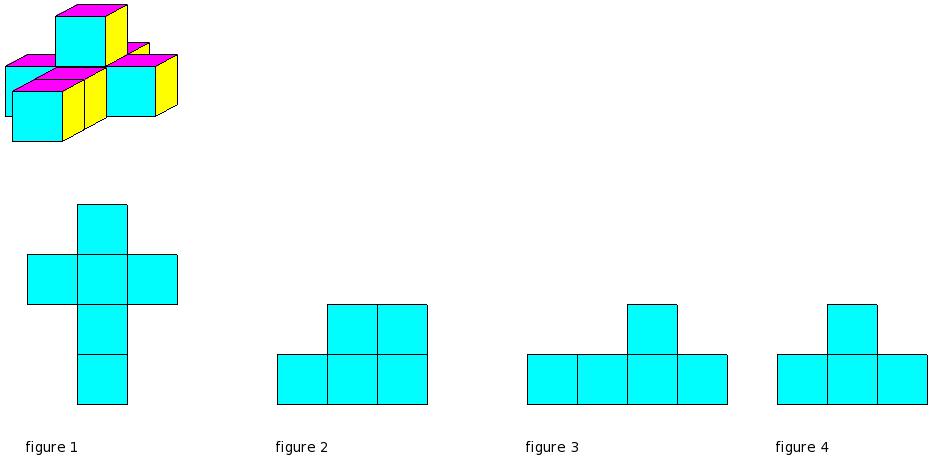

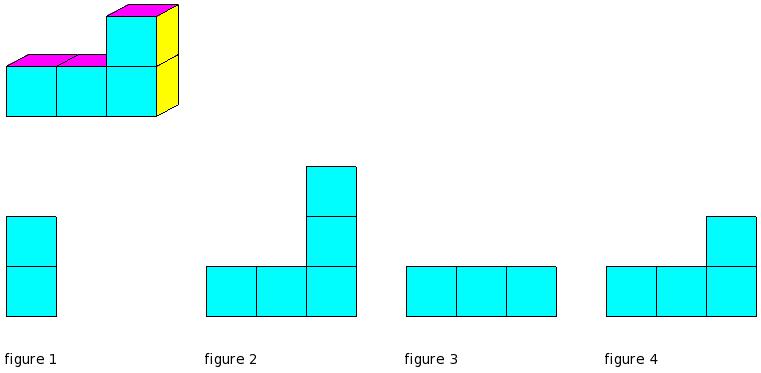

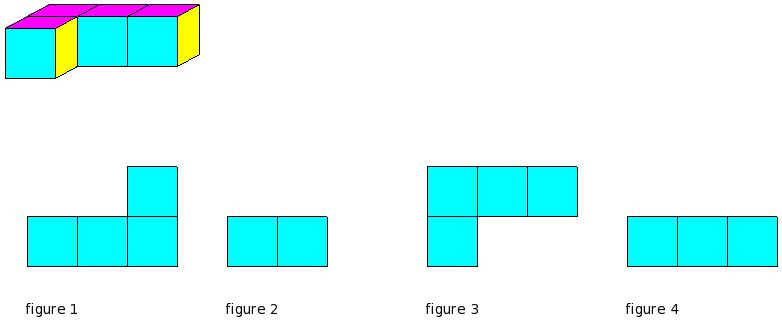

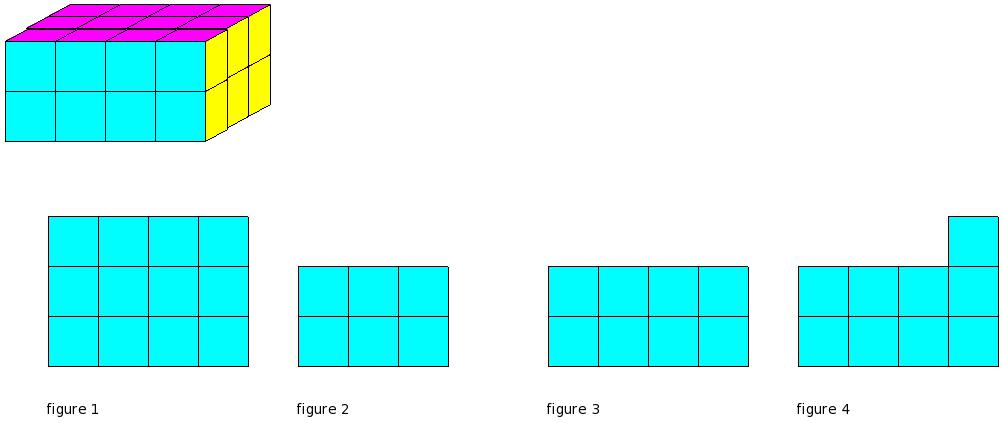

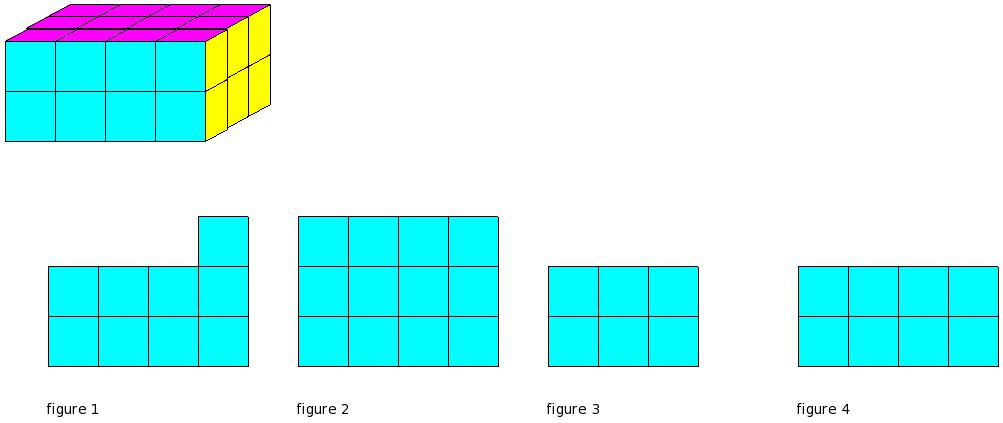

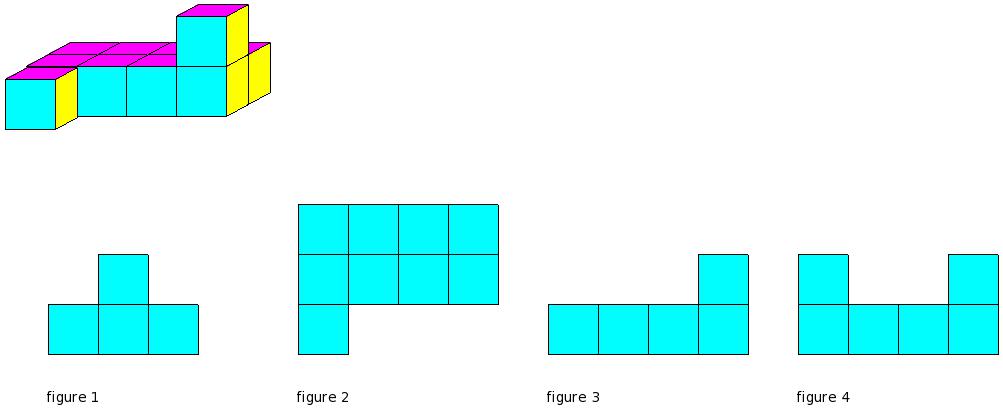

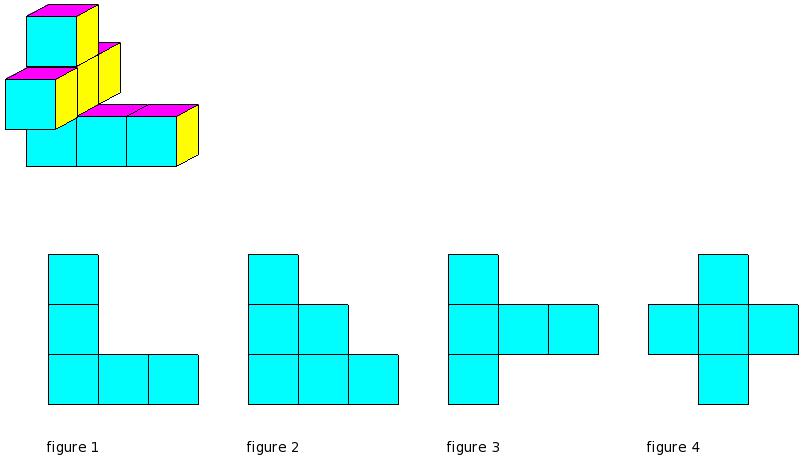

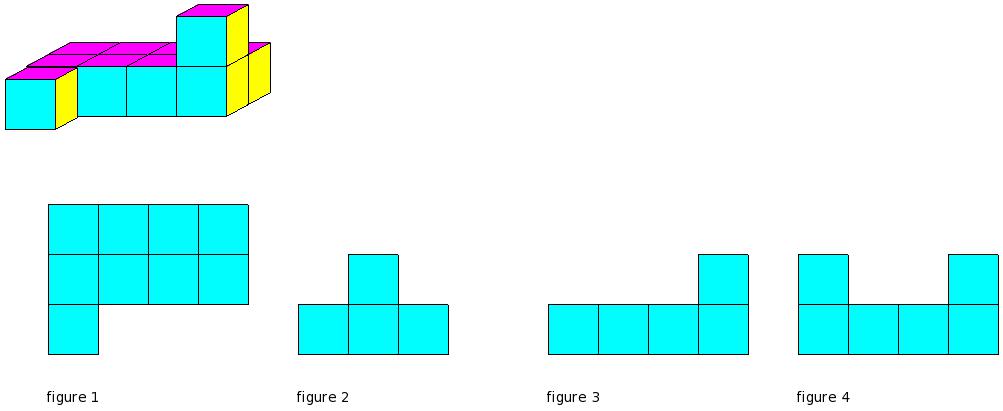

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 2
(iv)
figure 4
Question
6
6.

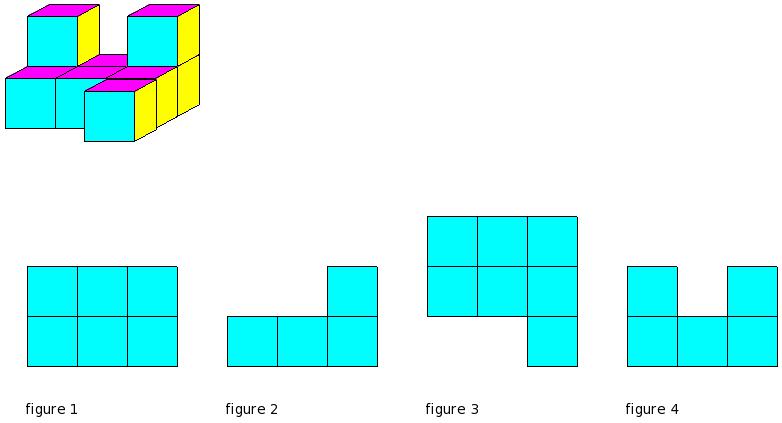

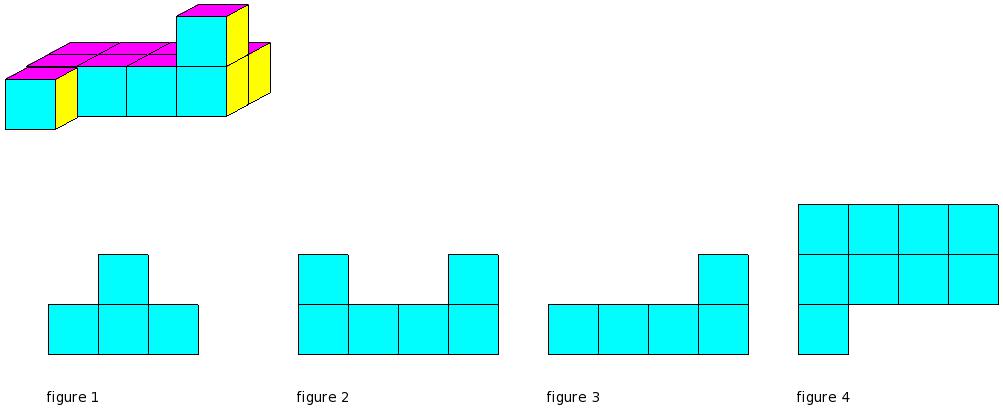

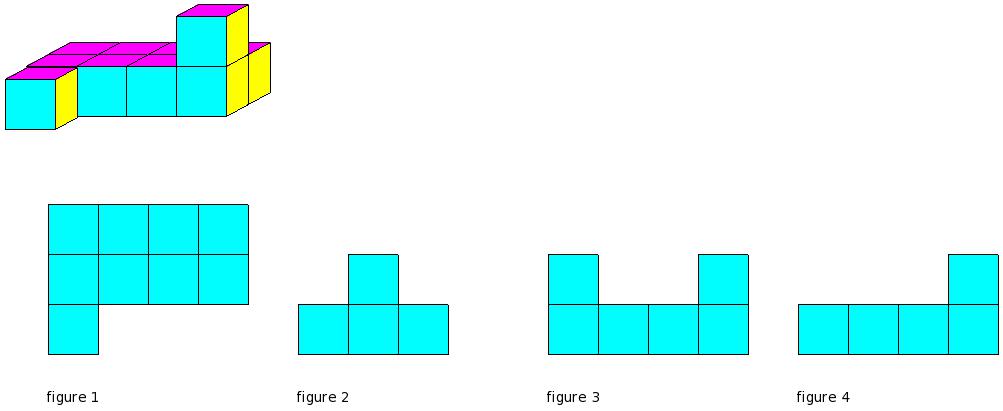

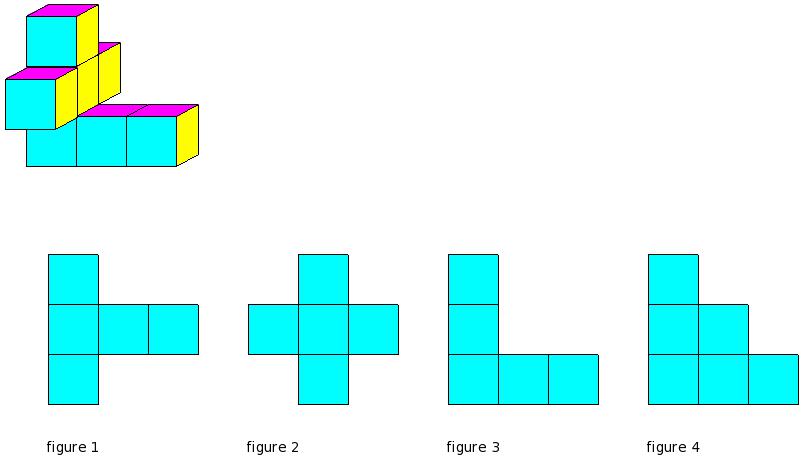

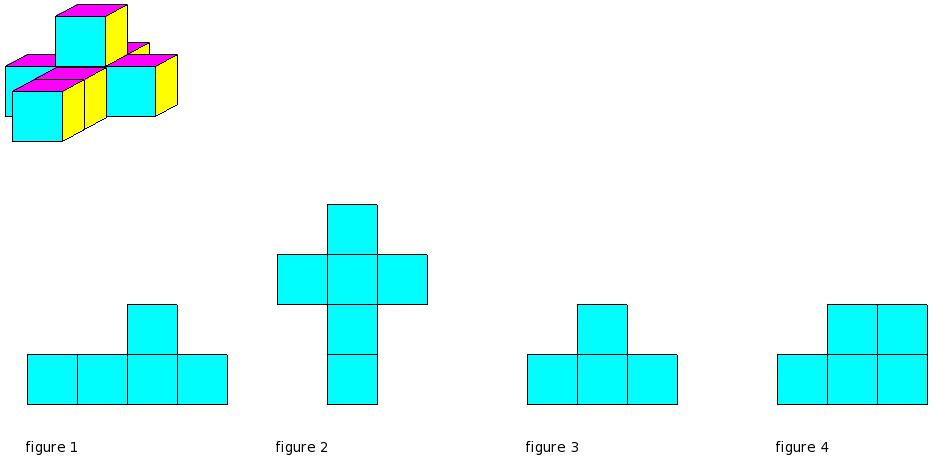

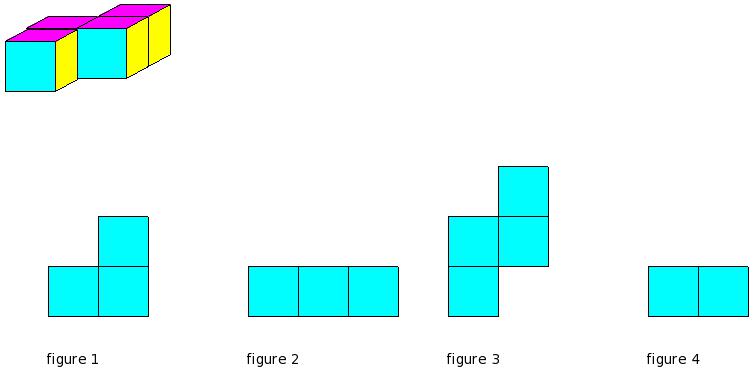

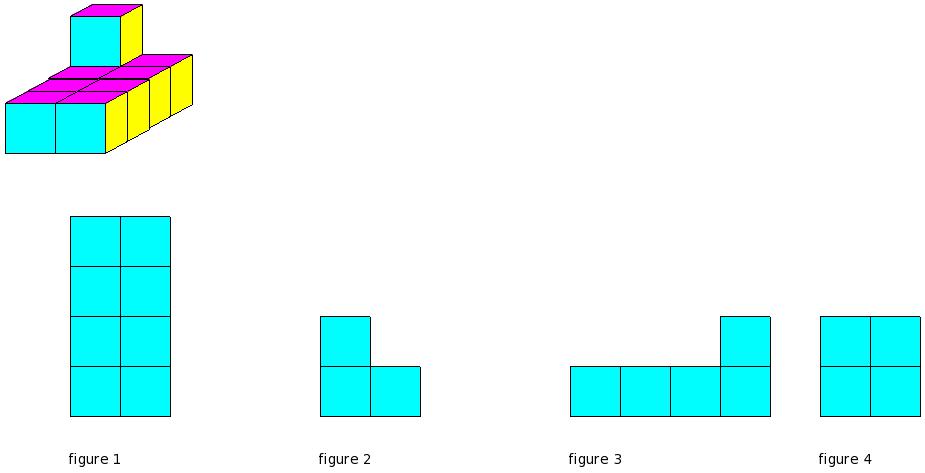

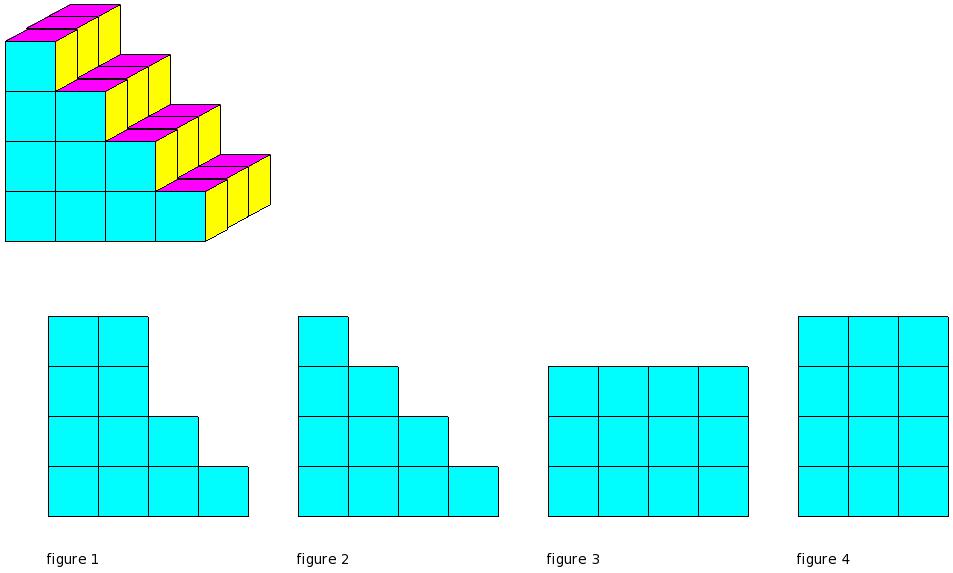

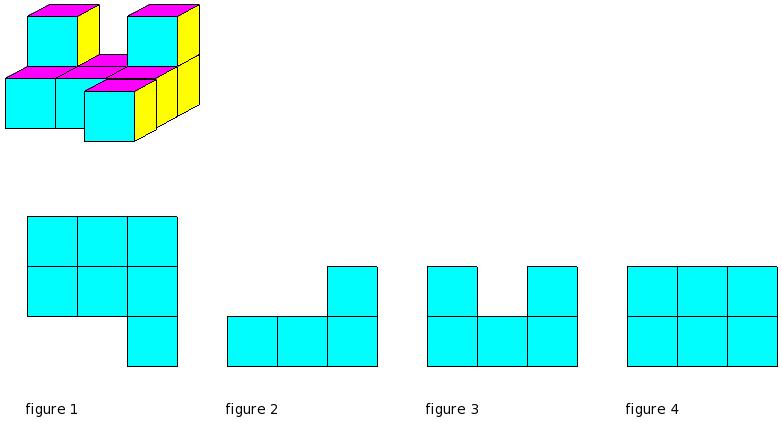

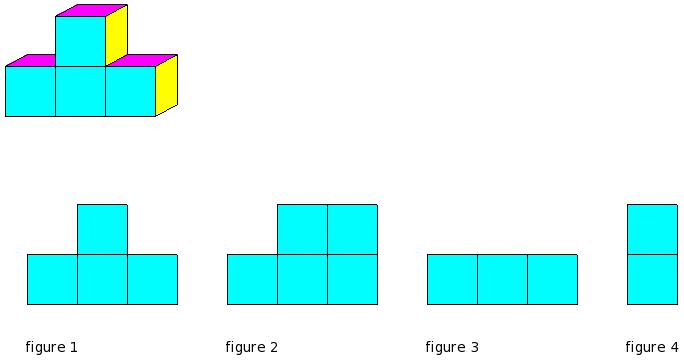

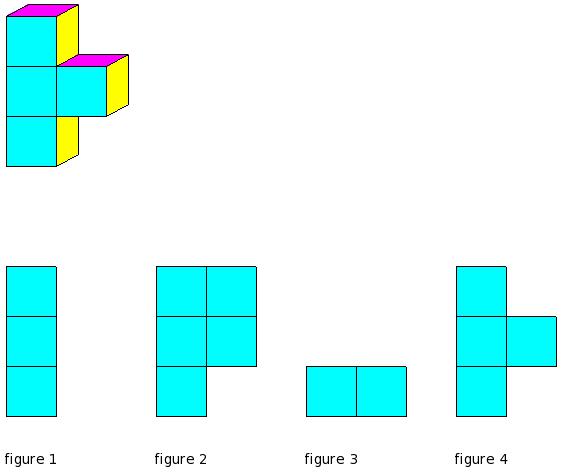

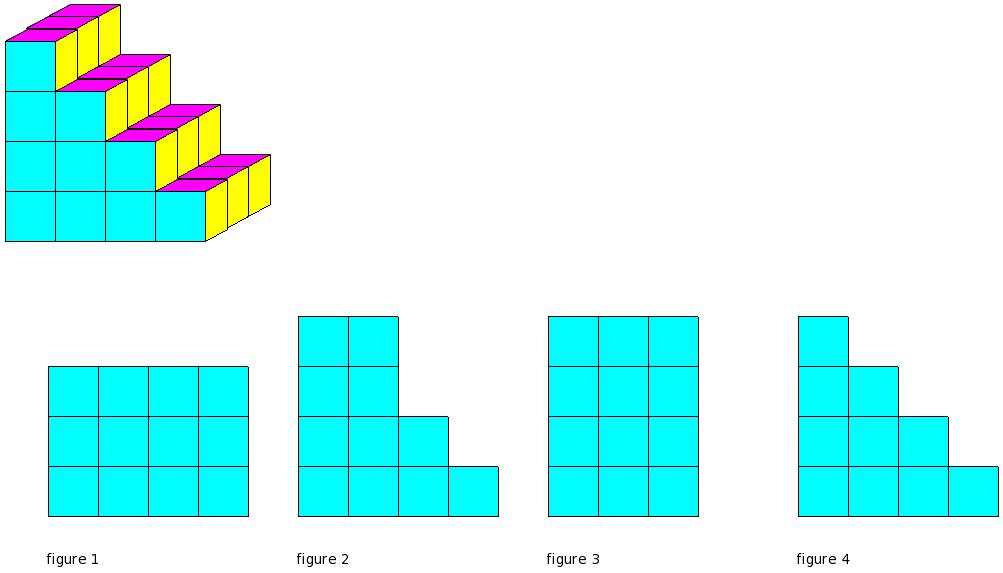

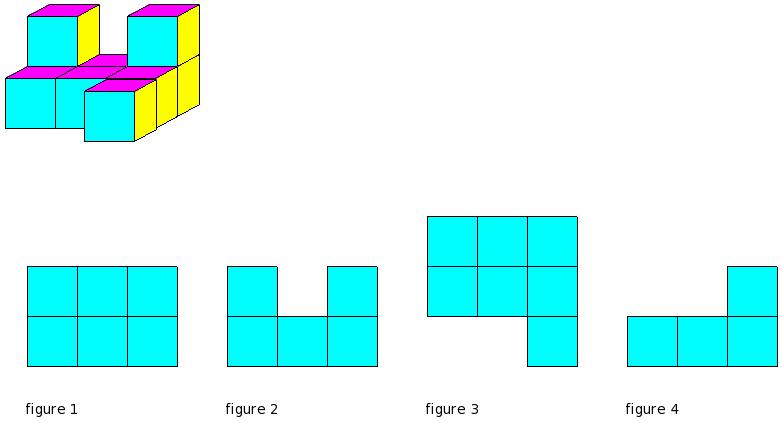

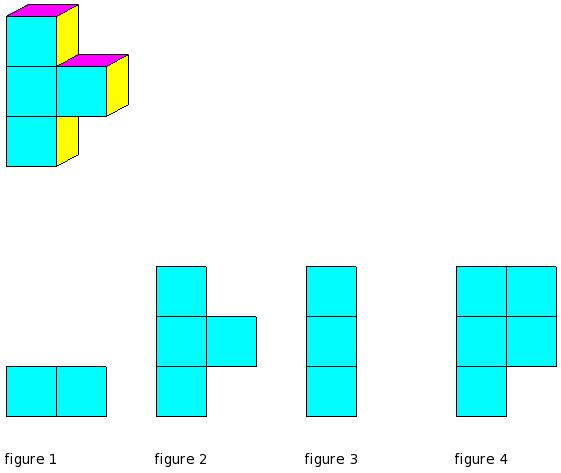

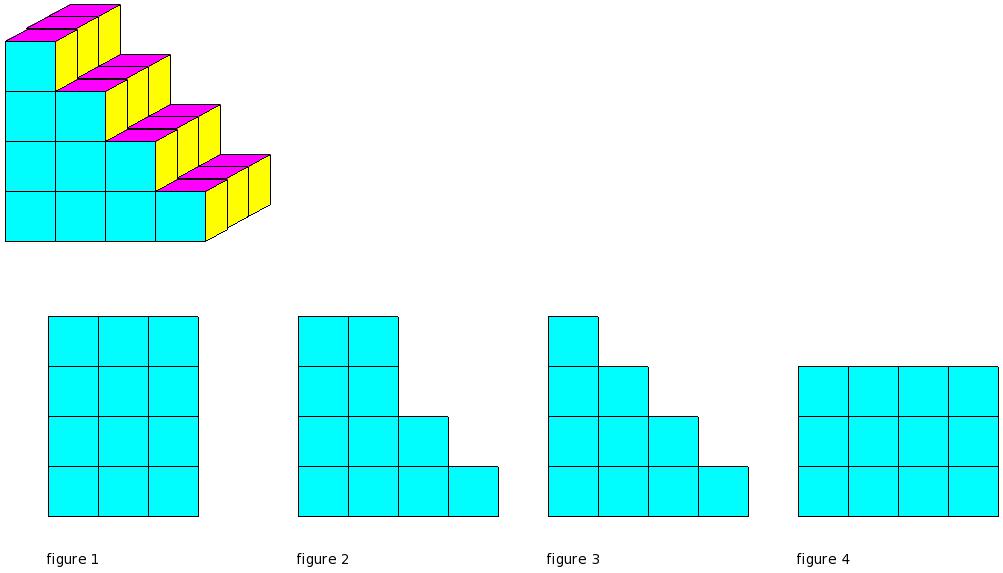

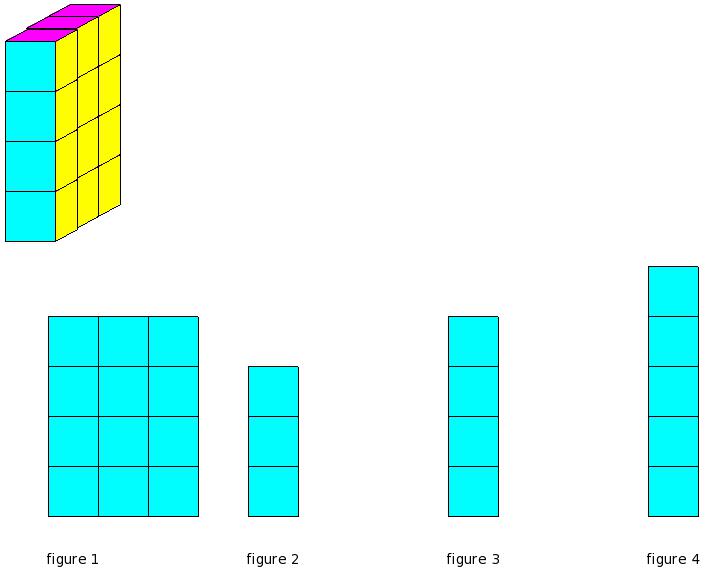

Which of the figures represent the front view of the given 3-D figure?
(i)
figure 2
(ii)
figure 1
(iii)
figure 3
(iv)
figure 4
Question
7
7.

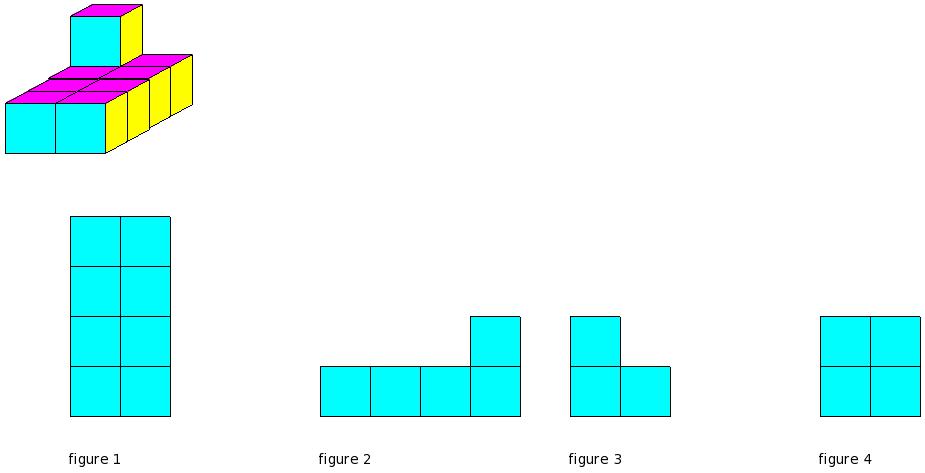

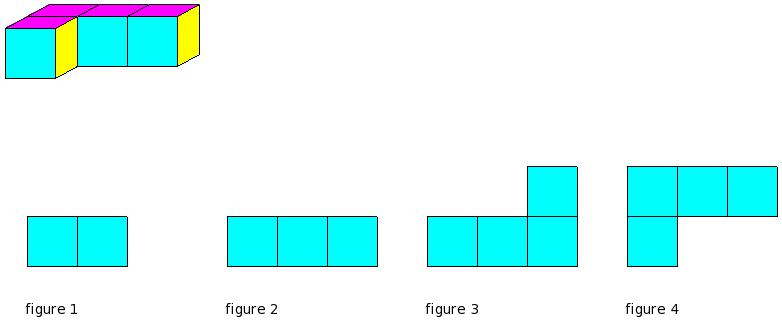

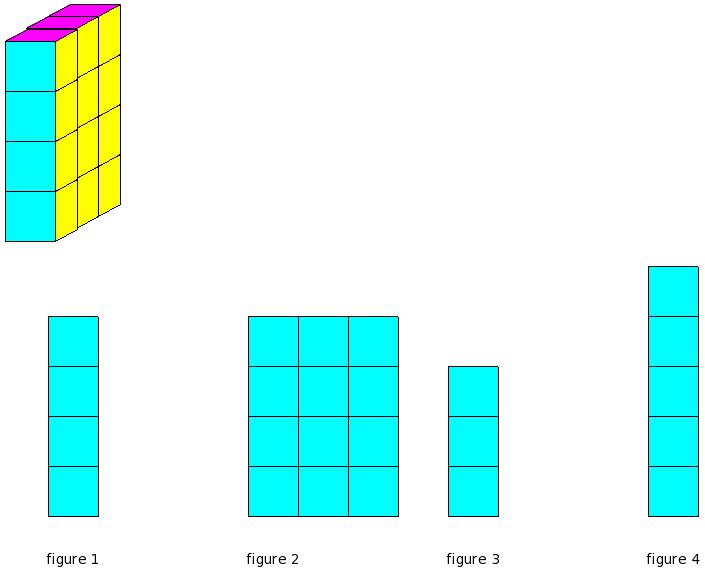

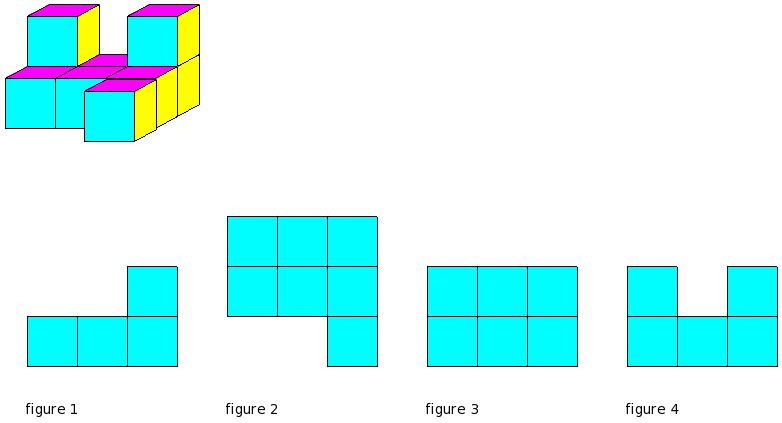

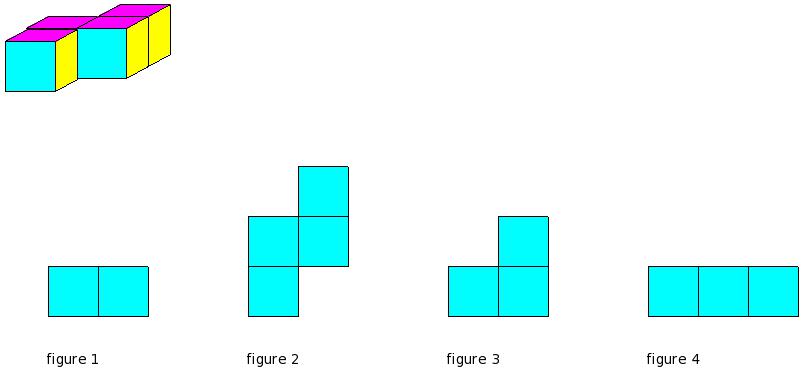

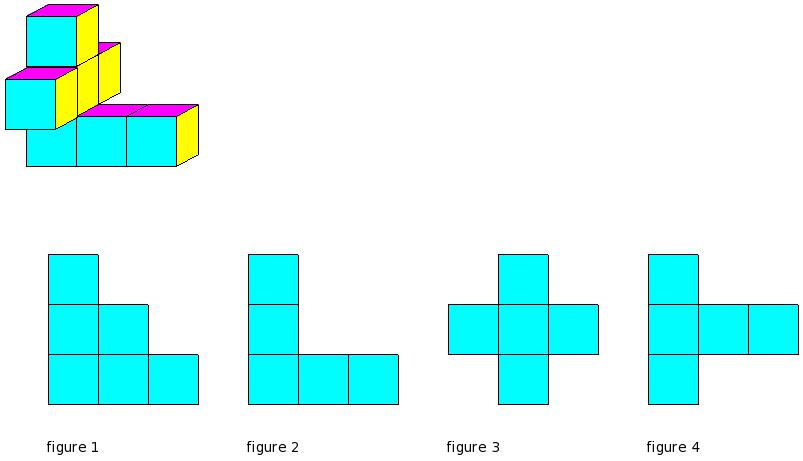

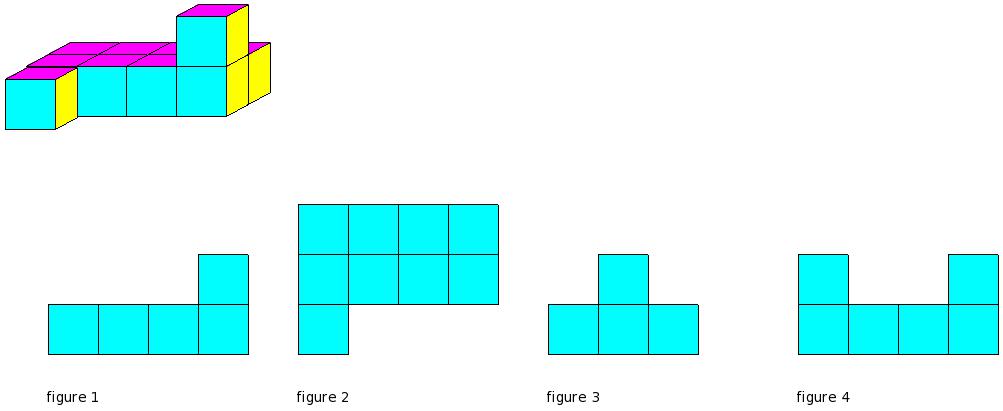

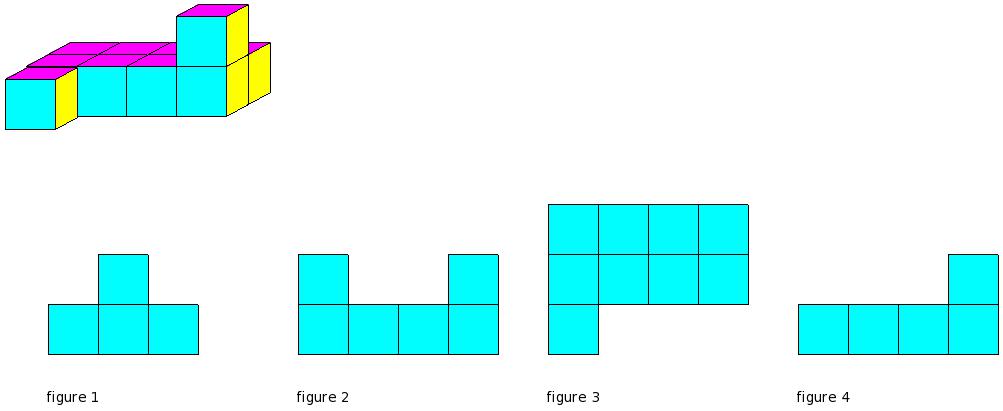

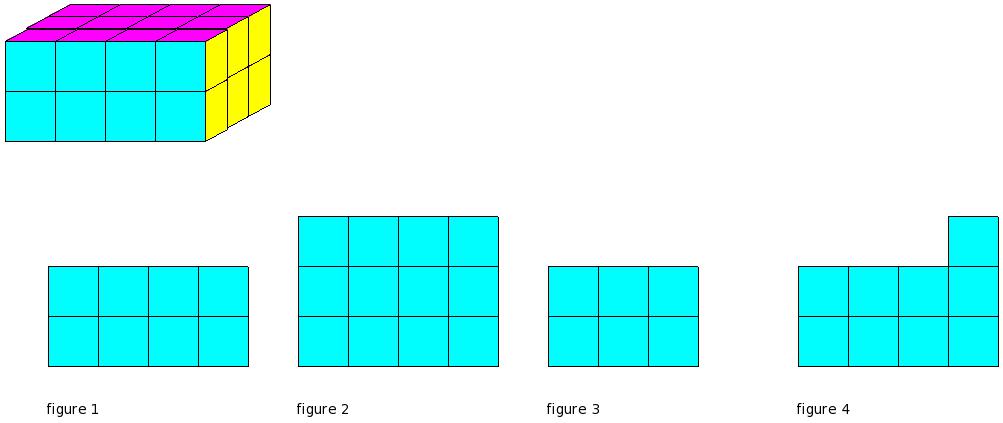

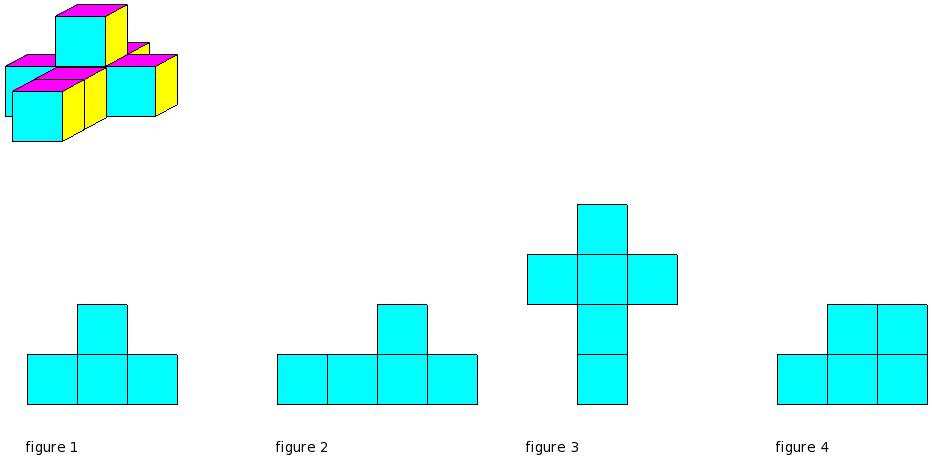

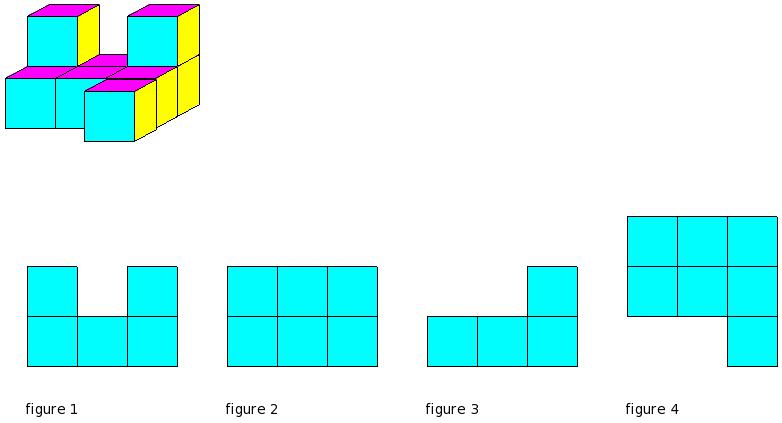

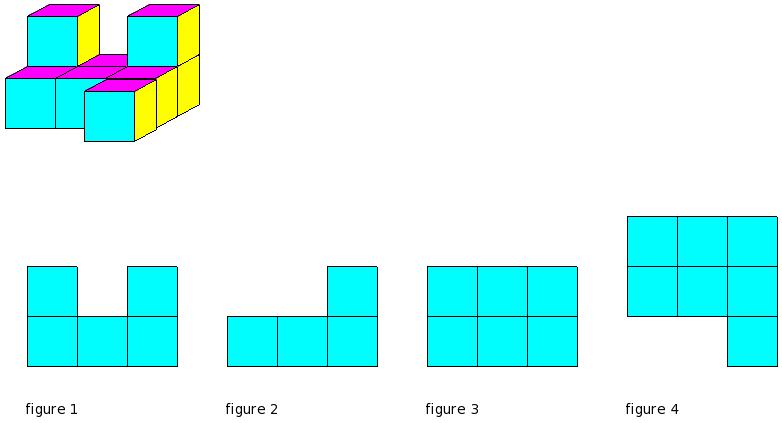

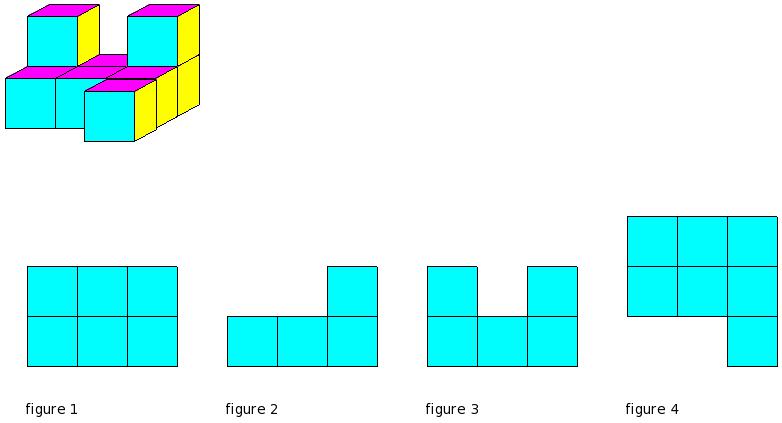

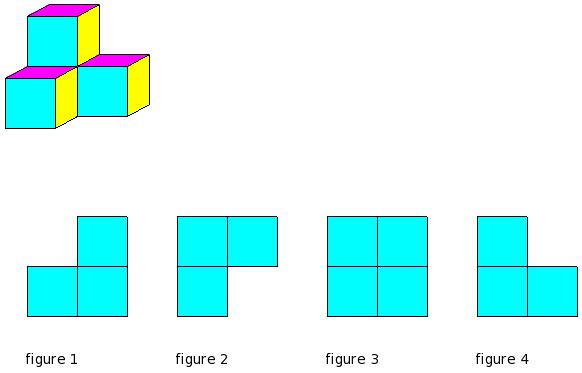

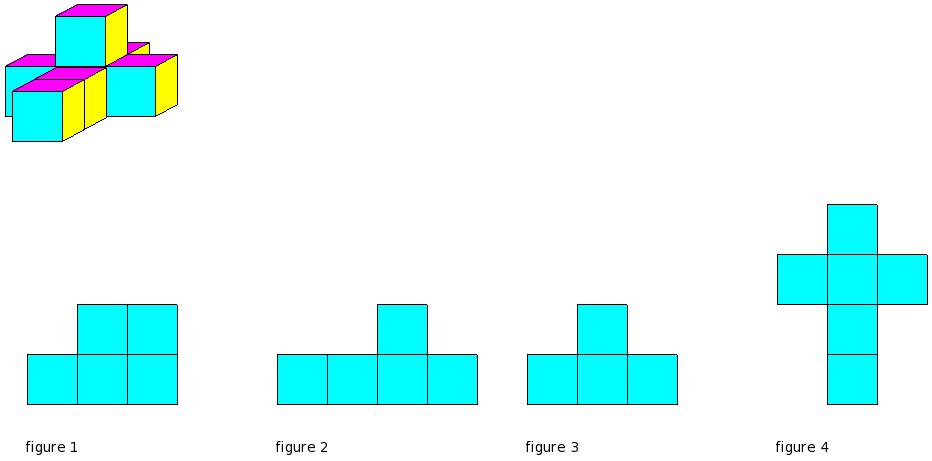

Which of the figures represent the side view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 1
(iv)
figure 4
Question
8
8.

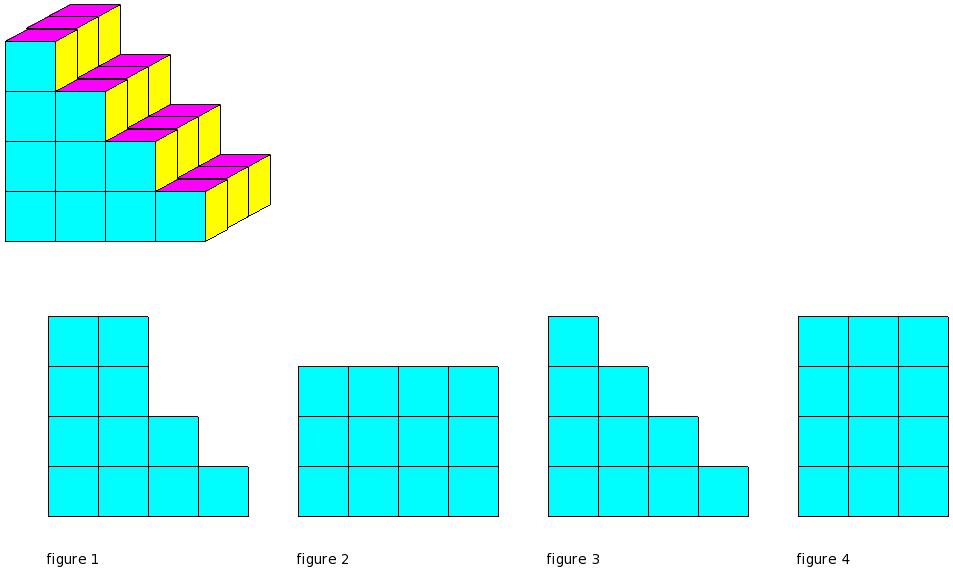

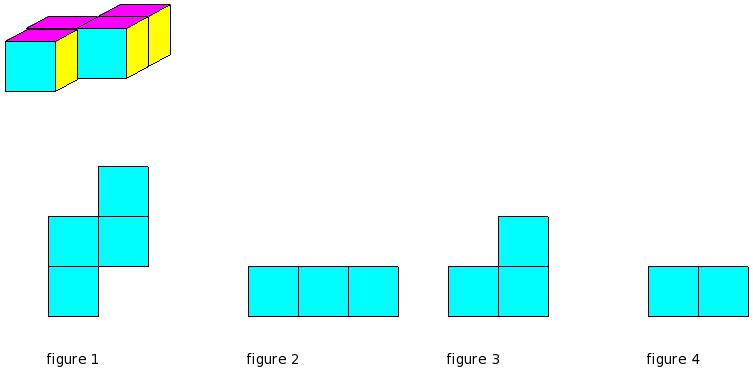

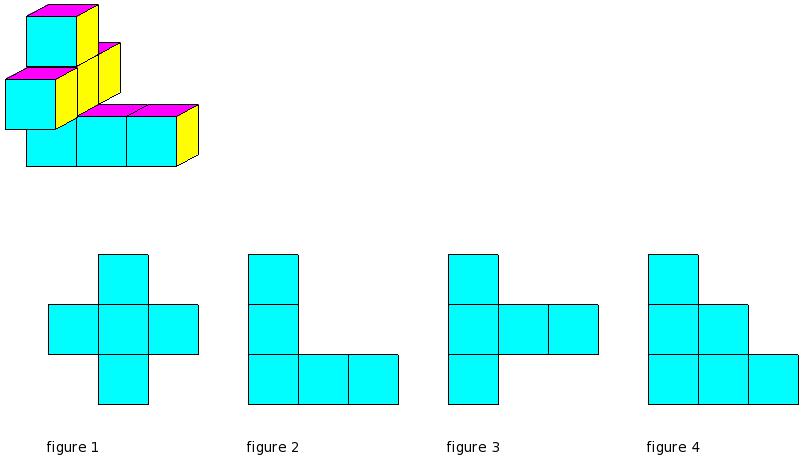

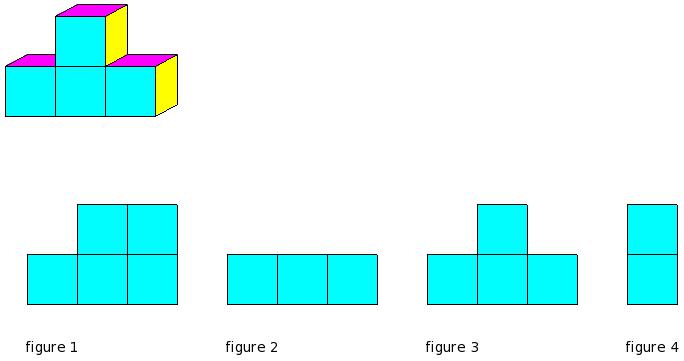

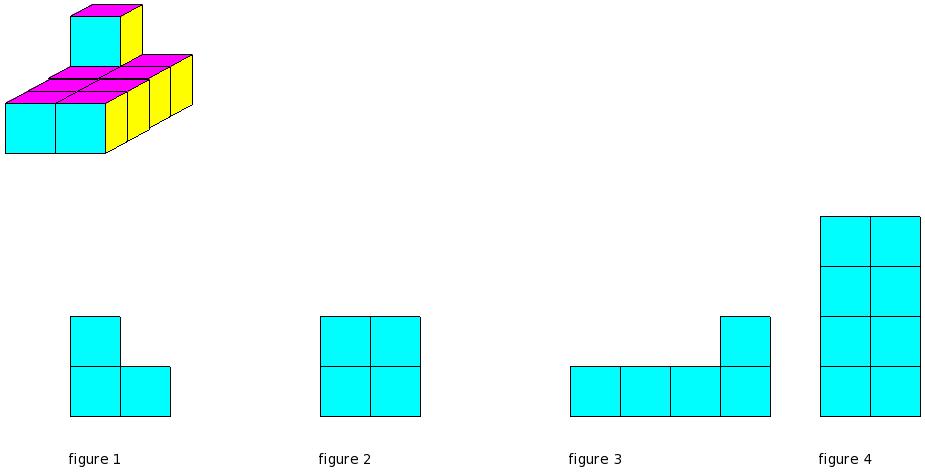

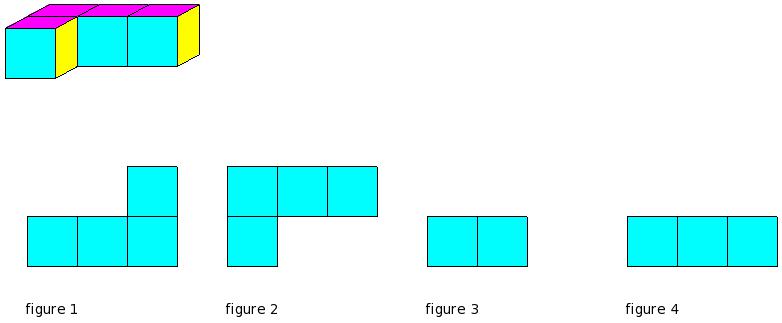

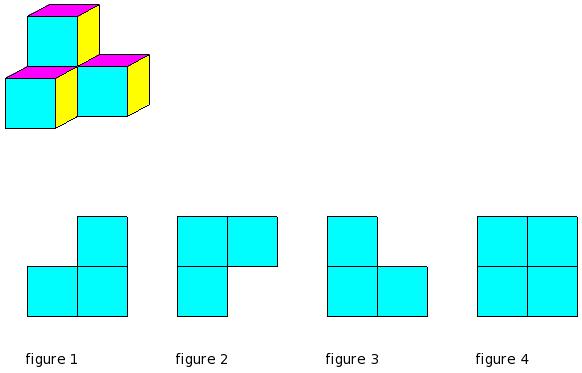

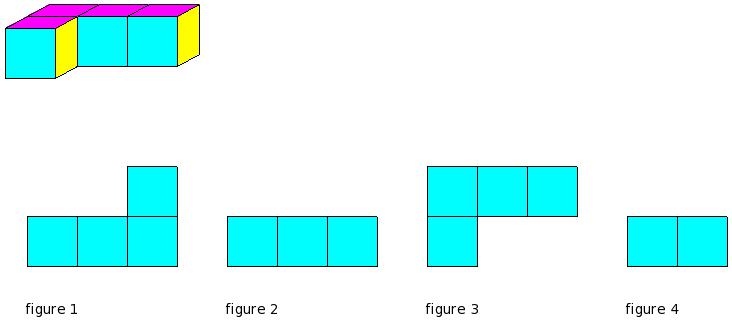

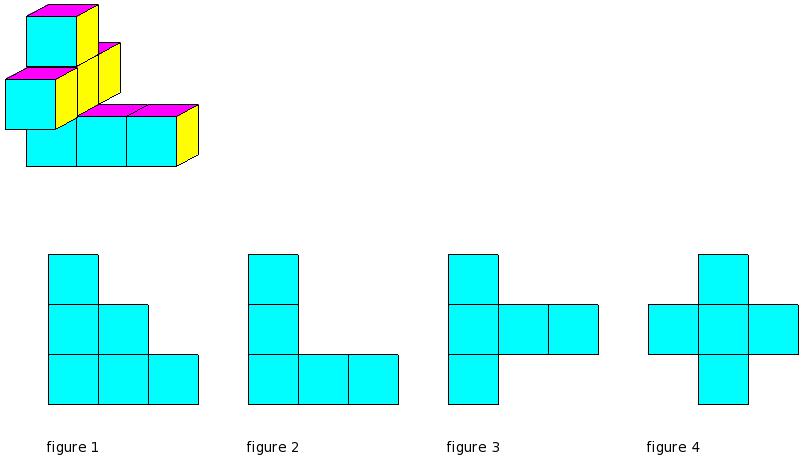

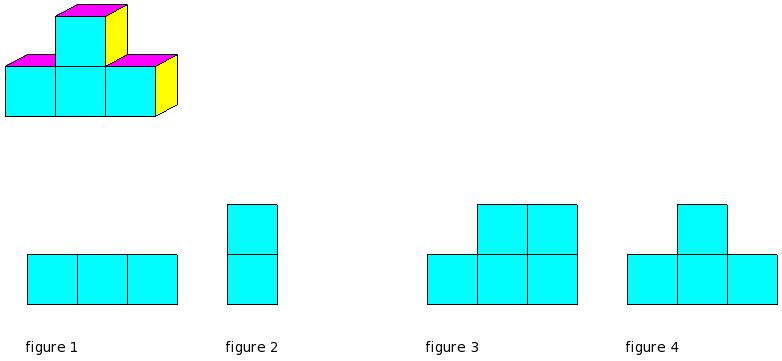

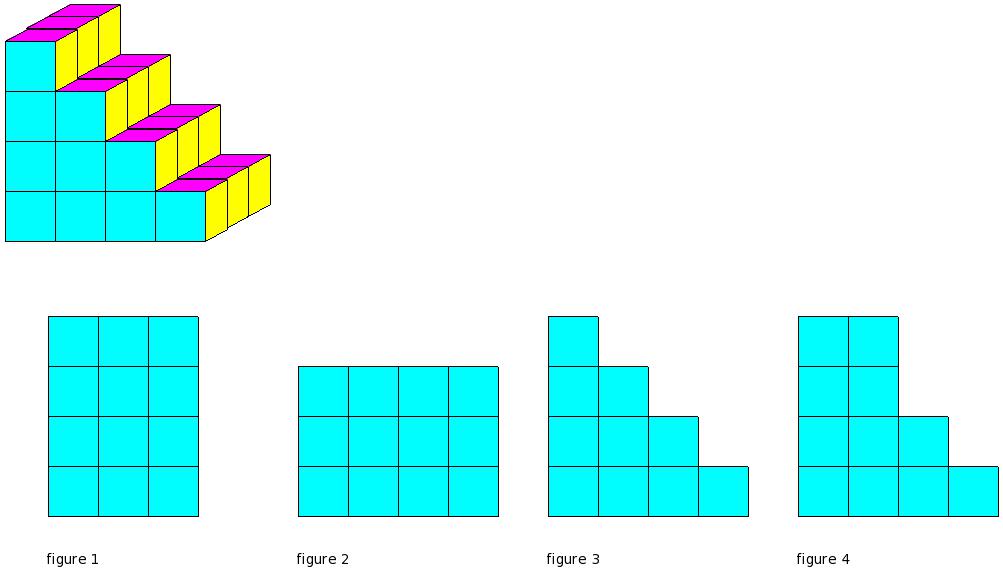

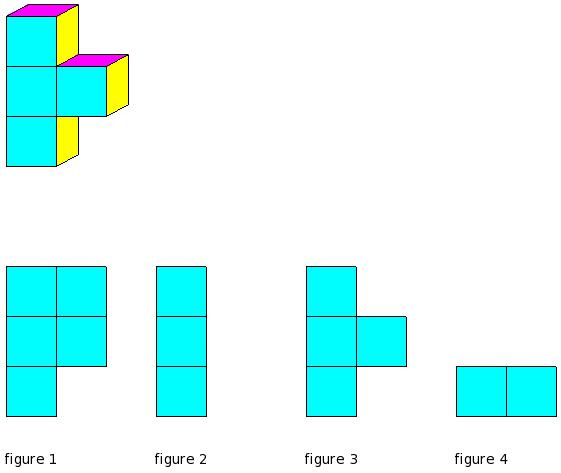

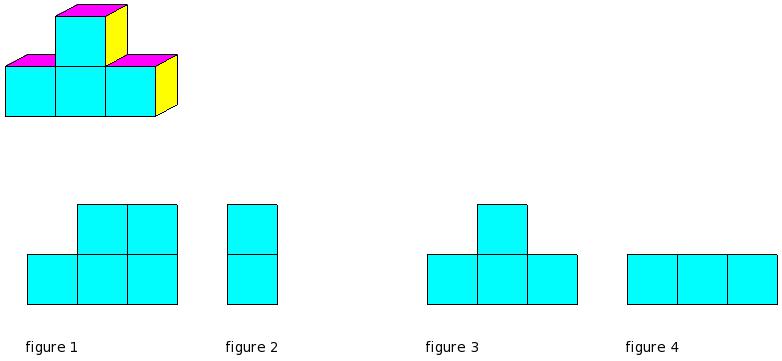

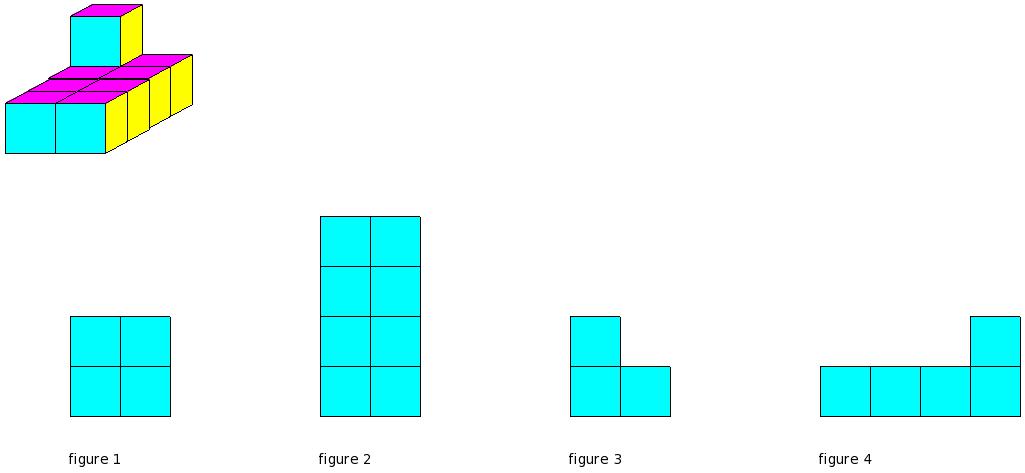

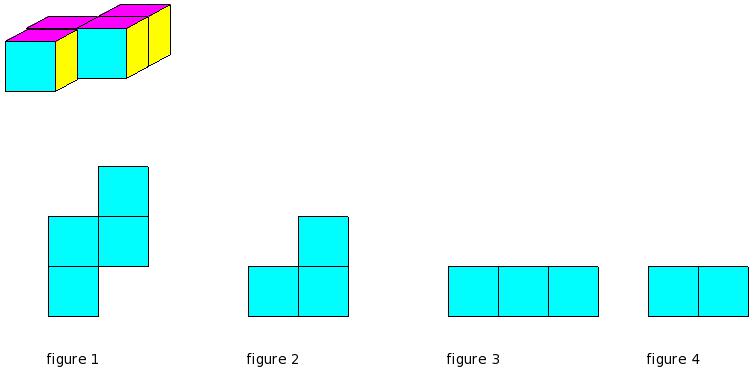

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 2
(iv)
figure 4
Question
9
9.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 4
(ii)
figure 2
(iii)
figure 3
(iv)
figure 1
Question
10
10.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 2
(iv)
figure 3
Question
11
11.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 3
(ii)
figure 2
(iii)
figure 1
(iv)
figure 4
Question
12
12.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 1
(ii)
figure 4
(iii)
figure 3
(iv)
figure 2
Question
13
13.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 4
(iv)
figure 1
Question
14
14.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 3
(ii)
figure 2
(iii)
figure 1
(iv)
figure 4
Question
15
15.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 2
(ii)
figure 4
(iii)
figure 3
(iv)
figure 1
Question
16
16.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 4
(ii)
figure 3
(iii)
figure 1
(iv)
figure 2
Question
17
17.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 1
(iv)
figure 4
Question
18
18.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 4
(ii)
figure 2
(iii)
figure 1
(iv)
figure 3
Question
19
19.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 4
(iii)
figure 3
(iv)
figure 2
Question
20
20.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 1
(iv)
figure 4
Question
21
21.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 2
(iv)
figure 3
Question
22
22.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 2
(iv)
figure 3
Question
23
23.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 4
(ii)
figure 2
(iii)
figure 1
(iv)
figure 3
Question
24
24.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 4
(ii)
figure 3
(iii)
figure 2
(iv)
figure 1
Question
25
25.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 4
(iv)
figure 2
Question
26
26.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 3
(iv)
figure 2
Question
27
27.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 2
(ii)
figure 1
(iii)
figure 3
(iv)
figure 4
Question
28
28.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 4
(iv)
figure 2
Question
29
29.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 3
(ii)
figure 2
(iii)
figure 4
(iv)
figure 1
Question
30
30.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 3
(ii)
figure 1
(iii)
figure 2
(iv)
figure 4
Question
31
31.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 3
(ii)
figure 1
(iii)
figure 2
(iv)
figure 4
Question
32
32.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 3
(ii)
figure 2
(iii)
figure 1
(iv)
figure 4
Question
33
33.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 4
(iv)
figure 1
Question
34
34.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 2
(iv)
figure 4
Question
35
35.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 1
(iv)
figure 4
Question
36
36.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 3
(iv)
figure 2
Question
37
37.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 4
(iv)
figure 1
Question
38
38.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 4
(ii)
figure 2
(iii)
figure 1
(iv)
figure 3
Question
39
39.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 3
(ii)
figure 1
(iii)
figure 2
(iv)
figure 4
Question
40
40.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 3
(ii)
figure 1
(iii)
figure 2
(iv)
figure 4
Question
41
41.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 3
(ii)
figure 2
(iii)
figure 1
(iv)
figure 4
Question
42
42.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 1
(ii)
figure 4
(iii)
figure 3
(iv)
figure 2
Question
43
43.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 3
(ii)
figure 4
(iii)
figure 2
(iv)
figure 1
Question
44
44.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 2
(ii)
figure 1
(iii)
figure 4
(iv)
figure 3
Question
45
45.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 2
(ii)
figure 1
(iii)
figure 4
(iv)
figure 3
Assignment Key
1) (ii)
2) (i)
3) (iv)
4) (i)
5) (iii)
6) (i)
7) (i)
8) (iii)
9) (iv)
10) (iii)
11) (i)
12) (i)
13) (iii)
14) (i)
15) (iv)
16) (i)
17) (iv)
18) (i)
19) (i)
20) (iii)
21) (i)
22) (ii)
23) (iv)
24) (i)
25) (iii)
26) (iii)
27) (i)
28) (ii)
29) (i)
30) (iii)
31) (iv)
32) (iv)
33) (i)
34) (iv)
35) (iii)
36) (iii)
37) (i)
38) (iii)
39) (ii)
40) (iii)
41) (ii)
42) (ii)
43) (iii)
44) (ii)
45) (iii)
