EduSahara™ Assignment
Name : Circle Basics
Chapter : Circle
Grade : ICSE Grade VIII
License : Non Commercial Use
Question 1
1.
Identify the figure below
  • (i)
    decagon
  • (ii)
    octagon
  • (iii)
    hexagon
  • (iv)
    angle
  • (v)
    circle
Question 2
2.

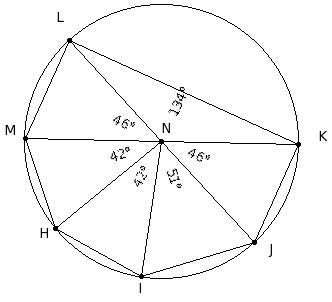

    • The centre of the circle is
  • (i)
    L
  • (ii)
    M
  • (iii)
    O
  • (iv)
    K
  • (v)
    J

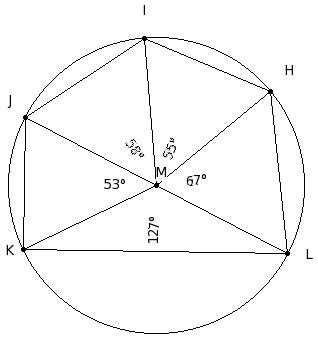

Question 3
3.
    • The chords of the circle are
  • (i)



    JK


    ,



    KL


    ,



    LM


    ,



    MN


    ,



    NJ


  • (ii)



    OJ


    ,



    OK


    ,



    OL


    ,



    OM


    ,



    ON


  • (iii)



    JK


    ,



    KL


    ,



    LM


    ,



    MN


    ,



    NJ


    ,



    LN


  • (iv)



    JK


    ,



    KL


    ,



    LM


    ,



    MN


    ,



    NJ


    ,



    OK


  • (v)



    KL


    ,



    LM


    ,



    MN


    ,



    NJ

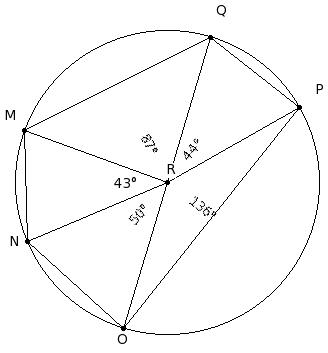

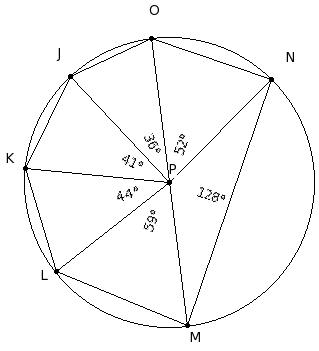

Question 4
4.
    • The diameters of the circle are
  • (i)



    LM


    ,



    MN


    ,



    NO


    ,



    OP


    ,



    PQ


    ,



    QL


  • (ii)



    RL


    ,



    RM


    ,



    RN


    ,



    RO


    ,



    RP


    ,



    RQ


    ,



    OQ


  • (iii)



    OQ


  • (iv)



    RL


    ,



    RM


    ,



    RN


    ,



    RO


    ,



    RP


    ,



    RQ


  • (v)



    LM


    ,



    MN


    ,



    NO


    ,



    OP


    ,



    PQ


    ,



    QL


    ,



    OQ

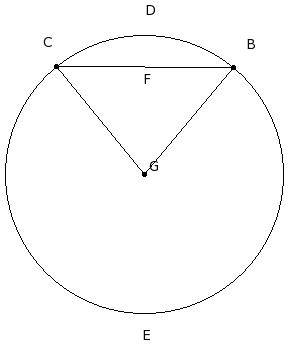

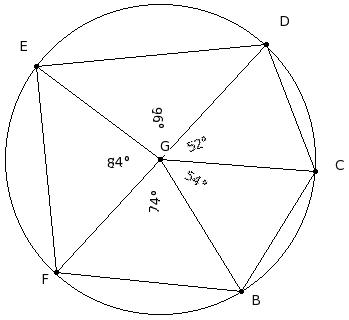

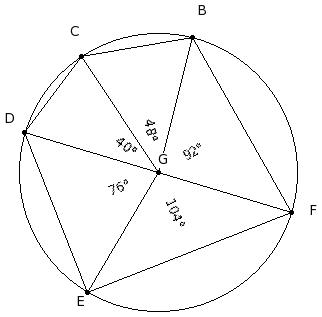

Question 5
5.

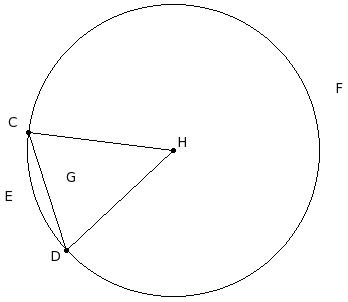

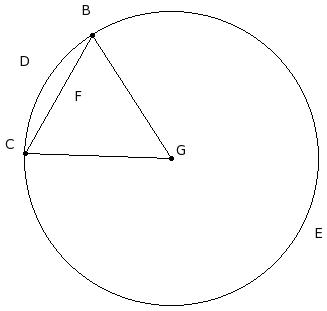

    • The minor sector of the circle is
  • (i)
    GBDCG
  • (ii)
    BEC
  • (iii)
    BDCFB
  • (iv)
    BDC
  • (v)
    GBECG

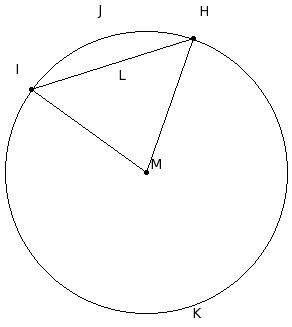

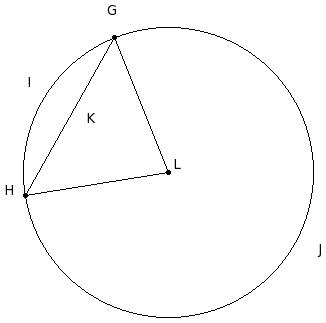

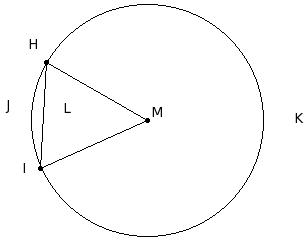

Question 6
6.

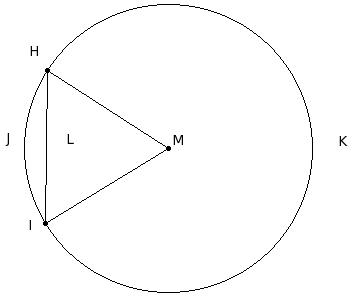

    • The major sector of the circle is
  • (i)
    MHJIM
  • (ii)
    MHKIM
  • (iii)
    HJI
  • (iv)
    HKI
  • (v)
    HKILH

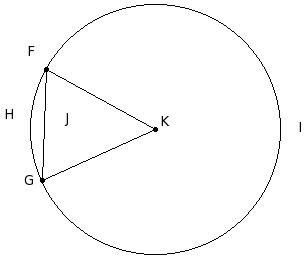

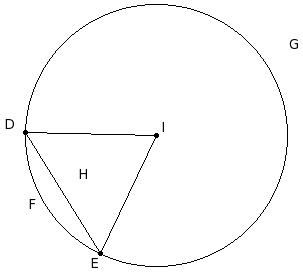

Question 7
7.
    • The minor arc of the circle is
  • (i)
    JEGFJ
  • (ii)
    EHF
  • (iii)
    EHFIE
  • (iv)
    JEHFJ
  • (v)
    EGF

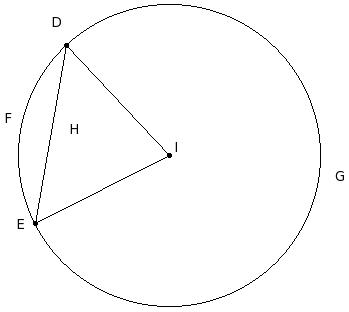

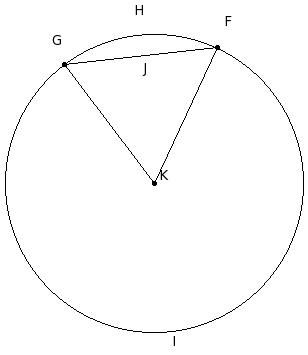

Question 8
8.
    • The major arc of the circle is
  • (i)
    FHGJF
  • (ii)
    FHG
  • (iii)
    FIGJF
  • (iv)
    KFHGK
  • (v)
    FIG

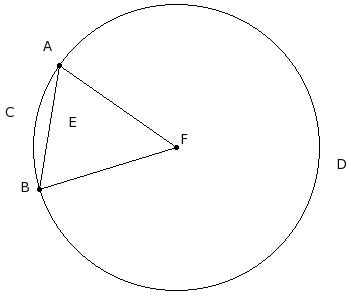

Question 9
9.
    • The minor segment of the circle is
  • (i)
    FADBF
  • (ii)
    ADB
  • (iii)
    FACBF
  • (iv)
    ADBEA
  • (v)
    ACBEA

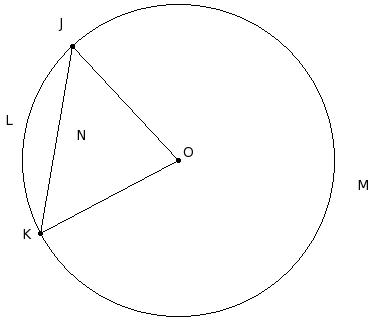

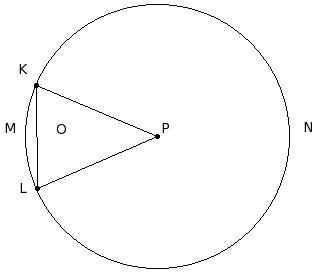

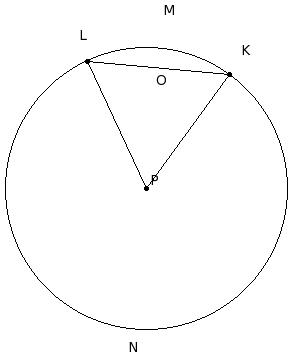

Question 10
10.
    • The major segment of the circle is
  • (i)
    PKNLP
  • (ii)
    KMLOK
  • (iii)
    KML
  • (iv)
    KNLOK
  • (v)
    PKMLP

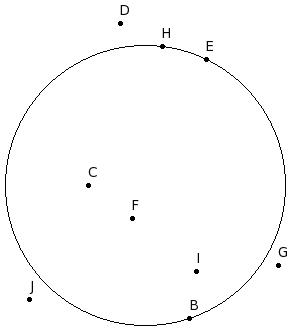

Question 11
11.

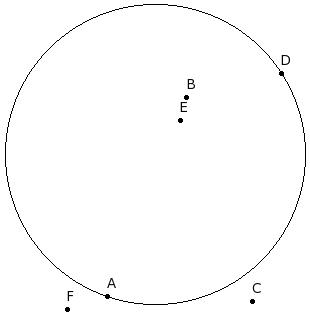

Find the points belonging to the circle
  • (i)
    {B,E}
  • (ii)
    {A,D}
  • (iii)
    {C,D}
  • (iv)
    {E,D}
  • (v)
    {C,F}

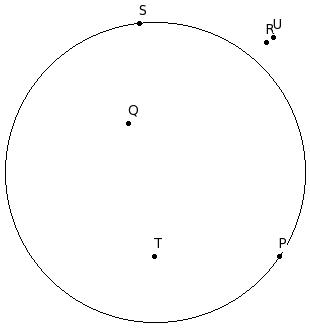

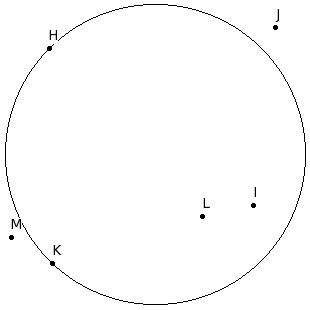

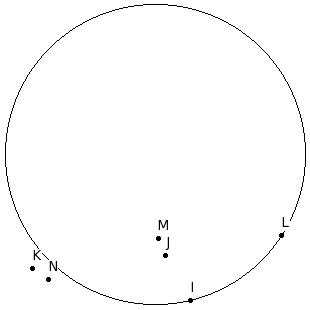

Question 12
12.

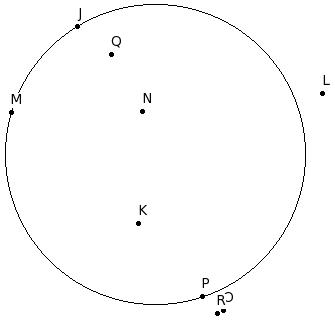

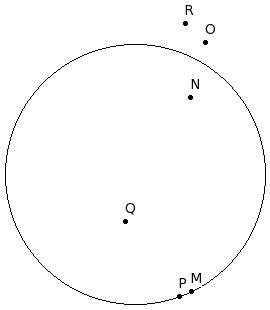

Find the points belonging to the inside of the circle
  • (i)
    {H,K,N}
  • (ii)
    {I,L,O}
  • (iii)
    {N,K,J}
  • (iv)
    {N,O,H}
  • (v)
    {G,J,M}
Question 13
13.
The mid-point of the diameter of a circle is called
  • (i)
    centre
  • (ii)
    major segment
  • (iii)
    diameter
  • (iv)
    semi-circle
  • (v)
    chord
Question 14
14.
A line segment joining any point on the circle with its centre is called
  • (i)
    radius
  • (ii)
    chord
  • (iii)
    centre
  • (iv)
    segment
  • (v)
    semi-circle
Question 15
15.
A line segment having its end points on the circle is called a
  • (i)
    chord
  • (ii)
    semi-circle
  • (iii)
    circumference
  • (iv)
    diameter
  • (v)
    major segment
Question 16
16.
A chord that passes through the centre of the circle is called
  • (i)
    chord
  • (ii)
    centre
  • (iii)
    semi-circle
  • (iv)
    diameter
  • (v)
    radius
Question 17
17.
A chord of a circle divides the whole circular region into two parts, each called a
  • (i)
    centre
  • (ii)
    semi-circle
  • (iii)
    segment
  • (iv)
    radius
  • (v)
    chord
Question 18
18.
The segment of the circle containing the centre of the circle is called
  • (i)
    centre
  • (ii)
    segment
  • (iii)
    circumference
  • (iv)
    diameter
  • (v)
    major segment
Question 19
19.
Half of a circle is called
  • (i)
    radius
  • (ii)
    circumference
  • (iii)
    semi-circle
  • (iv)
    diameter
  • (v)
    major segment
Question 20
20.
The perimeter of a circle is called
  • (i)
    major segment
  • (ii)
    circumference
  • (iii)
    diameter
  • (iv)
    radius
  • (v)
    chord
Question 21
21.
In the given triangle S is the circumcentre. If SF = 14.00 cm, find the circumference of the circumcircle
  • (i)
    86.0 cm
  • (ii)
    87.0 cm
  • (iii)
    90.0 cm
  • (iv)
    89.0 cm
  • (v)
    88.0 cm
Question 22
22.
    • The radii of the circle are
  • (i)



    QK


    ,



    QL


    ,



    QM


    ,



    QN


    ,



    QO


    ,



    QP


  • (ii)



    LM


    ,



    MN


    ,



    NO


    ,



    OP


    ,



    PK


  • (iii)



    KL


    ,



    LM


    ,



    MN


    ,



    NO


    ,



    OP


    ,



    PK


    ,



    NP


  • (iv)



    KL


    ,



    LM


    ,



    MN


    ,



    NO


    ,



    OP


    ,



    PK


    ,



    QL


  • (v)



    KL


    ,



    LM


    ,



    MN


    ,



    NO


    ,



    OP


    ,



    PK


Question 23
23.
The distance around the circle is called
  • (i)
    chord
  • (ii)
    diameter
  • (iii)
    arc
  • (iv)
    circumference
  • (v)
    radius

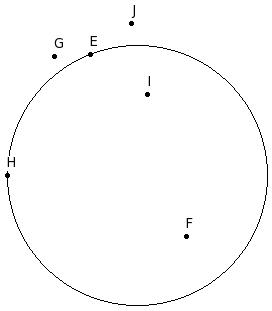

Question 24
24.

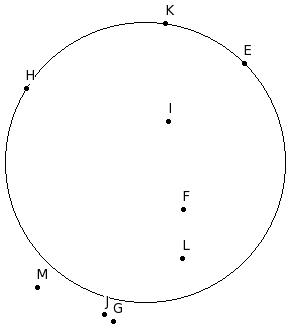

Find the points belonging to the outside of the circle
  • (i)
    {C,F}
  • (ii)
    {D,G}
  • (iii)
    {E,H}
  • (iv)
    {C,E}
  • (v)
    {D,E}

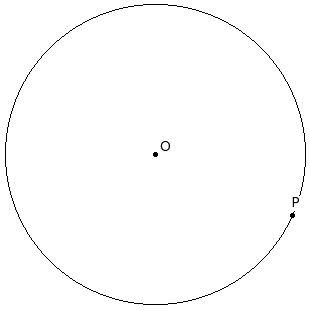

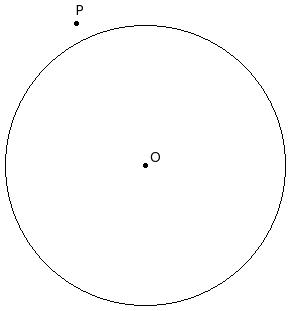

Question 25
25.

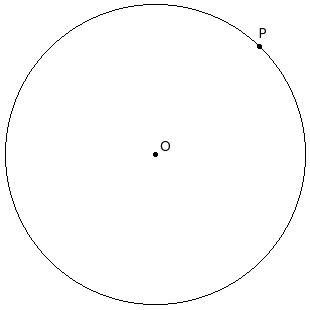

    • 'O' is the centre of a circle of radius 'r' and 'P' is any point in its plane.
    • If
    •
    •


      OP


    • = r ,then P is
  • (i)
    on the circle
  • (ii)
    inside the circle
  • (iii)
    outside the circle
Question 26
26.
    • 'O' is the centre of a circle of radius 'r' and 'P' is any point in its plane.
    • If
    •
    •


      OP


    • < r,then P is
  • (i)
    on the circle
  • (ii)
    outside the circle
  • (iii)
    inside the circle
Question 27
27.
    • 'O' is the centre of a circle of radius 'r' and 'P' is any point in its plane.
    • If
    •
    •


      OP


    • > r,then P is
  • (i)
    inside the circle
  • (ii)
    outside the circle
  • (iii)
    on the circle
Question 28
28.
Which of the following statements are true?
a)
Each radius of a circle is also a chord of the circle.
b)
A circle consists of an infinite number of points.
c)
A line can meet a circle atmost at two points.
d)
Every circle has a unique centre.
e)
Every circle has a unique diameter.
  • (i)
    {e,c}
  • (ii)
    {a,e,d}
  • (iii)
    {b,c,d}
  • (iv)
    {a,b,c}
  • (v)
    {a,b}
Question 29
29.
Which of the following statements are true?
a)
Every circle has a unique diameter.
b)
An infinite number of chords may be drawn for a circle.
c)
Two semi-circles of a circle together make the whole circle.
d)
An infinite number of diameters may be drawn for a circle.
e)
One and only one tangent can be drawn to a circle from a point outside it.
  • (i)
    {a,b,c}
  • (ii)
    {e,c}
  • (iii)
    {a,b}
  • (iv)
    {b,c,d}
  • (v)
    {a,e,d}
Question 30
30.
Which of the following statements are true?
a)
One and only one tangent can be drawn to a circle from a point outside it.
b)
One and only one tangent can be drawn to pass through a point on a circle.
c)
Every circle has a unique diameter.
d)
A secant of a circle is a segment having its end points on the circle.
e)
Diameter of a circle is a part of the semi-circle of the circle.
  • (i)
    {a,b}
  • (ii)
    {c,e,b}
  • (iii)
    {d,a,b}
  • (iv)
    {b,e}
  • (v)
    {c,e}
Question 31
31.
If the diameter of a circle is 168 cm, what is its radius?
  • (i)
    86 cm
  • (ii)
    85 cm
  • (iii)
    83 cm
  • (iv)
    84 cm
  • (v)
    82 cm
Question 32
32.
If the radius of a circle is 49 cm, what is its diameter?
  • (i)
    100 cm
  • (ii)
    96 cm
  • (iii)
    99 cm
  • (iv)
    97 cm
  • (v)
    98 cm
Question 33
33.
Two circles with equal radii are
  • (i)
    congruent
  • (ii)
    only similar but not congruent
  • (iii)
    concentric
  • (iv)
    not similar

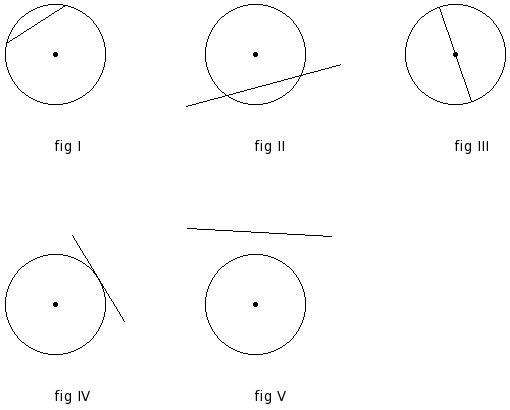

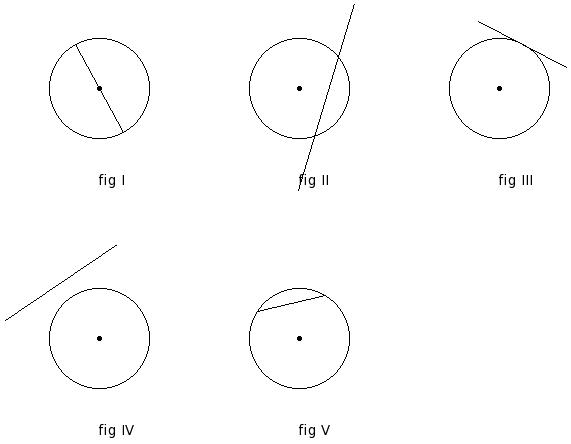

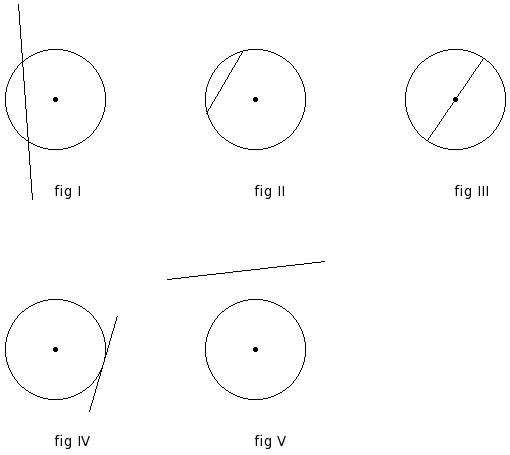

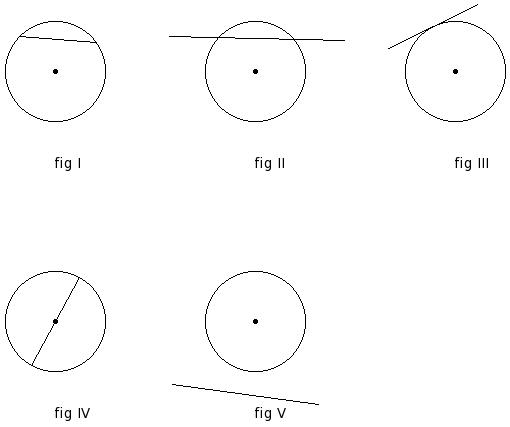

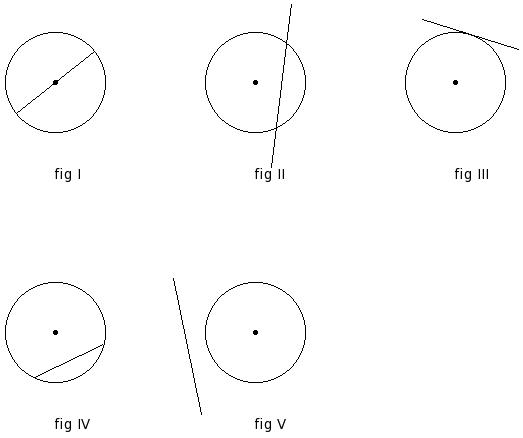

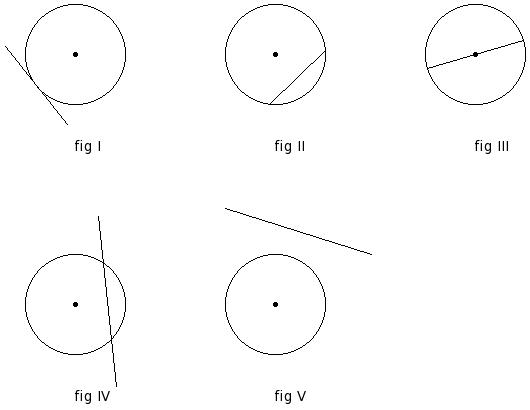

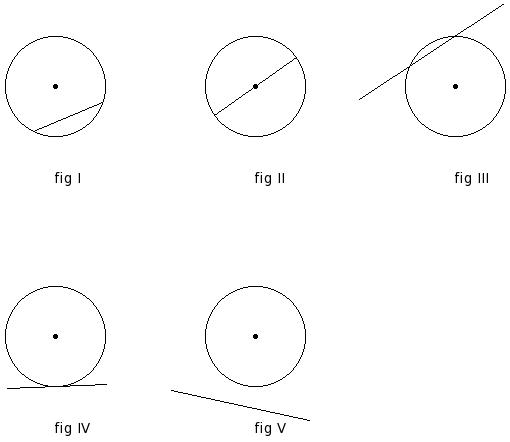

Question 34

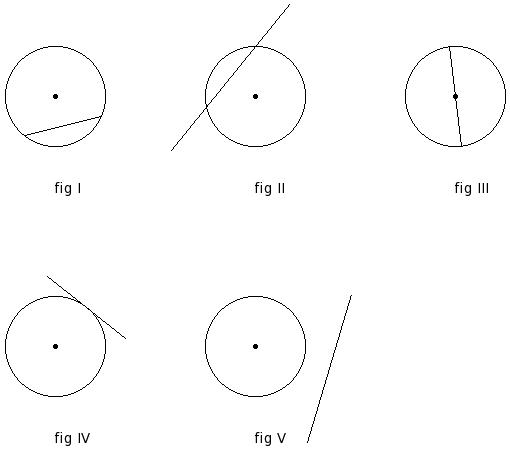

34.

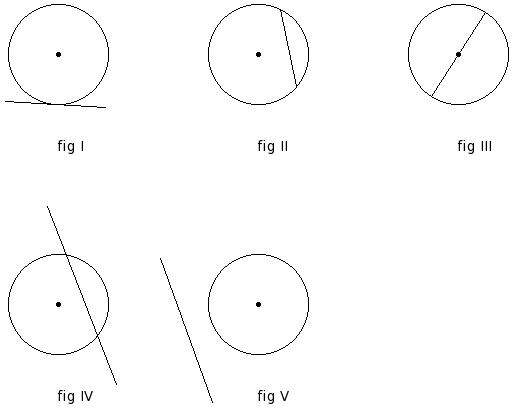

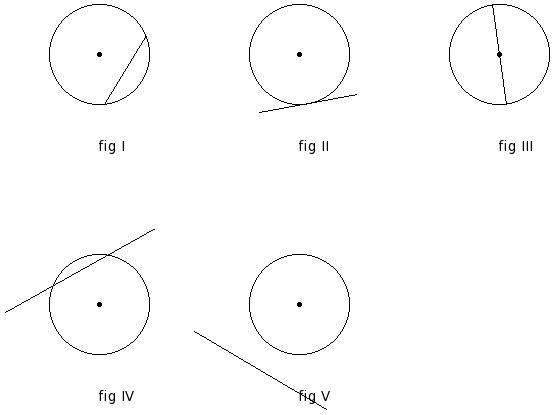

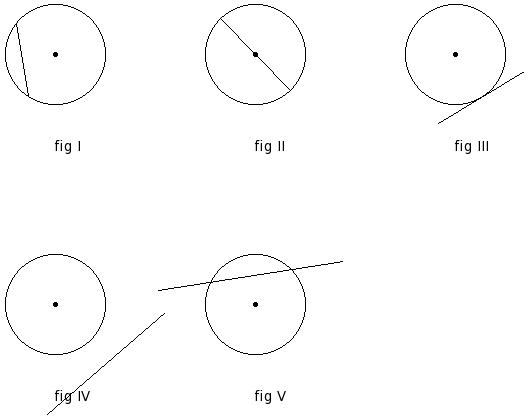

Which of the following figures represent a chord ?
  • (i)
    fig III
  • (ii)
    fig V
  • (iii)
    fig IV
  • (iv)
    fig I
  • (v)
    fig II

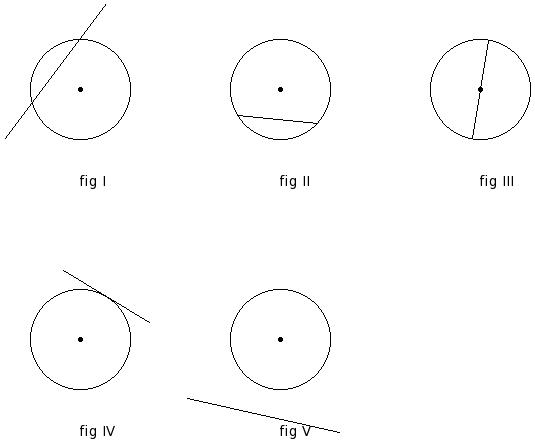

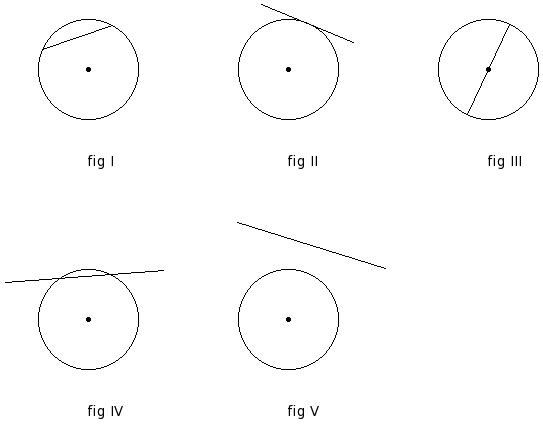

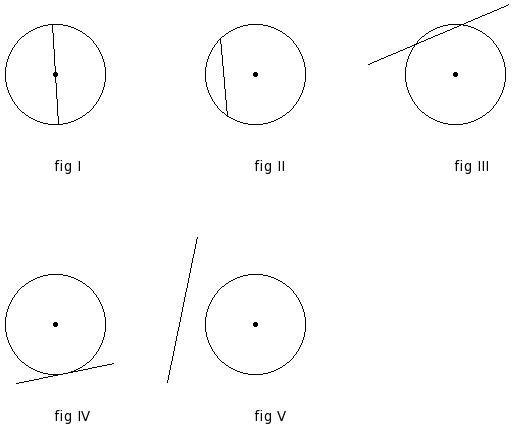

Question 35
35.

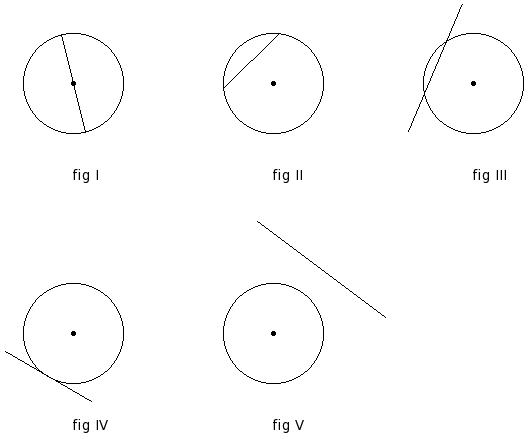

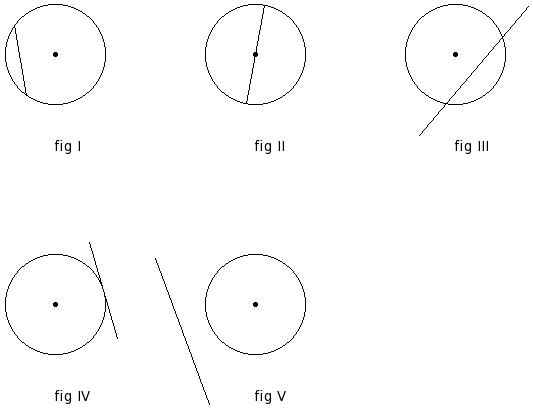

Which of the following figures represent a diameter ?
  • (i)
    fig III
  • (ii)
    fig II
  • (iii)
    fig IV
  • (iv)
    fig I
  • (v)
    fig V

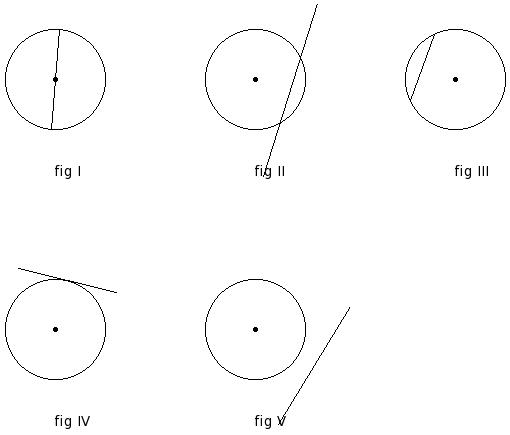

Question 36
36.

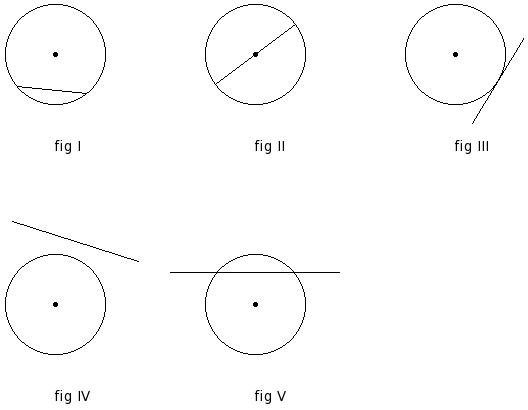

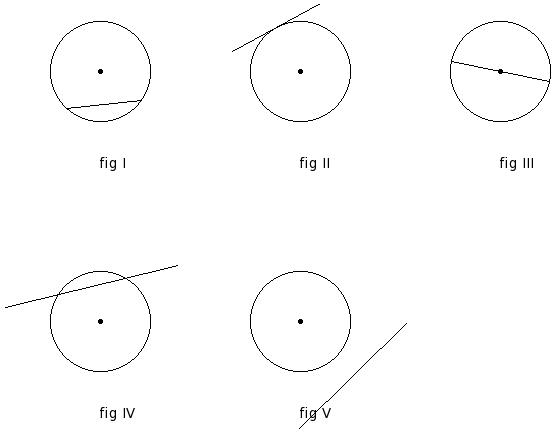

Which of the following figures represent a secant ?
  • (i)
    fig I
  • (ii)
    fig IV
  • (iii)
    fig III
  • (iv)
    fig II
  • (v)
    fig V

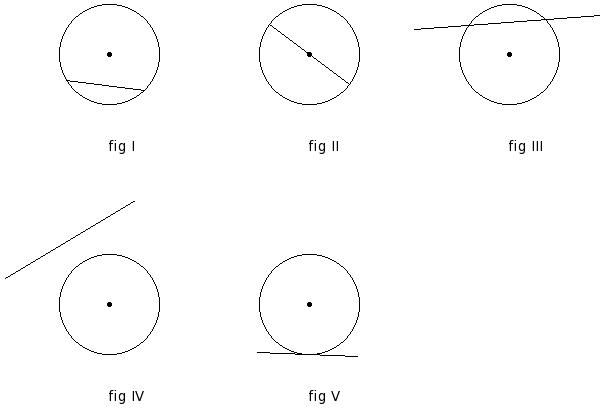

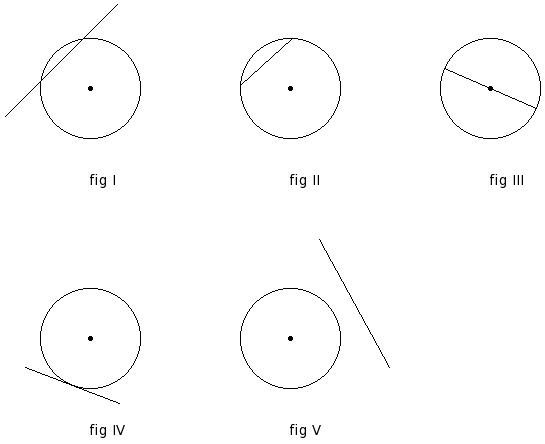

Question 37
37.
Which of the following figures represent a tangent ?
  • (i)
    fig V
  • (ii)
    fig I
  • (iii)
    fig IV
  • (iv)
    fig II
  • (v)
    fig III
    Assignment Key

  •  1) (v)
  •  2) (iii)
  •  3) (i)
  •  4) (iii)
  •  5) (i)
  •  6) (ii)
  •  7) (v)
  •  8) (v)
  •  9) (v)
  •  10) (iv)
  •  11) (ii)
  •  12) (i)
  •  13) (i)
  •  14) (i)
  •  15) (i)
  •  16) (iv)
  •  17) (iii)
  •  18) (v)
  •  19) (iii)
  •  20) (ii)
  •  21) (v)
  •  22) (i)
  •  23) (iv)
  •  24) (iii)
  •  25) (i)
  •  26) (iii)
  •  27) (ii)
  •  28) (iii)
  •  29) (iv)
  •  30) (iv)
  •  31) (iv)
  •  32) (v)
  •  33) (i)
  •  34) (iv)
  •  35) (i)
  •  36) (i)
  •  37) (v)
