EduSahara™ Assignment
Name : Perimeter and Area of Complex Shapes
Chapter : Perimeter and Area
Grade : CBSE Grade VII
License : Non Commercial Use
Question 1
1.

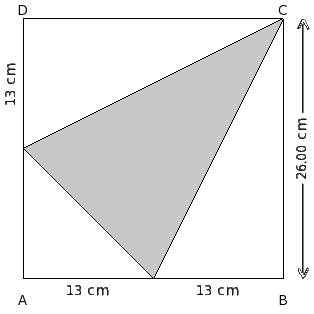

In the given figure, the triangle inside the square is an isosceles triangle. Find the area of the shaded region
  • (i)
    162.00 sq.cm
  • (ii)
    144.00 sq.cm
  • (iii)
    170.00 sq.cm
  • (iv)
    135.00 sq.cm
  • (v)
    187.00 sq.cm
Question 2
2.
In the given figure, find the area of the shaded region
  • (i)
    133.00 sq.cm
  • (ii)
    119.00 sq.cm
  • (iii)
    106.00 sq.cm
  • (iv)
    107.00 sq.cm
  • (v)
    137.00 sq.cm
Question 3
3.
In the given figure, find the area of the shaded region
  • (i)
    253.50 sq.cm
  • (ii)
    241.50 sq.cm
  • (iii)
    247.50 sq.cm
  • (iv)
    279.50 sq.cm
  • (v)
    268.50 sq.cm
Question 4
4.
Find the area of the shaded region given below
  • (i)
    417.00 sq.m
  • (ii)
    441.00 sq.m
  • (iii)
    425.00 sq.m
  • (iv)
    404.00 sq.m
  • (v)
    405.00 sq.m
Question 5
5.
Find the area of the shaded region given below
  • (i)
    1172.00 sq.m
  • (ii)
    1022.00 sq.m
  • (iii)
    1052.00 sq.m
  • (iv)
    932.00 sq.m
  • (v)
    1202.00 sq.m
Question 6
6.
Find the area of the shaded region given below
  • (i)
    514.00 sq.m
  • (ii)
    494.00 sq.m
  • (iii)
    506.00 sq.m
  • (iv)
    519.00 sq.m
  • (v)
    493.00 sq.m
Question 7
7.
Find the area of the shaded region given below
  • (i)
    378.00 sq.m
  • (ii)
    351.00 sq.m
  • (iii)
    352.00 sq.m
  • (iv)
    365.00 sq.m
  • (v)
    379.00 sq.m
Question 8
8.
Find the area of the shaded region given below
  • (i)
    328.00 sq.m
  • (ii)
    295.00 sq.m
  • (iii)
    333.00 sq.m
  • (iv)
    307.00 sq.m
  • (v)
    321.00 sq.m
Question 9
9.
Find the area of the shaded region given below
  • (i)
    341.00 sq.m
  • (ii)
    363.00 sq.m
  • (iii)
    368.00 sq.m
  • (iv)
    356.00 sq.m
  • (v)
    348.00 sq.m
Question 10
10.
Find the area of the shaded region given below
  • (i)
    400.00 sq.m
  • (ii)
    375.00 sq.m
  • (iii)
    359.00 sq.m
  • (iv)
    392.00 sq.m
  • (v)
    358.00 sq.m
Question 11
11.
Find the area of the shaded region given below
  • (i)
    450.00 sq.m
  • (ii)
    467.00 sq.m
  • (iii)
    453.00 sq.m
  • (iv)
    438.00 sq.m
  • (v)
    444.00 sq.m
Question 12
12.
Find the area of the shaded region given below
  • (i)
    561.00 sq.m
  • (ii)
    528.00 sq.m
  • (iii)
    519.00 sq.m
  • (iv)
    534.00 sq.m
  • (v)
    538.00 sq.m
Question 13
13.
    • A rectangular field is 41 m by 25 m. It has two paths through its centre, running parallel to its sides.
    • The width of the longer and the shorter paths are 9 m and 21 m respectively.
    • Find the total expense involved in laying tiles on the paths at ₹10.4 per 1 sq.m and laying grass in the remaining portion at ₹30.1 per 1 sq.m.
  • (i)
    ₹16963.00
  • (ii)
    ₹16964.00
  • (iii)
    ₹16965.00
  • (iv)
    ₹16962.00
  • (v)
    ₹16966.00
Question 14
14.
    • In the given figure, ABCD is a rectangle in which AB = 12 cm and DA = 25 cm.
    • Also, △PAB is a right angled triangle in which ∠BPA = 90° and PA = 6 cm
    • Find the area of the shaded region
  • (i)
    268.82 sq.cm
  • (ii)
    266.82 sq.cm
  • (iii)
    267.82 sq.cm
  • (iv)
    269.82 sq.cm
  • (v)
    270.82 sq.cm
Question 15
15.
    • In the given figure, DEFG is a rectangle in which DE = 12 cm and GD = 25 cm.
    • Also, △RDE and △SFG are the right angled triangles in which ∠ERD = ∠GSF = 90°, RD = 7 cm and SF = 5 cm.
    • Find the area of the shaded region
  • (i)
    236.61 sq.cm
  • (ii)
    237.61 sq.cm
  • (iii)
    239.61 sq.cm
  • (iv)
    238.61 sq.cm
  • (v)
    240.61 sq.cm
Question 16
16.
Find the area of shaded region in the adjoining figure, given that BC = 15 cm, CD = 28 cm, BE = 16 cm and ∠EBC = ∠BCD = 90°.
  • (i)
    329.00 sq.cm
  • (ii)
    332.00 sq.cm
  • (iii)
    331.00 sq.cm
  • (iv)
    328.00 sq.cm
  • (v)
    330.00 sq.cm
Question 17
17.
Find the area of shaded region in the adjoining figure, given that DE = 16 cm, EF = 25 cm, DG = 13 cm and ∠GDE = ∠DEF = 90°.
  • (i)
    302.00 sq.cm
  • (ii)
    304.00 sq.cm
  • (iii)
    303.00 sq.cm
  • (iv)
    305.00 sq.cm
  • (v)
    306.00 sq.cm
Question 18
18.
Find the area of the shaded region of the adjoining figure, given that ∠HCD = ∠EDC = 90°, GF ∥ CD ∥ HE, GI ⟂ HE, FJ ⟂ HE, HI = JE, CD = 30 cm, CH = 9 cm, GF = 14 cm and distance between CD and GF is 16 cm
  • (i)
    423.00 sq.cm
  • (ii)
    425.00 sq.cm
  • (iii)
    426.00 sq.cm
  • (iv)
    422.00 sq.cm
  • (v)
    424.00 sq.cm
Question 19
19.
Find the area of the shaded region in the adjoining figure, given that EFGH is a square of side 17 cm, GI = 11 cm, JE = 9 cm and FK = 7 cm
  • (i)
    158.50 sq.cm
  • (ii)
    161.50 sq.cm
  • (iii)
    162.50 sq.cm
  • (iv)
    159.50 sq.cm
  • (v)
    160.50 sq.cm
Question 20
20.
Find the area of the shaded region
  • (i)
    240.83 sq.cm
  • (ii)
    238.83 sq.cm
  • (iii)
    242.83 sq.cm
  • (iv)
    241.83 sq.cm
  • (v)
    239.83 sq.cm
Question 21
21.
Find the area of the shaded region
  • (i)
    410.00 sq.cm
  • (ii)
    407.00 sq.cm
  • (iii)
    409.00 sq.cm
  • (iv)
    406.00 sq.cm
  • (v)
    408.00 sq.cm
Question 22
22.
Find the area of the shaded region
  • (i)
    187.50 sq.cm
  • (ii)
    188.50 sq.cm
  • (iii)
    186.50 sq.cm
  • (iv)
    185.50 sq.cm
  • (v)
    189.50 sq.cm
Question 23
23.
Find the area of the shaded region
  • (i)
    480.00 sq.cm
  • (ii)
    479.00 sq.cm
  • (iii)
    478.00 sq.cm
  • (iv)
    481.00 sq.cm
  • (v)
    482.00 sq.cm
Question 24
24.
Find the perimeter of the shaded region given below
  • (i)
    103.00 m
  • (ii)
    93.00 m
  • (iii)
    98.00 m
  • (iv)
    95.00 m
  • (v)
    101.00 m
Question 25
25.
Find the perimeter of the shaded region given below
  • (i)
    120.00 m
  • (ii)
    172.00 m
  • (iii)
    144.00 m
  • (iv)
    156.00 m
  • (v)
    129.00 m
Question 26
26.
Find the perimeter of the shaded region given below
  • (i)
    149.00 m
  • (ii)
    150.00 m
  • (iii)
    126.00 m
  • (iv)
    111.00 m
  • (v)
    134.00 m
Question 27
27.
Find the perimeter of the shaded region given below
  • (i)
    189.00 m
  • (ii)
    176.00 m
  • (iii)
    153.00 m
  • (iv)
    158.00 m
  • (v)
    191.00 m
Question 28
28.
Find the perimeter of the shaded region given below
  • (i)
    162.00 m
  • (ii)
    155.00 m
  • (iii)
    180.00 m
  • (iv)
    138.00 m
  • (v)
    189.00 m
Question 29
29.
Find the perimeter of the shaded region given below
  • (i)
    124.00 m
  • (ii)
    130.00 m
  • (iii)
    162.00 m
  • (iv)
    138.00 m
  • (v)
    145.00 m
Question 30
30.
Find the perimeter of the shaded region given below
  • (i)
    127.00 m
  • (ii)
    150.00 m
  • (iii)
    167.00 m
  • (iv)
    175.00 m
  • (v)
    142.00 m
Question 31
31.
Find the perimeter of the shaded region given below
  • (i)
    144.00 m
  • (ii)
    130.00 m
  • (iii)
    171.00 m
  • (iv)
    148.00 m
  • (v)
    163.00 m
Question 32
32.
Find the perimeter of the shaded region given below
  • (i)
    163.00 m
  • (ii)
    158.00 m
  • (iii)
    184.00 m
  • (iv)
    170.00 m
  • (v)
    173.00 m
    Assignment Key

  •  1) (i)
  •  2) (ii)
  •  3) (i)
  •  4) (i)
  •  5) (iii)
  •  6) (iii)
  •  7) (iv)
  •  8) (v)
  •  9) (iv)
  •  10) (ii)
  •  11) (i)
  •  12) (iv)
  •  13) (ii)
  •  14) (i)
  •  15) (iv)
  •  16) (v)
  •  17) (ii)
  •  18) (v)
  •  19) (v)
  •  20) (i)
  •  21) (v)
  •  22) (i)
  •  23) (i)
  •  24) (iii)
  •  25) (iii)
  •  26) (v)
  •  27) (ii)
  •  28) (i)
  •  29) (iv)
  •  30) (ii)
  •  31) (iv)
  •  32) (iv)
