EduSahara™ Worksheet
Name : Chapter Based Worksheet
Chapter : Visualising Solid Shapes
Grade : CBSE Grade VII
License : Non Commercial Use
Question
1
1.

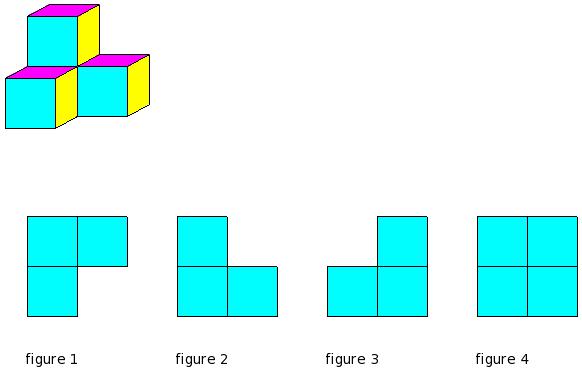

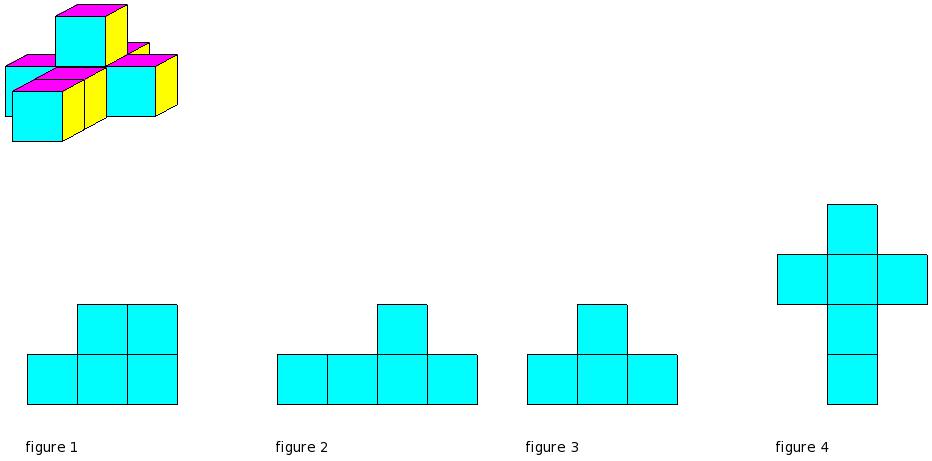

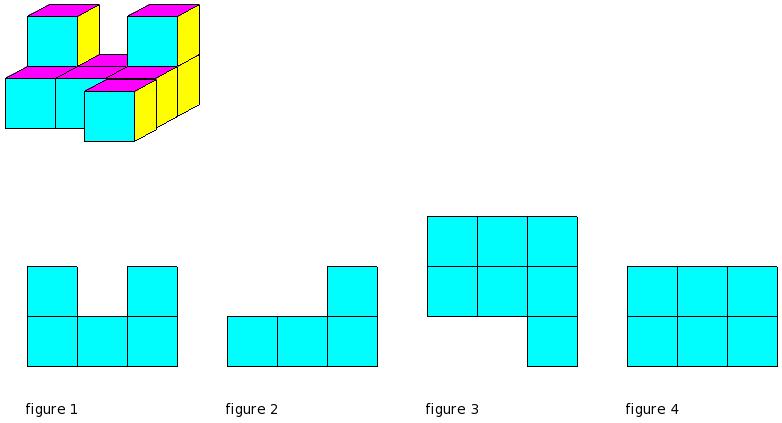

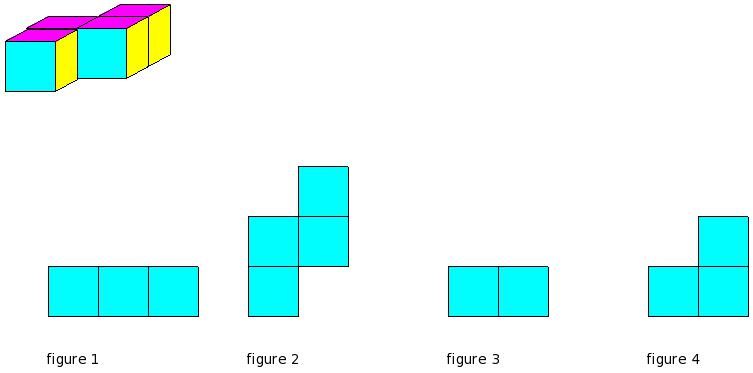

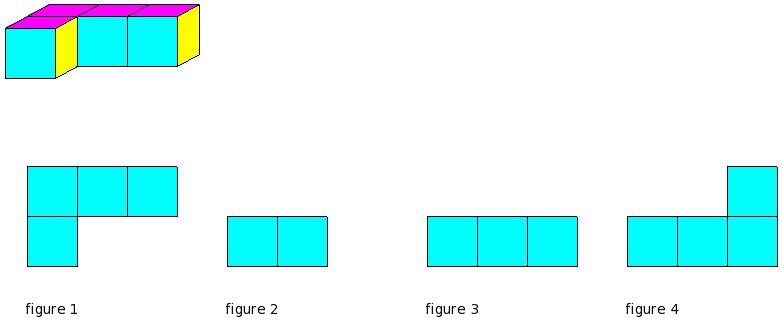

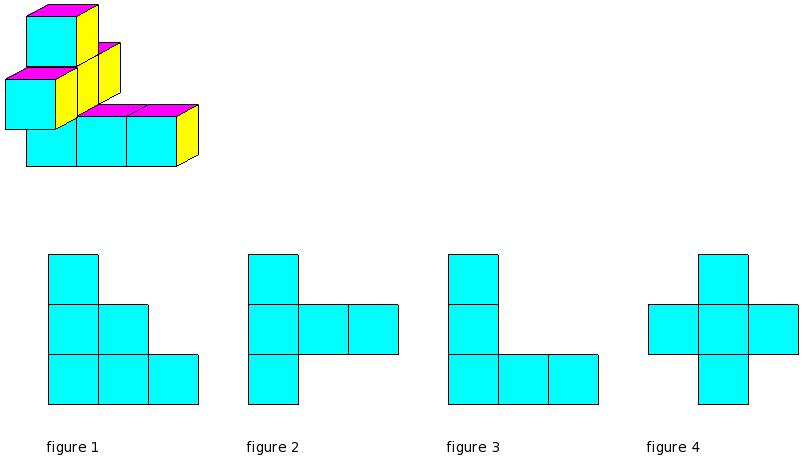

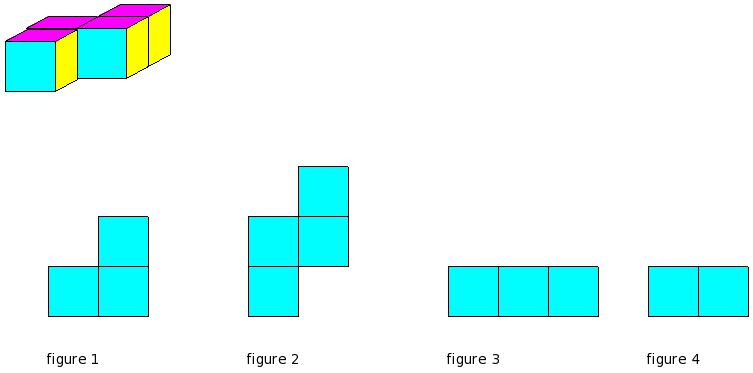

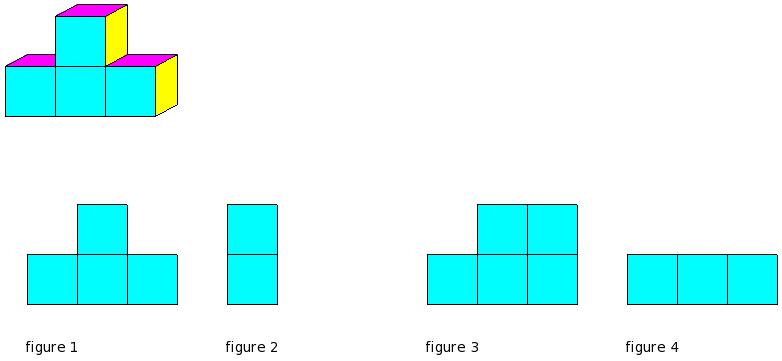

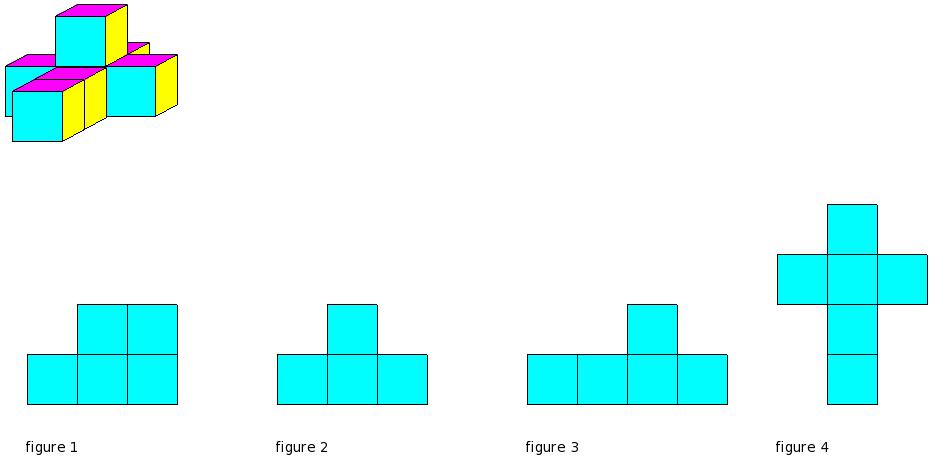

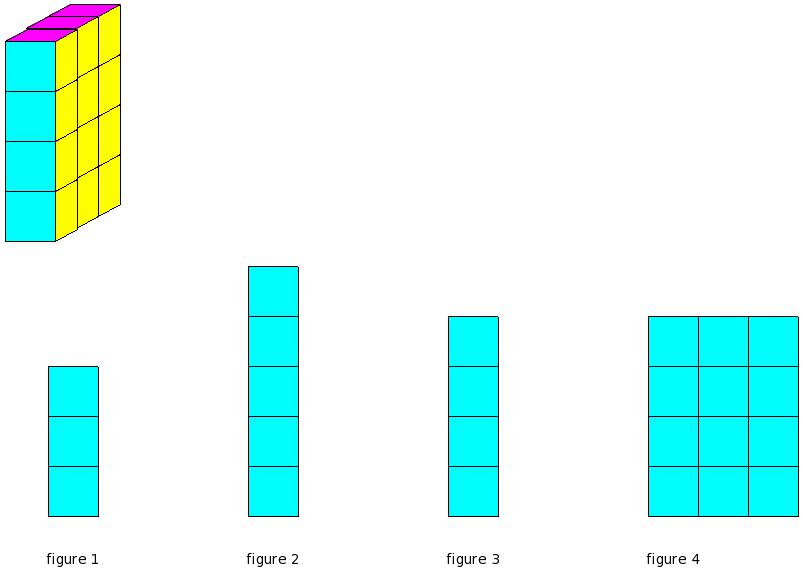

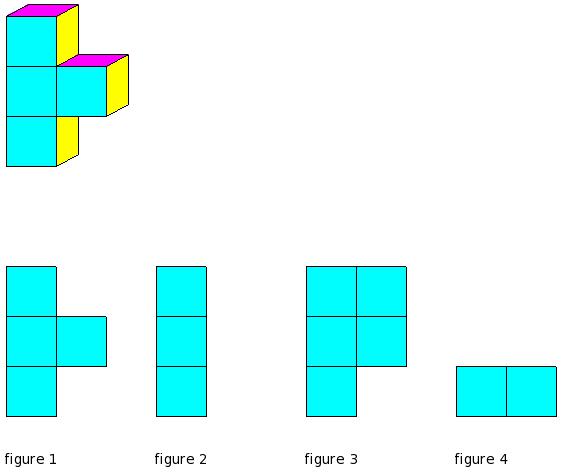

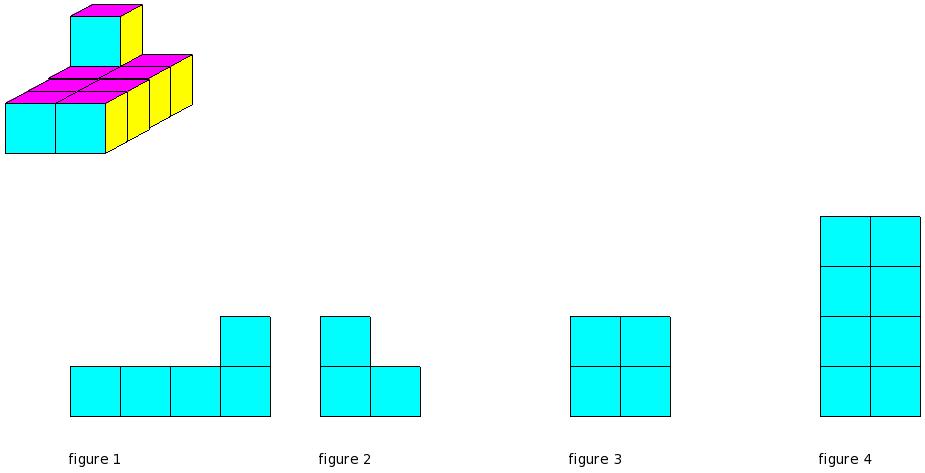

Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 4
(iii)
figure 2
(iv)
figure 3
Question
2
2.
The number of edges in a triangular prism are
(i)
12
(ii)
6
(iii)
10
(iv)
9
(v)
8
Question
3
3.
The number of edges in a square pyramid are
(i)
9
(ii)
6
(iii)
7
(iv)
10
(v)
8
Question
4
4.

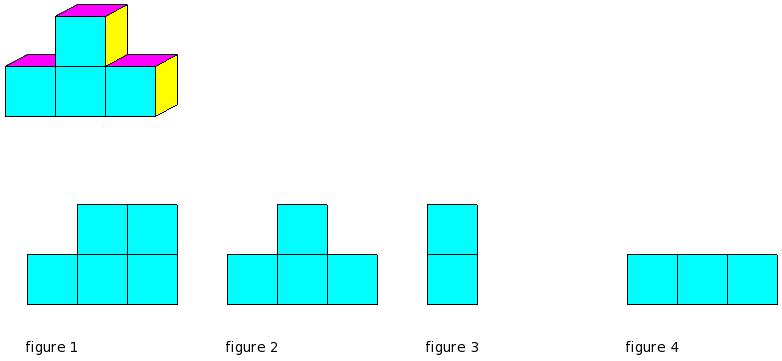

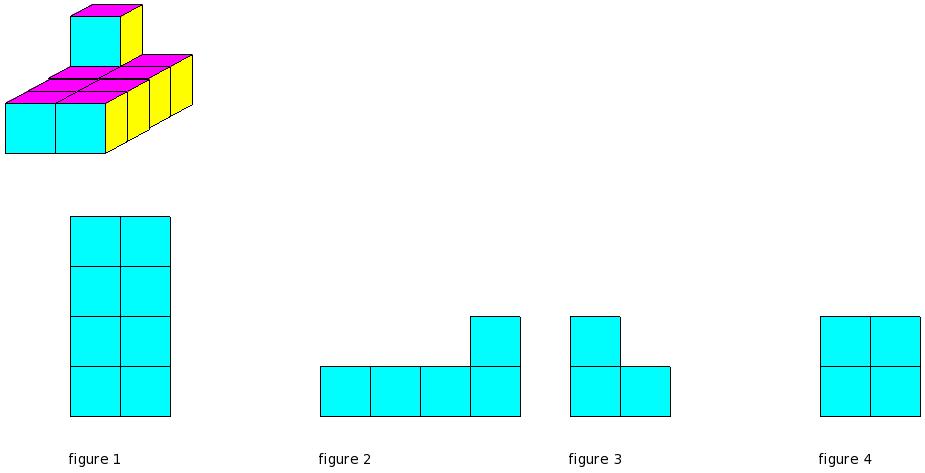

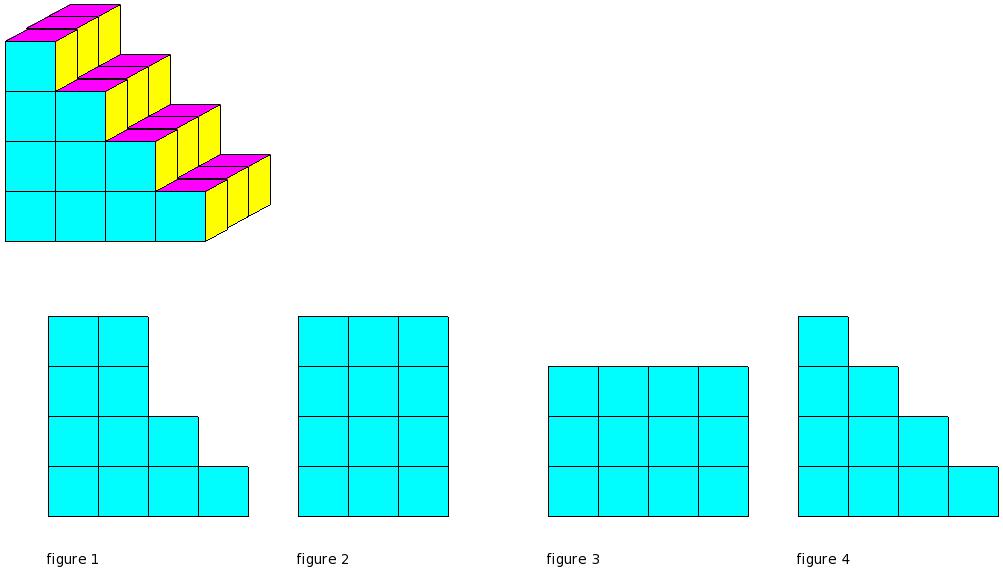

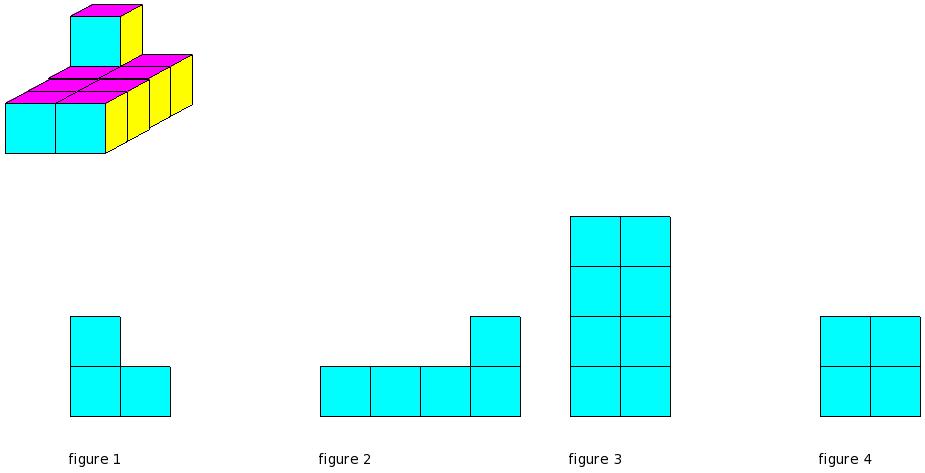

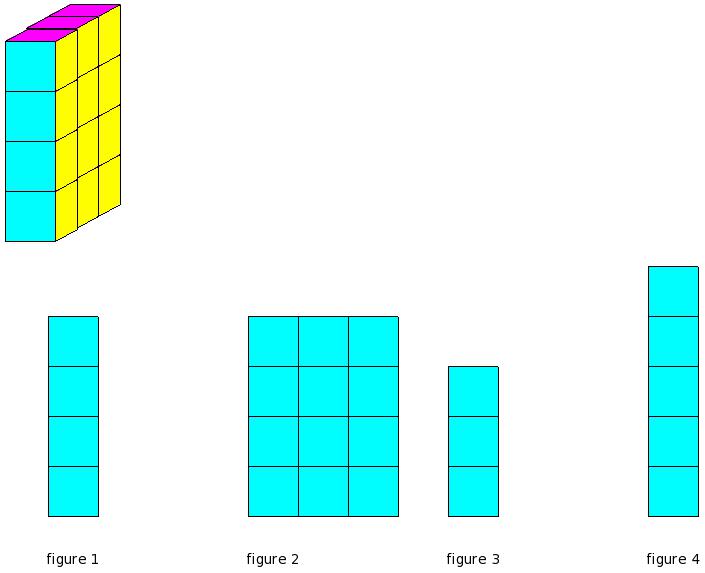

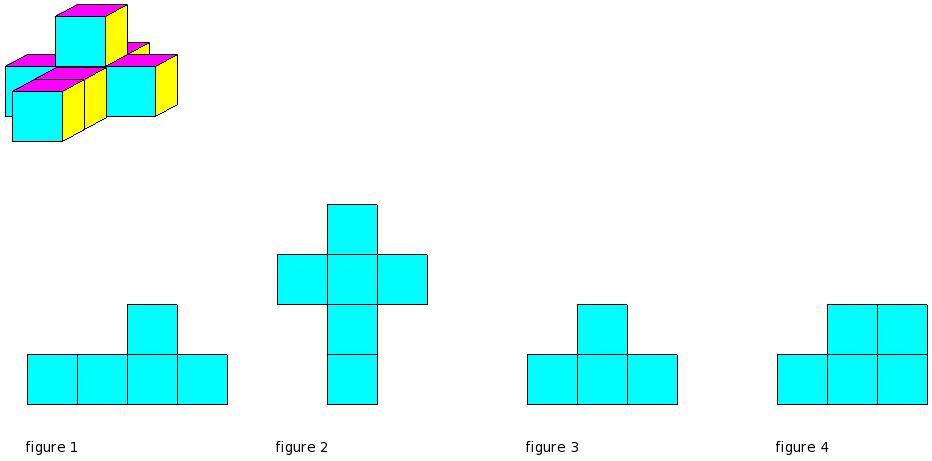

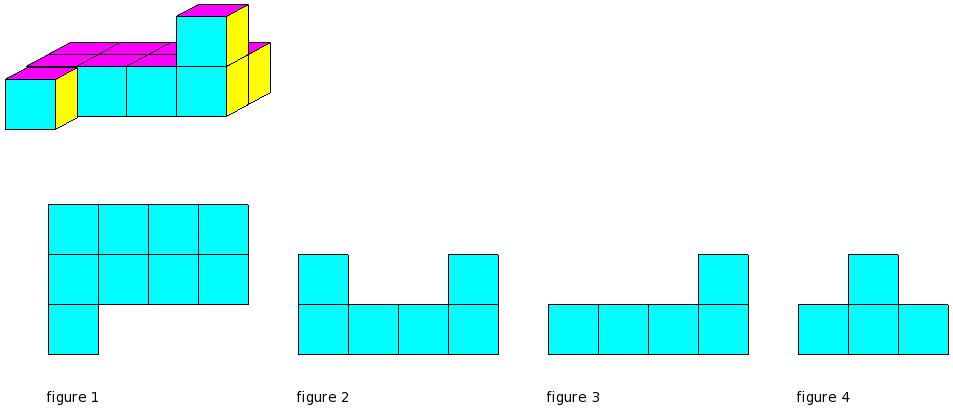

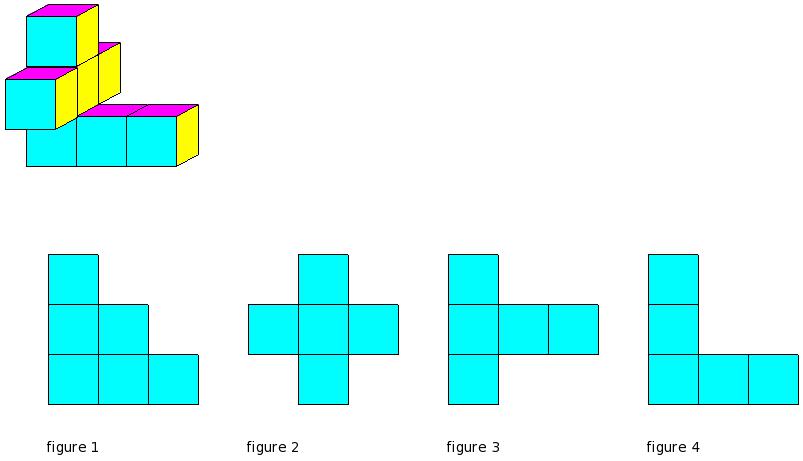

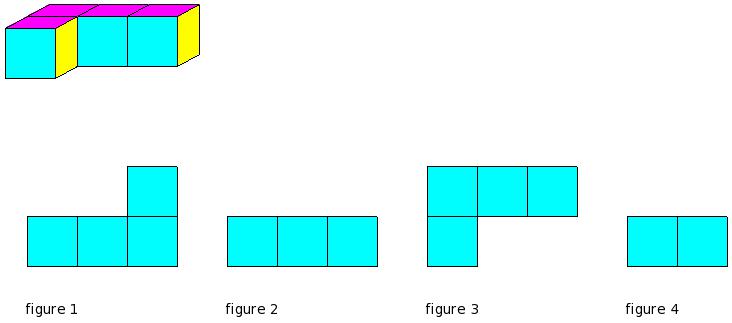

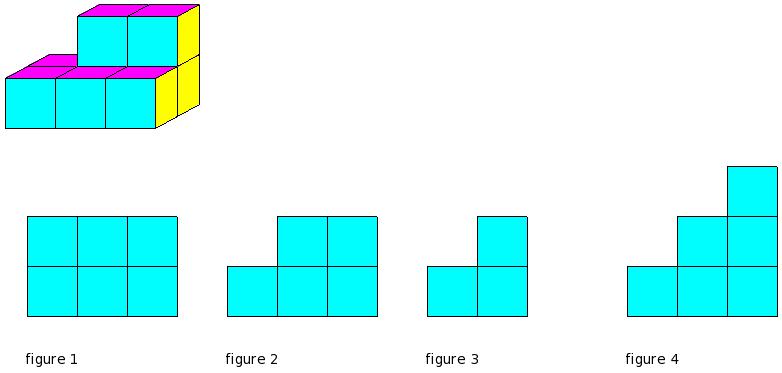

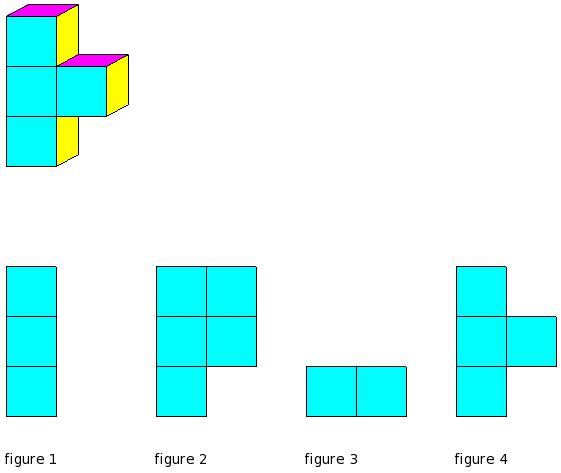

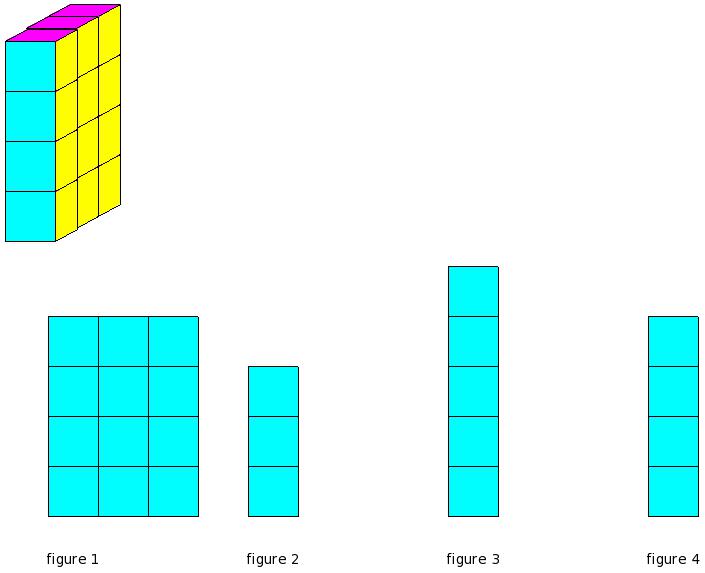

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 3
(ii)
figure 2
(iii)
figure 4
(iv)
figure 1
Question
5
5.

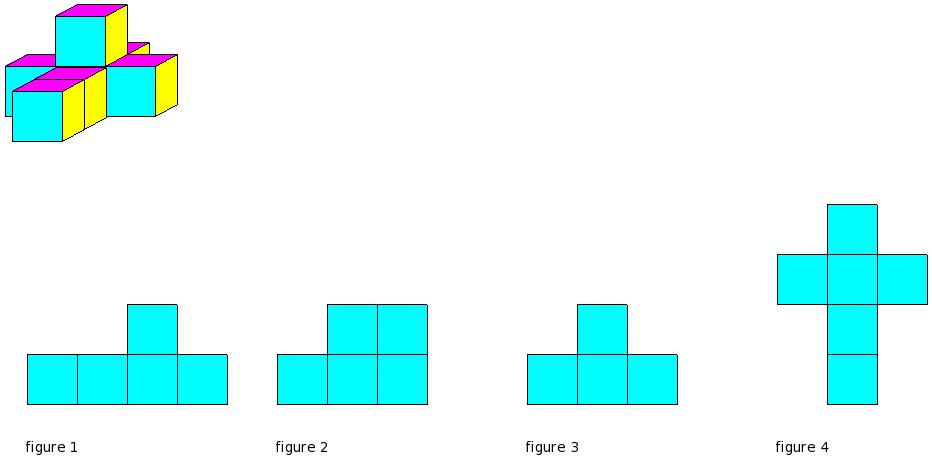

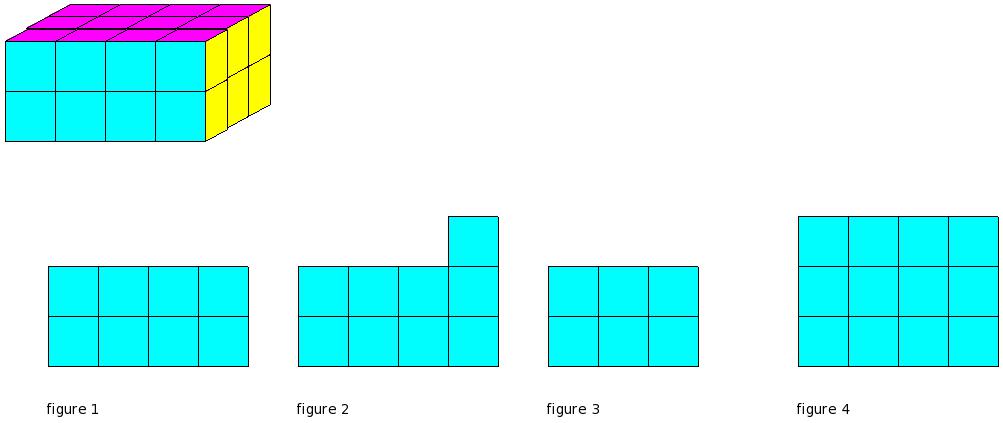

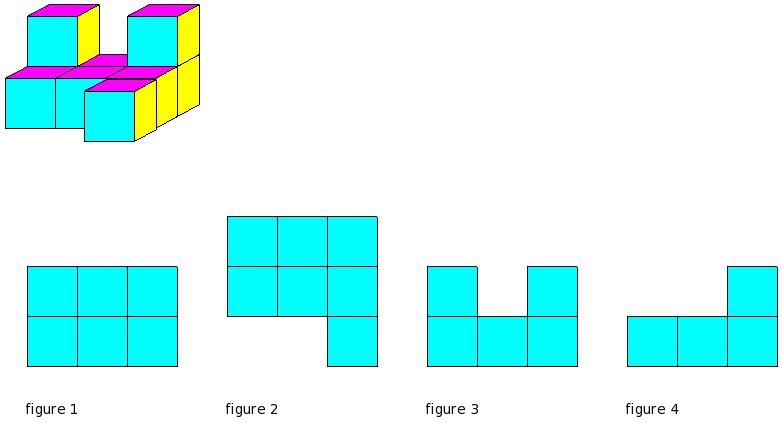

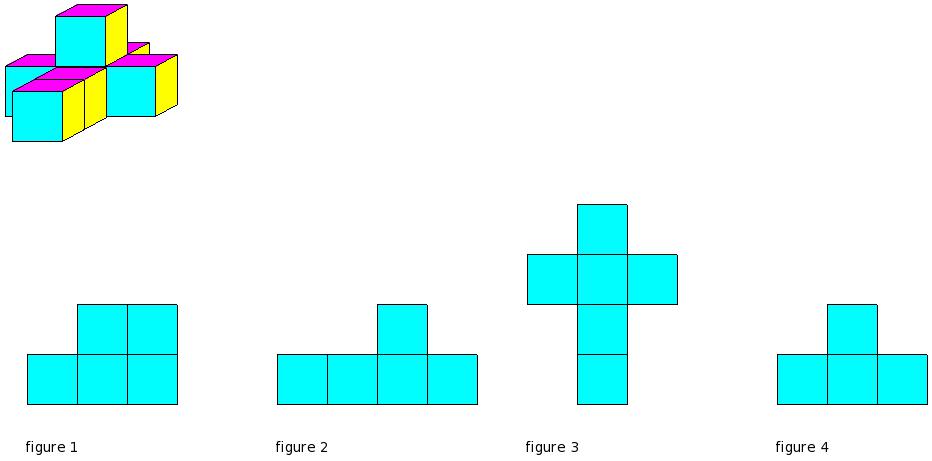

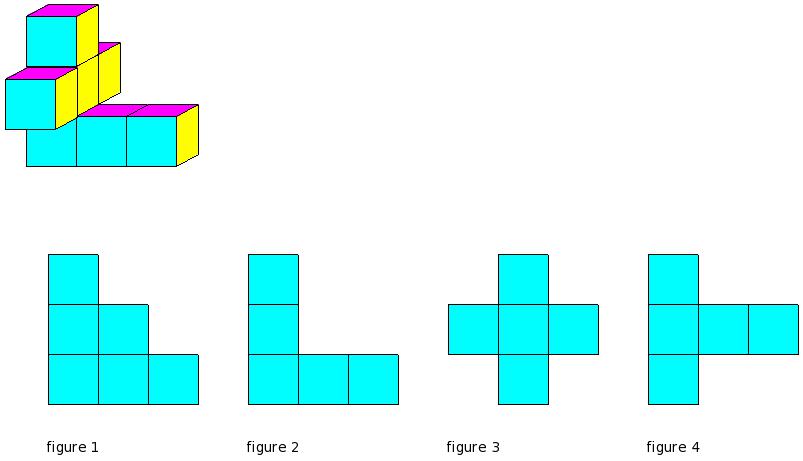

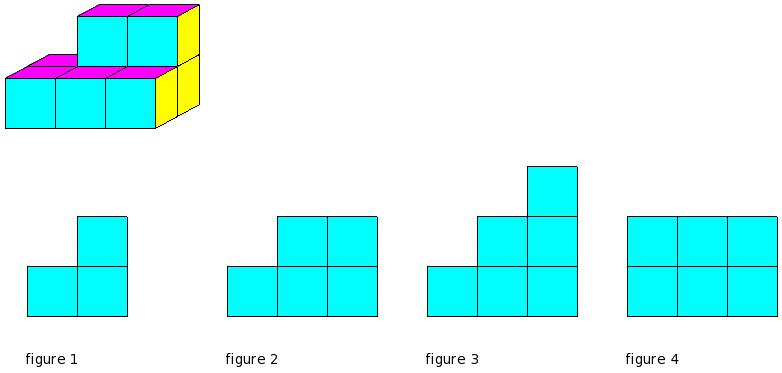

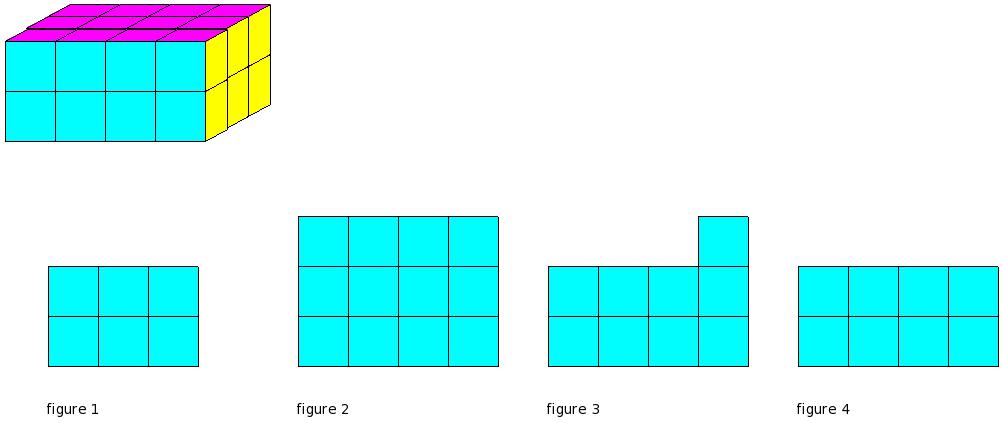

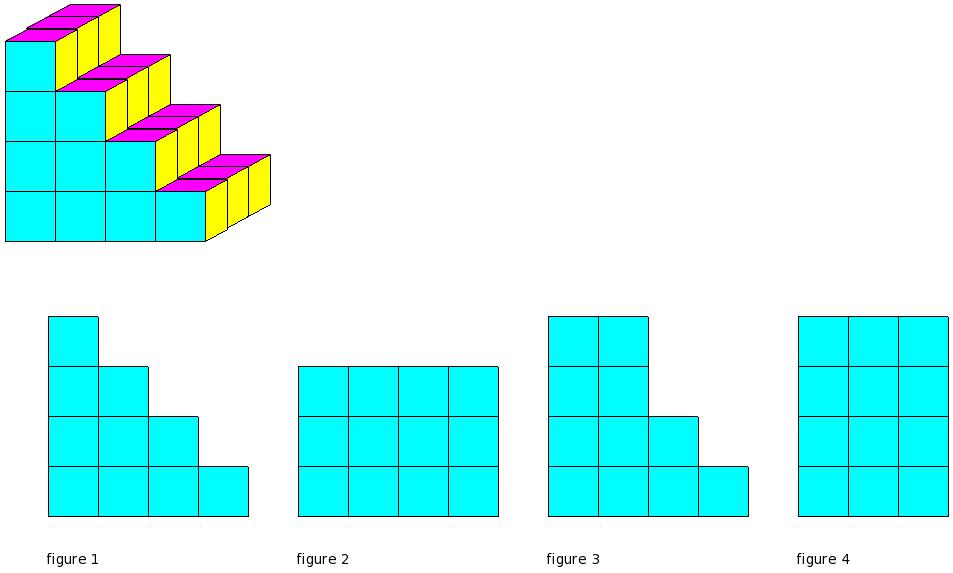

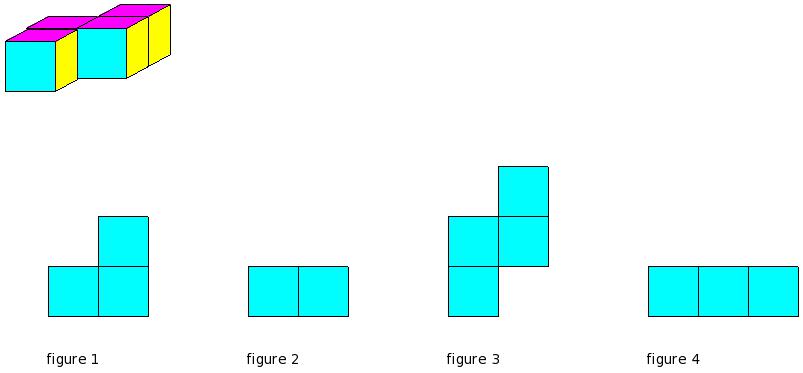

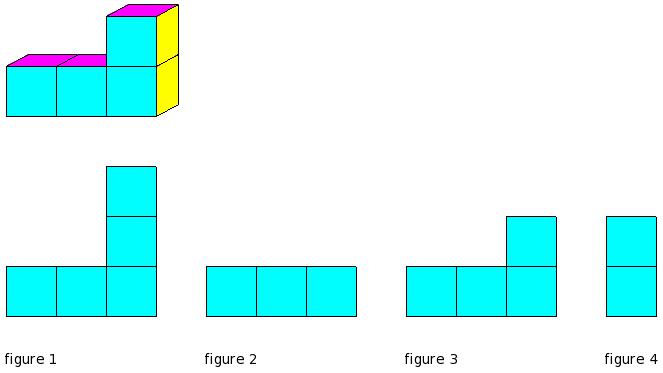

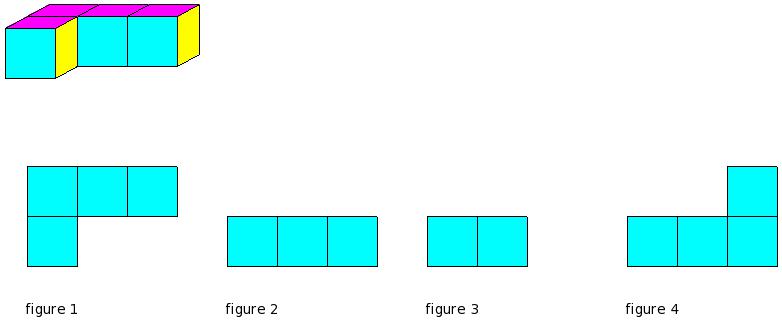

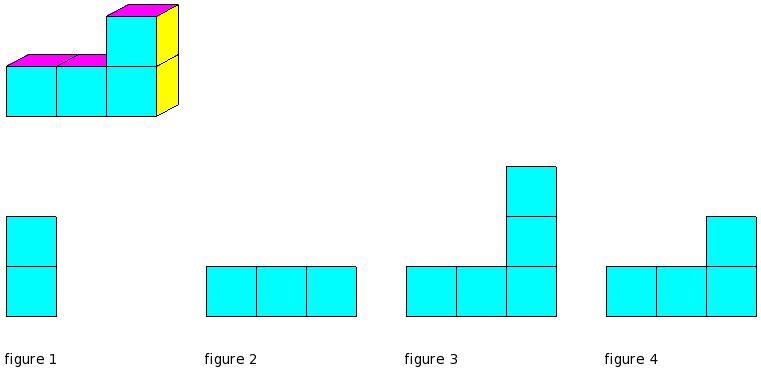

Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 2
(iii)
figure 3
(iv)
figure 4
Question
6
6.

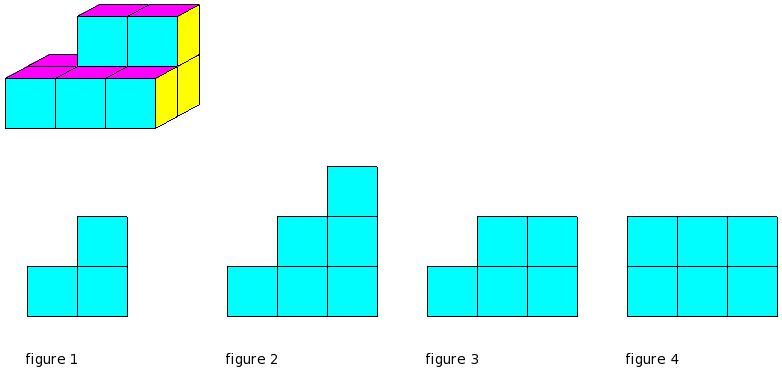

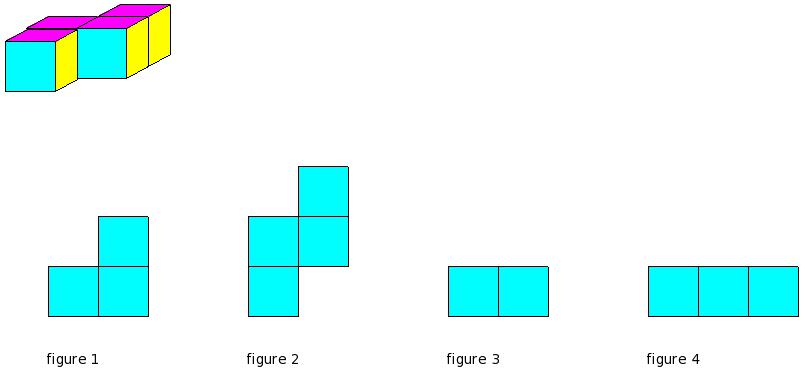

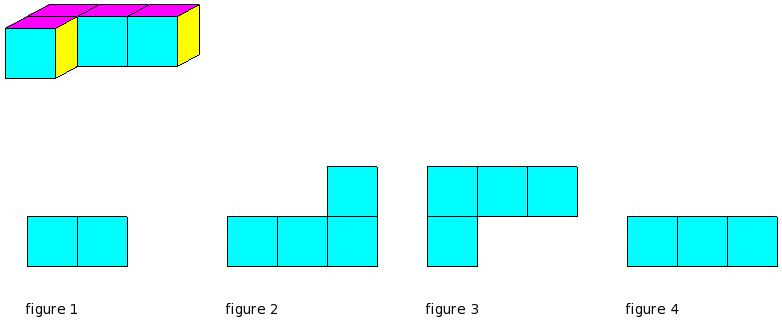

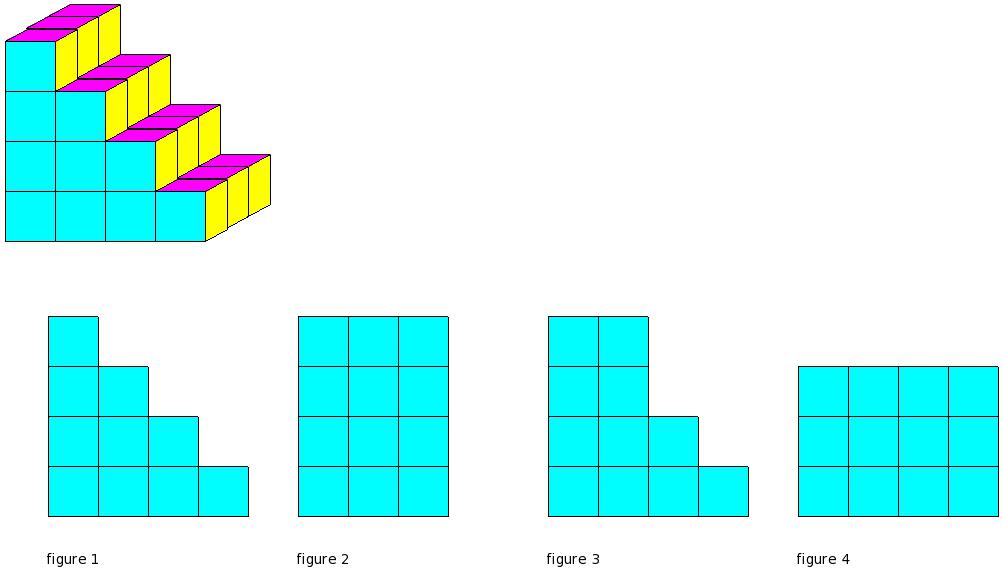

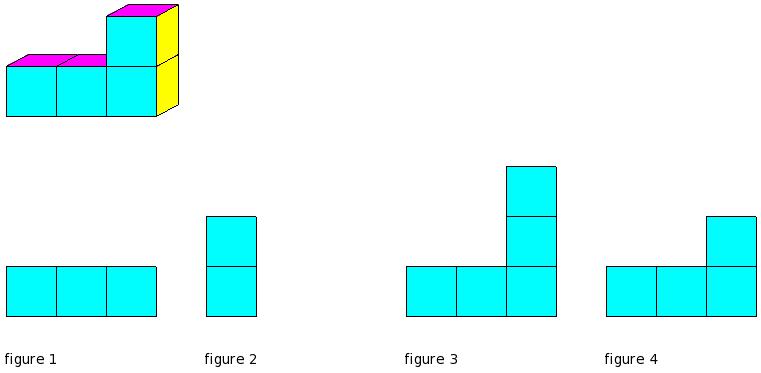

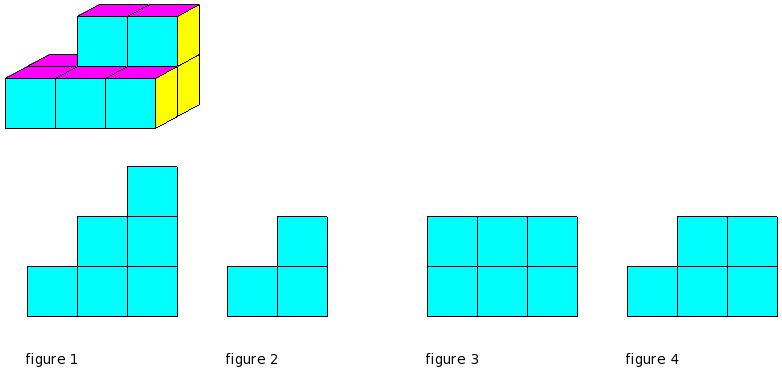

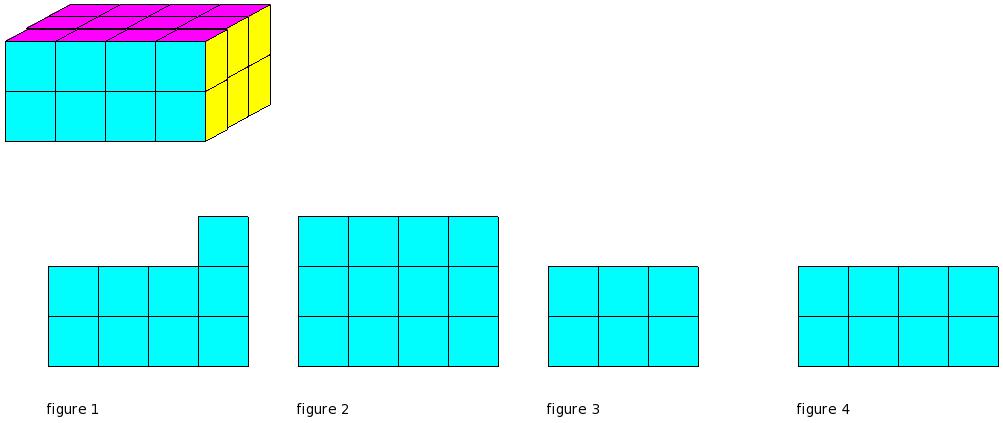

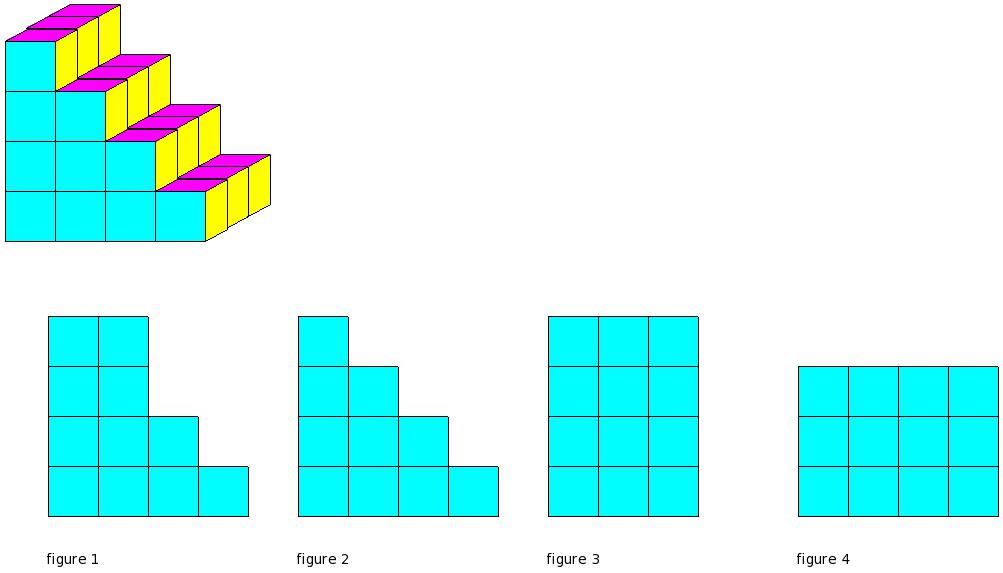

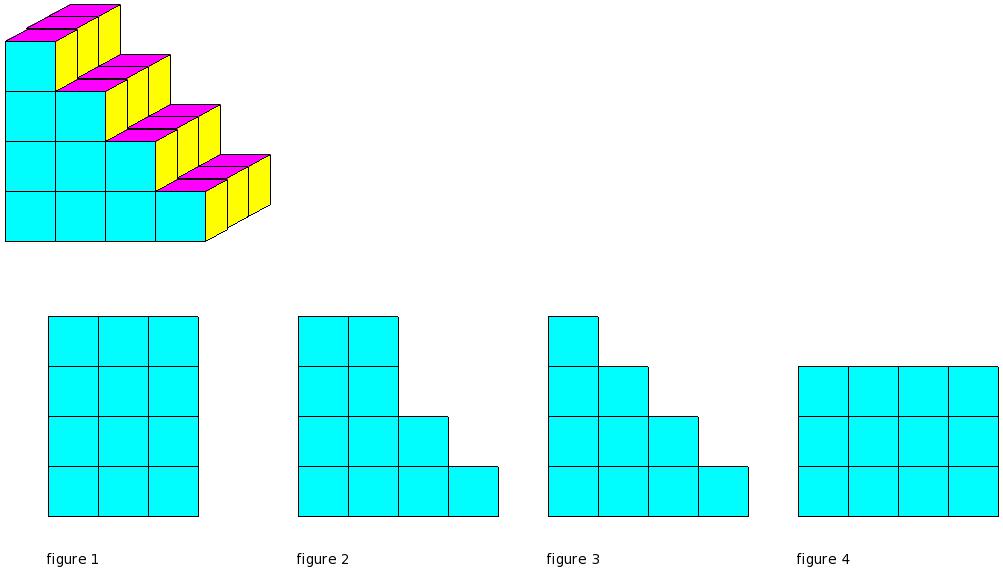

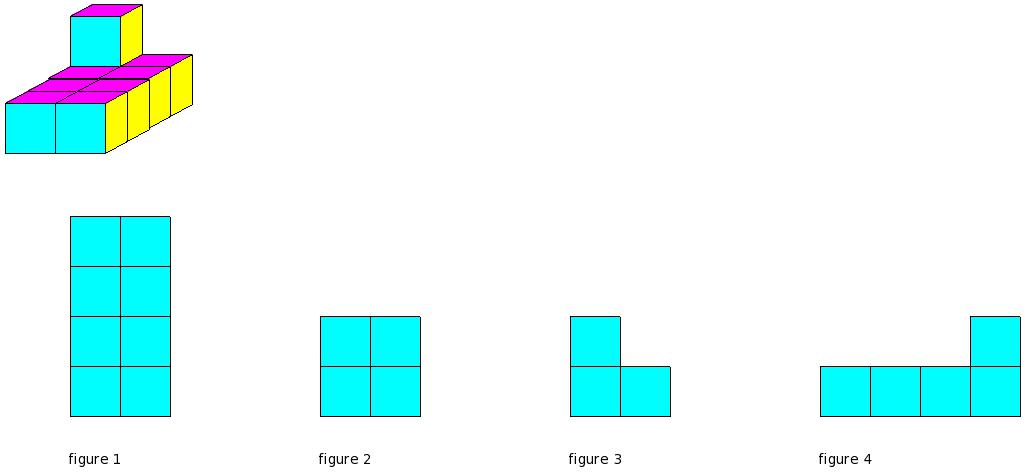

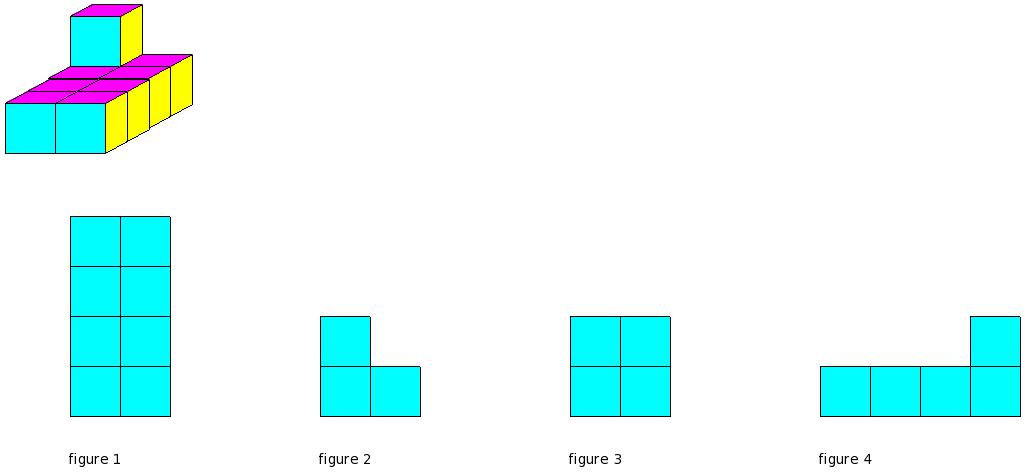

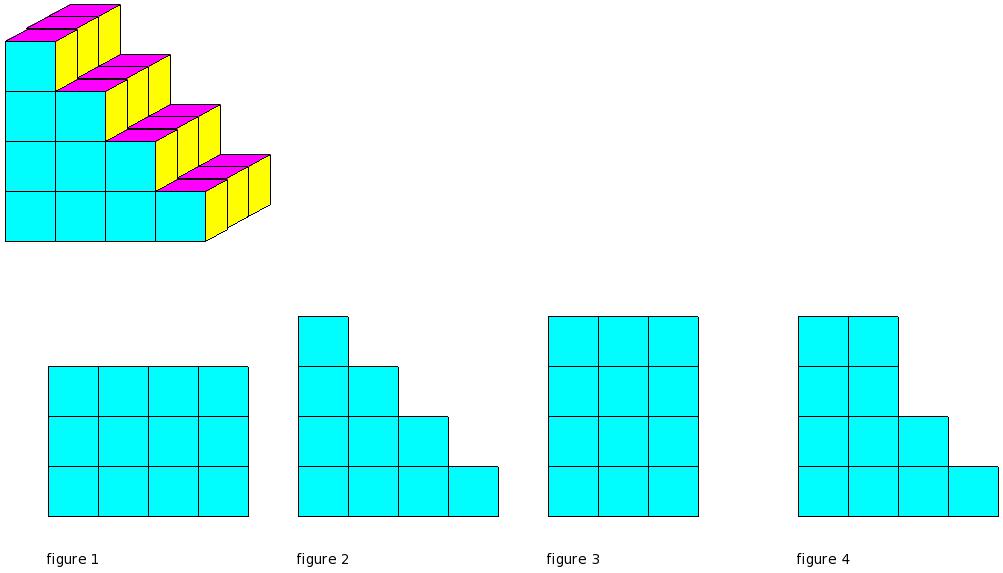

Which of the figures represent the front view of the given 3-D figure?
(i)
figure 4
(ii)
figure 2
(iii)
figure 1
(iv)
figure 3
Question
7
7.
The number of vertices in a triangular prism are
(i)
3
(ii)
5
(iii)
8
(iv)
6
(v)
7
Question
8
8.

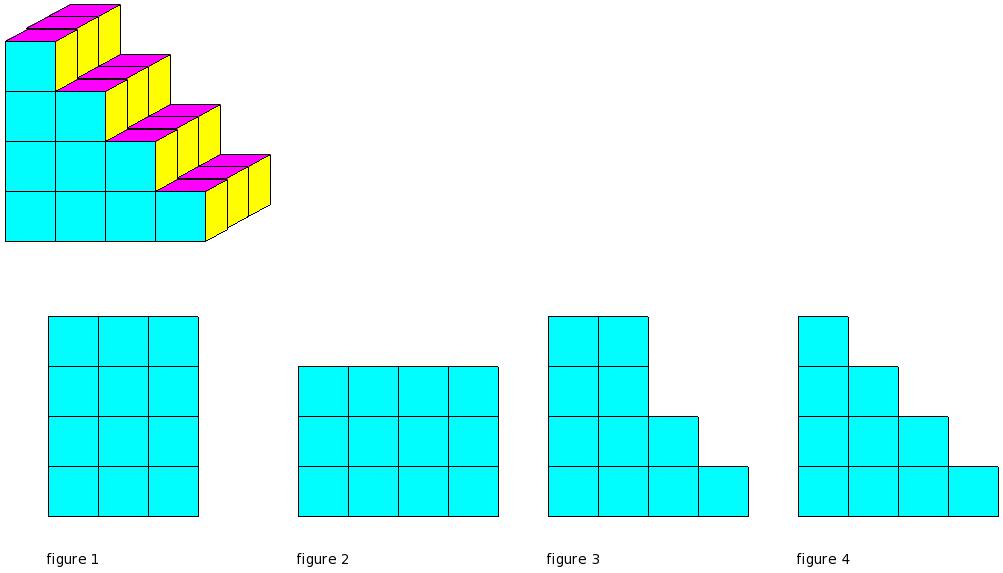

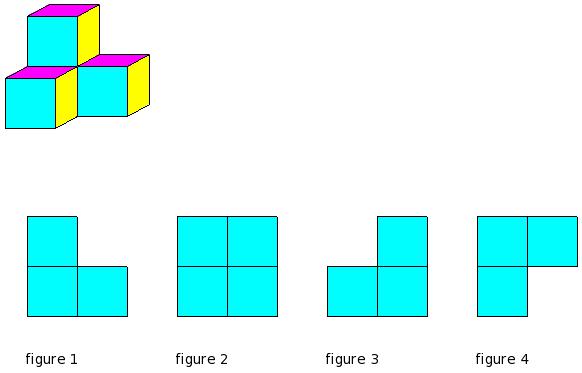

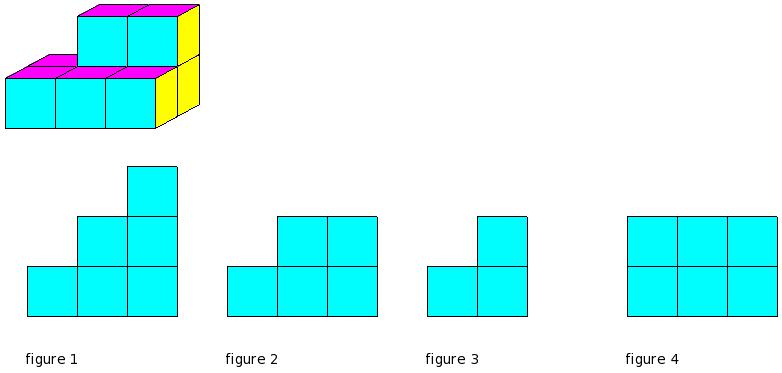

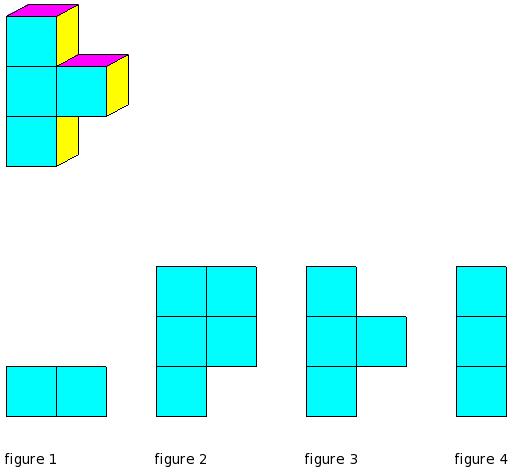

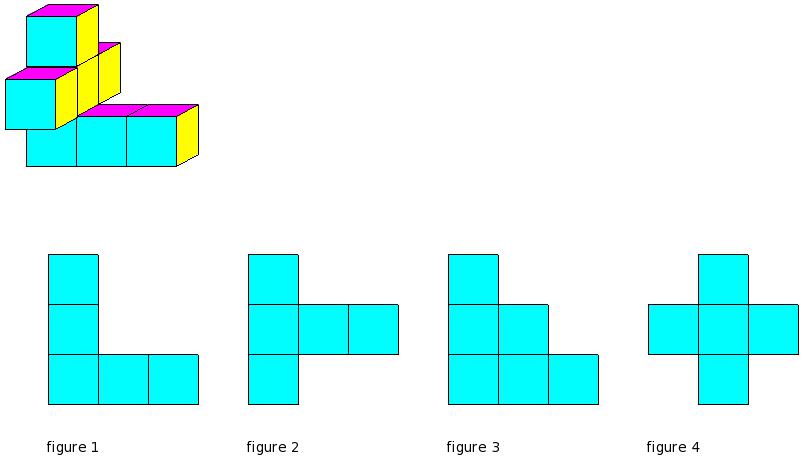

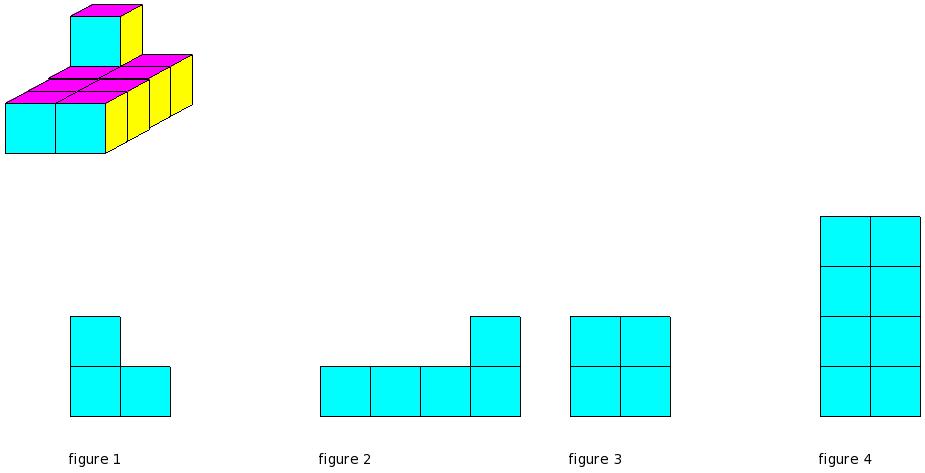

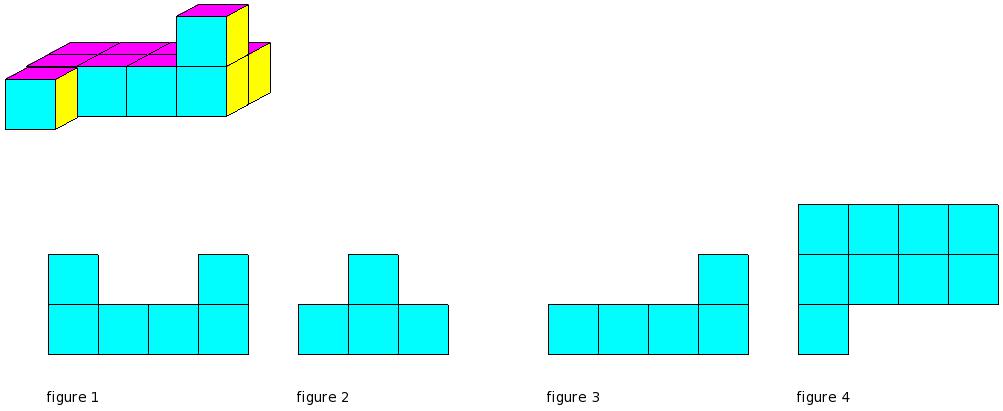

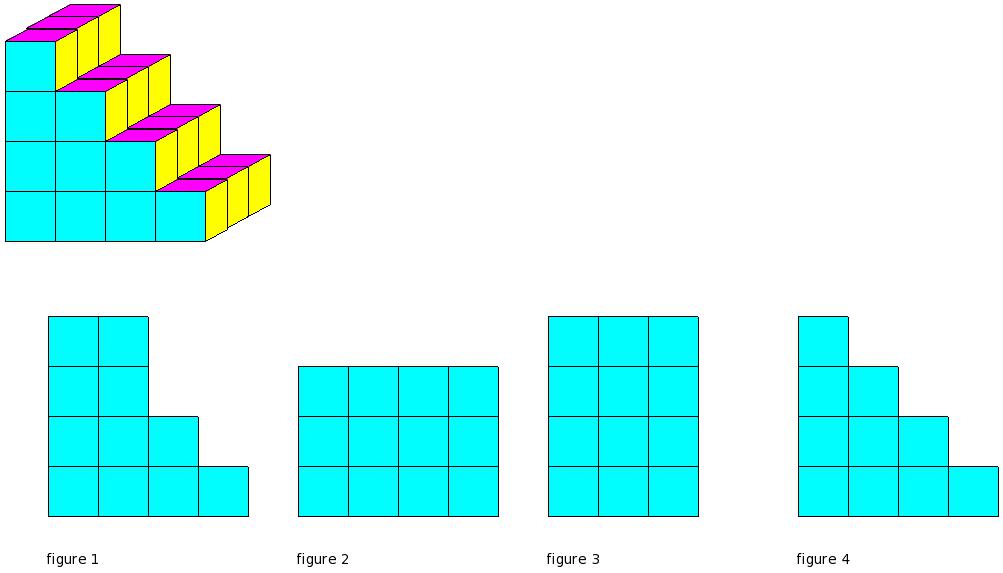

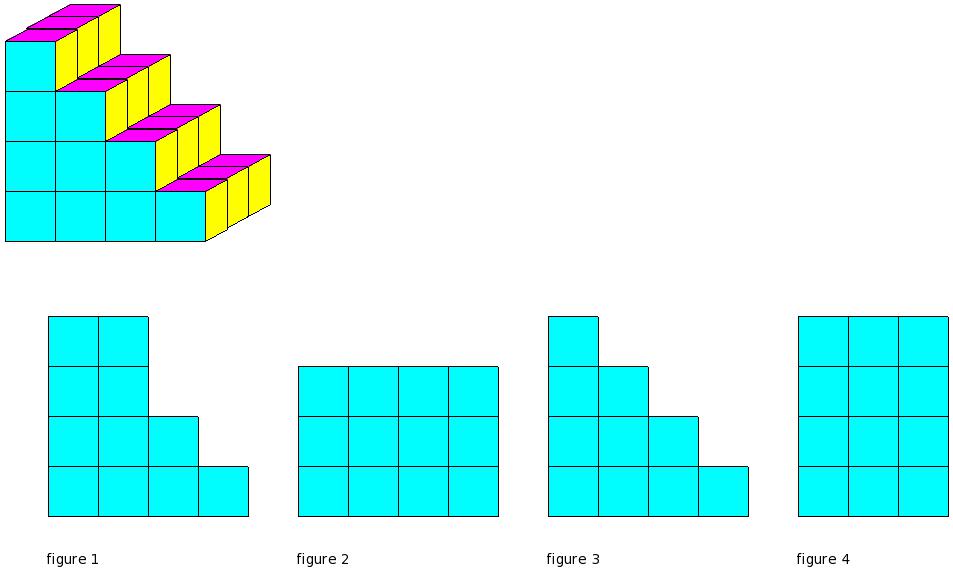

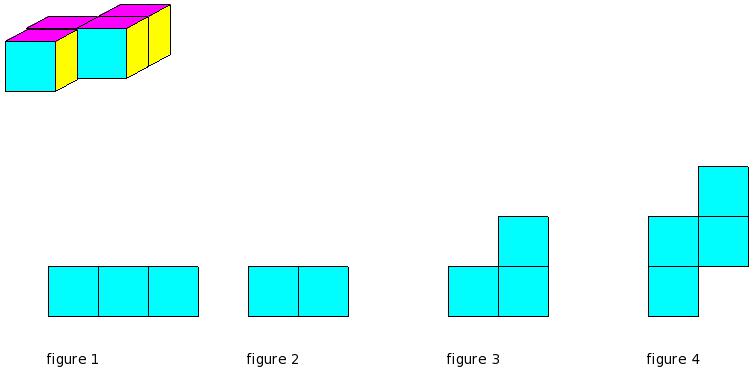

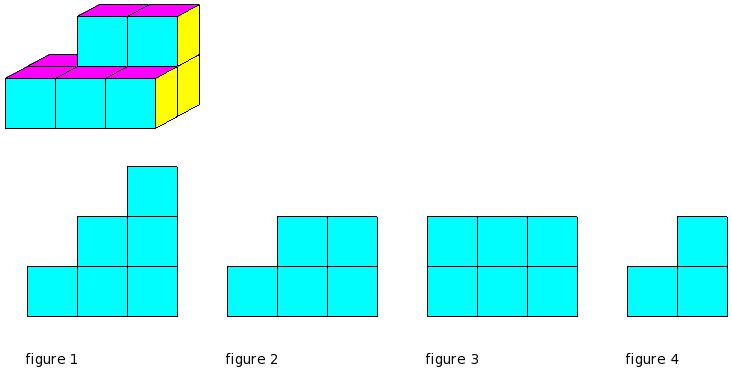

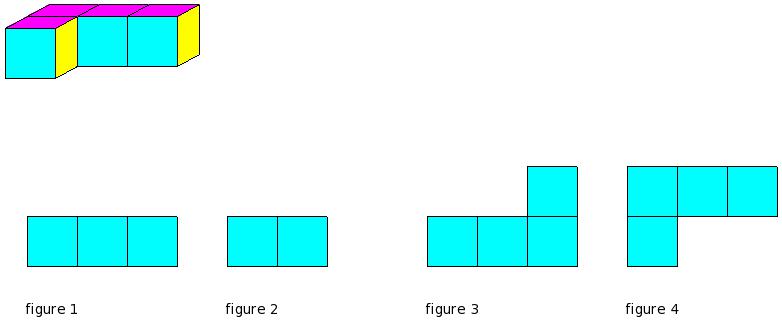

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 4
(iv)
figure 2
Question
9
9.

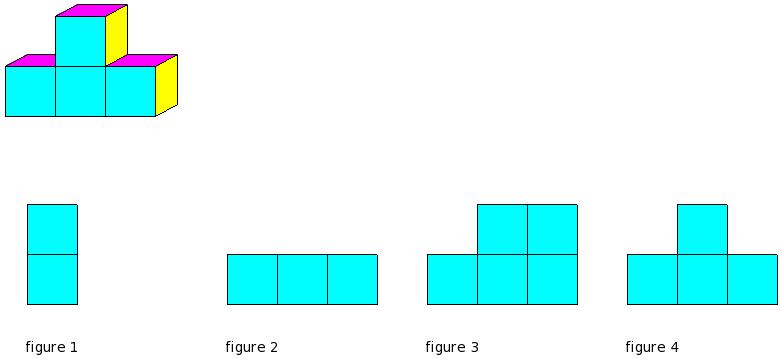

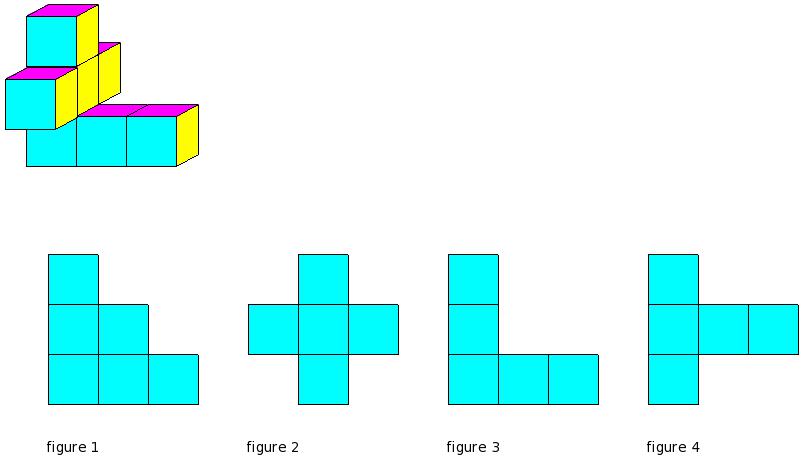

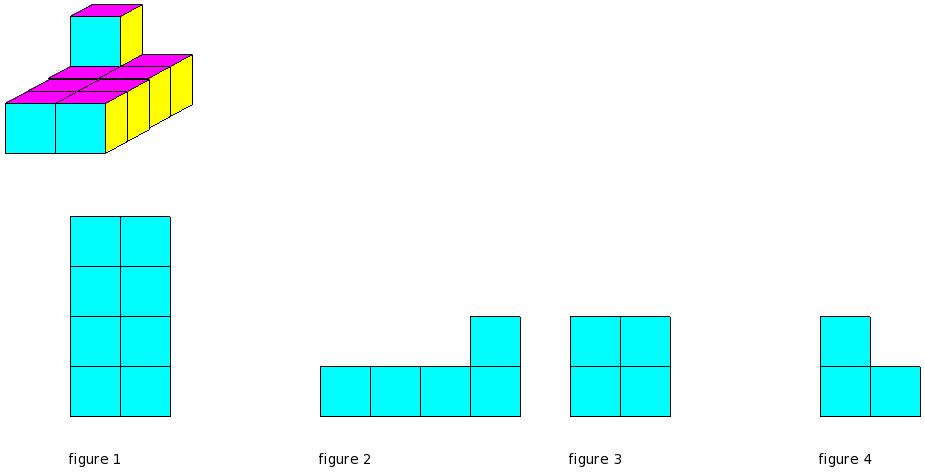

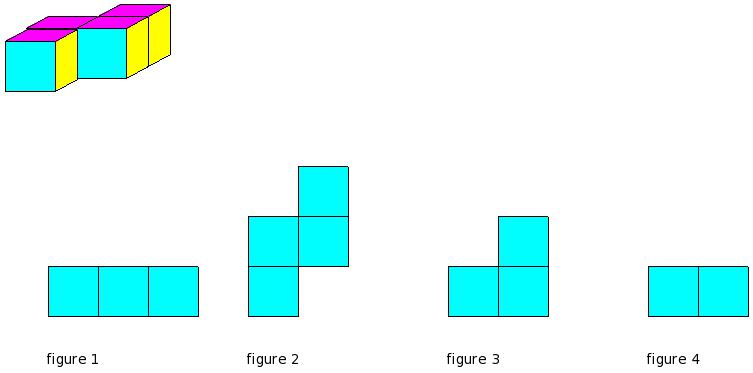

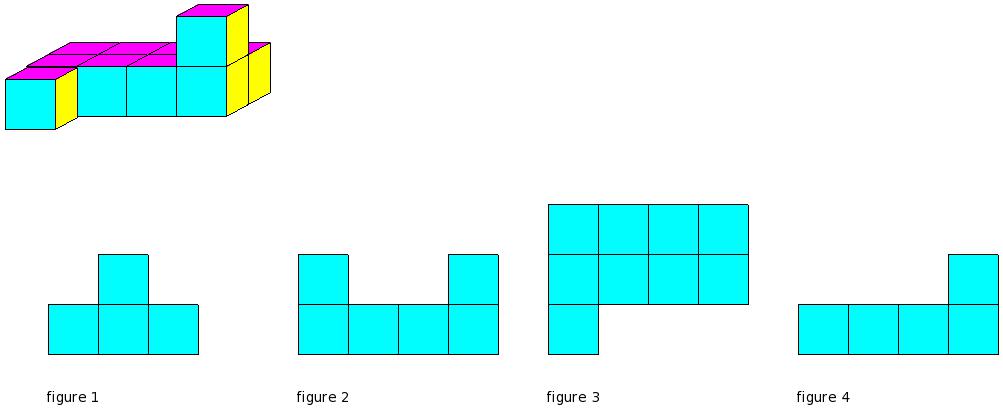

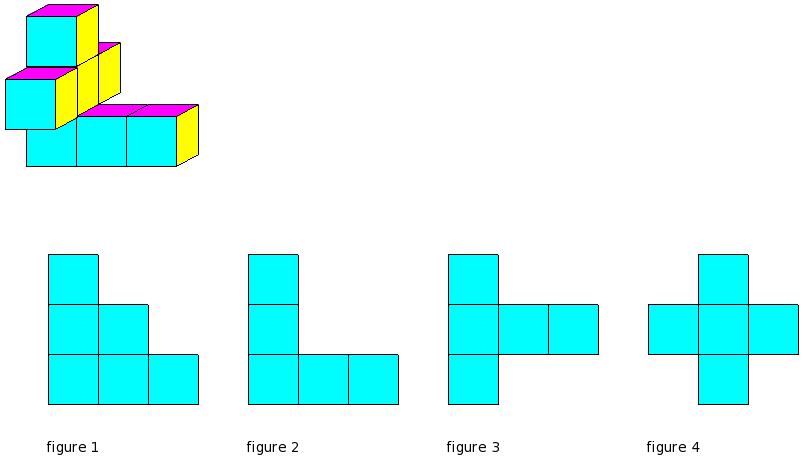

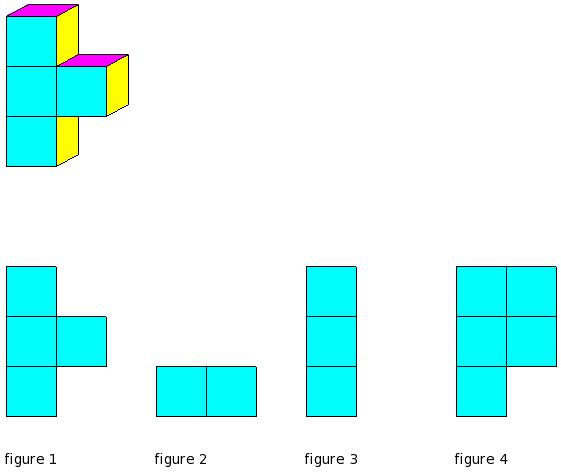

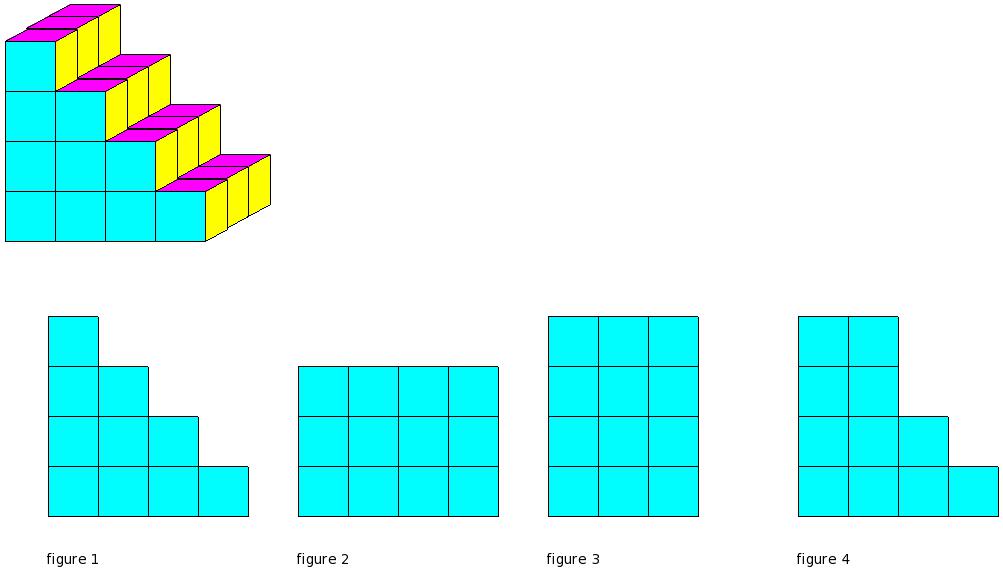

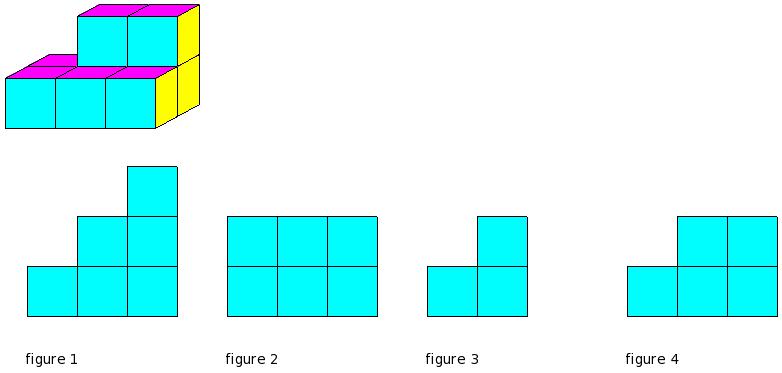

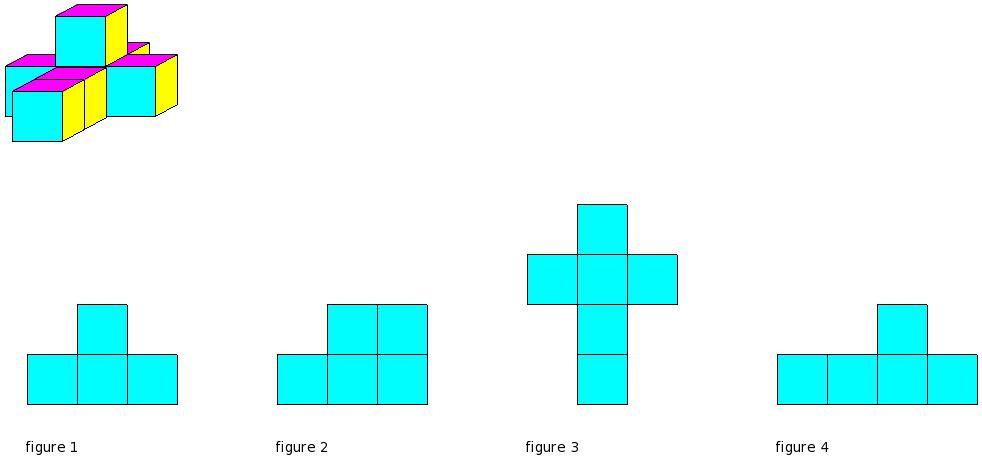

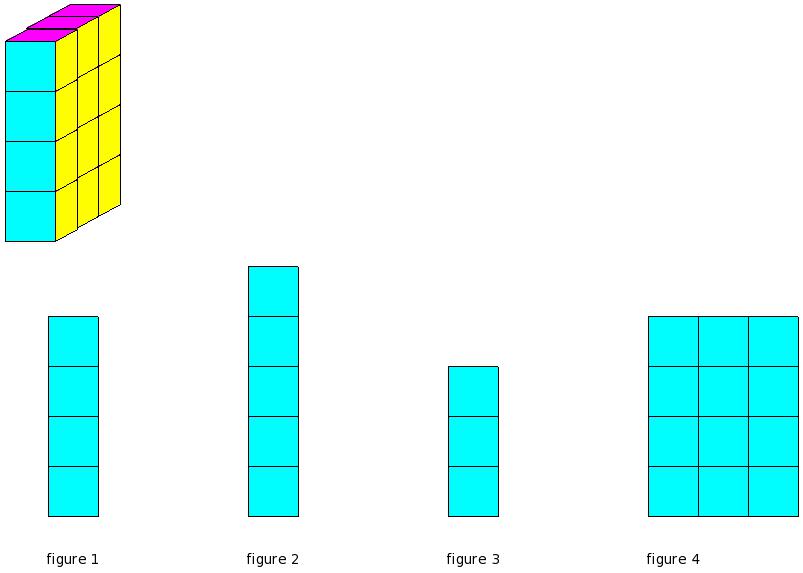

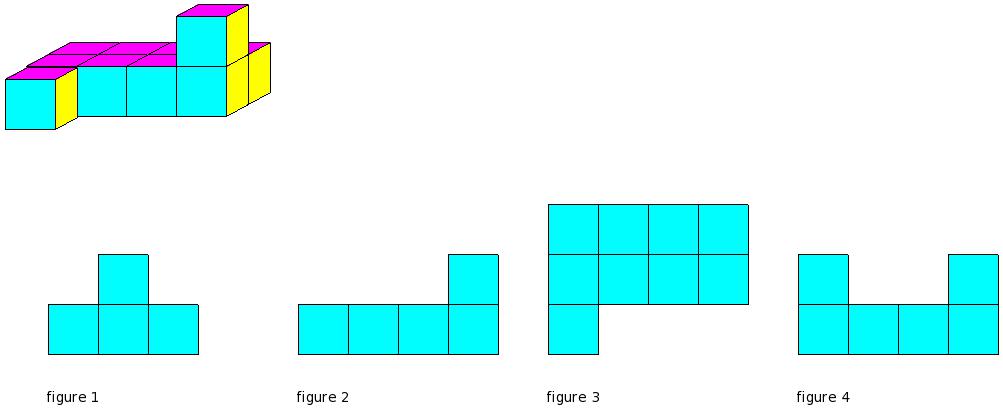

Which of the figures represent the side view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 3
(iv)
figure 2
Question
10
10.

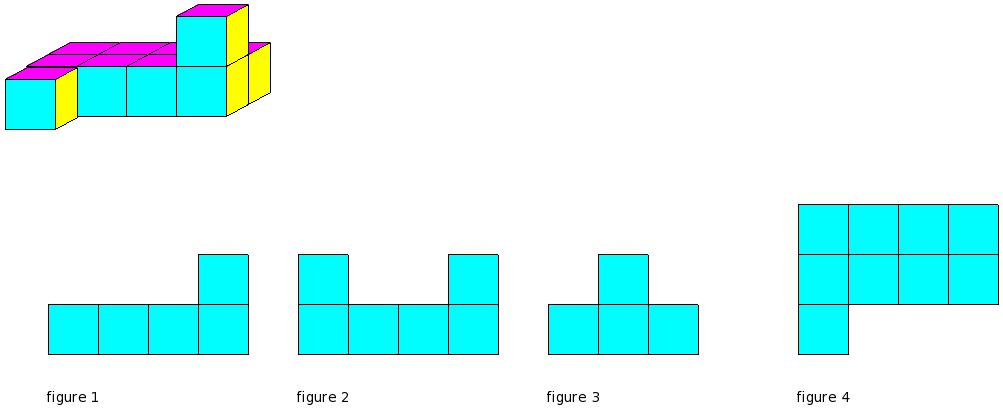

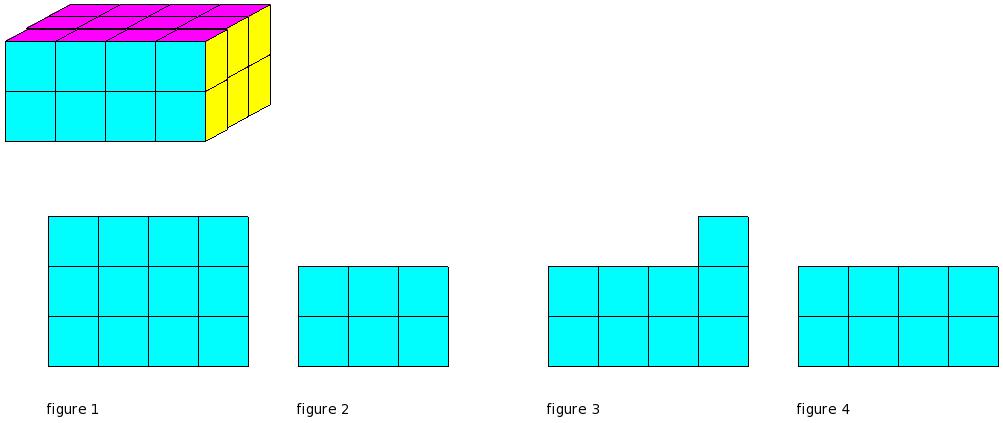

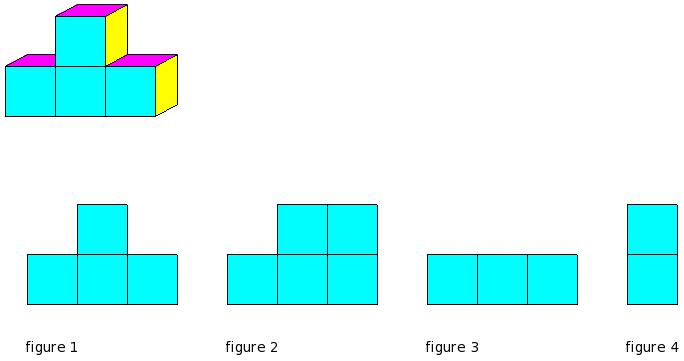

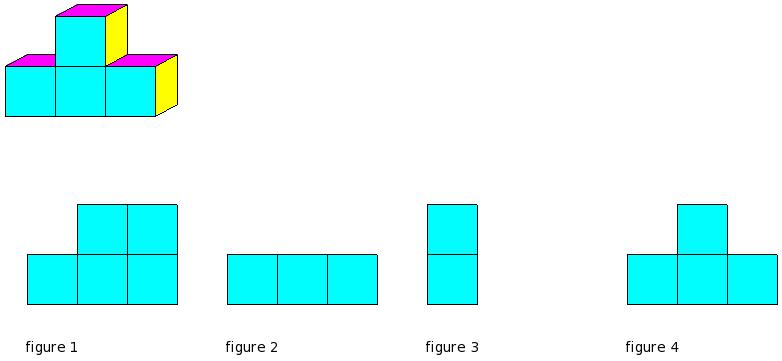

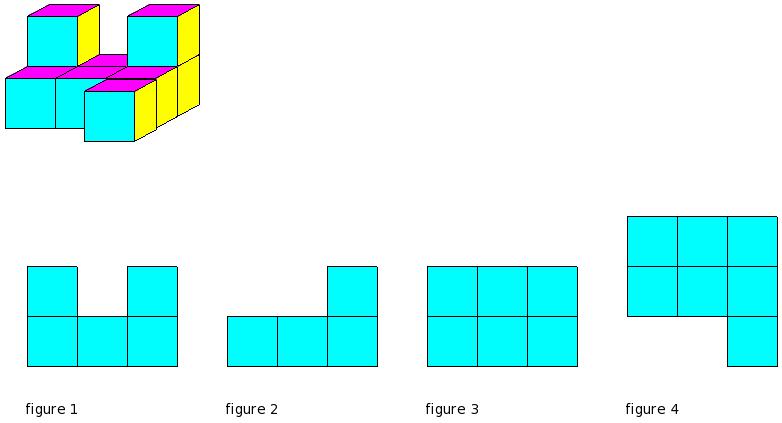

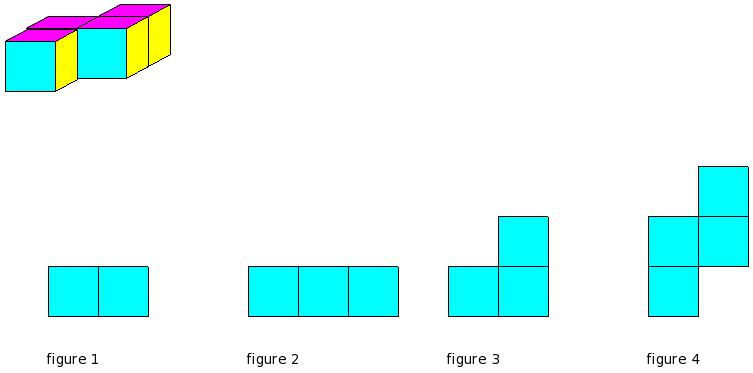

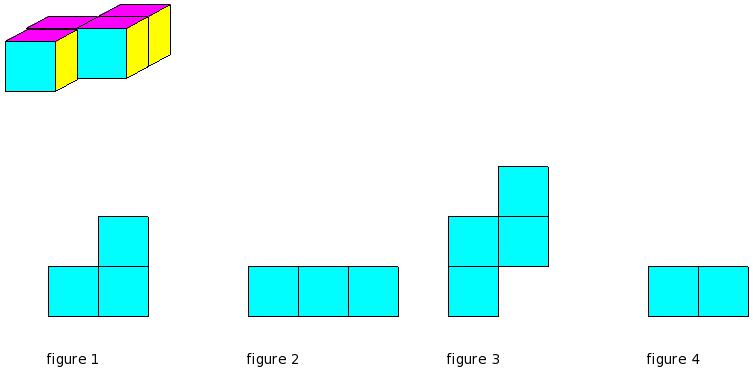

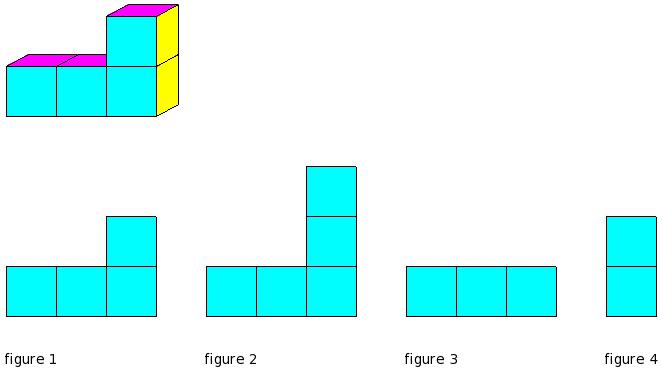

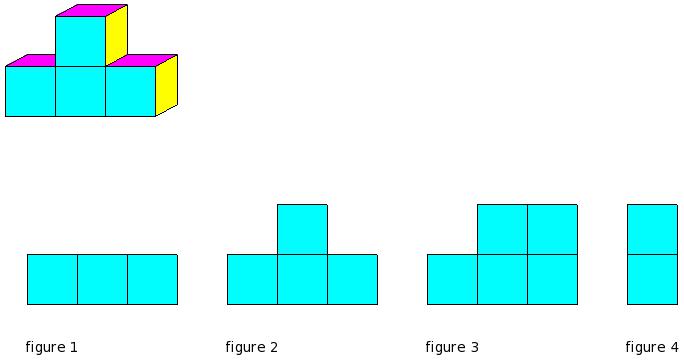

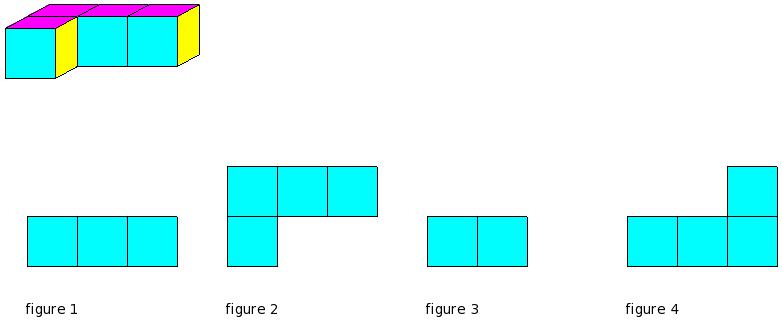

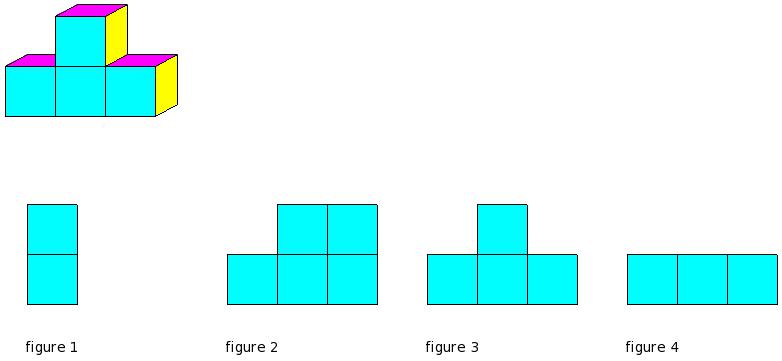

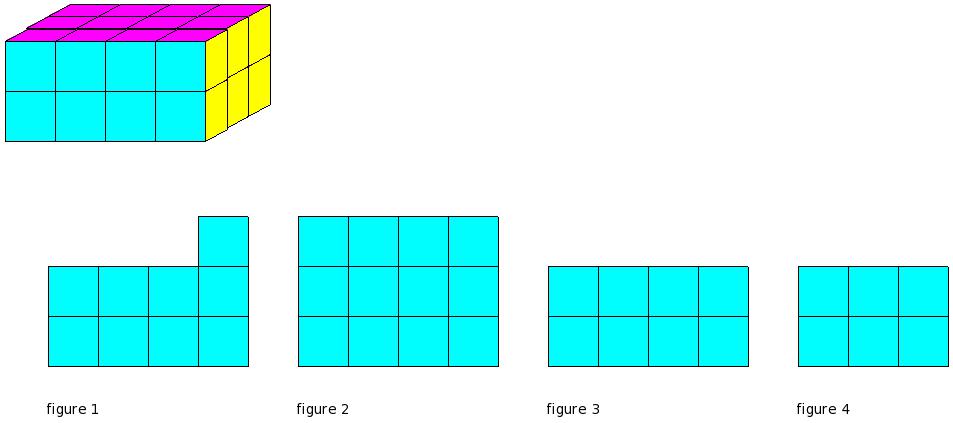

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 1
(ii)
figure 4
(iii)
figure 3
(iv)
figure 2
Question
11
11.

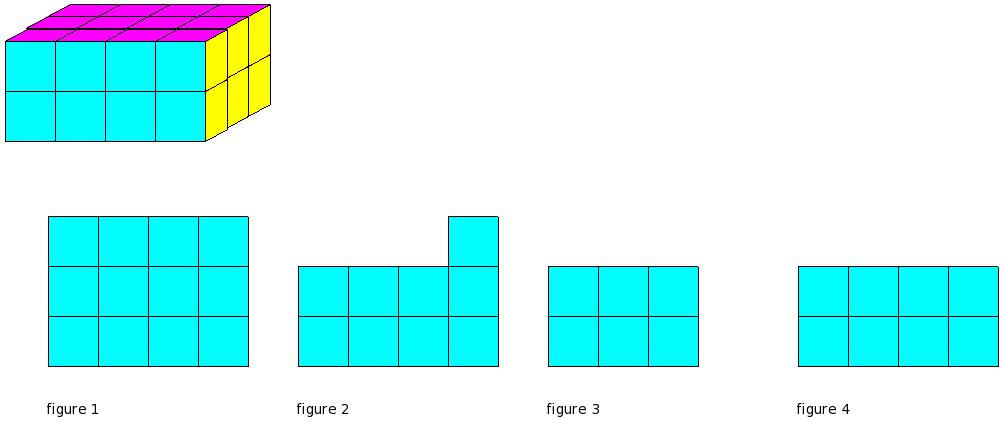

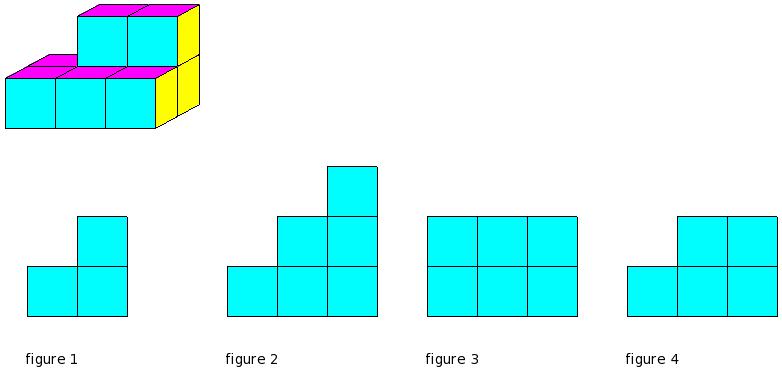

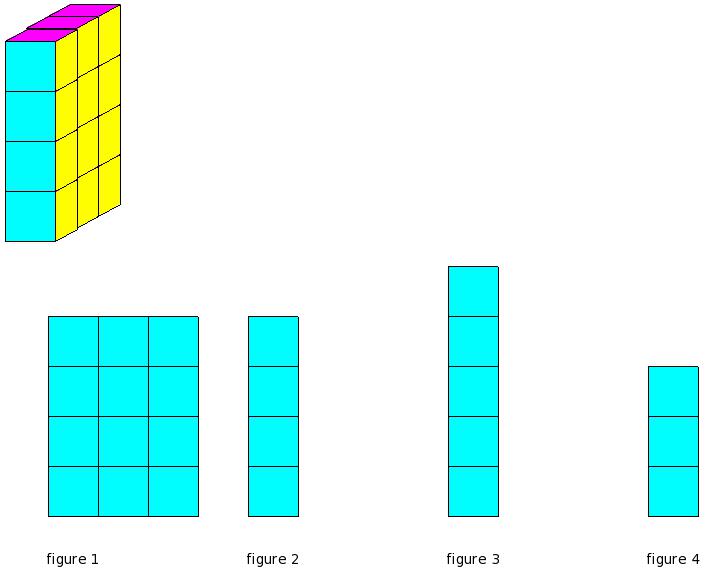

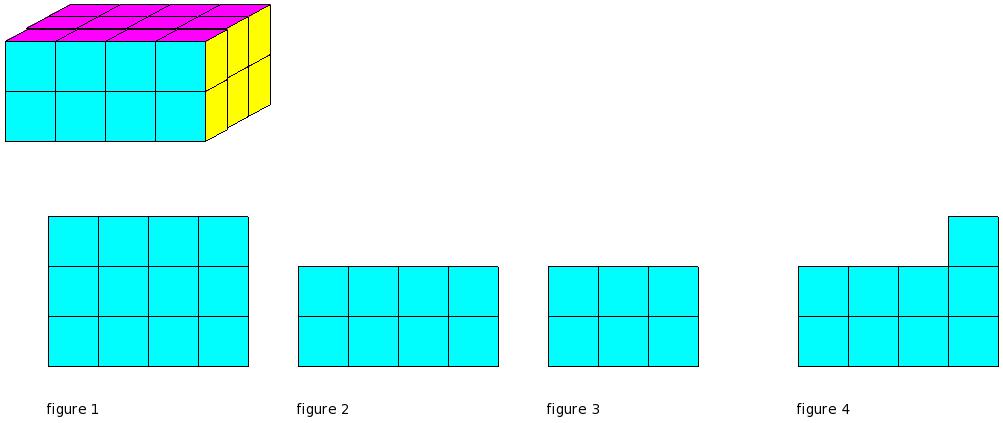

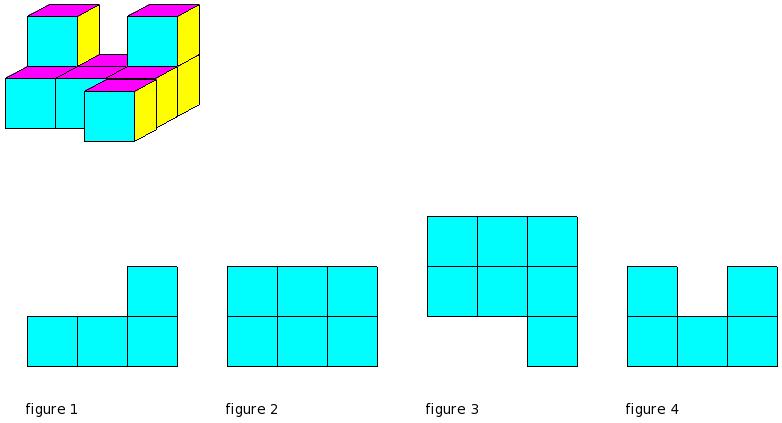

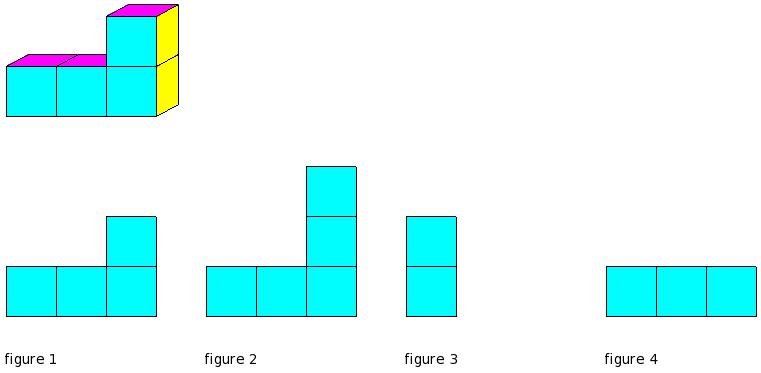

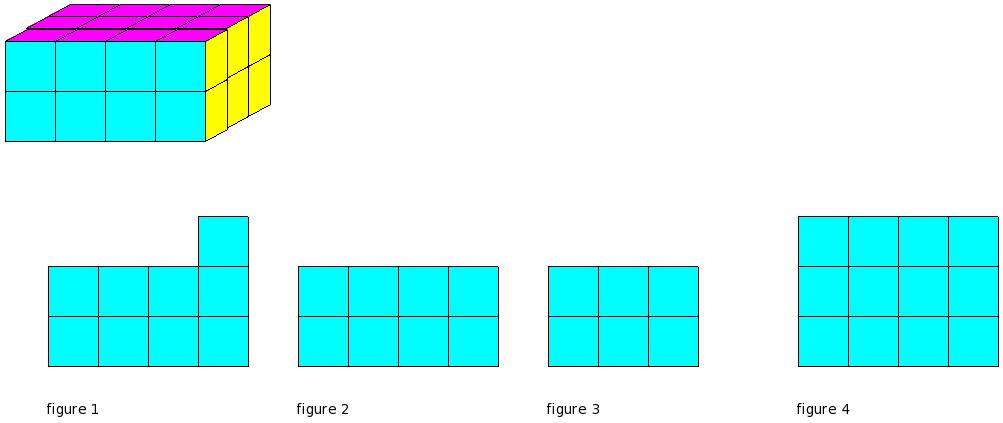

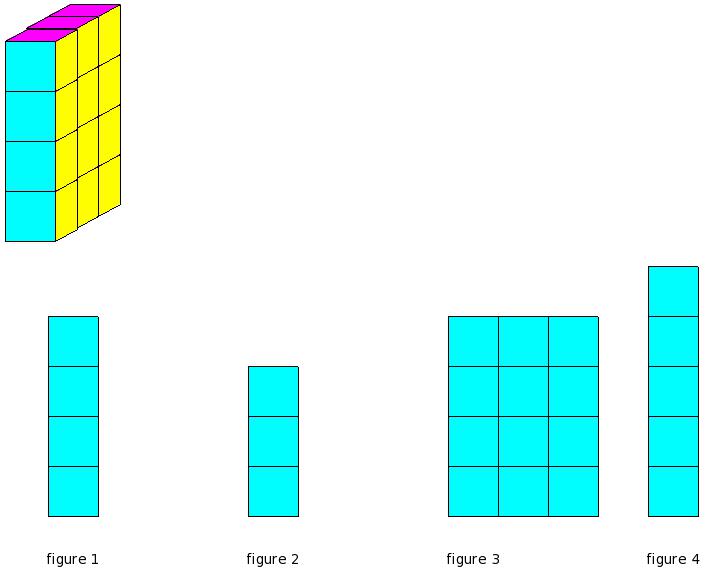

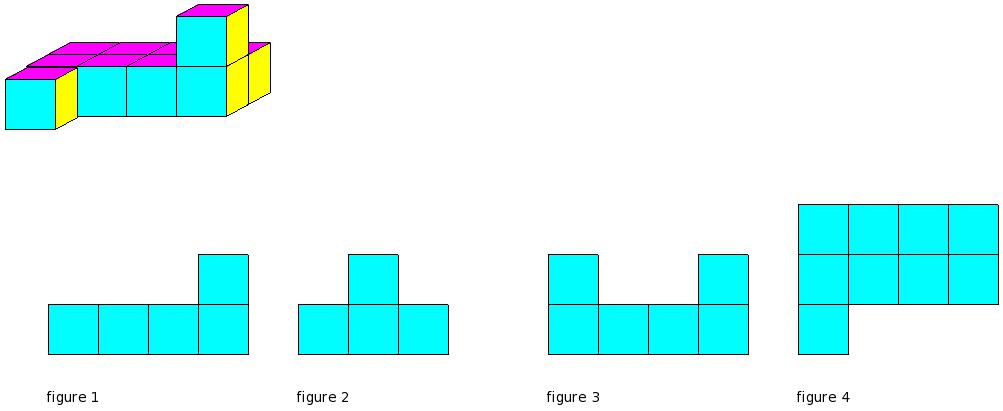

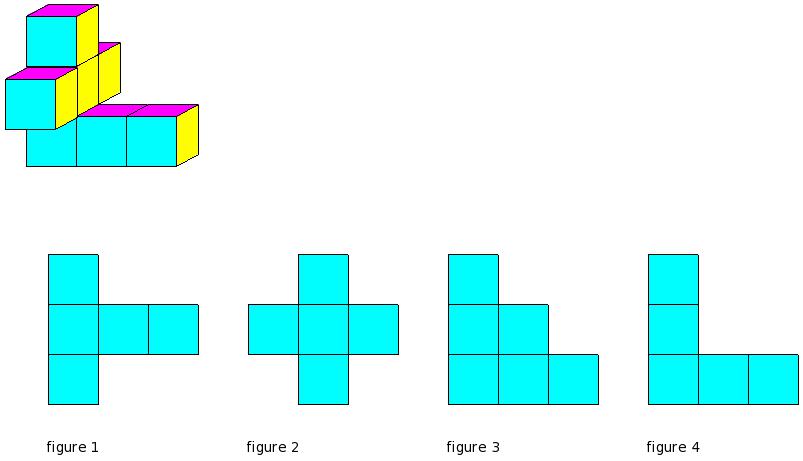

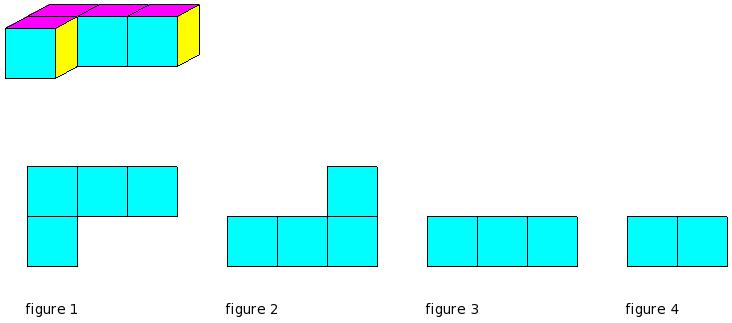

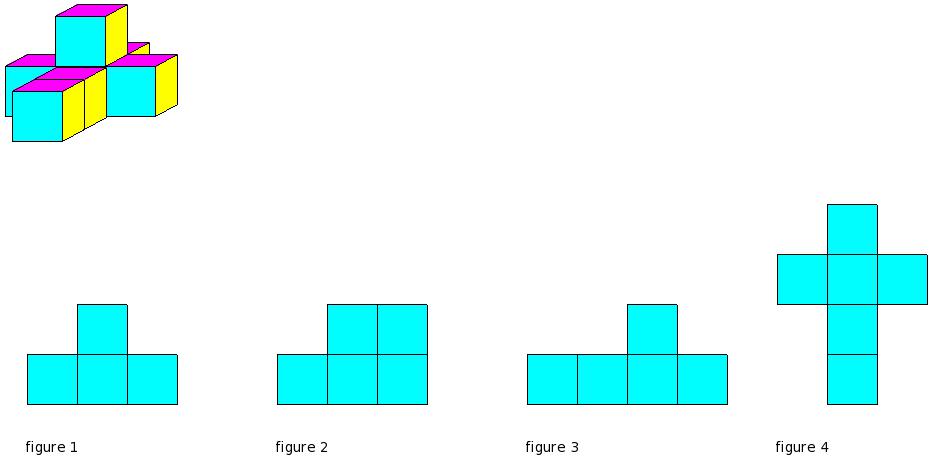

Which of the figures represent the front view of the given 3-D figure?
(i)
figure 3
(ii)
figure 4
(iii)
figure 2
(iv)
figure 1
Question
12
12.
The number of faces in a square pyramid are
(i)
8
(ii)
5
(iii)
4
(iv)
3
(v)
6
Question
13
13.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 1
(ii)
figure 4
(iii)
figure 3
(iv)
figure 2
Question
14
14.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 4
(iv)
figure 2
Question
15
15.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 4
(ii)
figure 3
(iii)
figure 1
(iv)
figure 2
Question
16
16.
The number of vertices in a triangular pyramid are
(i)
7
(ii)
3
(iii)
4
(iv)
5
(v)
2
Question
17
17.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 3
(iv)
figure 2
Question
18
18.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 3
(ii)
figure 4
(iii)
figure 1
(iv)
figure 2
Question
19
19.
Identify the figure below
(i)
sphere
(ii)
cone
(iii)
cuboid
(iv)
triangular prism
(v)
cube
Question
20
20.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 3
(ii)
figure 2
(iii)
figure 1
(iv)
figure 4
Question
21
21.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 3
(ii)
figure 4
(iii)
figure 1
(iv)
figure 2
Question
22
22.
Identify the figure below
(i)
cylinder
(ii)
sphere
(iii)
cuboid
(iv)
cube
(v)
cone
Question
23
23.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 4
(ii)
figure 3
(iii)
figure 1
(iv)
figure 2
Question
24
24.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 4
(iv)
figure 2
Question
25
25.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 1
(ii)
figure 4
(iii)
figure 3
(iv)
figure 2
Assignment Key
1) (iii)
2) (iv)
3) (v)
4) (iv)
5) (i)
6) (i)
7) (iv)
8) (iii)
9) (i)
10) (ii)
11) (iii)
12) (ii)
13) (ii)
14) (ii)
15) (i)
16) (iii)
17) (i)
18) (iii)
19) (v)
20) (iv)
21) (iv)
22) (iii)
23) (iii)
24) (ii)
25) (iv)
