EduSahara™ Worksheet
Name : Chapter Based Worksheet
Chapter : Surface Areas and Volumes
Grade : CBSE Grade IX
License : Non Commercial Use
Question 1
1.

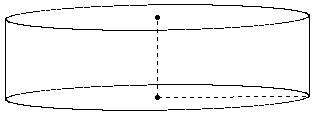

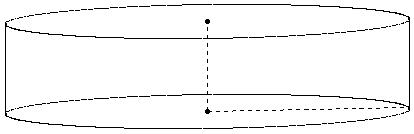

If the radius of a cylinder is 5.00 cm and volume is 1492.86 cu.cm, its base area is
  • (i)
    83.57 sq.cm
  • (ii)
    81.57 sq.cm
  • (iii)
    75.57 sq.cm
  • (iv)
    78.57 sq.cm
  • (v)
    73.57 sq.cm
Question 2
2.
Find the volume of the given object if each individual cube is 1 cu.cm
  • (i)
    7 cu.cm
  • (ii)
    9 cu.cm
  • (iii)
    8 cu.cm
  • (iv)
    6 cu.cm
  • (v)
    10 cu.cm
Question 3
3.
If the base radius of a cone is 6.00 cm and T.S.A is 273.24 sq.cm, its base area is
  • (i)
    113.14 sq.cm
  • (ii)
    115.14 sq.cm
  • (iii)
    86.14 sq.cm
  • (iv)
    138.14 sq.cm
  • (v)
    106.14 sq.cm
Question 4
4.

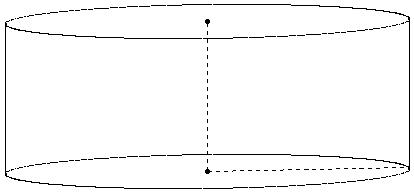

If the radius of a cylinder is 14.00 cm and T.S.A is 1672.00 sq.cm, its base area is
  • (i)
    631.00 sq.cm
  • (ii)
    616.00 sq.cm
  • (iii)
    600.00 sq.cm
  • (iv)
    589.00 sq.cm
  • (v)
    622.00 sq.cm
Question 5
5.

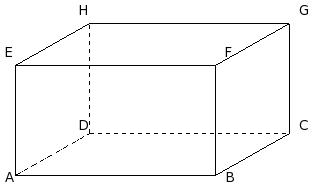

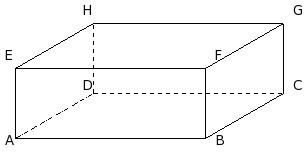

If the length, breadth and height of a cuboid are 17.00 cm, 11.00 cm and 15.00 cm respectively, its T.S.A is
  • (i)
    1264.00 sq.cm
  • (ii)
    1084.00 sq.cm
  • (iii)
    1374.00 sq.cm
  • (iv)
    1214.00 sq.cm
  • (v)
    1074.00 sq.cm
Question 6
6.
If the base radius of a cone is 9.00 cm and slant height is 10.82 cm, its T.S.A is
  • (i)
    560.62 sq.cm
  • (ii)
    583.62 sq.cm
  • (iii)
    545.62 sq.cm
  • (iv)
    533.62 sq.cm
  • (v)
    568.62 sq.cm
Question 7
7.

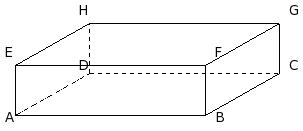

If the breadth, height and L.S.A of a cuboid are 7.00 cm, 10.00 cm and 520.00 sq.cm respectively, its T.S.A is
  • (i)
    779.00 sq.cm
  • (ii)
    804.00 sq.cm
  • (iii)
    803.00 sq.cm
  • (iv)
    786.00 sq.cm
  • (v)
    770.00 sq.cm
Question 8
8.

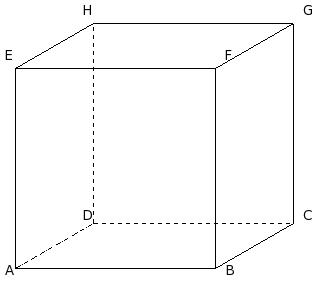

If the L.S.A of a cube is 1156.00 sq.cm, its side is
  • (i)
    20.00 cm
  • (ii)
    14.00 cm
  • (iii)
    17.00 cm
  • (iv)
    22.00 cm
  • (v)
    12.00 cm
Question 9
9.
If the base radius of a cone is 6.00 cm and vertical height is 6.00 cm, its base area is
  • (i)
    113.14 sq.cm
  • (ii)
    125.14 sq.cm
  • (iii)
    101.14 sq.cm
  • (iv)
    129.14 sq.cm
  • (v)
    86.14 sq.cm
Question 10
10.

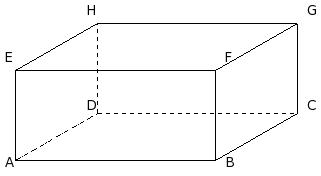

If the breadth, height and volume of a cuboid are 17.00 cm, 5.00 cm and 1615.00 cu.cm respectively, its L.S.A is
  • (i)
    360.00 sq.cm
  • (ii)
    376.00 sq.cm
  • (iii)
    382.00 sq.cm
  • (iv)
    348.00 sq.cm
  • (v)
    353.00 sq.cm
Question 11
11.
If the base radius of a cone is 9.00 cm and vertical height is 6.00 cm, its T.S.A is
  • (i)
    548.62 sq.cm
  • (ii)
    560.62 sq.cm
  • (iii)
    547.62 sq.cm
  • (iv)
    566.62 sq.cm
  • (v)
    577.62 sq.cm
Question 12
12.
If the vertical height of a cone is 5.00 cm and volume is 188.57 cu.cm, its base area is
  • (i)
    113.14 sq.cm
  • (ii)
    118.14 sq.cm
  • (iii)
    137.14 sq.cm
  • (iv)
    97.14 sq.cm
  • (v)
    96.14 sq.cm
Question 13
13.
If the base radius of a cone is 5.00 cm and L.S.A is 111.10 sq.cm, its volume is
  • (i)
    145.95 cu.cm
  • (ii)
    130.95 cu.cm
  • (iii)
    133.95 cu.cm
  • (iv)
    107.95 cu.cm
  • (v)
    128.95 cu.cm
Question 14
14.

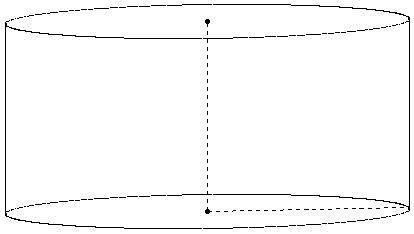

If the radius of a cylinder is 6.00 cm and height is 20.00 cm, its T.S.A is
  • (i)
    995.57 sq.cm
  • (ii)
    993.57 sq.cm
  • (iii)
    966.57 sq.cm
  • (iv)
    980.57 sq.cm
  • (v)
    954.57 sq.cm
Question 15
15.

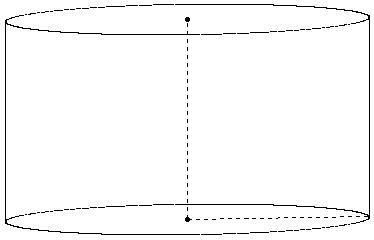

If the height of a cylinder is 20.00 cm and L.S.A is 2262.86 sq.cm, its radius is
  • (i)
    13.00 cm
  • (ii)
    18.00 cm
  • (iii)
    23.00 cm
  • (iv)
    15.00 cm
  • (v)
    21.00 cm
Question 16
16.
If the height of a cylinder is 14.00 cm and base area is 154.00 sq.cm, its L.S.A. is
  • (i)
    600.00 sq.cm
  • (ii)
    641.00 sq.cm
  • (iii)
    616.00 sq.cm
  • (iv)
    634.00 sq.cm
  • (v)
    592.00 sq.cm
Question 17
17.
If the vertical height of a cone is 5.00 cm and volume is 256.67 cu.cm, its L.S.A. is
  • (i)
    212.20 sq.cm
  • (ii)
    207.20 sq.cm
  • (iii)
    189.20 sq.cm
  • (iv)
    186.20 sq.cm
  • (v)
    173.20 sq.cm
Question 18
18.
If the base radius of a cone is 10.00 cm and slant height is 13.45 cm, its L.S.A. is
  • (i)
    440.71 sq.cm
  • (ii)
    418.71 sq.cm
  • (iii)
    422.71 sq.cm
  • (iv)
    425.71 sq.cm
  • (v)
    399.71 sq.cm
Question 19
19.
If the height of a cylinder is 5.00 cm and volume is 2262.86 cu.cm, its radius is
  • (i)
    17.00 cm
  • (ii)
    7.00 cm
  • (iii)
    9.00 cm
  • (iv)
    15.00 cm
  • (v)
    12.00 cm
Question 20
20.

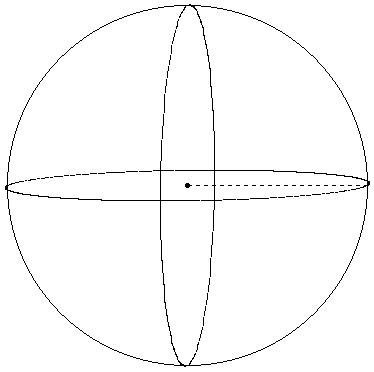

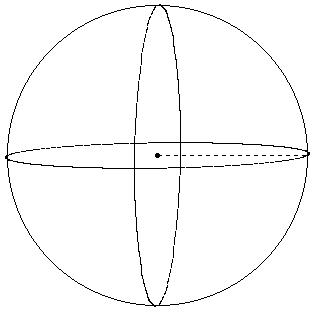

If the volume of a sphere is 7241.14 cu.cm, its L.S.A is
  • (i)
    1810.29 sq.cm
  • (ii)
    1640.29 sq.cm
  • (iii)
    1930.29 sq.cm
  • (iv)
    1690.29 sq.cm
  • (v)
    1980.29 sq.cm
Question 21
21.
If the height of a cylinder is 16.00 cm and L.S.A is 704.00 sq.cm, its volume is
  • (i)
    2464.00 cu.cm
  • (ii)
    2294.00 cu.cm
  • (iii)
    2434.00 cu.cm
  • (iv)
    2644.00 cu.cm
  • (v)
    2704.00 cu.cm
Question 22
22.
If the radius of a cylinder is 16.00 cm and volume is 4022.86 cu.cm, its height is
  • (i)
    4.00 cm
  • (ii)
    7.00 cm
  • (iii)
    3.00 cm
  • (iv)
    5.00 cm
  • (v)
    6.00 cm
Question 23
23.
If the base radius of a cone is 9.00 cm and volume is 763.71 cu.cm, its base area is
  • (i)
    254.57 sq.cm
  • (ii)
    238.57 sq.cm
  • (iii)
    281.57 sq.cm
  • (iv)
    236.57 sq.cm
  • (v)
    269.57 sq.cm
Question 24
24.

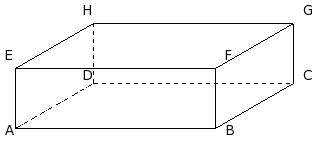

If the length, height and volume of a cuboid are 14.00 cm, 12.00 cm and 1344.00 cu.cm respectively, its L.S.A is
  • (i)
    543.00 sq.cm
  • (ii)
    531.00 sq.cm
  • (iii)
    511.00 sq.cm
  • (iv)
    510.00 sq.cm
  • (v)
    528.00 sq.cm
Question 25
25.
If the base radius of a cone is 5.00 cm and vertical height is 8.00 cm, its slant height is
  • (i)
    10.43 cm
  • (ii)
    9.43 cm
  • (iii)
    11.43 cm
  • (iv)
    8.43 cm
  • (v)
    7.43 cm
    Assignment Key

  •  1) (iv)
  •  2) (iii)
  •  3) (i)
  •  4) (ii)
  •  5) (iv)
  •  6) (i)
  •  7) (iv)
  •  8) (iii)
  •  9) (i)
  •  10) (i)
  •  11) (ii)
  •  12) (i)
  •  13) (ii)
  •  14) (iv)
  •  15) (ii)
  •  16) (iii)
  •  17) (iii)
  •  18) (iii)
  •  19) (v)
  •  20) (i)
  •  21) (i)
  •  22) (iv)
  •  23) (i)
  •  24) (v)
  •  25) (ii)
