EduSahara™ Worksheet
Name : Chapter Based Worksheet
Chapter : Venn Diagrams
Grade : ICSE Grade VIII
License : Non Commercial Use
Question 1
1.
Find n(A ∩ ∅)
  • (i)
    (-2)
  • (ii)
    0
  • (iii)
    1
  • (iv)
    (-1)
  • (v)
    3
Question 2
2.
Find B ∩ (C ∪ A)
  • (i)
    {-3,2,0,4,5}
  • (ii)
    {-3,2,10,0,4,5}
  • (iii)
    {-3,2,10,4}
  • (iv)
    {-3,2,0,4,-8}
  • (v)
    {-3,2,10,0,4}
Question 3
3.
Find n(A ∩ A)
  • (i)
    3
  • (ii)
    4
  • (iii)
    5
  • (iv)
    7
  • (v)
    2
Question 4
4.
Find (A ∩ B)'
  • (i)
    {-9,0,2,-5,-8,8,-6,4}
  • (ii)
    {-9,0,2,1,8,4,-8,-6}
  • (iii)
    {8,-6,2,-9,0,-8,-5,4,1}
  • (iv)
    {}
  • (v)
    {-8,-5,2,-9,8,1,0,-6}
Question 5
5.
Find n((C ∩ A) ∪ (C ∩ B))
  • (i)
    9
  • (ii)
    6
  • (iii)
    7
  • (iv)
    4
  • (v)
    5
Question 6
6.
In a class of 31 students, 25 students in 'Science', 12 students in 'Physics', 25 students in 'Social Studies', 10 students in 'Science' and 'Physics', 10 students in 'Physics' and 'Social Studies', 19 students in 'Social Studies' and 'Science', 8 students in all the three subjects could get first class marks. How many of them got first class marks in only 'Science'?
  • (i)
    5
  • (ii)
    4
  • (iii)
    3
  • (iv)
    1
  • (v)
    6
Question 7
7.
Find A ∪ B
  • (i)
    {7,5,-6,11,-8,6,8,1,-4,0,13,12,14}
  • (ii)
    {5,-6,11,-8,6,8,1,-4,0,13,12}
  • (iii)
    {7,5,-6,11,-8,6,8,1,-4,0,13,12}
  • (iv)
    {7,5,-6,11,-8,8,1,-4,0,13,12,14}
  • (v)
    {7,-6,11,-8,6,8,1,-4,0,13,12,4}
Question 8
8.

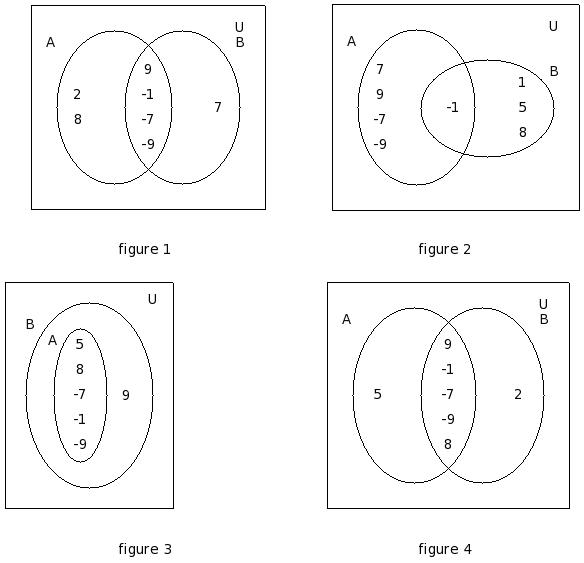

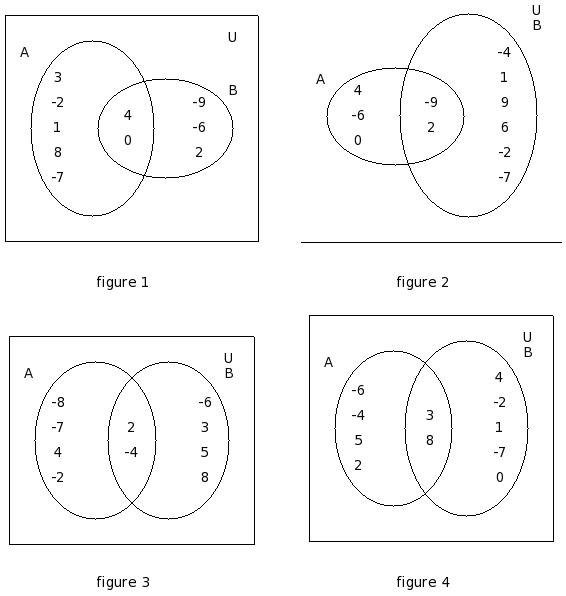

Which of the following diagrams represent 'A is subset of B'?
  • (i)
    figure 1
  • (ii)
    figure 3
  • (iii)
    figure 4
  • (iv)
    figure 2
Question 9
9.
Find A
  • (i)
    {-5,6,-9,3,-1,7}
  • (ii)
    {6,7,-1,3,-9,9}
  • (iii)
    {-9,-1,7,9,3,5,6,-5}
  • (iv)
    {3,7,-2,-9,6,9,-1}
  • (v)
    {7,3,9,-1,-9,-5,6}
Question 10
10.
Find (C − A) ∩ (C − B)
  • (i)
    {-3,-8}
  • (ii)
    {-3}
  • (iii)
    {-3,11}
  • (iv)
    {-3,-8,8}
  • (v)
    {-3,8}
Question 11
11.
Find n(A ∪ ∅)
  • (i)
    5
  • (ii)
    4
  • (iii)
    3
  • (iv)
    6
  • (v)
    1
Question 12
12.
In a class of 35 students, 25 students prefer 'By Foot', 6 students prefer 'Scooter', 12 students prefer 'School Bus', 4 students prefer 'By Foot' and 'Scooter', 5 students prefer 'Scooter' and 'School Bus', 8 students prefer 'School Bus' and 'By Foot', 3 students prefer all the three modes of transport. How many of them prefer more than one mode of transport?
  • (i)
    14
  • (ii)
    10
  • (iii)
    9
  • (iv)
    12
  • (v)
    11
Question 13
13.
Find A ∩ B ∩ C
  • (i)
    {}
  • (ii)
    {-8}
  • (iii)
    {-7}
  • (iv)
    {-7,-2}
  • (v)
    {-2}
Question 14
14.
Find (C − A) ∪ (C − B)
  • (i)
    {3,10,12}
  • (ii)
    {3,0,12,-1}
  • (iii)
    {3,0,10,12,-1}
  • (iv)
    {3,0,12,9}
  • (v)
    {3,0,10,12}
Question 15
15.
Find A' ∪ B'
  • (i)
    {3,-8,-2,-9,1,-6,5,-5,2,-1,-7}
  • (ii)
    {-5,-2,2,5,-6,-9,1,-8,-1,9,-7}
  • (iii)
    {}
  • (iv)
    {-7,-8,-2,9,5,1,-9,-1,-5,2,3,-6}
Question 16
16.
Find B
  • (i)
    {14,-2,-4,-6,13,3,2,5,15}
  • (ii)
    {14,-2,-4,-6,13,3,2,10,5}
  • (iii)
    {-2,-4,-6,13,3,2,10,5}
  • (iv)
    {14,-2,-4,-6,13,3,2,10,5,15}
  • (v)
    {14,-2,-4,-6,13,3,2,10,-3}
Question 17
17.
In a class of 18 students, each one likes either 'shotput' or 'wrestling' or both. If 13 students like 'shotput' and 12 students like 'wrestling', how many like 'shotput' only?
  • (i)
    6
  • (ii)
    5
  • (iii)
    3
  • (iv)
    7
  • (v)
    8
Question 18
18.
Find n((A − B) ∪ (A − C))
  • (i)
    13
  • (ii)
    7
  • (iii)
    11
  • (iv)
    10
  • (v)
    9
Question 19
19.
Find n(B ∪ C)
  • (i)
    10
  • (ii)
    14
  • (iii)
    11
  • (iv)
    8
  • (v)
    12
Question 20
20.
Find n(( (A − B) ∪ (B − A) )')
  • (i)
    5
  • (ii)
    7
  • (iii)
    1
  • (iv)
    4
  • (v)
    3
Question 21
21.
Find n((B ∩ C) ∪ (B ∩ A))
  • (i)
    7
  • (ii)
    3
  • (iii)
    6
  • (iv)
    4
  • (v)
    5
Question 22
22.
Find A'
  • (i)
    {9,1,-2,-4,-9,4,-5,12,6,10,0,2,14,5,-1,11,-8}
  • (ii)
    {9,1,-2,-4,-9,-5,12,6,10,0,2,14,5,-1,11,-7}
  • (iii)
    {9,1,-2,-4,-9,4,-5,12,6,10,0,2,14,5,-1,11}
  • (iv)
    {9,1,-2,-4,-9,4,-5,12,6,10,0,2,14,-1,11}
  • (v)
    {9,1,-2,-4,-9,4,-5,12,6,10,2,14,5,-1,11,-8}
Question 23
23.
Find A − (B ∪ C)
  • (i)
    {10,4,12}
  • (ii)
    {10,4,12,1}
  • (iii)
    {4,12,1}
  • (iv)
    {10,4,-3}
  • (v)
    {10,4}
Question 24
24.
In a class of 33 students, each one likes either 'Community work' or 'Listening music' or both. If 14 students like 'Community work' and 32 students like 'Listening music', how many like 'Community work' only?
  • (i)
    3
  • (ii)
    1
  • (iii)
    2
  • (iv)
    (-1)
  • (v)
    0
Question 25
25.
Find n(B − (C ∪ A))
  • (i)
    5
  • (ii)
    6
  • (iii)
    3
  • (iv)
    9
  • (v)
    7
    Assignment Key

  •  1) (ii)
  •  2) (v)
  •  3) (ii)
  •  4) (iii)
  •  5) (ii)
  •  6) (ii)
  •  7) (iii)
  •  8) (ii)
  •  9) (v)
  •  10) (i)
  •  11) (ii)
  •  12) (v)
  •  13) (iii)
  •  14) (v)
  •  15) (iv)
  •  16) (ii)
  •  17) (i)
  •  18) (iv)
  •  19) (iii)
  •  20) (iv)
  •  21) (v)
  •  22) (iii)
  •  23) (i)
  •  24) (ii)
  •  25) (ii)
