EduSahara™ Worksheet
Name : Chapter Based Worksheet
Chapter : Perimeter and Area of Plane Figures
Grade : ICSE Grade IX
License : Non Commercial Use
Question 1
1.
In trapezium ABCD, if area is 155.09 sq.cm and lengths of the parallel sides are AB = 18.00 cm and CD = 8.00 cm, then distance between the parallel sides AB and CD =
  • (i)
    6.93 cm
  • (ii)
    16.93 cm
  • (iii)
    11.93 cm
  • (iv)
    8.93 cm
  • (v)
    14.93 cm
Question 2
2.
In the given figure, find the area of the shaded region
  • (i)
    115.00 sq.cm
  • (ii)
    130.00 sq.cm
  • (iii)
    116.00 sq.cm
  • (iv)
    148.00 sq.cm
  • (v)
    132.00 sq.cm
Question 3
3.
In △PQR, if QR = 11 cm, RP = 15 cm, PQ = 14 cm, then area of the triangle =
  • (i)
    73.48 sq.cm
  • (ii)
    70.48 sq.cm
  • (iii)
    78.48 sq.cm
  • (iv)
    76.48 sq.cm
  • (v)
    68.48 sq.cm
Question 4
4.
In a right angled triangle △PQR, if QR = 10 cm, PQ = 17 cm are the lengths of perpendicular sides , then area of the triangle =
  • (i)
    85.00 sq.cm
  • (ii)
    80.00 sq.cm
  • (iii)
    82.00 sq.cm
  • (iv)
    88.00 sq.cm
  • (v)
    90.00 sq.cm
Question 5
5.
In a right angled triangle △PQR, if QR = 13 cm is one of the perpendicular sides and RP = 21.4 cm is the hypotenuse, then area of the triangle =
  • (i)
    125.50 sq.cm
  • (ii)
    127.50 sq.cm
  • (iii)
    96.50 sq.cm
  • (iv)
    110.50 sq.cm
Question 6
6.
In the given figure, ABCD is a square of side 15.00 cm and A, B, C, D are the centres of circular arcs, each of radius 7.50 cm. Find the area of the shaded region
  • (i)
    43.21 sq.cm
  • (ii)
    45.21 sq.cm
  • (iii)
    53.21 sq.cm
  • (iv)
    48.21 sq.cm
  • (v)
    51.21 sq.cm
Question 7
7.
If area of the circle is 113.14 sq.cm, the perimeter of the semicircle is
  • (i)
    35.86 cm
  • (ii)
    27.86 cm
  • (iii)
    33.86 cm
  • (iv)
    30.86 cm
  • (v)
    25.86 cm
Question 8
8.
In the given figure, a circle is inscribed touching the sides of an equilateral triangle of side 24 cm. Find the area of the shaded region
  • (i)
    95.56 sq.cm
  • (ii)
    98.56 sq.cm
  • (iii)
    103.56 sq.cm
  • (iv)
    93.56 sq.cm
  • (v)
    101.56 sq.cm
Question 9
9.

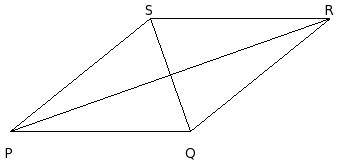

In rhombus PQRS, if diagonals QS = 12.00 cm and PR = 33.94 cm, the area of the rhombus =
  • (i)
    203.64 sq.cm
  • (ii)
    197.64 sq.cm
  • (iii)
    215.64 sq.cm
  • (iv)
    180.64 sq.cm
  • (v)
    211.64 sq.cm
Question 10
10.
In an isosceles right angled triangle △PQR, if corresponding height to the base QR is 12 cm, then perimeter of the triangle =
  • (i)
    40.97 cm
  • (ii)
    43.97 cm
  • (iii)
    35.97 cm
  • (iv)
    37.97 cm
  • (v)
    45.97 cm
Question 11
11.
If the area and diagonal of a rectangle are 255.00 sq.cm and 22.67 cm respectively, the perimeter of the rectangle =
  • (i)
    69.00 cm
  • (ii)
    59.00 cm
  • (iii)
    67.00 cm
  • (iv)
    61.00 cm
  • (v)
    64.00 cm
Question 12
12.
If the inner and outer radii of a ring are 7.00 cm and 10.00 cm respectively, the area of the ring is
  • (i)
    177.29 sq.cm
  • (ii)
    160.29 sq.cm
  • (iii)
    146.29 sq.cm
  • (iv)
    134.29 sq.cm
  • (v)
    178.29 sq.cm
Question 13
13.
In quadrilateral PQRS, if area is 183.20 sq.cm, height of vertex P to the diagonal QS is 9.92 cm, and height of vertex R to the diagonal QS is 12.98 cm, then diagonal QS =
  • (i)
    21.00 cm
  • (ii)
    13.00 cm
  • (iii)
    19.00 cm
  • (iv)
    11.00 cm
  • (v)
    16.00 cm
Question 14
14.
In the given figure, the triangle inside the square is an isosceles triangle. Find the area of the shaded region
  • (i)
    144.50 sq.cm
  • (ii)
    117.50 sq.cm
  • (iii)
    162.50 sq.cm
  • (iv)
    129.50 sq.cm
Question 15
15.
If the outer length, inner breadth and area of the outer rectangle of a rectangular path are 9.20 cm, 6.00 cm and 66.24 sq.cm respectively, the area of the rectangular path =
  • (i)
    18.24 sq.cm
  • (ii)
    21.24 sq.cm
  • (iii)
    15.24 sq.cm
  • (iv)
    13.24 sq.cm
  • (v)
    23.24 sq.cm
Question 16
16.
In △PQR, if QR = 20 cm, RP = 18 cm and the corresponding height of side QR = 12.98 cm, then perimeter of the triangle =
  • (i)
    56.00 cm
  • (ii)
    50.00 cm
  • (iii)
    58.00 cm
  • (iv)
    53.00 cm
  • (v)
    48.00 cm
Question 17
17.
If the inner length, inner breadth, outer length and outer breadth of a rectangular path are 10.00 cm, 9.00 cm, 15.40 cm and 14.40 cm respectively, the area of the rectangular path =
  • (i)
    116.76 sq.cm
  • (ii)
    149.76 sq.cm
  • (iii)
    131.76 sq.cm
  • (iv)
    145.76 sq.cm
  • (v)
    129.76 sq.cm
Question 18
18.
If the length and breadth of a rectangle are 18.00 cm and 12.00 cm respectively, the perimeter of the rectangle =
  • (i)
    55.00 cm
  • (ii)
    65.00 cm
  • (iii)
    63.00 cm
  • (iv)
    60.00 cm
  • (v)
    57.00 cm
Question 19
19.
In quadrilateral PQRS, if diagonal QS = 11.00 cm, height of vertex P to the diagonal QS is 11.86 cm and area is 128.92 sq.cm, then height of the vertex R to the diagonal QS is
  • (i)
    14.58 cm
  • (ii)
    6.58 cm
  • (iii)
    11.58 cm
  • (iv)
    8.58 cm
  • (v)
    16.58 cm
Question 20
20.
If the outer length, outer breadth and width of a rectangular path are 13.20 cm, 11.20 cm and 1.60 cm respectively, the area of the rectangular path =
  • (i)
    64.84 sq.cm
  • (ii)
    72.84 sq.cm
  • (iii)
    70.84 sq.cm
  • (iv)
    67.84 sq.cm
  • (v)
    62.84 sq.cm
Question 21
21.
In the given figure, arcs of two concentric circles of radii 15.00 cm and 6.00 cm are drawn with center O. If ∠COD = 70°, find the area of the shaded region
  • (i)
    117.50 sq.cm
  • (ii)
    115.50 sq.cm
  • (iii)
    129.50 sq.cm
  • (iv)
    88.50 sq.cm
  • (v)
    103.50 sq.cm
Question 22
22.
In an isosceles triangle △ABC, if base BC = 17 cm and area is 105.05 sq.cm, then perimeter of the triangle =
  • (i)
    42.00 cm
  • (ii)
    47.00 cm
  • (iii)
    44.00 cm
  • (iv)
    52.00 cm
  • (v)
    50.00 cm
Question 23
23.
If area of an equilateral triangle is 125.14 sq.cm, the side of the equilateral triangle =
  • (i)
    20.00 cm
  • (ii)
    12.00 cm
  • (iii)
    17.00 cm
  • (iv)
    14.00 cm
  • (v)
    22.00 cm
Question 24
24.
In an isosceles right angled triangle △PQR, if QR = 16 cm is one of the equal sides, then area of the triangle =
  • (i)
    111.00 sq.cm
  • (ii)
    144.00 sq.cm
  • (iii)
    132.00 sq.cm
  • (iv)
    128.00 sq.cm
Question 25
25.
If the side of a square is 18.00 cm, the area of the square =
  • (i)
    321.00 sq.cm
  • (ii)
    349.00 sq.cm
  • (iii)
    301.00 sq.cm
  • (iv)
    324.00 sq.cm
  • (v)
    342.00 sq.cm
    Assignment Key

  •  1) (iii)
  •  2) (ii)
  •  3) (i)
  •  4) (i)
  •  5) (iv)
  •  6) (iv)
  •  7) (iv)
  •  8) (ii)
  •  9) (i)
  •  10) (i)
  •  11) (v)
  •  12) (ii)
  •  13) (v)
  •  14) (i)
  •  15) (i)
  •  16) (iv)
  •  17) (iii)
  •  18) (iv)
  •  19) (iii)
  •  20) (iv)
  •  21) (ii)
  •  22) (ii)
  •  23) (iii)
  •  24) (iv)
  •  25) (iv)
