EduSahara™ Worksheet
Name : Chapter Based Worksheet
Chapter : Congruency of Triangles
Grade : SSC Grade VII
License : Non Commercial Use
Question
1
1.

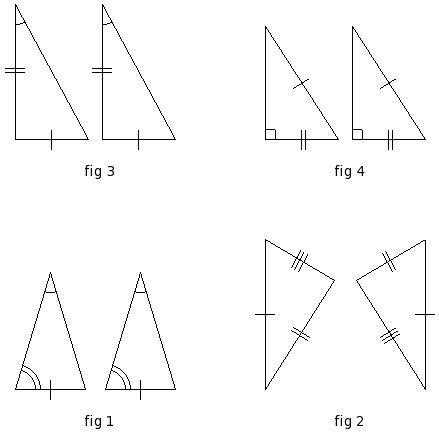

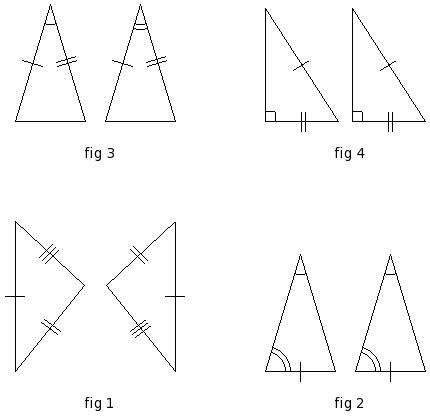

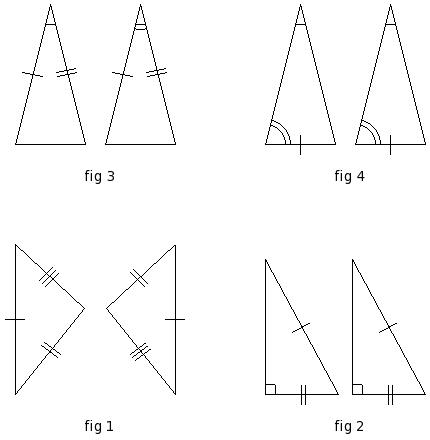

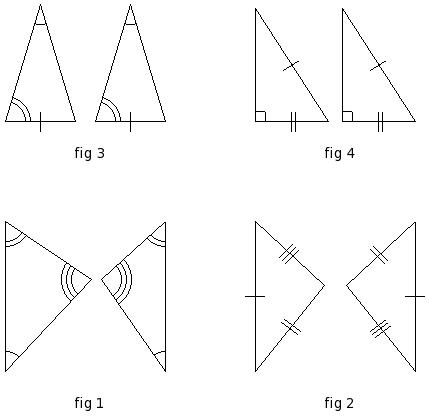

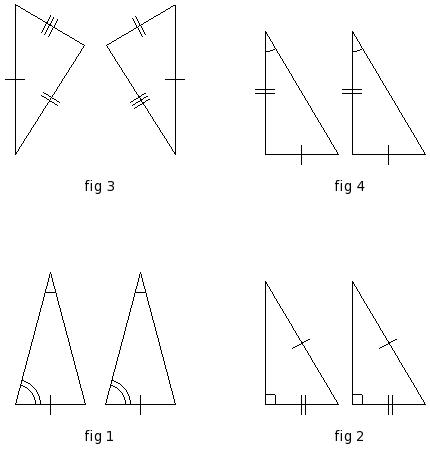

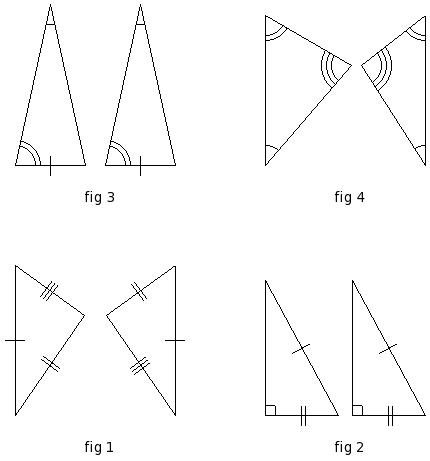

In the given figure, which pair of triangles are not congruent ?
(i)
fig 1
(ii)
fig 2
(iii)
fig 4
(iv)
fig 3
Question
2
2.

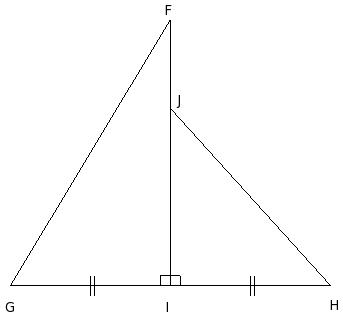

With the data in the figure, △FIG ≅ △FIH by which property?
(i)
SSS Congruency
(ii)
RHS Congruency
(iii)
SAS Congruency
(iv)
not congruent
(v)
ASA Congruency
Question
3
3.
In the given figure, △KLM is an obtuse angled triangle. △KLN ≅ △MLN by which property?
(i)
RHS Congruency
(ii)
not congruent
(iii)
SSS Congruency
(iv)
ASA Congruency
(v)
SAS Congruency
Question
4
4.
With the data in the figure, △DEG ≅ △EDF by which property?
(i)
SAS Congruency
(ii)
not congruent
(iii)
SSS Congruency
(iv)
ASA Congruency
(v)
RHS Congruency
Question
5
5.
With the data in the figure, △NQO ≅ △OPN by which property?
(i)
SAS Congruency
(ii)
RHS Congruency
(iii)
not congruent
(iv)
ASA Congruency
(v)
SSS Congruency
Question
6
6.
In the given figure, which of the following is true?
(i)
△CFE ≅ △DEC
(ii)
△CEF ≅ △ECD
(iii)
△CEF ≅ △CED
(iv)
△CFE ≅ △CDE
(v)
△CEF ≅ △CDE
Question
7
7.
With the given data in the figure, △BCD ≅ △DEB by which property?
(i)
ASA Congruency
(ii)
SAS Congruency
(iii)
RHS Congruency
(iv)
not congruent
(v)
SSS Congruency
Question
8
8.

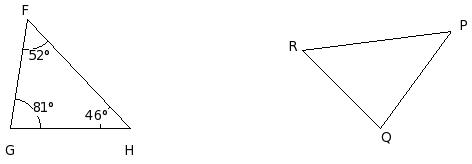

In the given figure, △FGH ≅ △RQP. Which of the following are true?
a)
∠Q = 46°
b)
∠Q = 81°
c)
∠P = 52°
d)
∠R = 52°
e)
∠R = 81°
f)
∠P = 46°
(i)
{b,d,f}
(ii)
{c,b,d}
(iii)
{e,a,f}
(iv)
{a,b}
(v)
{c,d}
Question
9
9.
With the data in the figure, △LOM ≅ △NOM by which property?
(i)
SSS Congruency
(ii)
SAS Congruency
(iii)
RHS Congruency
(iv)
ASA Congruency
(v)
not congruent
Question
10
10.
With the data in the figure, △GIJ ≅ △GIH by which property?
(i)
SAS Congruency
(ii)
ASA Congruency
(iii)
RHS Congruency
(iv)
SSS Congruency
(v)
not congruent
Question
11
11.
With the data in the figure, △AOB ≅ △DOC by which property?
(i)
ASA Congruency
(ii)
SAS Congruency
(iii)
not congruent
(iv)
SSS Congruency
(v)
RHS Congruency
Question
12
12.
With the data in the given figure, △PKL ≅ △OLK by which property?
(i)
not congruent
(ii)
RHS Congruency
(iii)
SAS Congruency
(iv)
ASA Congruency
(v)
SSS Congruency
Question
13
13.
With the given data in the figure, △VJK ≅ △UKJ by which property?
(i)
not congruent
(ii)
SAS Congruency
(iii)
RHS Congruency
(iv)
ASA Congruency
(v)
SSS Congruency
Question
14
14.

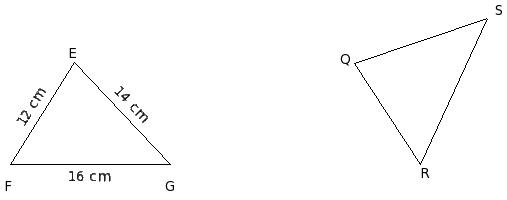

In the given figure, △EFG ≅ △QRS. Which of the following are true?
a)
RS = 12 cm
b)
QR = 12 cm
c)
QR = 16 cm
d)
SQ = 12 cm
e)
SQ = 14 cm
f)
RS = 16 cm
(i)
{d,a,f}
(ii)
{c,b,e}
(iii)
{a,b}
(iv)
{b,e,f}
(v)
{c,e}
Question
15
15.
In the given figure, points D , E and F are the mid-points of sides BC, CA and AB of △ABC. Which of the following are true?
a)
△AFE ≅ △EDC
b)
△AFE ≅ △DFE
c)
△FBD ≅ △DEF
d)
△AFE ≅ △DEF
e)
△FBD ≅ △AFE
(i)
{b,d}
(ii)
{b,e,a}
(iii)
{b,c}
(iv)
{a,c,d,e}
(v)
{b,a}
Question
16
16.

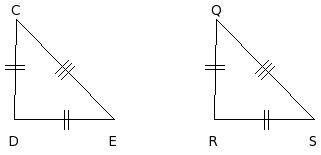

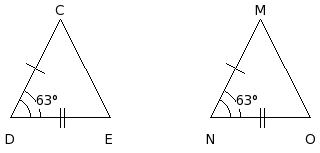

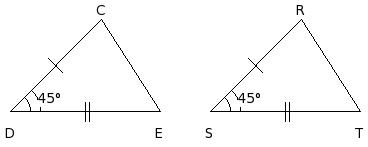

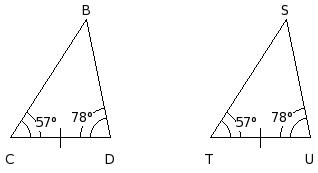

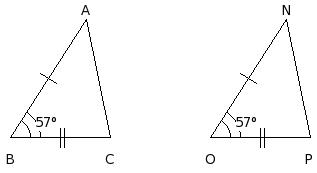

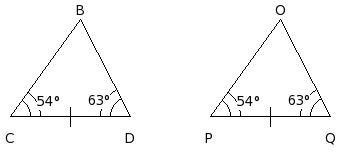

Identify the property by which the two given triangles are congruent
(i)
RHS Congruency
(ii)
SAS Congruency
(iii)
SSS Congruency
(iv)
ASA Congruency
Question
17
17.

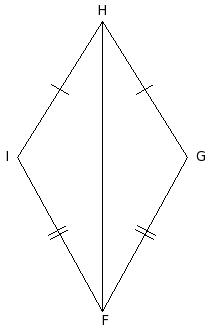

With the data in the given figure, △FIH ≅ △FGH by which property?
(i)
SSS Congruency
(ii)
not congruent
(iii)
RHS Congruency
(iv)
SAS Congruency
(v)
ASA Congruency
Question
18
18.
With the data in the figure, △DOE ≅ △FOG by which property?
(i)
RHS Congruency
(ii)
not congruent
(iii)
SSS Congruency
(iv)
SAS Congruency
(v)
ASA Congruency
Question
19
19.
With the data in the given figure, △OPR ≅ △POQ by which property?
(i)
SAS Congruency
(ii)
SSS Congruency
(iii)
RHS Congruency
(iv)
not congruent
(v)
ASA Congruency
Question
20
20.
With the data in the given figure, △OHG ≅ △OFE by which property?
(i)
not congruent
(ii)
SAS Congruency
(iii)
RHS Congruency
(iv)
ASA Congruency
(v)
SSS Congruency
Question
21
21.

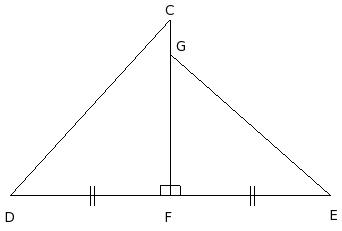

In the given figure, △FDE is an isosceles triangle. CG ⟂ DE passing through F. △CFD ≅ △CFE by which property?
(i)
SAS Congruency
(ii)
SSS Congruency
(iii)
RHS Congruency
(iv)
not congruent
(v)
ASA Congruency
Question
22
22.
With the data in the given figure, △ILO ≅ △JKO by which property?
(i)
SSS Congruency
(ii)
SAS Congruency
(iii)
ASA Congruency
(iv)
RHS Congruency
(v)
not congruent
Question
23
23.

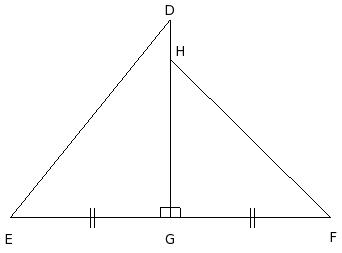

With the data in the figure, △DEG ≅ △HFG by which property?
(i)
RHS Congruency
(ii)
not congruent
(iii)
SAS Congruency
(iv)
ASA Congruency
(v)
SSS Congruency
Question
24
24.
With the data in the given figure, △NOQ ≅ △POQ by which property?
(i)
not congruent
(ii)
SAS Congruency
(iii)
ASA Congruency
(iv)
RHS Congruency
(v)
SSS Congruency
Question
25
25.

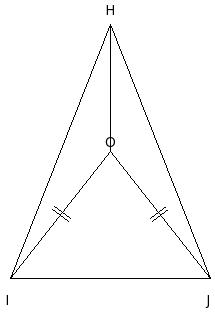

With the data in the given figure, △HOI ≅ △HOJ by which property?
(i)
SAS Congruency
(ii)
SSS Congruency
(iii)
ASA Congruency
(iv)
RHS Congruency
(v)
not congruent
Assignment Key
1) (i)
2) (iv)
3) (iii)
4) (ii)
5) (iii)
6) (ii)
7) (i)
8) (i)
9) (v)
10) (v)
11) (iii)
12) (ii)
13) (iii)
14) (iv)
15) (iv)
16) (iv)
17) (i)
18) (ii)
19) (iv)
20) (iv)
21) (i)
22) (ii)
23) (ii)
24) (i)
25) (v)
