EduSahara™ Worksheet
Name : Chapter Based Worksheet
Chapter : Understanding 3D and 2D Shapes
Grade : SSC Grade VII
License : Non Commercial Use
Question
1
1.

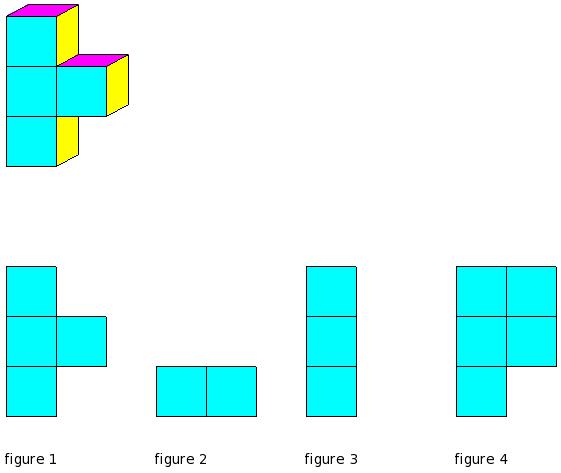

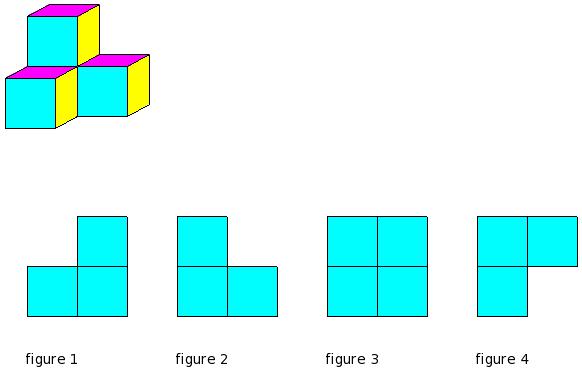

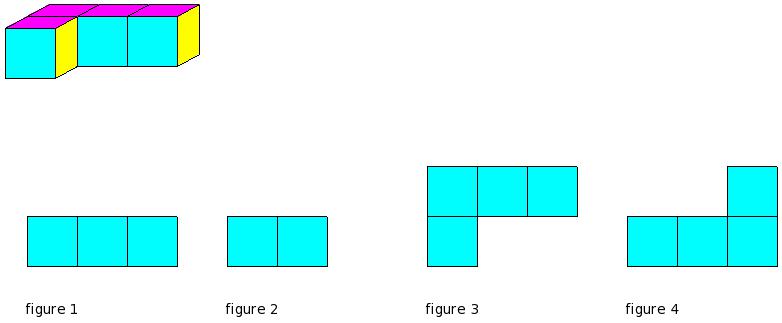

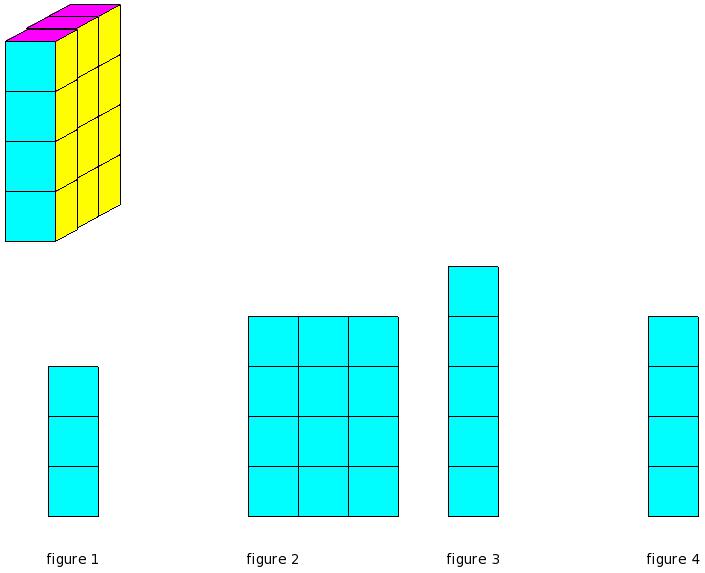

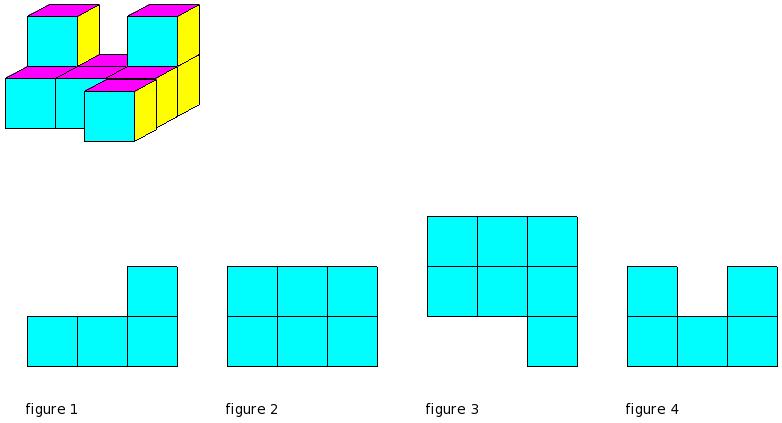

Which of the figures represent the side view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 3
(iv)
figure 2
Question
2
2.

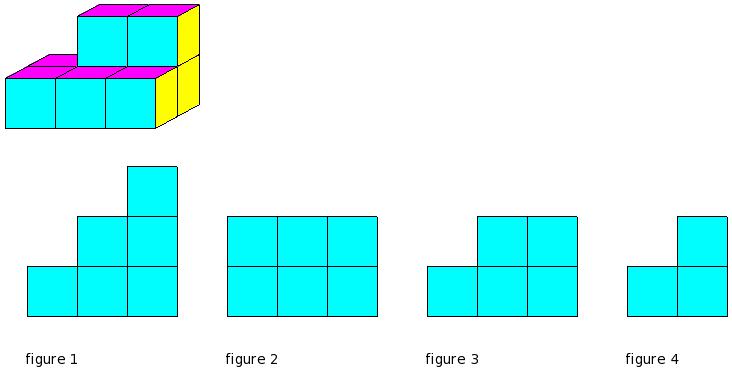

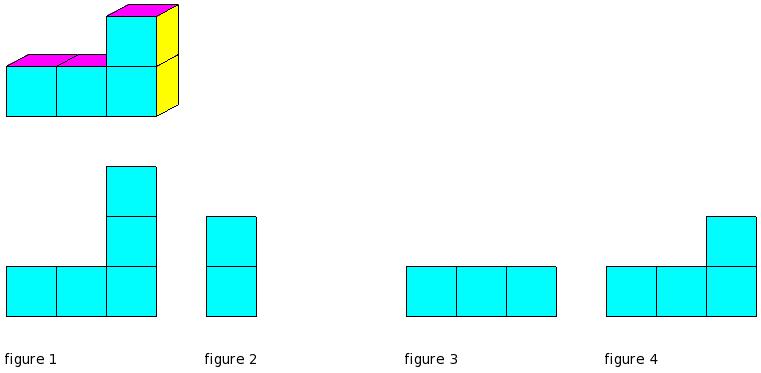

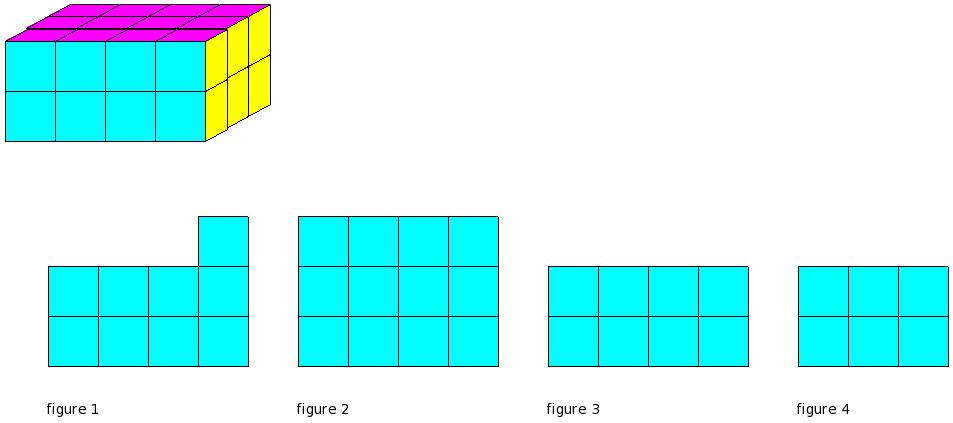

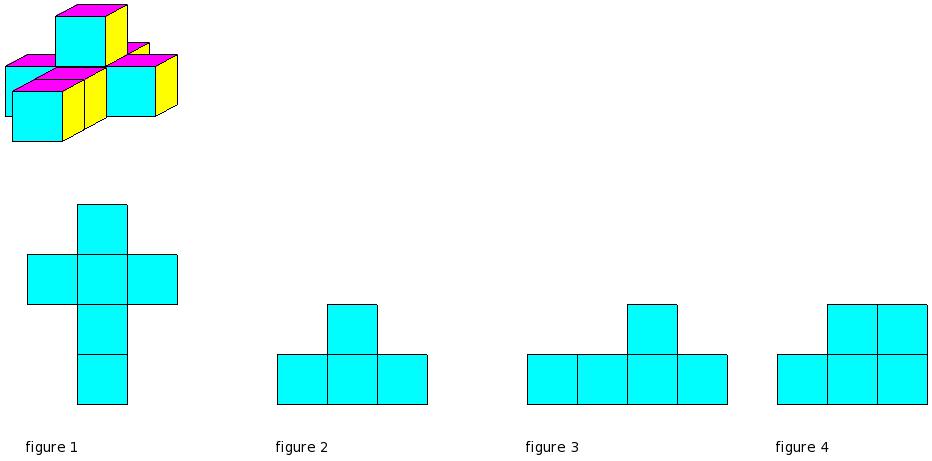

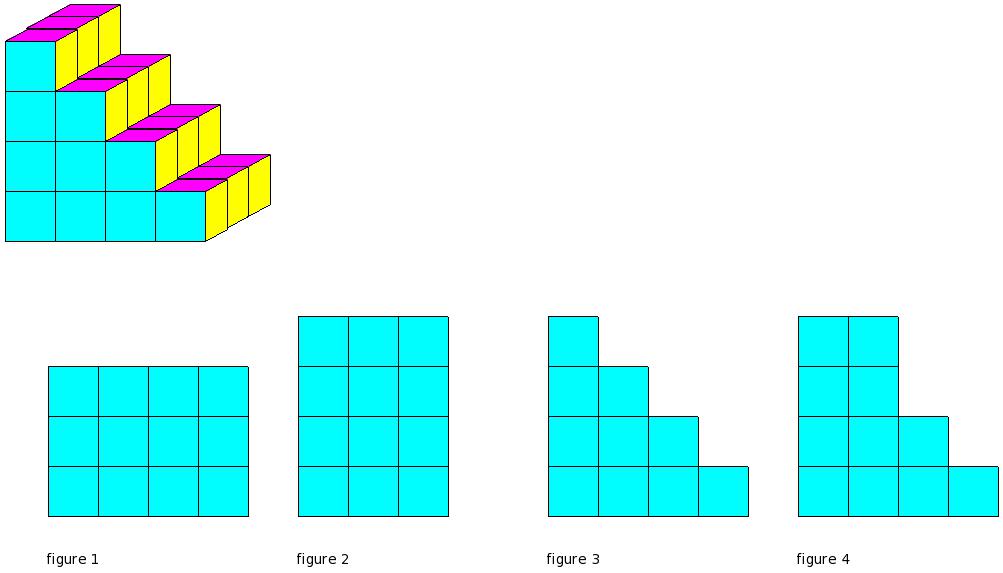

Which of the figures represent the front view of the given 3-D figure?
(i)
figure 1
(ii)
figure 2
(iii)
figure 3
(iv)
figure 4
Question
3
3.
The number of edges in a cube/cuboid are
(i)
10
(ii)
12
(iii)
15
(iv)
11
(v)
13
Question
4
4.

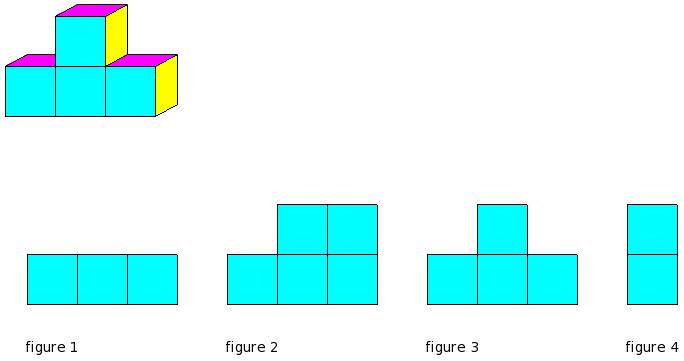

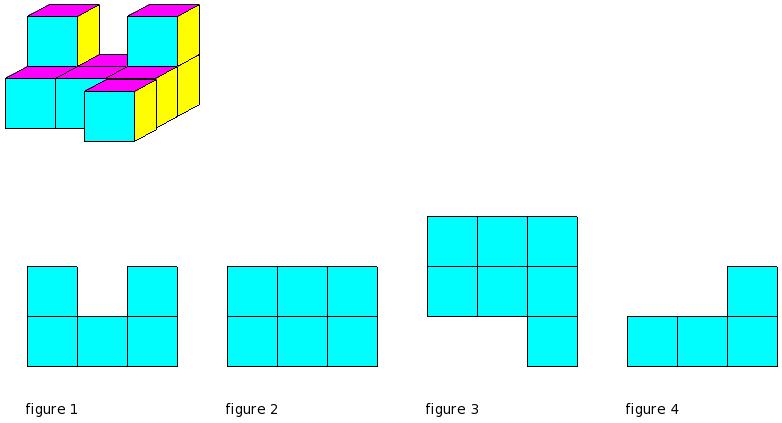

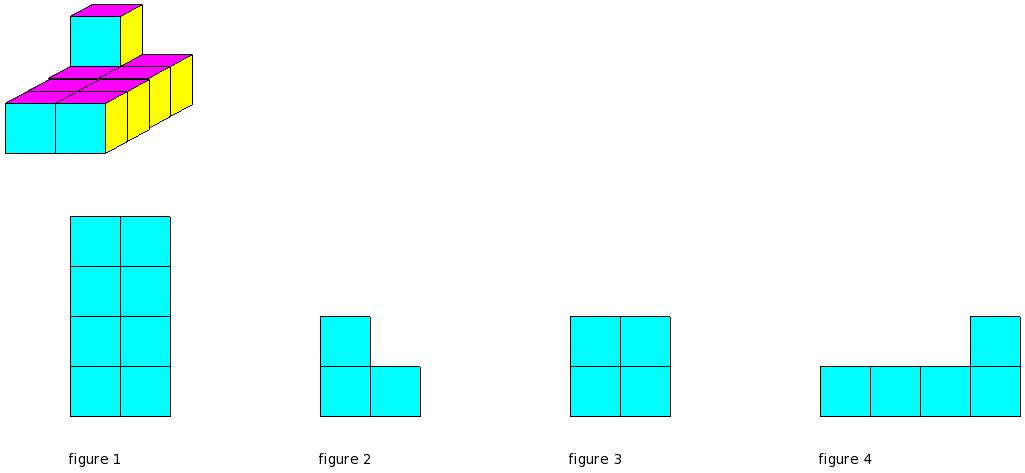

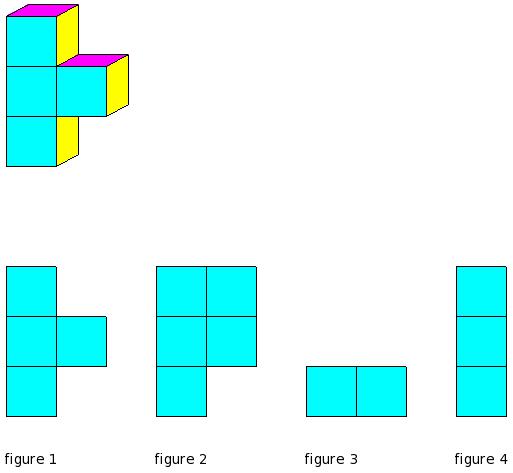

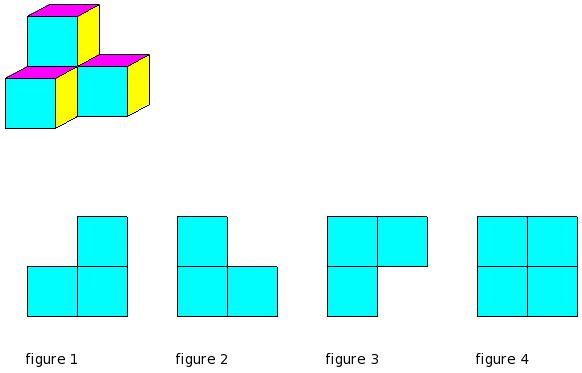

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 1
(iv)
figure 4
Question
5
5.

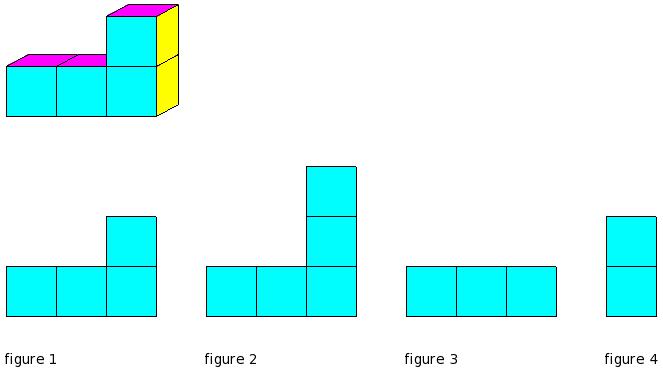

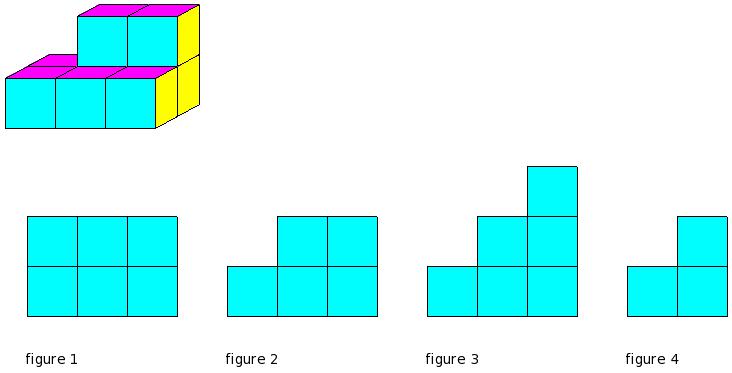

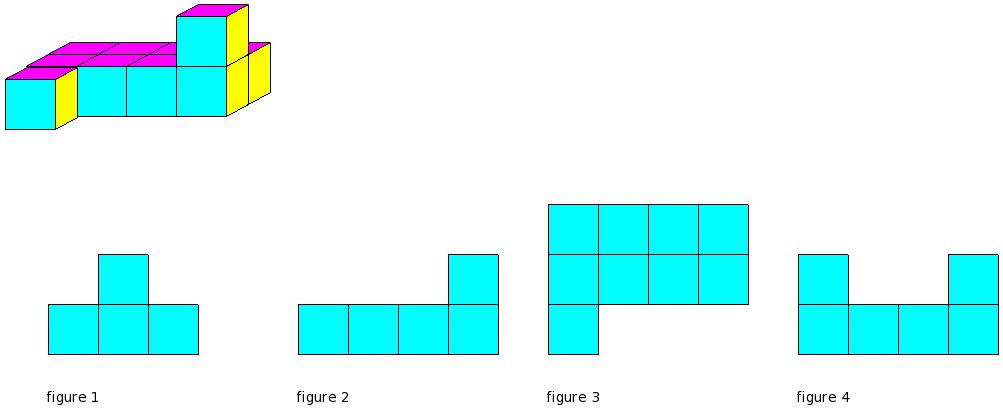

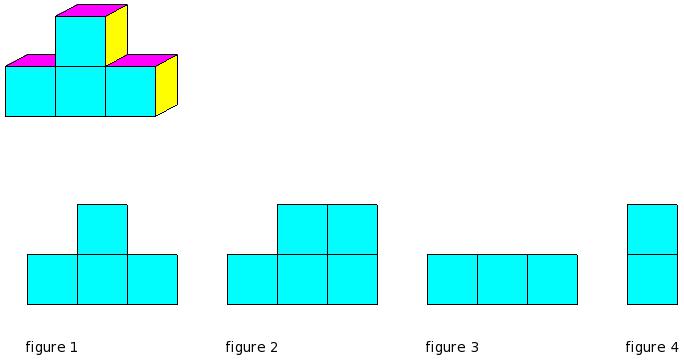

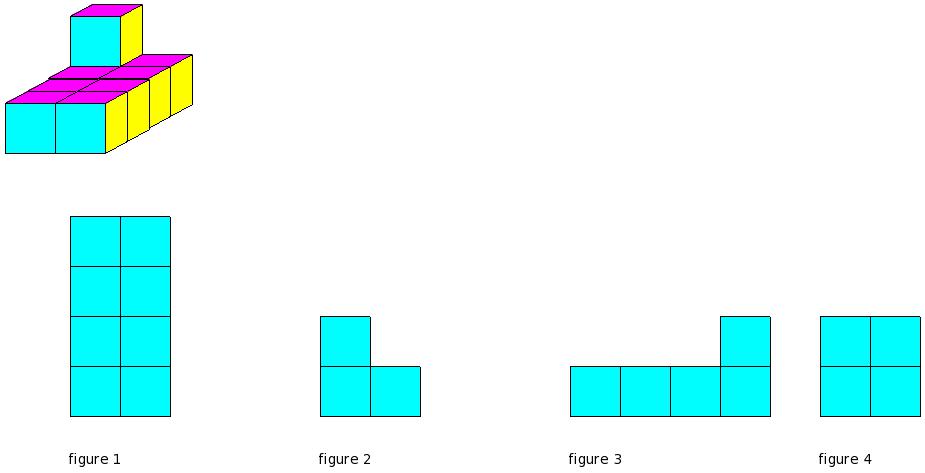

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 1
(ii)
figure 2
(iii)
figure 3
(iv)
figure 4
Question
6
6.

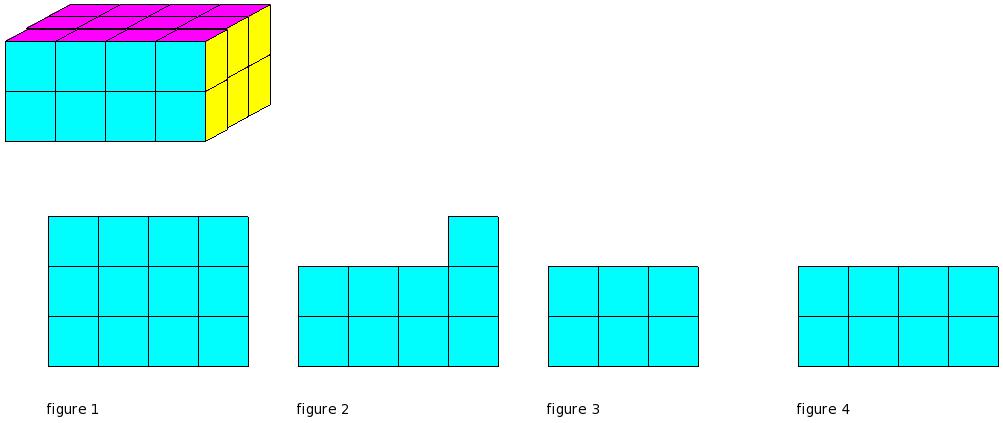

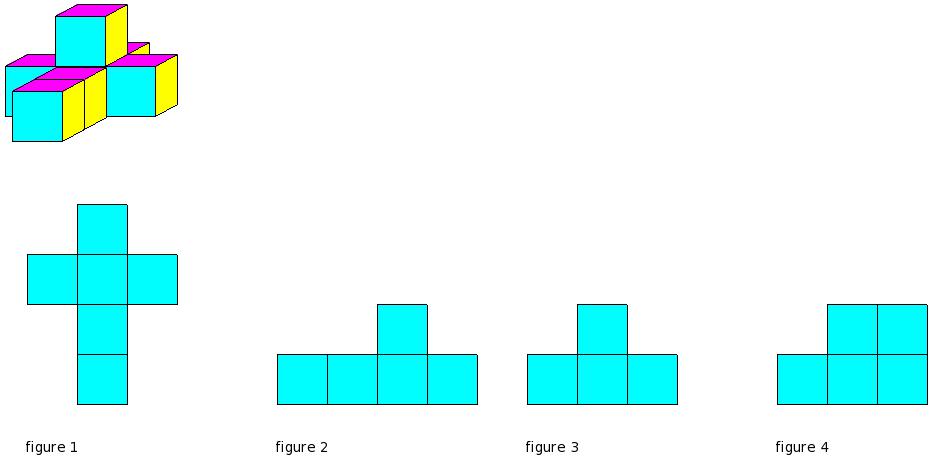

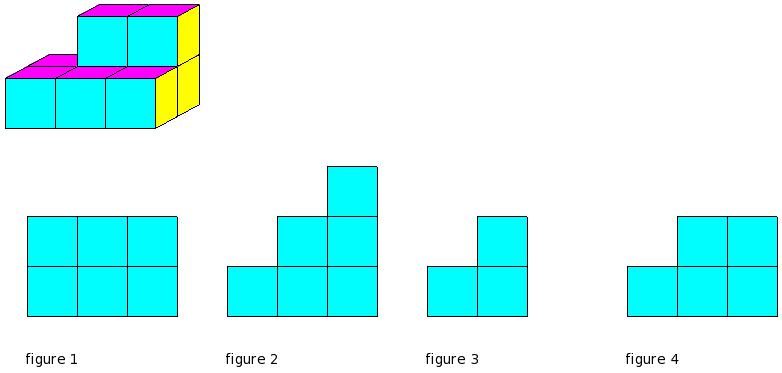

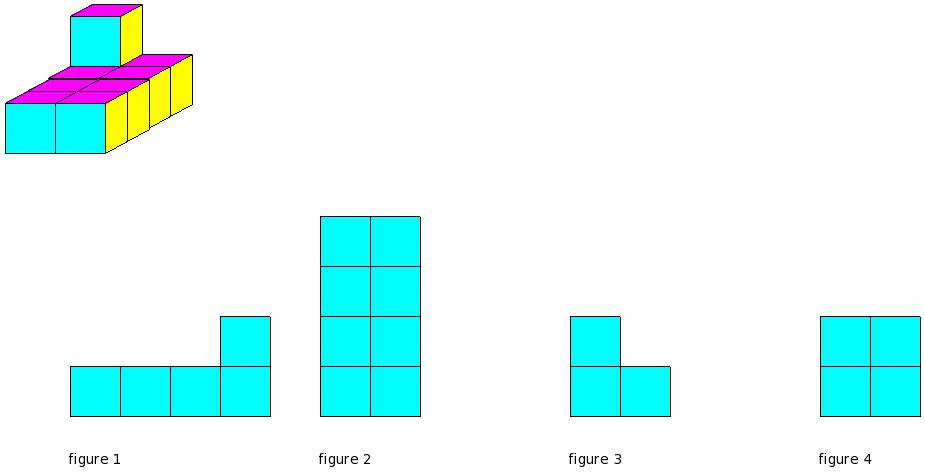

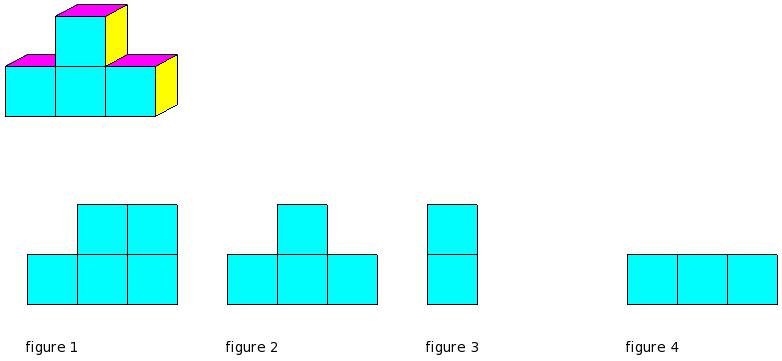

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 4
(iv)
figure 1
Question
7
7.

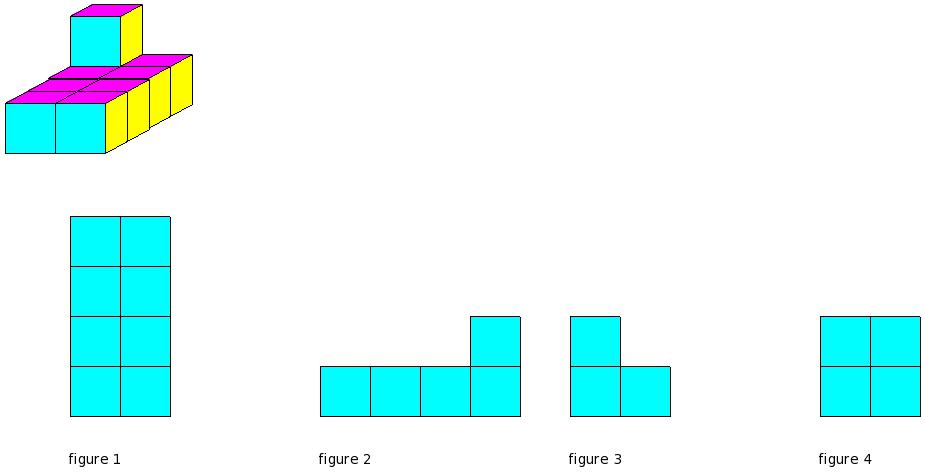

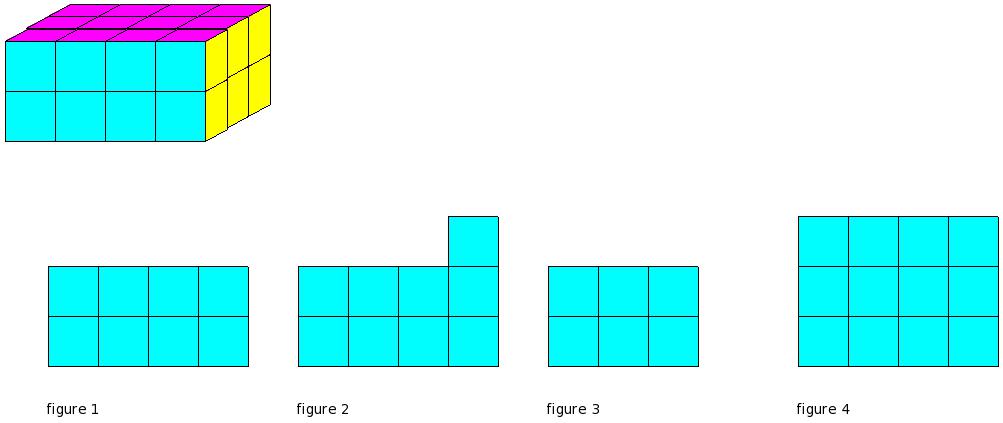

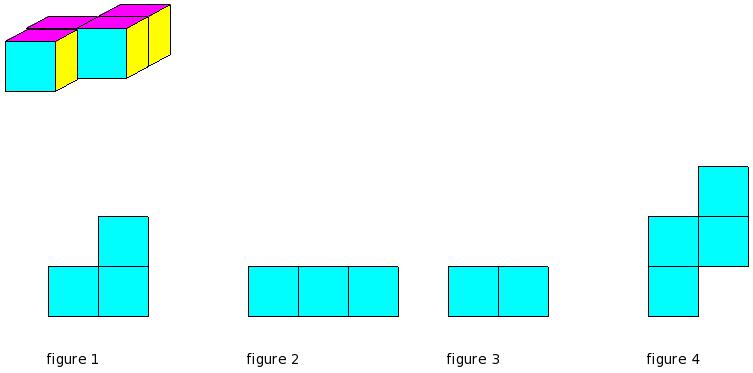

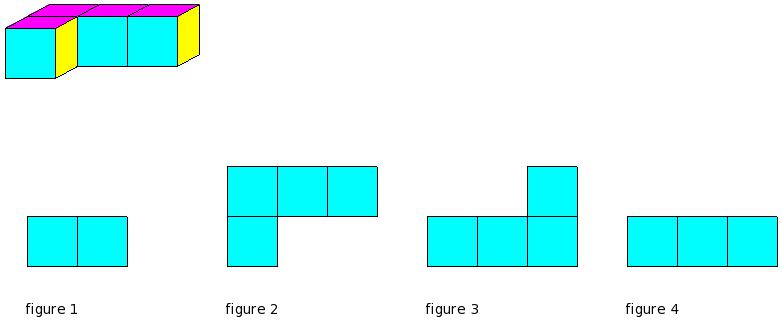

Which of the figures represent the side view of the given 3-D figure?
(i)
figure 1
(ii)
figure 4
(iii)
figure 3
(iv)
figure 2
Question
8
8.

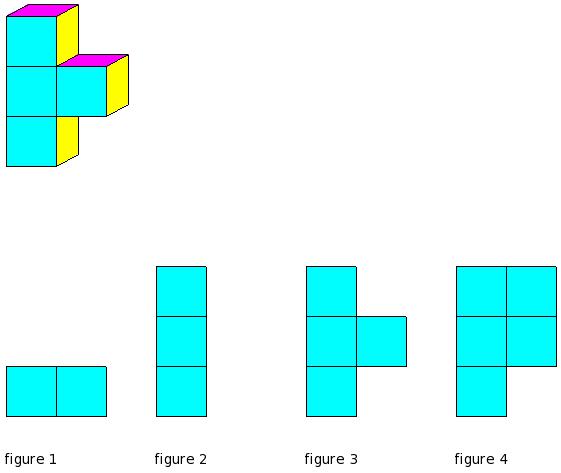

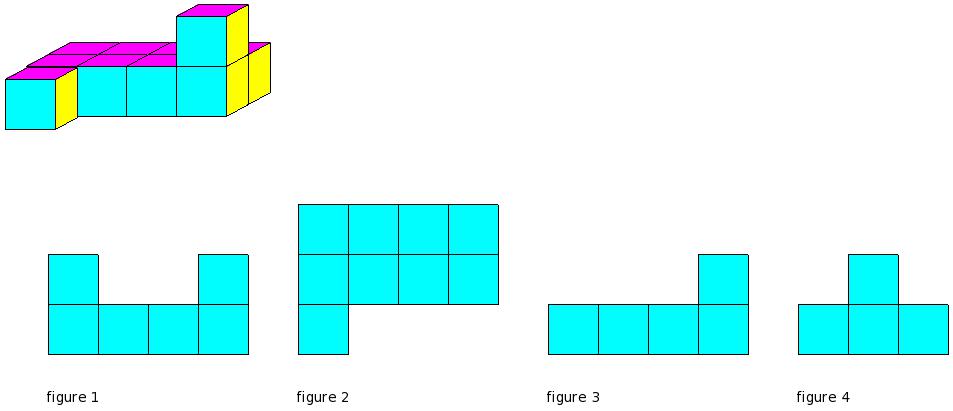

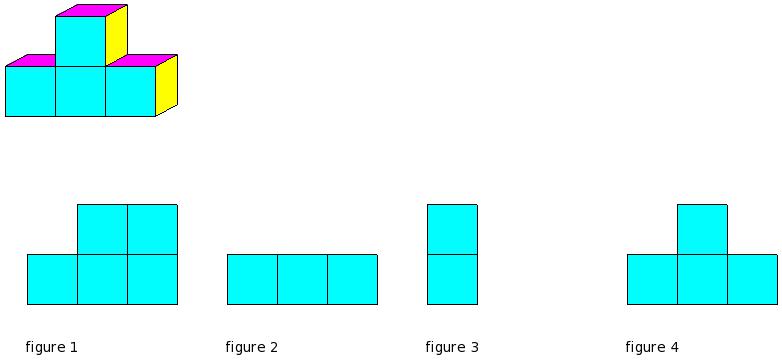

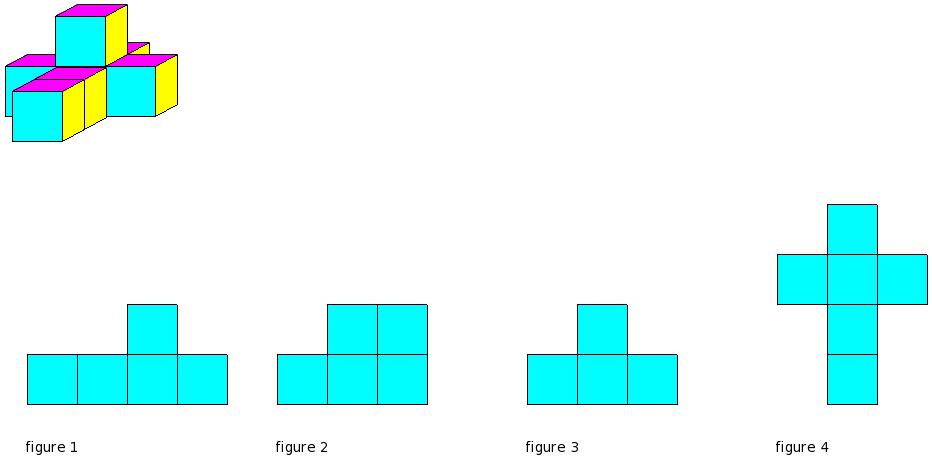

Which of the figures represent the top view of the given 3-D figure?
(i)
figure 2
(ii)
figure 1
(iii)
figure 3
(iv)
figure 4
Question
9
9.

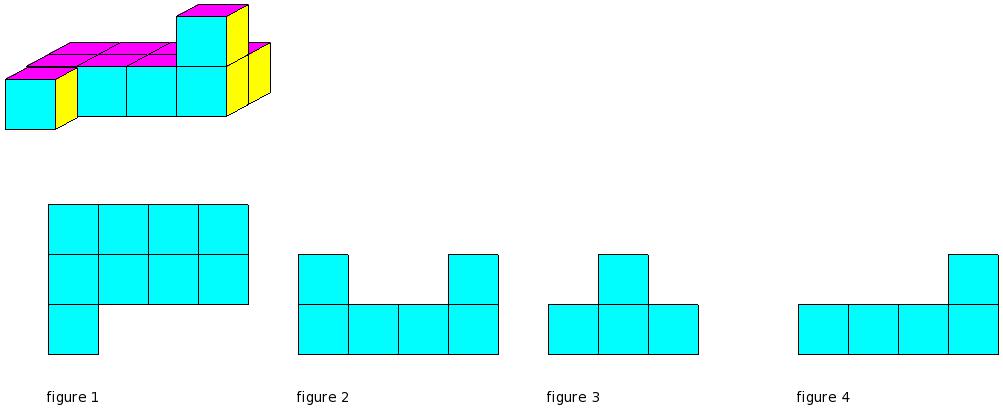

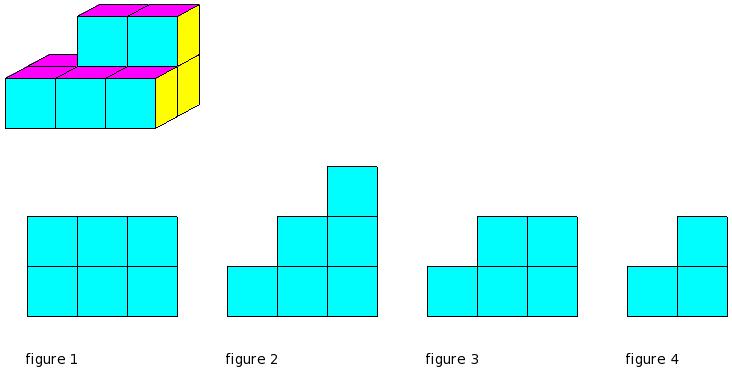

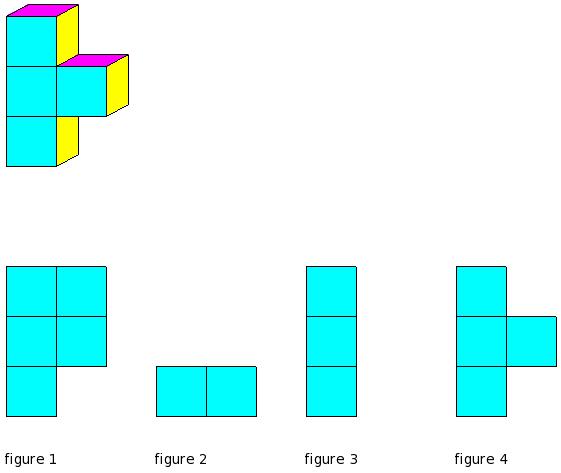

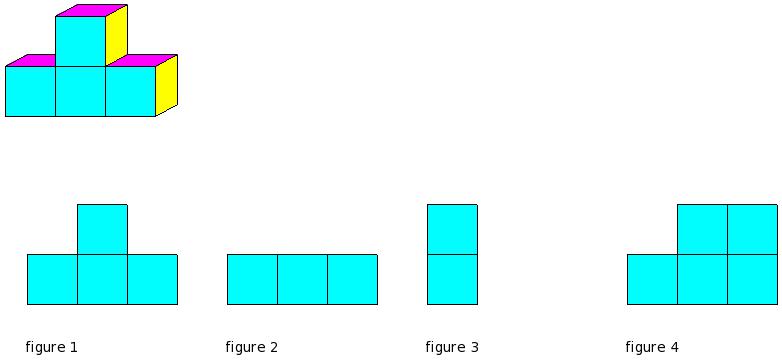

Which of the figures represent the front view of the given 3-D figure?
(i)
figure 3
(ii)
figure 4
(iii)
figure 1
(iv)
figure 2
Question
10
10.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 2
(ii)
figure 4
(iii)
figure 1
(iv)
figure 3
Question
11
11.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 3
(ii)
figure 4
(iii)
figure 1
(iv)
figure 2
Question
12
12.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 4
(ii)
figure 2
(iii)
figure 3
(iv)
figure 1
Question
13
13.
Identify the figure below
(i)
cube
(ii)
triangular prism
(iii)
cone
(iv)
cuboid
(v)
cylinder
Question
14
14.
Identify the figure below
(i)
cone
(ii)
cube
(iii)
sphere
(iv)
triangular prism
(v)
cuboid
Question
15
15.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 1
(ii)
figure 2
(iii)
figure 4
(iv)
figure 3
Question
16
16.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 4
(ii)
figure 2
(iii)
figure 1
(iv)
figure 3
Question
17
17.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 4
(ii)
figure 3
(iii)
figure 1
(iv)
figure 2
Question
18
18.
The number of edges in a triangular prism are
(i)
11
(ii)
10
(iii)
8
(iv)
6
(v)
9
Question
19
19.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 1
(ii)
figure 4
(iii)
figure 2
(iv)
figure 3
Question
20
20.
The number of vertices in a square pyramid are
(i)
8
(ii)
4
(iii)
5
(iv)
2
(v)
6
Question
21
21.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 4
(ii)
figure 1
(iii)
figure 2
(iv)
figure 3
Question
22
22.
Which of the figures represent the front view of the given 3-D figure?
(i)
figure 3
(ii)
figure 2
(iii)
figure 1
(iv)
figure 4
Question
23
23.
Which of the figures represent the top view of the given 3-D figure?
(i)
figure 1
(ii)
figure 3
(iii)
figure 2
(iv)
figure 4
Question
24
24.
Which of the figures represent the side view of the given 3-D figure?
(i)
figure 2
(ii)
figure 3
(iii)
figure 1
(iv)
figure 4
Question
25
25.
The number of faces in a cube/cuboid are
(i)
8
(ii)
6
(iii)
5
(iv)
4
(v)
7
Assignment Key
1) (i)
2) (iv)
3) (ii)
4) (i)
5) (iv)
6) (iii)
7) (i)
8) (iii)
9) (i)
10) (i)
11) (iii)
12) (i)
13) (iii)
14) (v)
15) (ii)
16) (iv)
17) (ii)
18) (v)
19) (ii)
20) (iii)
21) (iv)
22) (iv)
23) (i)
24) (ii)
25) (ii)
