EduSahara™ Worksheet
Name : Chapter Based Worksheet
Chapter : Triangles
Grade : SSC Grade IX
License : Non Commercial Use
Question
1
1.
In kite
JKLM
,
JL
and
KM
are diagonals. Then
△NKJ
≅
(i)
△MKJ
(ii)
△NLM
(iii)
△MKL
(iv)
△NMJ
(v)
△NLK
Question
2
2.
With the data in the figure, △BOC ≅ △DOE by which property?
(i)
SSS Congruency
(ii)
SAS Congruency
(iii)
ASA Congruency
(iv)
not congruent
(v)
RHS Congruency
Question
3
3.
With the data in the given figure, △EOF ≅ △EOG by which property?
(i)
not congruent
(ii)
ASA Congruency
(iii)
SAS Congruency
(iv)
RHS Congruency
(v)
SSS Congruency
Question
4
4.
In the given figure, △EFG is an obtuse angled triangle. △EFH ≅ △GFH by which property?
(i)
not congruent
(ii)
ASA Congruency
(iii)
RHS Congruency
(iv)
SSS Congruency
(v)
SAS Congruency
Question
5
5.

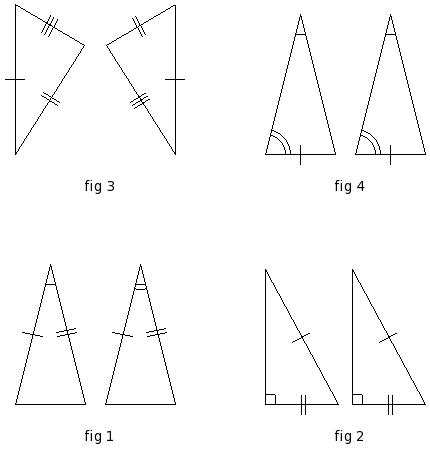

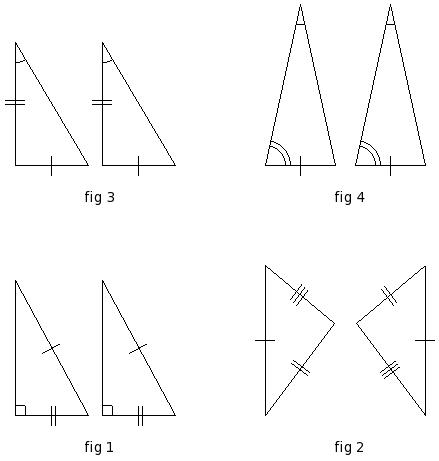

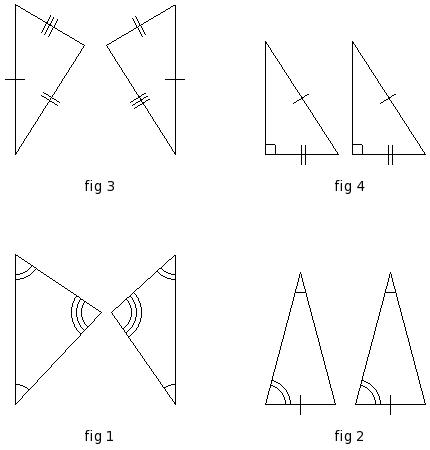

In the given figure, which pair of triangles are not congruent ?
(i)
fig 3
(ii)
fig 4
(iii)
fig 1
(iv)
fig 2
Question
6
6.
With the data in the figure, △BEC ≅ △BED by which property?
(i)
RHS Congruency
(ii)
ASA Congruency
(iii)
not congruent
(iv)
SSS Congruency
(v)
SAS Congruency
Question
7
7.
With the data in the given figure, △BED ≅ △BCD by which property?
(i)
RHS Congruency
(ii)
SSS Congruency
(iii)
not congruent
(iv)
ASA Congruency
(v)
SAS Congruency
Question
8
8.
With the data in the given figure, △OPS ≅ △OQR by which property?
(i)
not congruent
(ii)
ASA Congruency
(iii)
SSS Congruency
(iv)
SAS Congruency
(v)
RHS Congruency
Question
9
9.
With the data in the given figure, △JKM ≅ △JLN by which property?
(i)
ASA Congruency
(ii)
RHS Congruency
(iii)
SSS Congruency
(iv)
SAS Congruency
(v)
not congruent
Question
10
10.
In the given figure, which pair of triangles are not congruent ?
(i)
fig 3
(ii)
fig 2
(iii)
fig 4
(iv)
fig 1
Question
11
11.
In parallelogram
ABCD
,
diagonals
BD
and
AC
intersect at
E
. Then
△DAB
≅
(i)
△BCD
(ii)
△CDA
(iii)
△ABE
(iv)
△ABC
(v)
△CDE
Question
12
12.
With the data in the figure, △EHF ≅ △FGE by which property?
(i)
SSS Congruency
(ii)
SAS Congruency
(iii)
ASA Congruency
(iv)
RHS Congruency
(v)
not congruent
Question
13
13.
Which of the following are true?
a)
Any two triangles are similar.
b)
Any two circles are congruent.
c)
Any two squares are similar.
d)
Any two circles are similar.
e)
Any two triangles are congruent.
f)
Any two squares are congruent.
(i)
{e,f,c}
(ii)
{b,d}
(iii)
{c,d}
(iv)
{a,c}
(v)
{a,d,c}
Question
14
14.
Which of the following are true?
a)
Congruent figures have same area.
b)
Similar and congruent are not synonymous.
c)
Similar figures have same area.
d)
If two figures are similar, then they are congruent too.
e)
If two figures are congruent, then they are similar too.
(i)
{c,a}
(ii)
{c,d,e}
(iii)
{c,a,b}
(iv)
{d,b}
(v)
{a,b,e}
Question
15
15.
With the data in the given figure, △CFO ≅ △DEO by which property?
(i)
RHS Congruency
(ii)
SAS Congruency
(iii)
SSS Congruency
(iv)
not congruent
(v)
ASA Congruency
Question
16
16.
In rhombus
PQRS
, diagonals
PR
and
QS
intersect at
T
. Then
△TPS
≇
(i)
△TRS
(ii)
△TRQ
(iii)
△SPQ
(iv)
△TPQ
Question
17
17.
With the given data in the figure, △THI ≅ △SIH by which property?
(i)
RHS Congruency
(ii)
SAS Congruency
(iii)
ASA Congruency
(iv)
not congruent
(v)
SSS Congruency
Question
18
18.
With the data in the figure, △CDF ≅ △DCE by which property?
(i)
ASA Congruency
(ii)
RHS Congruency
(iii)
not congruent
(iv)
SSS Congruency
(v)
SAS Congruency
Question
19
19.
In parallelogram
GHIJ
,
diagonals
HJ
and
GI
intersect at
K
. Then
△GHI
≅
(i)
△IJK
(ii)
△JGH
(iii)
△HIJ
(iv)
△IJG
(v)
△GHK
Question
20
20.
With the data in the figure, △CEF ≅ △CED by which property?
(i)
SAS Congruency
(ii)
ASA Congruency
(iii)
SSS Congruency
(iv)
RHS Congruency
(v)
not congruent
Question
21
21.
With the given data in the figure, △GHI ≅ △JIH by which property?
(i)
SSS Congruency
(ii)
RHS Congruency
(iii)
ASA Congruency
(iv)
SAS Congruency
(v)
not congruent
Question
22
22.
In the given figure, points O , P and Q are the mid-points of sides MN, NL and LM of △LMN. Which of the following are true?
a)
△QMO ≅ △LQP
b)
△LQP ≅ △OQP
c)
△LQP ≅ △OPQ
d)
△QMO ≅ △OPQ
e)
△LQP ≅ △PON
(i)
{b,a}
(ii)
{b,e,a}
(iii)
{a,c,d,e}
(iv)
{b,d}
(v)
{b,c}
Question
23
23.
With the data in the figure, △BEC ≅ △BED by which property?
(i)
SAS Congruency
(ii)
SSS Congruency
(iii)
not congruent
(iv)
RHS Congruency
(v)
ASA Congruency
Question
24
24.
In kite
ABCD
,
AC
and
BD
are diagonals. Then
△ECD
≅
(i)
△EBA
(ii)
△DBA
(iii)
△DBC
(iv)
△ECB
(v)
△EDA
Question
25
25.
With the data in the given figure, △CDF ≅ △CEF by which property?
(i)
SSS Congruency
(ii)
ASA Congruency
(iii)
SAS Congruency
(iv)
RHS Congruency
(v)
not congruent
Assignment Key
1) (iv)
2) (iv)
3) (i)
4) (iv)
5) (ii)
6) (iii)
7) (ii)
8) (v)
9) (i)
10) (ii)
11) (i)
12) (v)
13) (iii)
14) (v)
15) (ii)
16) (iii)
17) (i)
18) (iii)
19) (iv)
20) (v)
21) (iv)
22) (iii)
23) (iii)
24) (iv)
25) (iv)
